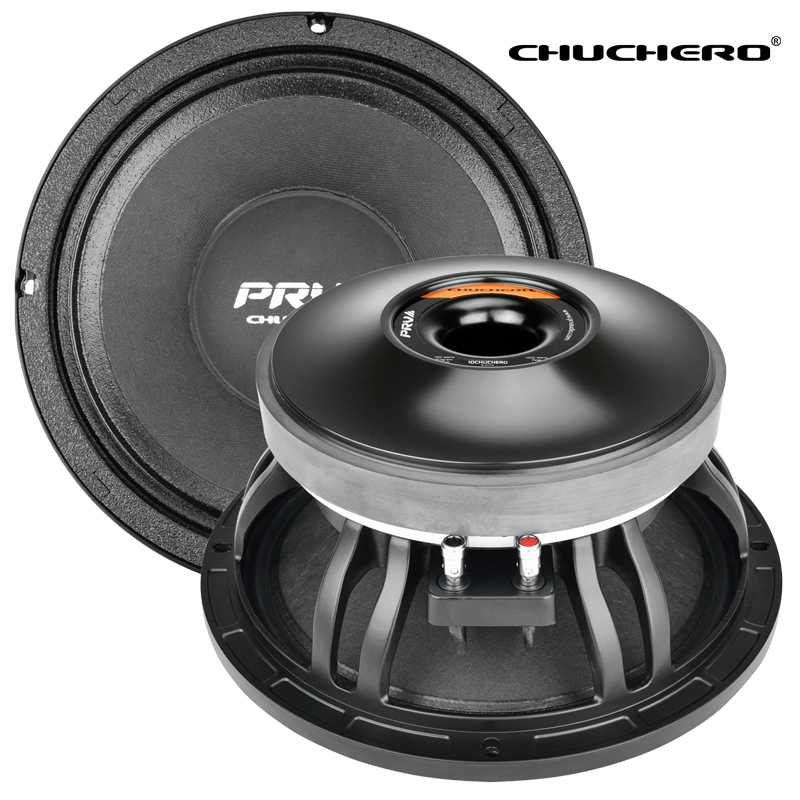

10CHUCHERO
-
- 10″ Midrange – 8 Ohm
- Ferrite Magnet
- 98.5 dB – 700 Watts
This product is discontinued
and no longer available.
Features
Features
From the PRV Audio’s Chuchero® Series, the 10Chuchero 10″ midrange is an excellent choice for any compact enclosure where high vocal output reinforcement is needed. Known for its exceptional sensitivity over the middle frequency band this midrange will be right at home in any automotive, Chuchero or professional high SPL System.
A twelve-spoke, cast-aluminum frame adds structural integrity and comes with a naturally damped paper/glass fiber cone and cloth half-roll surround resonances are kept under control making for an easy transition to a high frequency driver. In addition, features a 3″ inside/outside CCAW voice coil on a glass fiber former with extensive venting ensuring high power handling for extended periods. Handling up to 350 watts RMS and with 98.5 dB sensitivity.
Highlights
- Nominal Impedance: 8 Ohms
- Rated AES Power Handling (RMS): 350 Watts
- Program Power: 700 Watts
- Sensitivity (1W/1m): 98.5 dB
- Voice Coil Diameter: 3″
Technical Details
GENERAL SPECIFICATIONS
Nominal Diameter | 10″ (254 mm) |
Nominal impedance | 8 Ohms |
Rated AES Power Handling (RMS) | 350 Watts |
Program Power | 700 Watts |
Sensitivity 2.83V at 1m | 98.5 dB |
Recommended Hi Pass Crossover** **For Full Power Handling |
160 Hz** **12db Per Octave Crossover |
Frequency Response at -10dB | 125 – 6,000 Hz |
Voice Coil Diameter | 3″ (75 mm) |
Voice Coil Wire | CCAW |
Voice Coil Winding Depth | 10.0 mm |
Former Material | Glass Fiber |
Magnetic Gap Depth | 10.0 mm |
Frame Material | Die Cast Aluminum |
THIELE-SMALL PARAMETERS
Equivalent Volume | Vas | 10.16 l |
Excursion (mathematical)*** | Xmax | 2.5 mm |
Free Air Resonance | Fs | 111.2 Hz |
Mechanical Factor | Qms | 12.54 |
Electrical Factor | Qes | 0.758 |
Total Factor | Qts | 0.55 |
Cone Area | Sd | 346 cm² |
Mechanical Mass | Mms | 33.71 g |
Bl Factor | Bl | 15.24 Tm |
Dc Resistance | Re | 5.7 Ohms |
Inductance | Le | 0.54 mH at 1 kHz |
Mechanical Mass Without Air | Mmd | 30.06 g |
Mechanical Compliance | Cms | 0.060 mm/N |
***Xmax=(Voice coil winding depth-Magnetic Gap depth)/2+ Mgnetic Gap Depth/4
EXTRA INFO
Overall Diameter | 10.27” (261 mm) |
Front Mount Baffle Cutout | 9.09” ( 231 mm) |
Mounting Depth | 4.60” (116.7 mm) |
Overall Depth | 5.10” (129.5 mm) |
Net Weight | 15.65 Lbs (7.10 kg) |
Shipping Weight | 16.80 Lbs (7.62 kg) |
Carton Dimensions W x L x H | 11.42” x 11.42” x 5.90” (290 x 290 x 150 mm) |
Repair Parts
Recone Kit for 10CHUCHERO Loudspeaker
