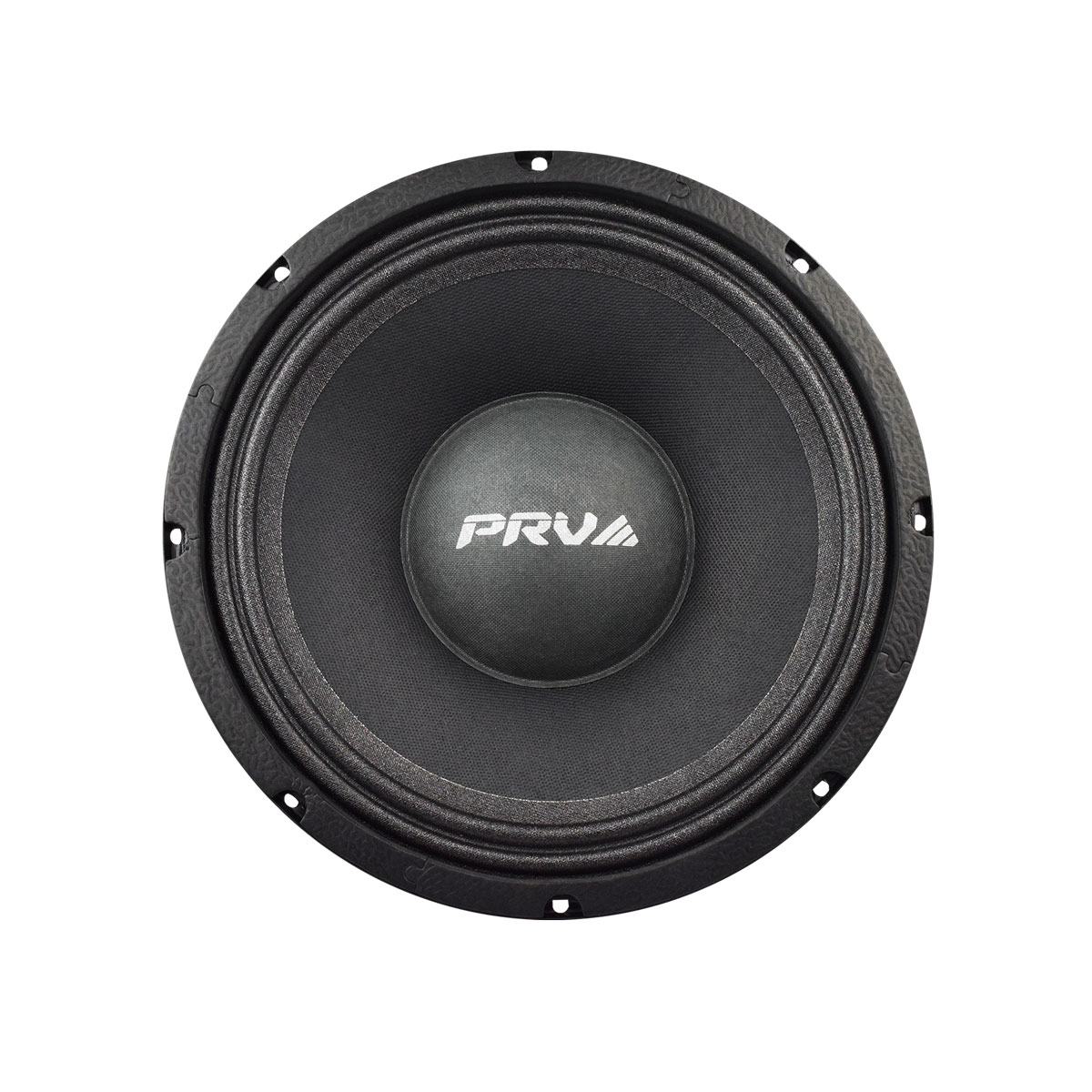

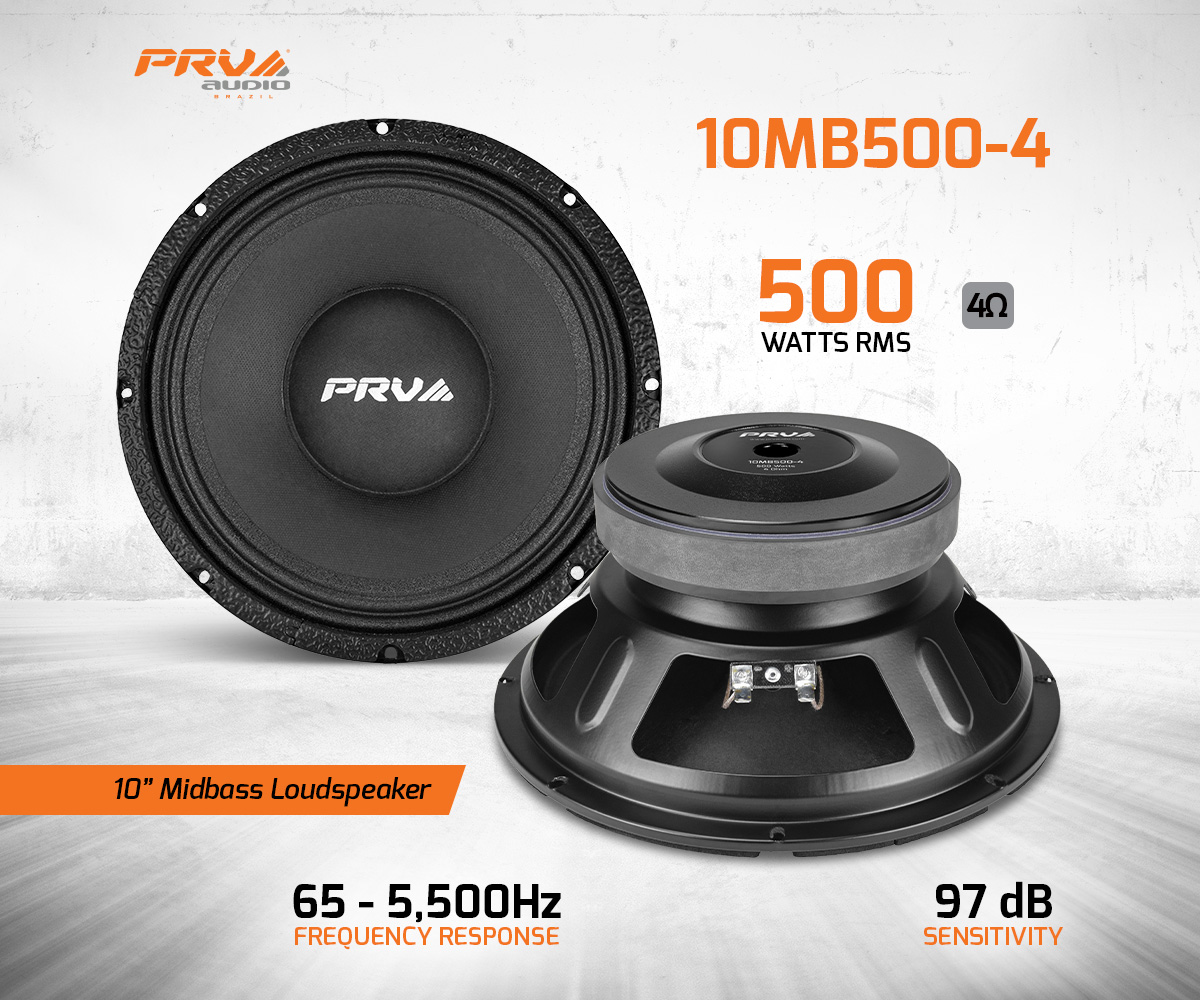

10MB500-4
- 10” Midbass – 4 Ohm
- Ferrite Magnet
- 97 dB – 500 Watts
Original price was: $124.89.$99.91Current price is: $99.91.
In stock
PRICE FOR SINGLE UNIT
Features
Features

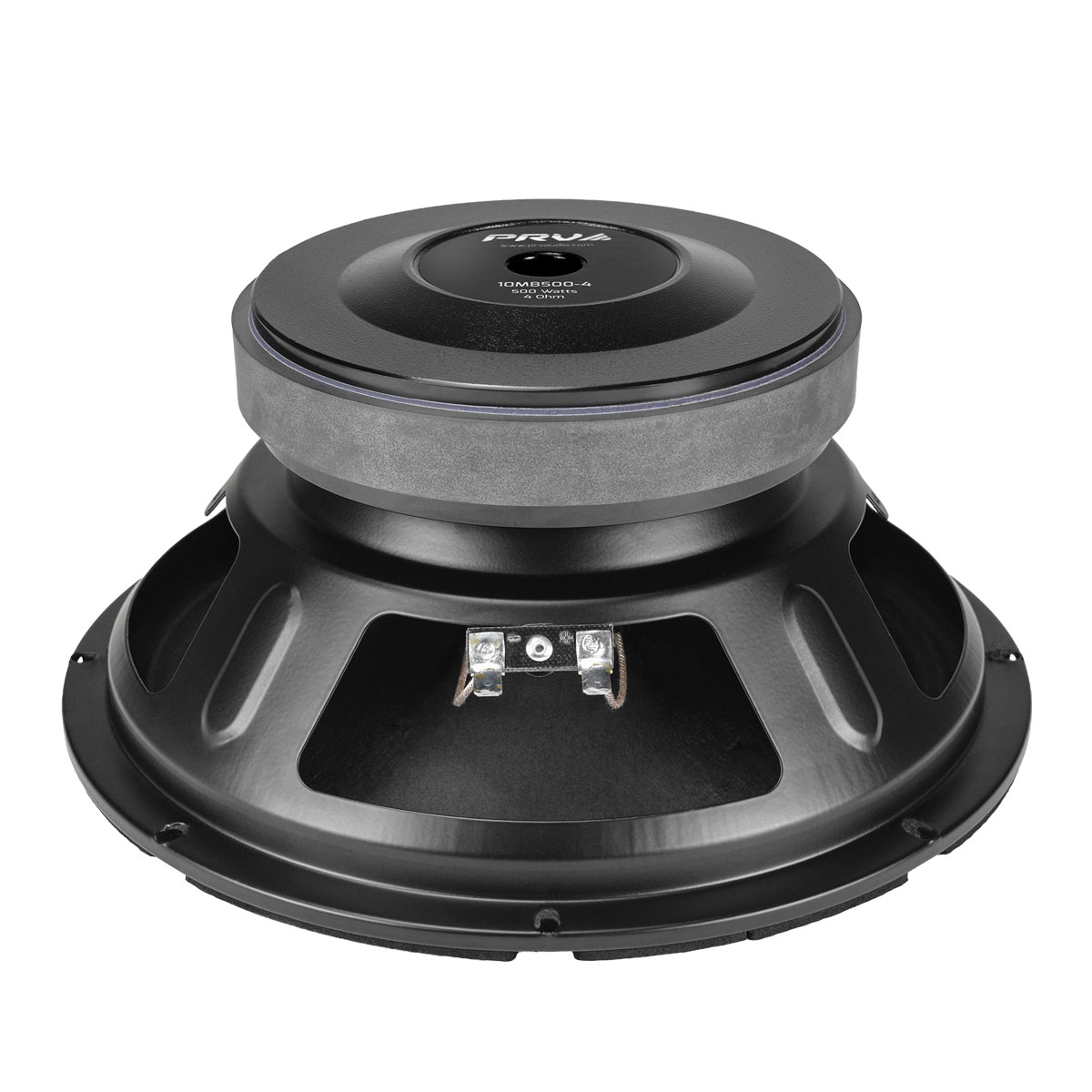

This new 10” midbass speaker has everything you want in a lightweight pro audio loudspeaker, without sacrificing performance we have designed a small profile, featuring a strong compact ferrite motor, keeping its weight under 9 pounds.
- A deep and punchy midbass response along with a strong vocal response
- Car audio midbass speaker that offers smooth lower response through a punchy mid bass range
- Handles 500 Watts, guaranteeing endurance at loudest volumes
- Impressive choice for high output custom car audio systems – 4 Ohm impedance

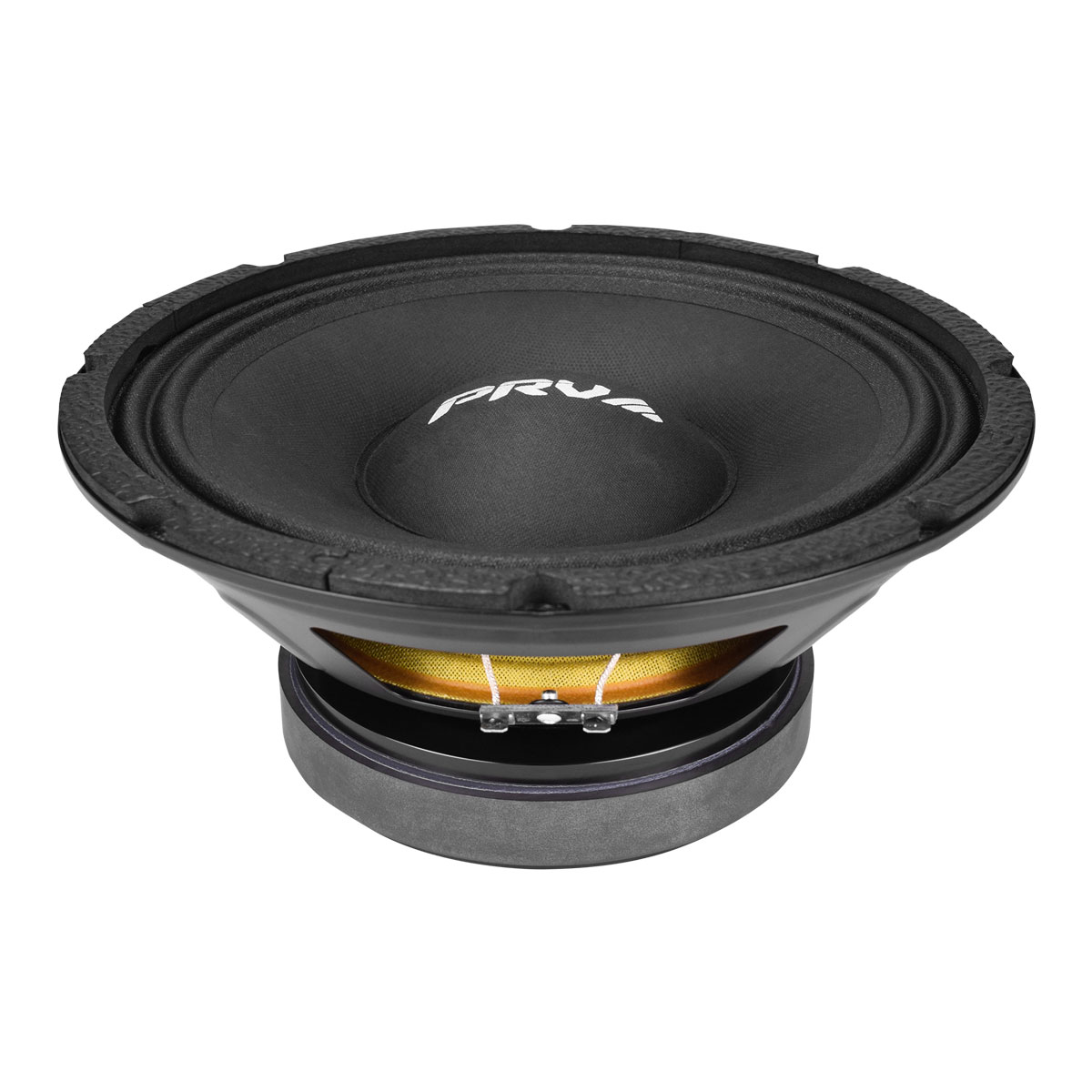

Featuring a lightweight pressed paper cone and high density pressed dust cap, it makes this midbass speaker able to cover a wide range of frequencies from 65 Hz to 5,500 Hz with authority.
Engineered to perform well in tight enclosures, this speaker features a double-roll surround that keeps cone movement linear during high midbass excursion. A precisely matched cone and voice coil design delivers an impressive 97 dB sensitivity for high output with less power.
PRV 10″ Midbass Speaker 10MB500-4 PRO Audio 500 Watts / 4 Ohm – Loudspeaker
Recommended Amplifier configurations and crossover points:
2 Speakers – 1x MDX1200.2 1 Ohm, Bridged both speakers in parallel
4 Speakers – 1x QS2000 at 1 Ohm, 4 speakers in parallel

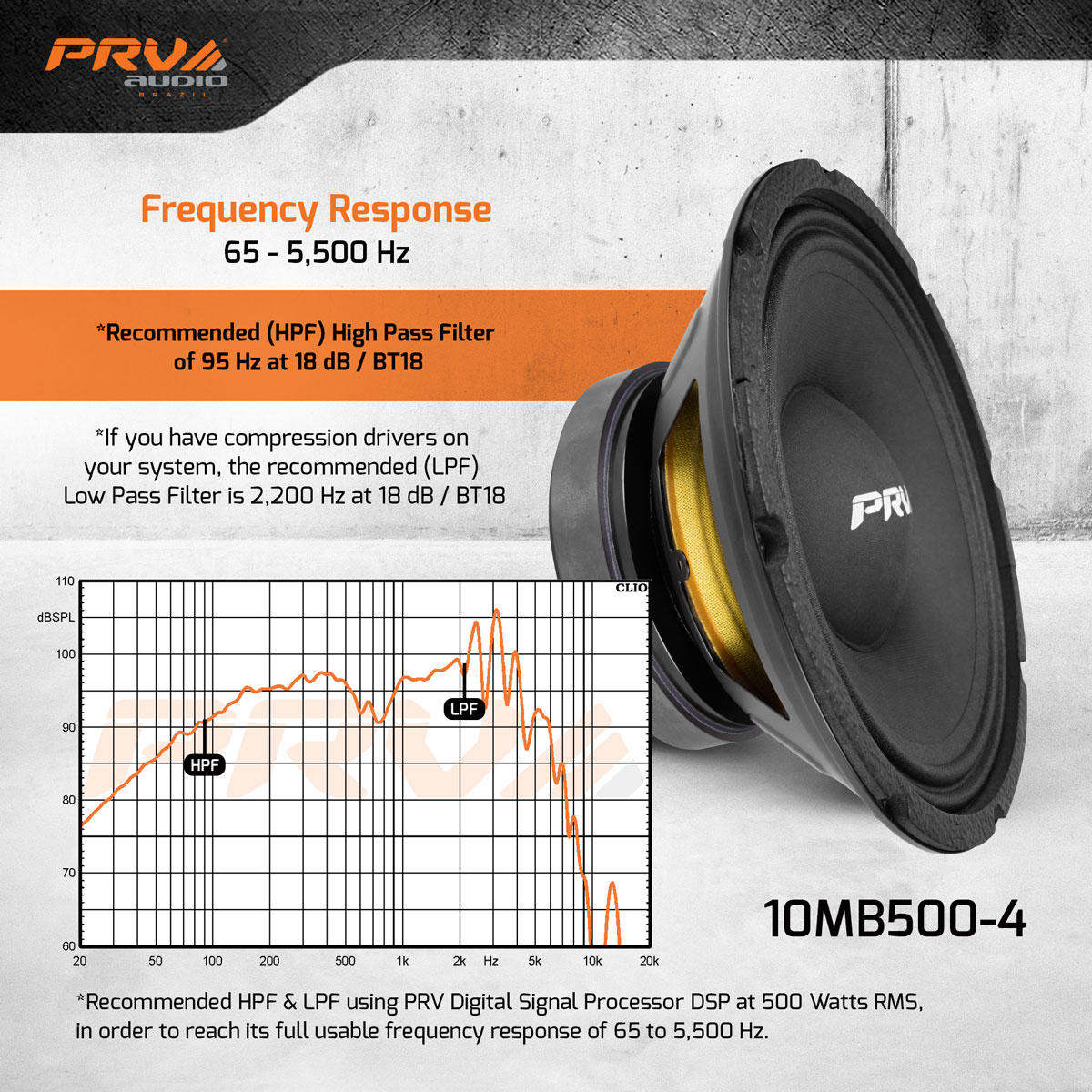

Recommended HPF using PRV Digital Signal Processor DSP when using up to 500 Watts RMS musical power
- 100 Hz at 12 dB per octave filter Crossover / BT12
- 95 Hz at 18 dB per octave filter Crossover / BT18
If you have a compression driver on your system the recommended LPF is 2,200 at 18 dB per octave filter Crossover / LR18 but you may set it lower to blend in better depending on the other components in your system, or you may not use a LPF at low power to take advantage of its high frequency response.
Technical Details
GENERAL SPECIFICATIONS
| Nominal Diameter | 10" (254 mm) |
| Nominal impedance | 4 Ohm |
| Nominal Power Handling* | 250 Watts |
| Continuous Program Power (RMS)** | 500 Watts |
| Max Peak Power*** | 1000 Watts |
| Sensitivity 2.83V at 1m | 97 dB |
| Recommended High-Pass Filter For Full Power Handling | 100 Hz 12db Per Octave Crossover |
| Frequency Response | 65 - 5,500 Hz |
| Voice Coil Diameter | 2.0" (50.5 mm) |
| Voice Coil Wire | Copper |
| Voice Coil Winding Depth | 13.0 mm |
| Former Material | Kapton |
| Magnetic Gap Depth | 8.0 mm |
| Frame Material | Stamped Steel |
THIELE-SMALL PARAMETERS
| Equivalent Volume | Vas | 47.6 l |
| Excursion (mathematical)*** | Xmax | 4.50 mm |
| Free Air Resonance | Fs | 55.6 Hz |
| Mechanical Factor | Qms | 12.14 |
| Electrical Factor | Qes | 0.30 |
| Total Factor | Qts | 0.29 |
| Cone Area | Sd | 380 cm² |
| Mechanical Mass | Mms | 34.74g |
| Bl Factor | Bl | 12.26 Tm |
| Dc Resistance | Re | 3.7 Ohm |
| Inductance | Le | 0.54 mH at 1 kHz |
| Mechanical Mass Without Air | Mmd | 30.54 g |
| Mechanical Compliance | Cms | 0.236 mm/N |
***Xmax=(Voice coil winding depth-Magnetic Gap depth)/2+ Magnetic Gap Depth/4
EXTRA INFO

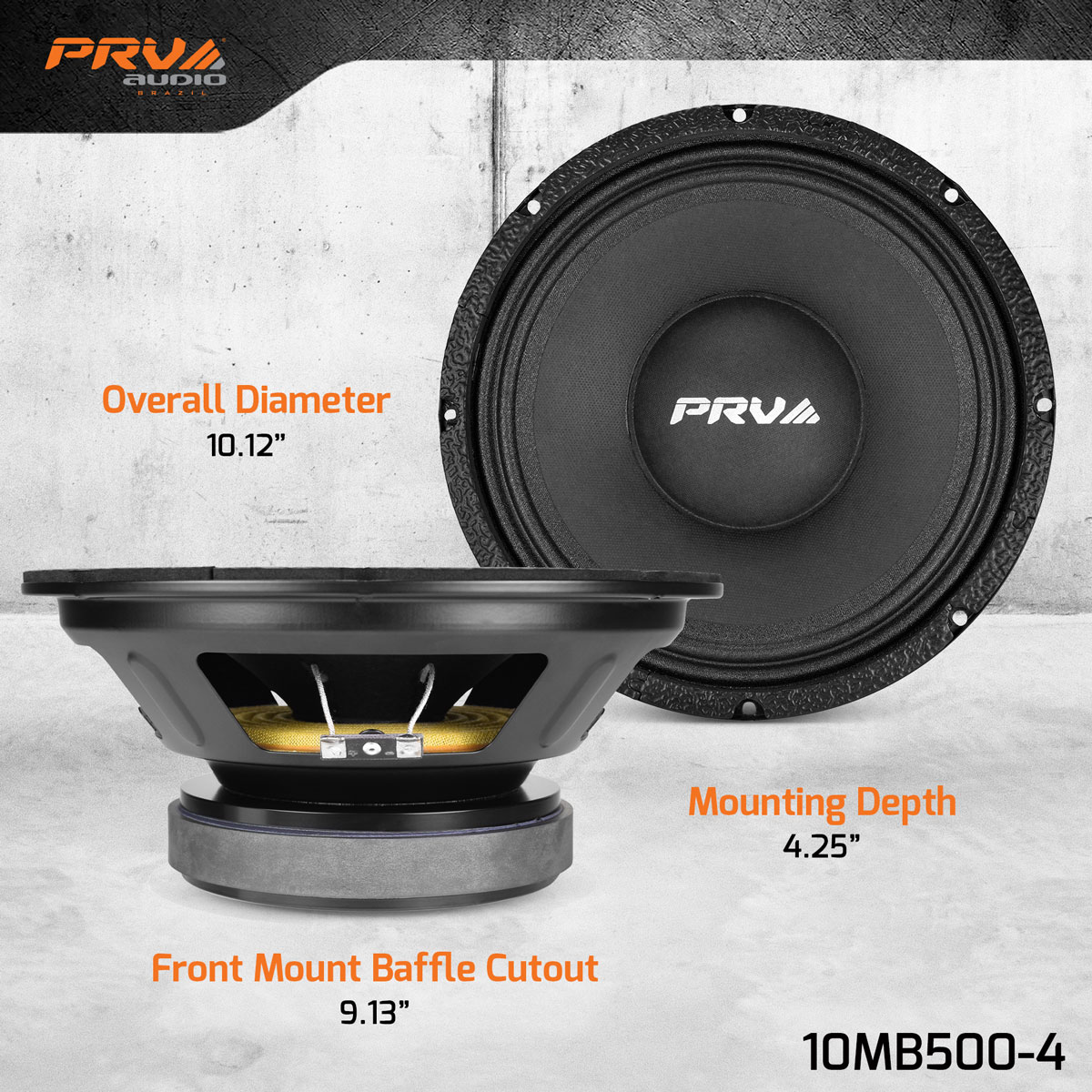

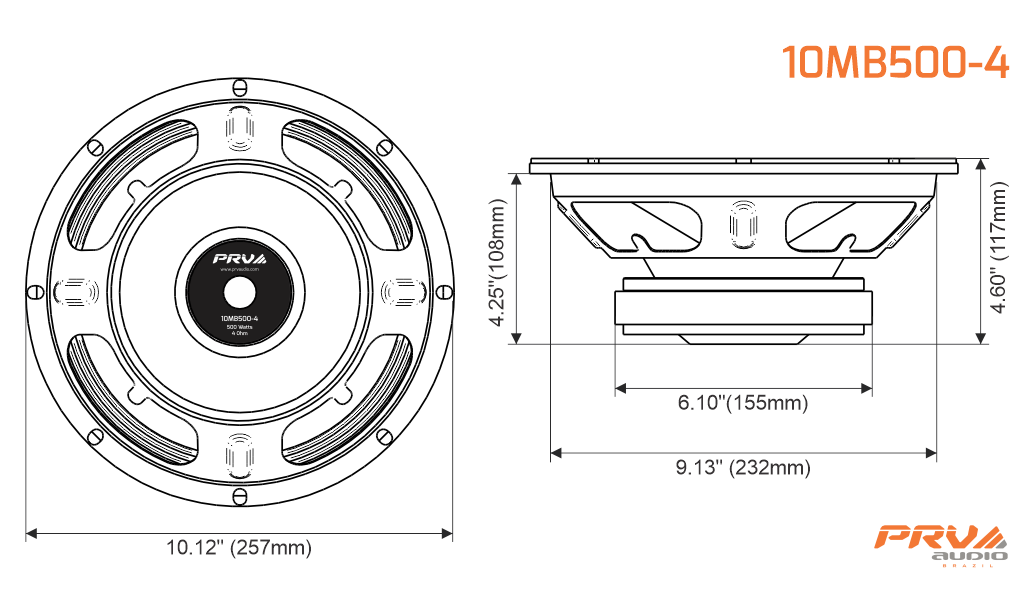

| Overall Diameter | 10.12" (257 mm) |
| Front Mount Baffle Cutout | 9.13” (232 mm) |
| Mounting Depth | 4.25” (108 mm) |
| Overall Depth | 4.60” (117 mm) |
| Net Weight | 9.4 Lbs (4.25 kg) |
| Shipping Weight | 8.6 Lbs (3.9 kg) |

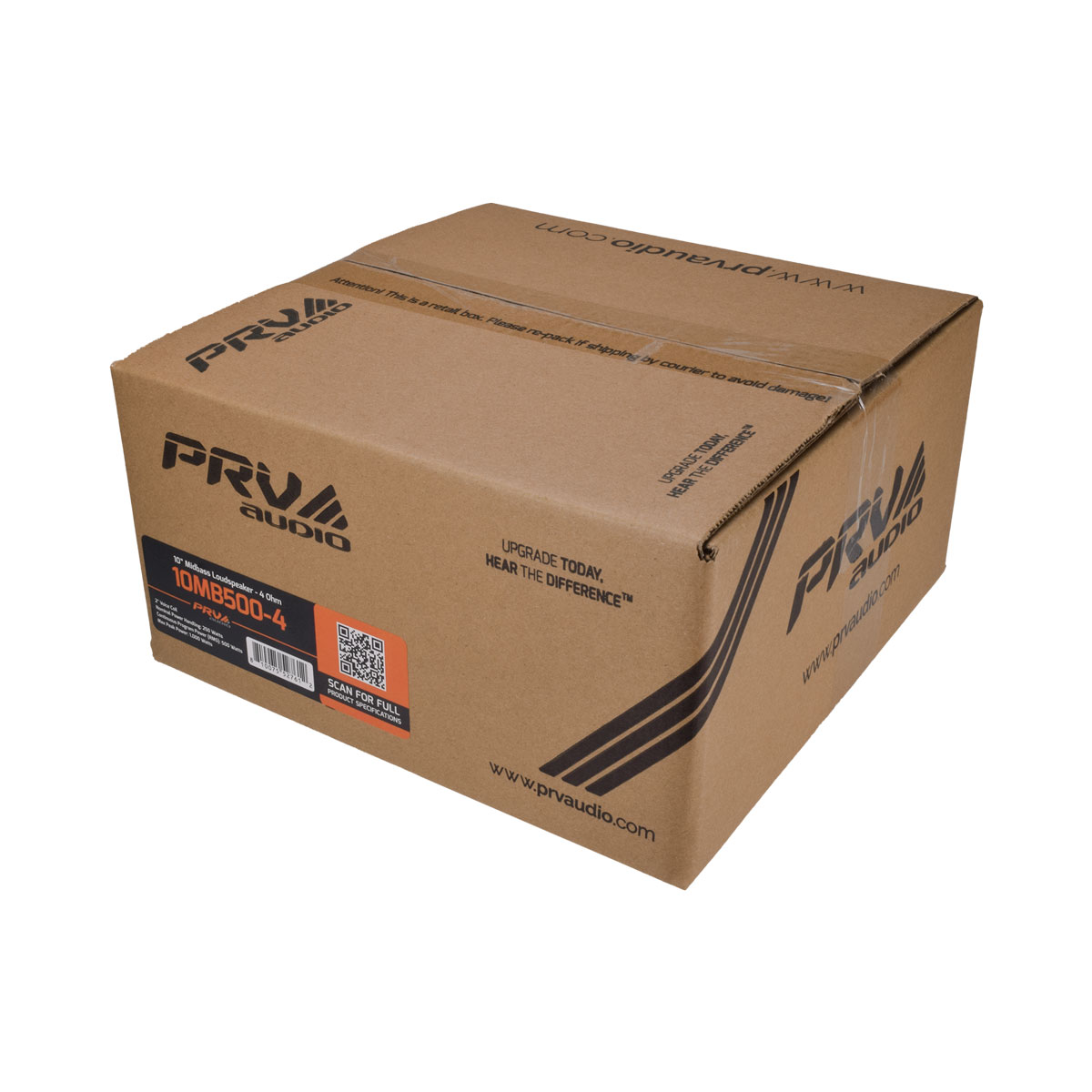

| Carton Dimensions W x L x H | 11.41” x 11.41" x 6.10” (290 x 290 x 155 mm) |
