10W1000-NDY
- 10″ Woofer – 8 Ohm
- Neodymium Magnet
- 98 dB – 1000 Watts
$212.42
In stock
PRICE FOR SINGLE UNIT
Features
Features
PRV Audio’s 10W1000-NDY Neodymium Woofer Loudspeaker was carefully crafted to reproduce a natural, smooth sound while remaining dynamic.
The PRV Audio 10W1000-NDY is the evolution of our mid bass loudspeakers, our R&D department pushed the output limits on a mid bass driver, creating a unique sound reproduction.
- 3″ Inside/Out aluminum voice coil wound on fiberglass former for hi-temp performance – 8 Ohms
- 1000 watts continuous program power rating makes the high acoustical output
- 36 mm peak-to-peak excursion before damage
- 98 dB sensitivity, which makes it capable of generating a lot of output!
- Detailed vocal reproduction on a wide frequency band response
To get superior fidelity, the special composite cone is built with non-pressed paper for a reduced break-up, delivering a smooth frequency response and a low moving mass, increasing the efficiency of the speaker.
The 10W1000-NDY is an extremely efficient 10″ woofer from PRV Audio.
To stand up to the use and abuse of the professional sound environment we designed a 3″ CCAW voice coil that is wound inside-outside on fiberglass former and features a generous 18 mm winding length for extended Xmax and less distortion. (with a suggested 80 Hz, 12 dB/octave high pass filter in place)!
Its powerful optimized neodymium motor is vented to provide excellent cooling.
The large 3″ voice coil allows for the high 1,000-watt power handling and warrants the outstanding cooling system implemented into the motor.
The high sensitivity rating of 98 dB 1W/1M which makes it capable of generating a lot of output!
Perfect Component for 3 Way System such as: 10W1000-NDY + 8MR450A + TW700Ti
Technical Details
GENERAL SPECIFICATIONS
| Nominal Diameter | 10″ (254 mm) |
| Nominal impedance | 8 Ohms |
| Rated AES Power Handling (RMS) | 500 Watts |
| Program Power | 1000 Watts |
| Sensitivity 2.83V at 1m | 98 dB |
| Recommended Hi-Pass Crossover** **For Full Power Handling |
80 Hz** **12db Per Octave Crossover |
| Frequency Response at -10dB | 55 – 5,500 Hz |
| Voice Coil Diameter | 3″ (76 mm) |
| Voice Coil Wire | CCAW |
| Voice Coil Winding Depth | 18.0 mm |
| Former Material | Fiber Glass |
| Magnetic Gap Depth | 10.0 mm |
| Frame Material | Die Cast Aluminum |
THIELE-SMALL PARAMETERS
| Equivalent Volume | Vas | 39.0 l |
| Excursion (mathematical)*** | Xmax | 6.5 mm |
| Free Air Resonance | Fs | 62.12 Hz |
| Mechanical Factor | Qms | 11.57 |
| Electrical Factor | Qes | 0.42 |
| Total Factor | Qts | 0.40 |
| Cone Area | Sd | 380 cm² |
| Mechanical Mass | Mms | 33.93 g |
| Bl Factor | Bl | 12.73 Tm |
| Dc Resistance | Re | 5.1 Ohms |
| Inductance | Le | 0.64 mH at 1 kHz |
| Mechanical Mass Without Air | Mmd | 29.73 g |
| Mechanical Compliance | Cms | 0.193 mm/N |
***Xmax=(Voice coil winding depth-Magnetic Gap depth)/2+ Mgnetic Gap Depth/4
EXTRA INFO
| Overall Diameter | 10.27” (261 mm) |
| Front Mount Baffle Cutout | 9.05” (230 mm) |
| Mounting Depth | 4.49” (114 mm) |
| Overall Depth | 5.00” (127 mm) |
| Net Weight | 8.38 lbs (3.8 kg) |
| Shipping Weight | 9.70 lbs (4.4 kg) |
| Carton Dimensions W x L x H | 11.2” x 11.2” x 5.71” (285 x 285 x 145 mm) |
Repair Parts
Recone Kit for 10W1000-NDY Loudspeaker
8 reviews for 10W1000-NDY
| 5 star | 100% | |
| 4 star | 0% | |
| 3 star | 0% | |
| 2 star | 0% | |
| 1 star | 0% |

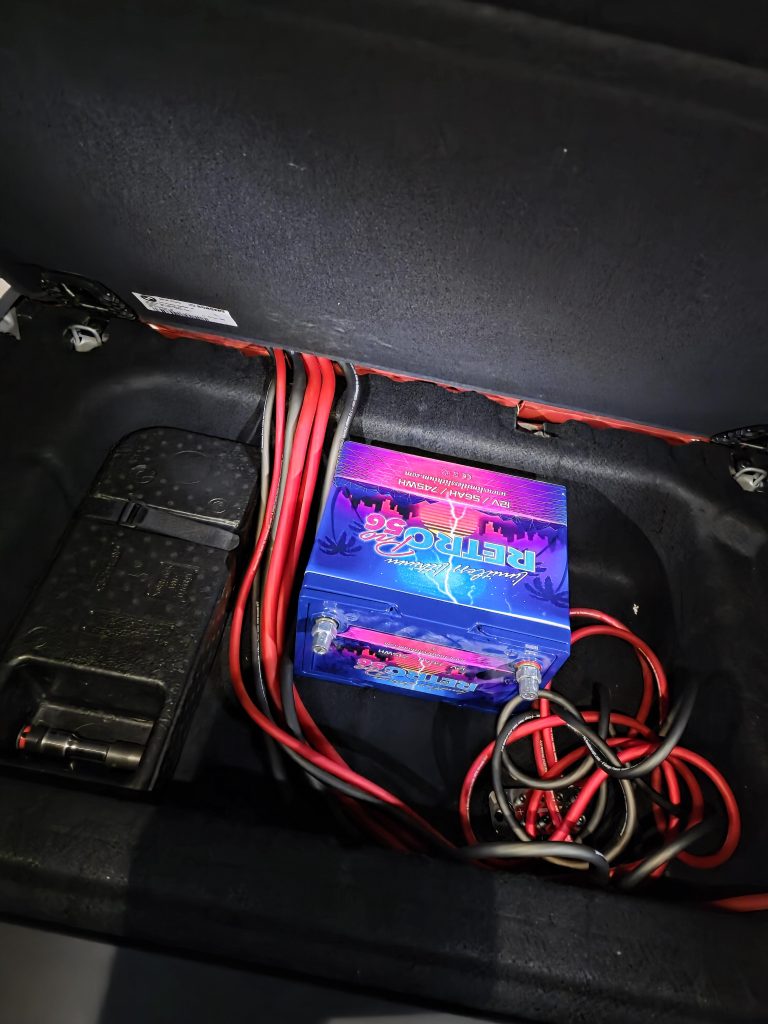

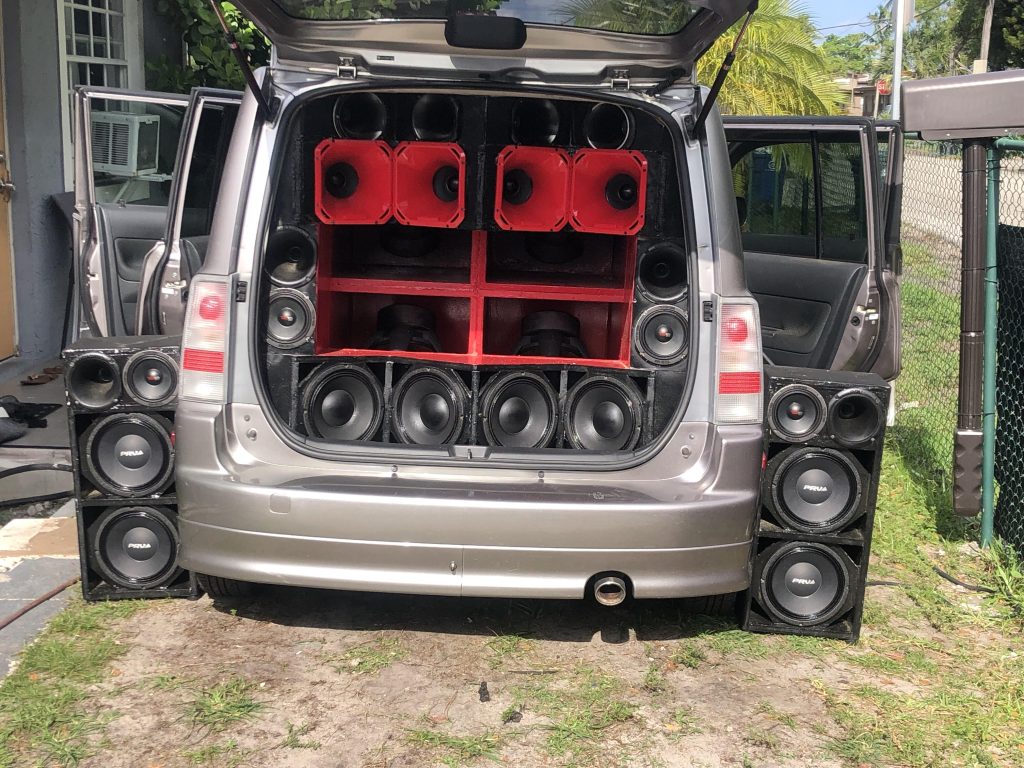

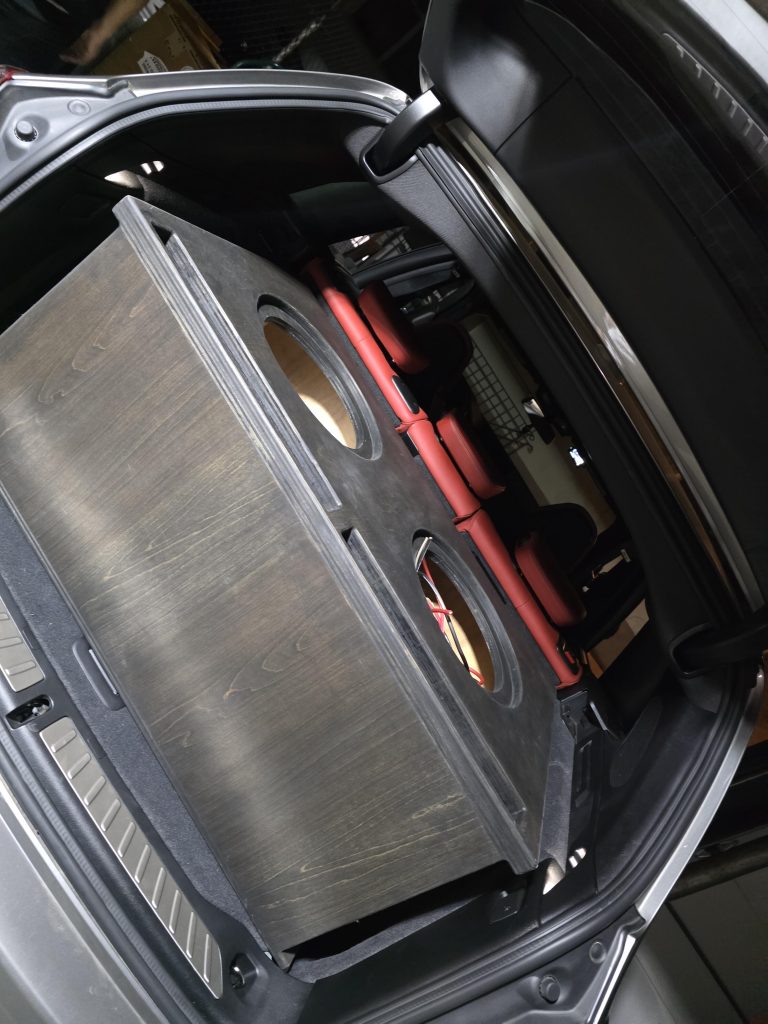

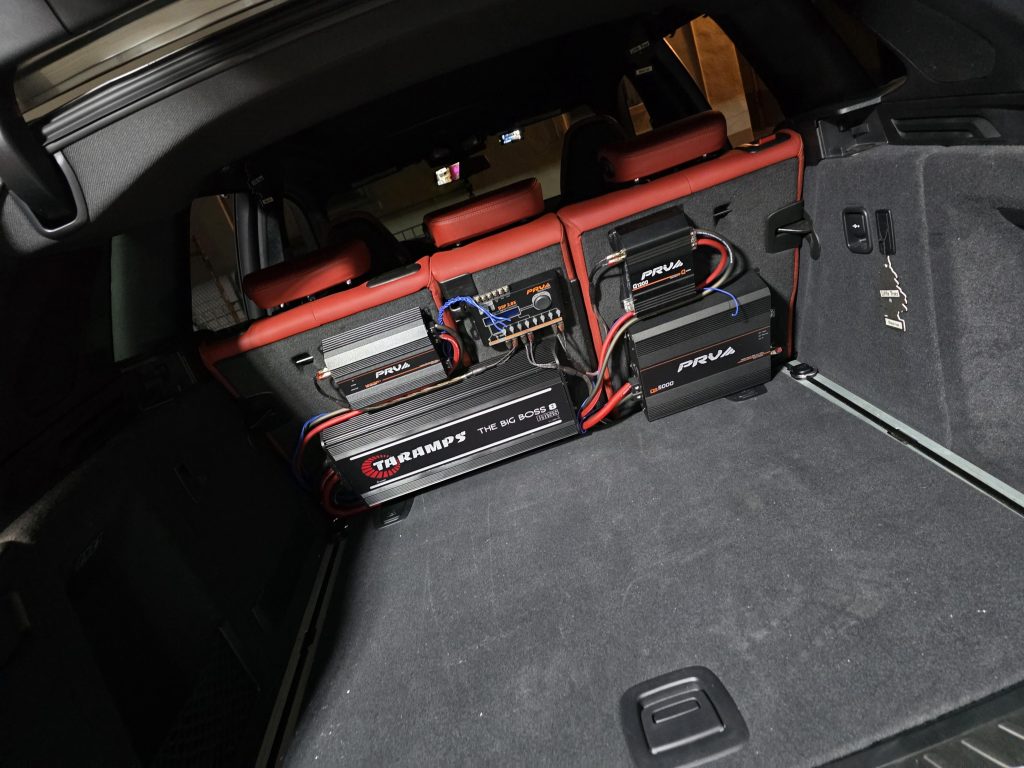

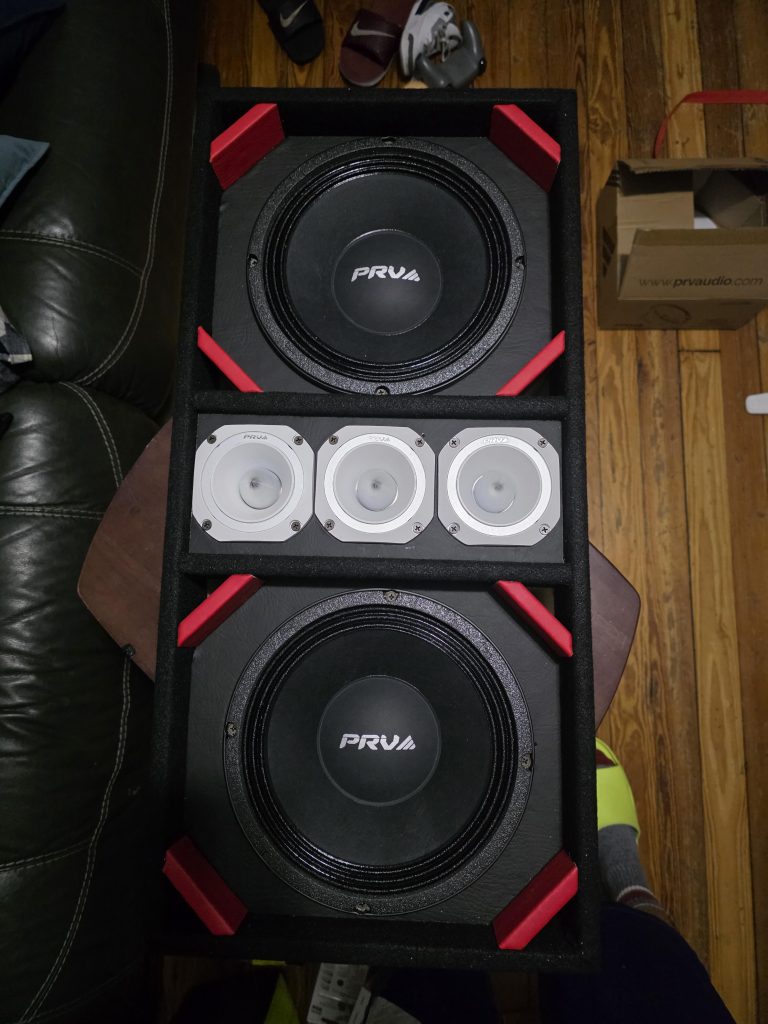

Customer Images
10W1000-NDY
Q & A
10W1000-NDY
Was just getting in my previous review.
4 10w1000 running off a PRV QS5000.1
2 8MR500 running off a PRV Q1200.1
8 TW700Ti running off a PRX MDX 2500.1
2 12″ Sundown X v.3 running off a Big Boss 8 (RS8000 wasn’t available at time of purchase)
What’s not to say paired two 8 ohms to test the sound to make sure my cousin got the sound I wanted to achieve for his system. This paired to 3 TW700 running off a MDX 2000.2 2ohm to a MDX 2500.1 with the car off speakers I assume the speakers were only seeing about RMS… and the tweeters were seeing about 600w.
Exceptional product by far one of the best hitting speaker with remarkable range
These are some bad ass 10s strong midbass and handle power well
These speakers sound great and the mid bass is more then I thought it would be. Always a great surprise when it comes to this company …
to me PRV it’s just the best sound speaker out right now, the quality is just outstanding, I will buy again from them, I will recommend it 💯 percent 👍.
Hard Hitting MB
They sound great!
