Efficient woofer, designed to be used in systems that demand high performance in its low mid bass range, providing a clean sound with a lot of sound pressure.

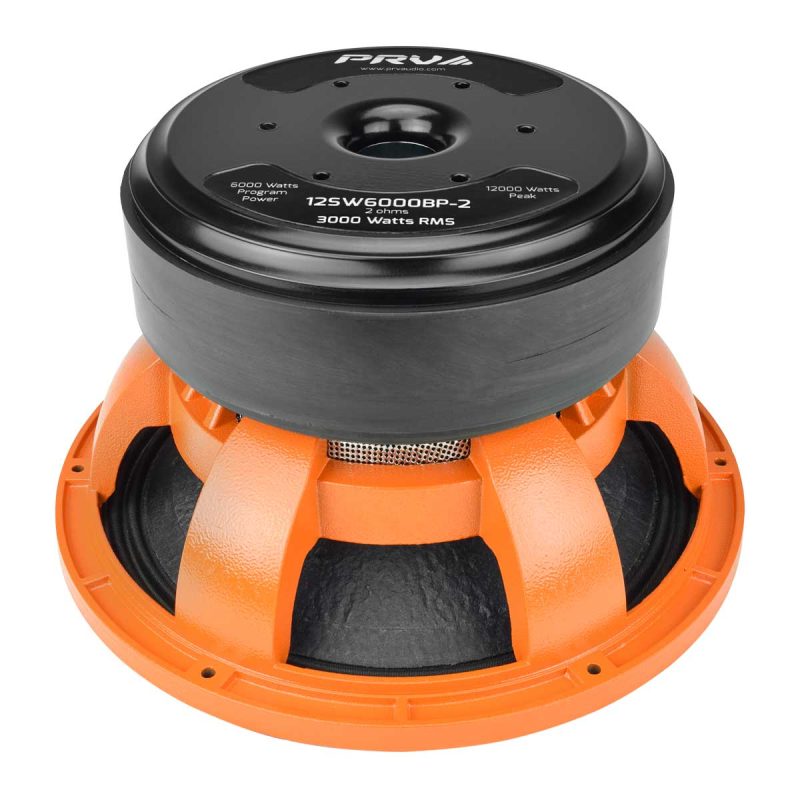

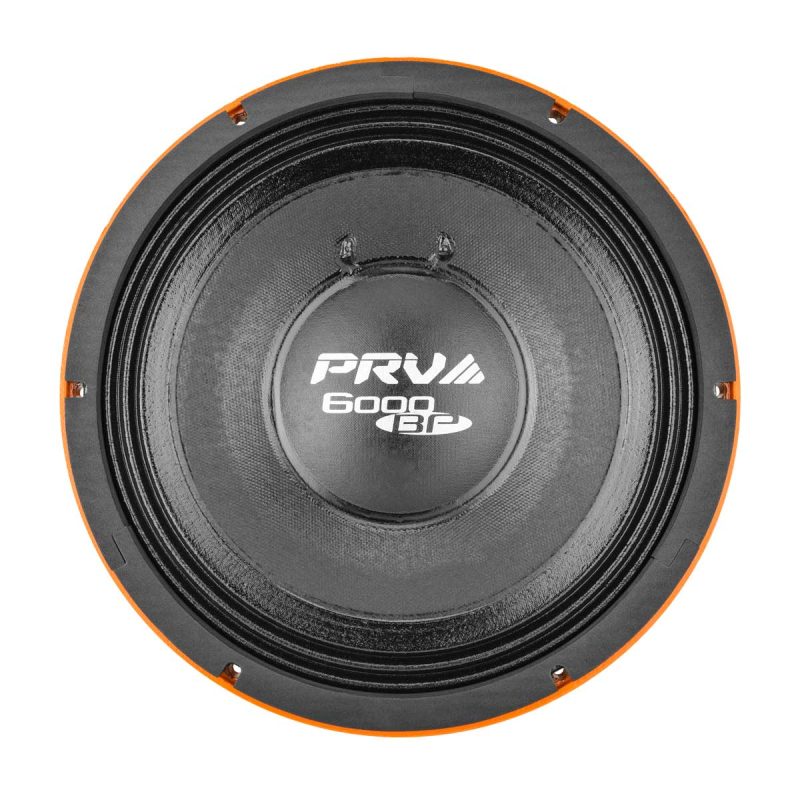

12SW6000BP-2 is not your normal subwoofer, this is designed to produce low mid frequency in ported boxes in open air, such as stunt wall!
The BP series stand for Brazilian Punch, a style of sound system that originated from the Brazil which is called “Pancadão” which in Portuguese means “Strong Beat”
Building a stunt wall with 8 or more of this speaker with the recommended box and crossover filter will sure make you the talk of the car show! The high level of sound pressure will be felt from feet away.
Technical Details
GENERAL SPECIFICATIONS
Nominal Diameter
12″ (305 mm)
Nominal impedance
2 Ohms
Rated AES Power Handling (RMS)
3000 Watts
Program Power
6000 Watts
Sensitivity 2.83V at 1m
92.5 dB
Recommended High Pass Crossover* *For Full Power Handling
70 Hz* BT24 *12db Per Octave Crossover
Recommended Low Pass Crossover* *For Full Power Handling
300 Hz* BT24 *12db Per Octave Crossover
Frequency Response at -10dB
75 – 2500 Hz
Voice Coil Diameter
4″ (65 mm)
Voice Coil Wire
CCAW
Voice Coil Winding Depth
28.0 mm
Former Material
Kapton
Magnetic Gap Depth
13.0 mm
Frame Material
Die Cast Aluminum
THIELE-SMALL PARAMETERS
Equivalent Volume
Vas
9.2 l
Excursion (mathematical)***
Xmax
10.75 mm
Free Air Resonance
Fs
81.79 Hz
Mechanical Factor
Qms
5.44
Electrical Factor
Qes
0.51
Total Factor
Qts
0.47
Cone Area
Sd
531 cm²
Mechanical Mass
Mms
161.9 g
Bl Factor
Bl
15.57 Tm
Dc Resistance
Re
1.5 Ohms
Inductance
Le
0.38 mH at 1 kHz
Mechanical Mass Without Air
Mmd
155.0 g
Mechanical Compliance
Cms
0.023 mm/N
***Xmax=(Voice coil winding depth-Magnetic Gap depth)/2+ Mgnetic Gap Depth/4
