12" WOOFER LOUDSPEAKER

12W1600

In stock

-

  • 12″ Woofer – 8 Ohm
  • Ferrite Magnet
  • 94 dB – 1600 Watts

$189.91

In stock

PRICE FOR SINGLE UNIT

SKU: 12W1600 Category: Tag:

Features

Features

The 12W1600 woofer features a special 4″ split copper wire voice coil wound on a fiberglass former using proprietary high temperature adhesives. It features an optimized ceramic ferrite magnet assembly that will guarantee very good Low dynamic range with a very low distortion figure.

This professional low frequency driver is especially recommended for compact vented enclosures, in which it will deliver solid, deep bass output.

12W1600

  • 4″ split copper voice coil wound on fiberglass former for hi-temp performance, 8 ohms
  • Ventilated voice coil gap reduces power compression
  • 10.5 mm Xmax, 36 mm peak-to-peak excursion before damage
  • 1600 watts continuous program power rating makes high acoustical output
  • High BL factor and Xmax for outstanding Low output
  • Weather-resistant paper cone and dust cap


12W1600 Mounting Depth

Designed to make tremendous amounts of bass, the 12W1600 12″ woofer can be used in small vented or sealed cabinet. The shallow 5.51″ mounting depth and high EBP makes it ideal for compact folded horn enclosures.

Our specially designed rigid cast aluminum frame features side forced cooling system openings which allows airflow to cool the voice coil to handle up to 1600 watts RMS without issue. Spring-loaded push terminals make installation a snap while offering a secure connection to your speaker wires.


12W1600 Voice Coil

To stand up to the use and abuse of the professional sound environment we designed a 4″ spit copper voice coil that is wound inside-outside on a fiberglass former and features a generous 27.5 mm winding length for extended Xmax and less distortion.


12W1600 Surround

The cone, constructed of thick paper for a natural response, includes glass fiber reinforcement and uses a ribbed design offering additional structural support.

Supporting the cone is a double heavy spider and triple roll treated cloth surround, both designed for high excursion applications to handle short bursts of excessive power without damage.

Technical Details

GENERAL SPECIFICATIONS

Nominal Diameter 12″ (305 mm)
Nominal impedance 8 Ohm
Nominal Power Handling 800 Watts
Continuous Program Power (RMS) 1600 Watts
Max Peak Power 3200 Watts
Sensitivity 2.83V at 1m 94 dB
Recommended Hi Pass Crossover**
**For Full Power Handling
60 Hz**
**12db Per Octave Crossover
Frequency Response 55 – 2,500 Hz
Voice Coil Diameter 4″ (100 mm)
Voice Coil Wire Copper
Voice Coil Winding Depth 27.0 mm
Former Material Glass Fiber
Magnetic Gap Depth 12.0 mm
Frame Material Die Cast Aluminum
12W1600 Frequency Response
*Nominal power handling is defined as the maximum RMS power that the speaker can handle in a 2-hour test with a pink noise with 6dB of crest factor and a bandpass filter with 12db/oct tuned in its usable frequency range. **Continuous Program Power (RMS) is the maximum power that the speaker can handle considering a regular musical program using our recommended filters, this power can be used to define the optimum amplifier power to avoid a clean signal without clipping or saturation. ***Max Peak Power is the maximum power operation for the speaker, this power is allowed just for a few fractions of a second, usually found just on the peaks of the music. Keeping this power for a little longer timer will damage the speaker.

THIELE-SMALL PARAMETERS

Equivalent Volume Vas 46.99 l
Excursion (mathematical)*** Xmax 10.50  mm
Free Air Resonance Fs 51.22 Hz
Mechanical Factor Qms 14.98
Electrical Factor Qes 0.40
Total Factor Qts 0.39
Cone Area Sd 594 cm²
Mechanical Mass Mms 101.16 g
Bl Factor Bl 20.35 Tm
Dc Resistance Re 5.1 Ohm
Inductance Le 1.26 mH at 1 kHz
Mechanical Mass Without Air Mmd 92.97 g
Mechanical Compliance Cms 0.095 mm/N

***Xmax=(Voice coil winding depth-Magnetic Gap depth)/2+ Mgnetic Gap Depth/4

12W1600 Impedance

EXTRA INFO

Overall Diameter 12.40” (315 mm)
Front Mount Baffle Cutout 11.16” (283.4 mm)
Mounting Depth 5.51” ( 140 mm)
Overall Depth 6.04” (153.5 mm)
Net Weight 24.22 Lbs (11.0 kg)
Shipping Weight 26.01.Lbs (11.80 kg)
Carton Dimensions W x L x H 13.38” x 13.38” x 6.69”
(340 x 340 x 170 mm)
12W1600 Dimensions



WARNING: Cancer and Reproductive Harm – www.p65warnings.ca.govView our Return Policy.

Customer Reviews

Based on 18 reviews
89%
(16)
6%
(1)
6%
(1)
0%
(0)
0%
(0)

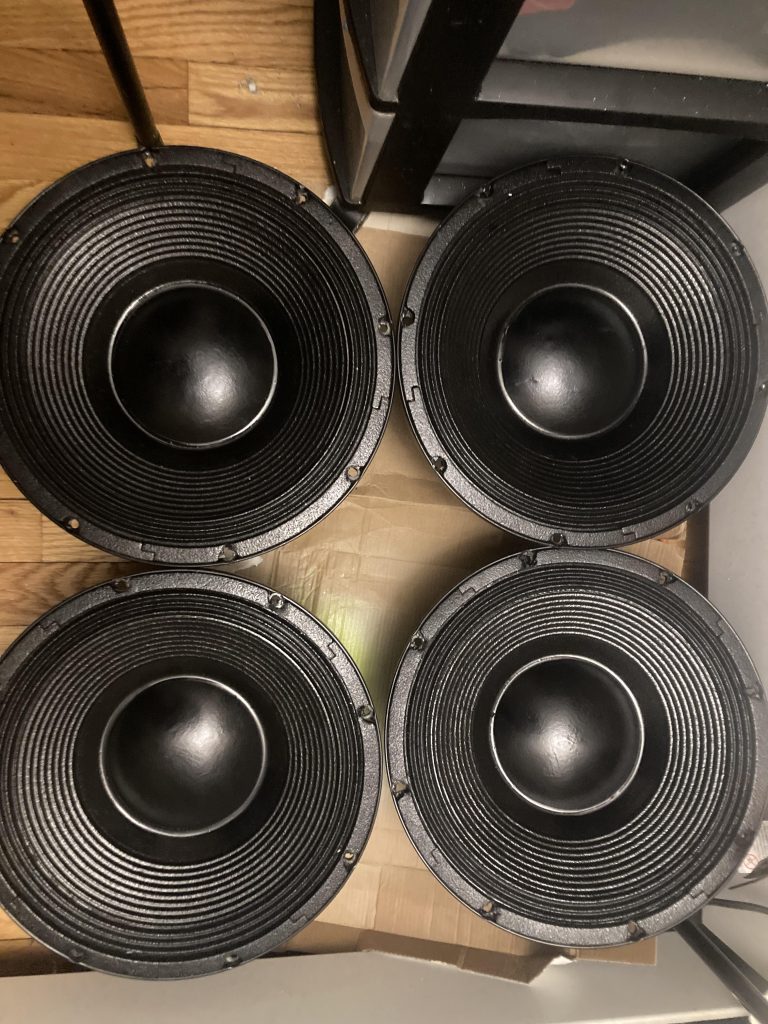

J
