5MR450-NDY
-
- 5″ Midrange – 8 Ohm
- Neodymium Magnet
- 94 dB – 450 Watts
$99.91
In stock
PRICE FOR SINGLE UNIT
Features
Features
This woofer is perfect for home Hi-Fi installs, including bookshelf, satellite, surround sound speakers and even the home studio monitors. It is a great option for three way cabinets requiring additional midrange support.
The high end neodymium magnet assembly was chosen to increase sensitivity and power handling. This neodymium is attached to a sturdy reinforced cast aluminum frame to ensure a solid support structure for long lasting play in most any environment.
Its light weight of only 2.65 lbs helps keep your enclosures light and is a great use for use for car doors and installers looking for high SPL midrange and upper midrange responses.
For car audio applications, a 4 ohm model is also available.
- Nominal Impedance: 8 Ohm
- 450 Watts RMS Music Power Handling, with a 94 dB Sensitivity, capable of generating a lot output at wide frequency range!
- Voice Coil Diameter: 1.5″
- Ideal solution for compact full-range applications demanding high acoustic output
Technical Details
GENERAL SPECIFICATIONS
| Nominal Diameter | 5″ (127 mm) |
| Nominal impedance | 8 Ohms |
| Nominal Power Handling | 225 Watts |
| Continuous Program Power (RMS) | 450 Watts |
| Max Peak Power | 900 Watts |
| Sensitivity 2.83V at 1m | 94 dB |
| Recommended Hi Pass Crossover* *For Full Power Handling |
290 Hz** **12db Per Octave Crossover |
| Frequency Response at -10dB | 160- 16,000 Hz |
| Voice Coil Diameter | 1.5″ (38.1 mm) |
| Voice Coil Wire | Copper |
| Voice Coil Winding Depth | 9.8 mm |
| Former Material | Kapton |
| Magnetic Gap Depth | 5.8 mm |
| Frame Material | Die Cast Aluminum |
THIELE-SMALL PARAMETERS
| Equivalent Volume | Vas | 1.47 l |
| Excursion (mathematical)*** | Xmax | 3.45 mm |
| Free Air Resonance | Fs | 159.0 Hz |
| Mechanical Factor | Qms | 22.26 |
| Electrical Factor | Qes | 0.66 |
| Total Factor | Qts | 0.64 |
| Cone Area | Sd | 95 cm² |
| Mechanical Mass | Mms | 8.60 g |
| Bl Factor | Bl | 9.42 Tm |
| Dc Resistance | Re | 6.9 Ohms |
| Inductance | Le | 0.03 mH at 1 kHz |
| Mechanical Mass Without Air | Mmd | 8.07 g |
| Mechanical Compliance | Cms | 0.116 mm/N |
***Xmax=(Voice coil winding depth-Magnetic Gap depth)/2+ Mgnetic Gap Depth/4

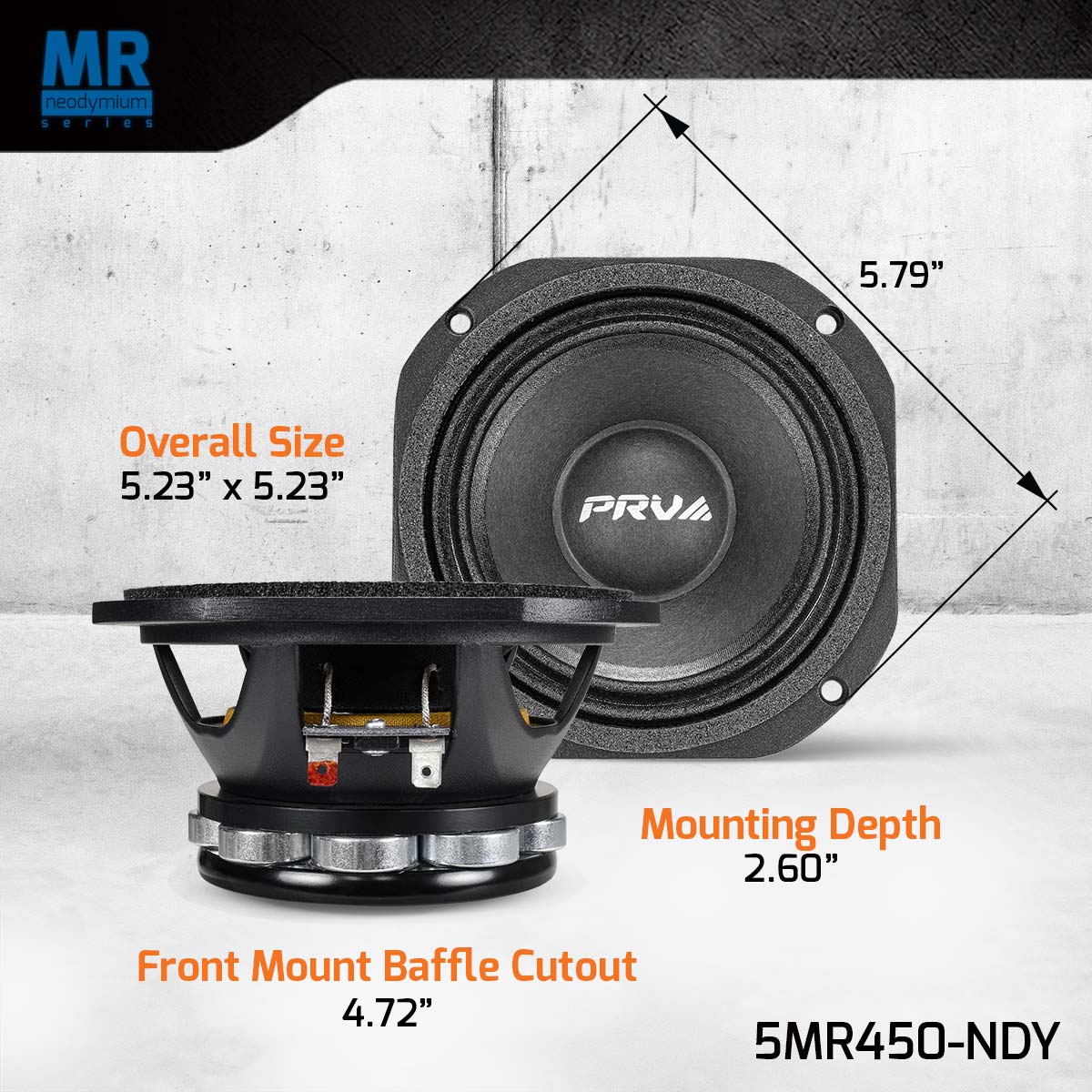

EXTRA INFO
| Overall Diameter | 5.79″ (147 mm) |
| Front Mount Baffle Cutout | 4.72″ (120 mm) |
| Mounting Depth | 2.60″ (66 mm) |
| Overall Depth | 2.95″ (75 mm) |
| Net Weight | 2.65 Lbs (1.2 kg) |
| Shipping Weight | 2.85 Lbs (1.3 kg) |
| Carton Dimensions W x L x H | 6.1” x 6.1 x 3.7” (155 x 155 x 95mm) |
