6" MID BASS LOUDSPEAKER

6MB200 V2

(3 customer reviews)
In stock
  • 6″ Mid Bass – 8 Ohms
  • Ferrite Magnet
  • 93.5 dB – 200 Watts

$29.99

In stock

PRICE FOR SINGLE UNIT

SKU: 6MB200v2 Categories: , Tag:

Features

The PRV Pro Audio Loudspeaker, 6MB200 v2 mid bass woofer, offers outstanding durability and a smooth punch of mid bass for small enclosures. This woofer is perfect for home Hi-Fi installs, including bookshelf, satellite, surround sound speakers and even home studio monitors.

The 6MB200-v2 now has more extended mid range response, up to 6.5 kHz compared to its previous model, and is a perfect option for mid range driver replacements in three-way cabinets. The magnet and motor assembly are attached to a sturdy reinforced steel frame, ensuring a solid support structure and long lasting play in most any environment. Its light weight of only 3.3 Lbs helps to keep your enclosures light, making it perfect for car audio applications.


Highlights

  • Nominal Impedance: 8 Ohms
  • Rated AES Power Handling (RMS): 100 Watts
  • Program Power: 200 Watts
  • Sensitivity (1W/1m): 93.5 dB
  • Voice Coil Diameter: 1.5″

WARNING: Cancer and Reproductive Harm – www.p65warnings.ca.gov

Technical Details

GENERAL SPECIFICATIONS

Nominal Diameter 6″ (152 mm)
Nominal impedance 8 Ohms
Rated AES Power Handling (RMS) 100 Watts
Program Power 200 Watts
Sensitivity 2.83V at 1m 93.5 dB
Recommended Hi Pass Crossover*
*For Full Power Handling
125 Hz**
**12db Per Octave Crossover

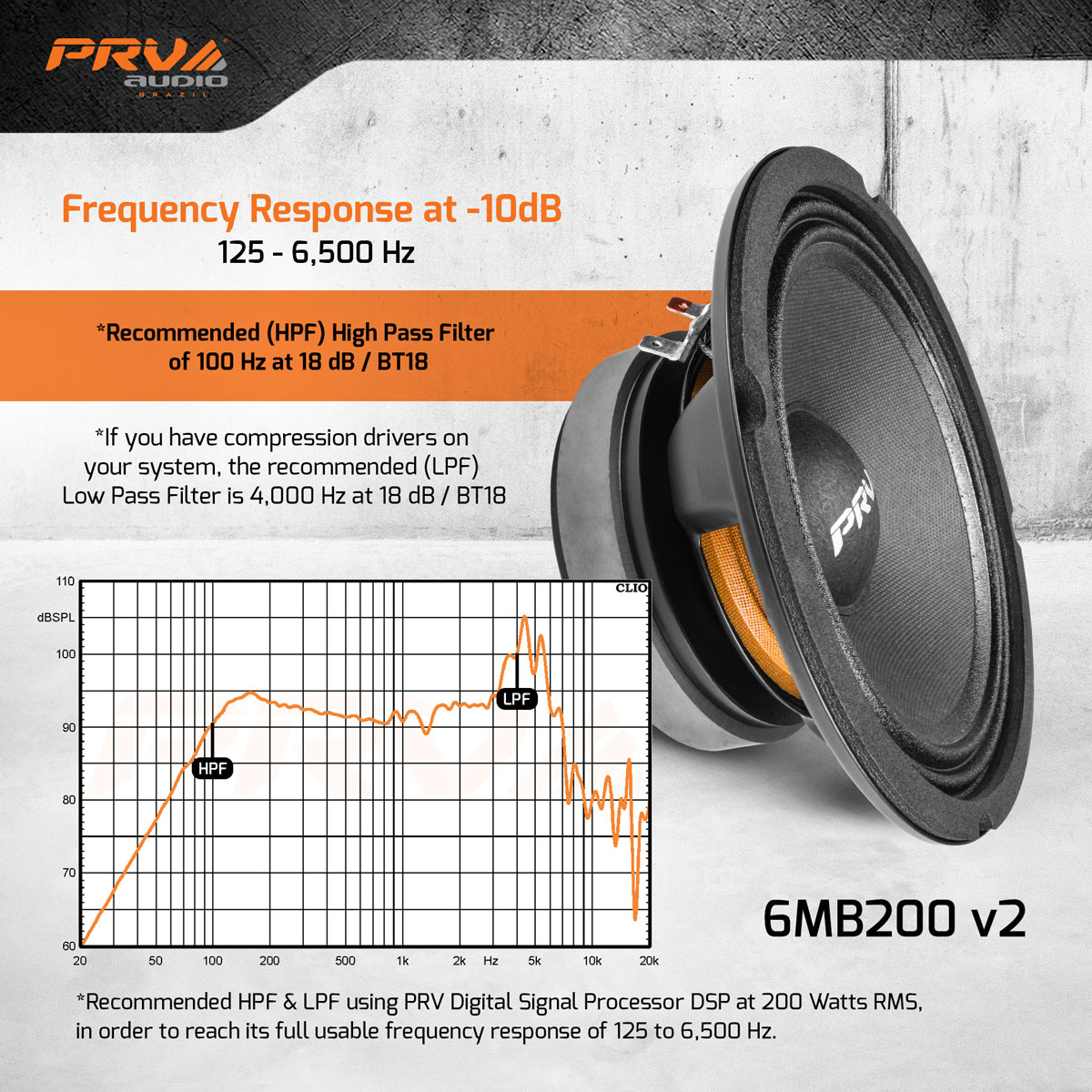

Frequency Response at -10dB 125 – 6,500 Hz
Voice Coil Diameter 1.5″ (38 mm)
Voice Coil Wire Copper
Voice Coil Winding Depth 12.5 mm
Former Material Kapton
Magnetic Gap Depth 5.8 mm
Frame Material Stamped Steel




THIELE-SMALL PARAMETERS

Equivalent Volume Vas 4.13 l
Excursion (mathematical)*** Xmax 4.80 mm
Free Air Resonance Fs 123.28 Hz
Mechanical Factor Qms 20.81
Electrical Factor Qes 1.20
Total Factor Qts 1.13
Cone Area Sd 154 cm²
Mechanical Mass Mms 11.57 g
Bl Factor Bl 7.05 Tm
Dc Resistance Re 6.7 Ohms
Inductance Le 0.25 mH at 1 kHz
Mechanical Mass Without Air Mmd 10.55 g
Mechanical Compliance Cms 0.144 mm/N

***Xmax=(Voice coil winding depth-Magnetic Gap depth)/2+ Mgnetic Gap Depth/4


EXTRA INFO

Overall Diameter 6.53″ (166 mm)
Front Mount Baffle Cutout 5.63″ (143 mm)
Mounting Depth 2.6″ (66 mm)
Overall Depth 2.91″ (74 mm)
Net Weight 3.30 Lbs (1.50 kg)
Shipping Weight 3.62 Lbs (1.64 kg)
Carton Dimensions W x L x H 7.17″ x 7.17″x 4.13″
(182 x 182 x 105 mm)
