Features

X-treme midrange performance is what the PRV Audio 6MR600X-NDY is all about.

The 6MR600X-NDY from PRV Audio showcases the breakthrough advances of our product line like no other. After significant development, and assembling top of the line components, we have created a midrange loudspeaker that offers long lasting play, even during intense use, as well as outstanding durability.

Made to be a class leading midrange in the pro audio realm. This midrange loudspeaker is optimized for professional audio or (musical instrument) speaker system applications, and large car audio competition systems.

The powerful halo neodymium magnet assembly assures high flux concentration. Its magnetic structure significantly improves thermal connection and heat dissipation. This increases power handling and lowers power compression, with an optimum power to weight ratio.

Capable of high output and low distortion, this midrange is perfect for filling in the significant midrange response in any high output sound system. Great addition to the X-Series.

• 2″ Inside/Out voice coil wound on a hi-temp former, 8 Ohm
• 600 Watts RMS Power Handling, with a 97.5 dB Sensitivity, capable of generating very high output!
• Low inductance and extended frequency response with wide directivity
• New Generation of Halo Neodymium Magnet Structure
• Ideal solution for compact full-range applications demanding high acoustic output also available at 4 Ohm
• Coaxial Performance from a single speaker

This is the ultimate midrange loudspeaker, the 6MR600X-NDY’s output on upper midrange frequencies compares to a compression driver! The naturally damped paper cone gives this speaker the ability to reach up to 13,000Hz.

Also, its extreme output eliminates the need for a high frequency compression driver in the system, providing 2-way coaxial performance from a single speaker!

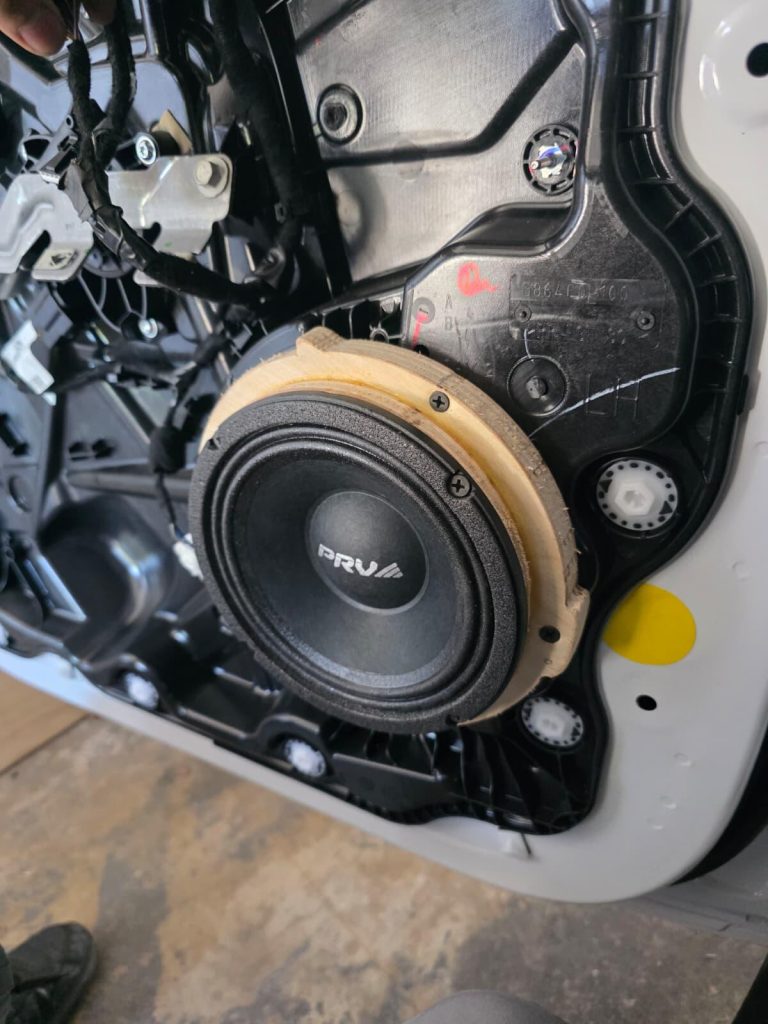

Its high energy, rare-earth neodymium motor, combined with other fine materials, were chosen to increase sensitivity and power handling to deliver the finest details in audio, as demanded by most audiophiles and custom builders in the car audio and motorcycle custom builders.

This midrange takes performance to the next level with its wide frequency bandwidth, high output levels between 3,000 to 10,000Hz, and unbelievable 600 Watts RMS music power handling, completely eliminating the need for a compression driver on your system!

This midrange incorporates a 2” double layered copper clad aluminum wire voice coil, and a symmetrical inductance profile. Its 11 mm winding length also ensures high heat dissipation and high sensitivity, even on high power, and with minimum distortion.

Everything about this speaker has been designed for reliable and consistent high output levels, even when driven to its limit, allowing you to achieve high fidelity sound at low distortion for the best possible listening experience.

PRV 6.5″ Midrange Speaker 6MR600X-NDY High Power 600 Watts / 8 Ohm – Neodymium Best In Its Class PRO Audio Loudspeaker

Recommended Amplifier configurations and crossover HPF using PRV Digital Signal Processor DSP when using the recommended power below:

Custom System, Middle Power
4 Speakers – 1x MDX1800.1 2 Ohm, 4 speakers in parallel
• 130 Hz at 18 dB per octave filter Crossover / BT18
when using up to 450 Watts RMS musical power

Custom System, High Power
4 Speakers – 1x MDX2500.1 2 Ohm, 4 speakers in parallel
• 150 Hz at 18 dB per octave filter Crossover / BT18
when using up to 600 Watts RMS musical power

If you have compression drivers or super tweeters on your system the recommended LPF is 6,000 at 18 dB per octave filter Crossover / BT18 but you may set it lower to blend in better depending on the other components in your system, or you may not use a LPF at low power to take advantage of its high frequency response.

GENERAL SPECIFICATIONS

Nominal Diameter	6″ (152 mm)
Nominal impedance	8 Ohm
Nominal Power Handling*	300 Watts
Continuous Program Power (RMS)**	600 Watts
Max Peak Power***	1200 Watts
Sensitivity 2.83V at 1m	97.5 dB
Recommended Hi Pass Crossover For Full Power Handling	160 Hz 12db Per Octave Crossover
Frequency Response	90 – 13,000 Hz
Voice Coil Diameter	2″ (50 mm)
Voice Coil Wire	CCAW
Voice Coil Winding Depth	11.0 mm
Former Material	Kapton
Magnetic Gap Depth	8.0 mm
Frame Material	Die Cast Aluminum

^{*Nominal power handling is defined as the maximum RMS power that the speaker can handle in a 2-hour test with a pink noise with 6dB of crest factor and a bandpass filter with 12db/oct tuned in its usable frequency range. **Continuous Program Power (RMS) is the maximum power that the speaker can handle considering a regular musical program using our recommended filters, this power can be used to define the optimum amplifier power to provide a clean signal without clipping or saturation. ***Max Peak Power is the maximum power operation for the speaker, this power is allowed just for a few fractions of a second, usually found just on the peaks of the music. Keeping this power for a little longer timer will damage the speaker.}

THIELE-SMALL PARAMETERS

Equivalent Volume	Vas	5.56 l
Excursion (mathematical)***	Xmax	3.50 mm
Free Air Resonance	Fs	95.2 Hz
Mechanical Factor	Qms	15.64
Electrical Factor	Qes	0.22
Total Factor	Qts	0.22
Cone Area	Sd	143 cm²
Mechanical Mass	Mms	15.84 g
Bl Factor	Bl	15.84 Tm
Dc Resistance	Re	6.5 Ohm
Inductance	Le	0.023 mH at 1 kHz
Mechanical Mass Without Air	Mmd	13.39 g
Mechanical Compliance	Cms	0.195 mm/N

***Xmax=(Voice coil winding depth-Magnetic Gap depth)/2+ Magnetic Gap Depth/4

EXTRA INFO

Overall Diameter	6.48” (164.5 mm)
Front Mount Baffle Cutout	5.63” (143 mm)
Mounting Depth	3.09” (78.5 mm)
Overall Depth	3.43” (87 mm)
Net Weight	4.63 Lbs (2.1 kg)
Shipping Weight	5.00 Lbs (2.3 kg)
Carton Dimensions W x L x H	7.0”x 7.0” x 4.25” (178 x 178 x 108mm)
