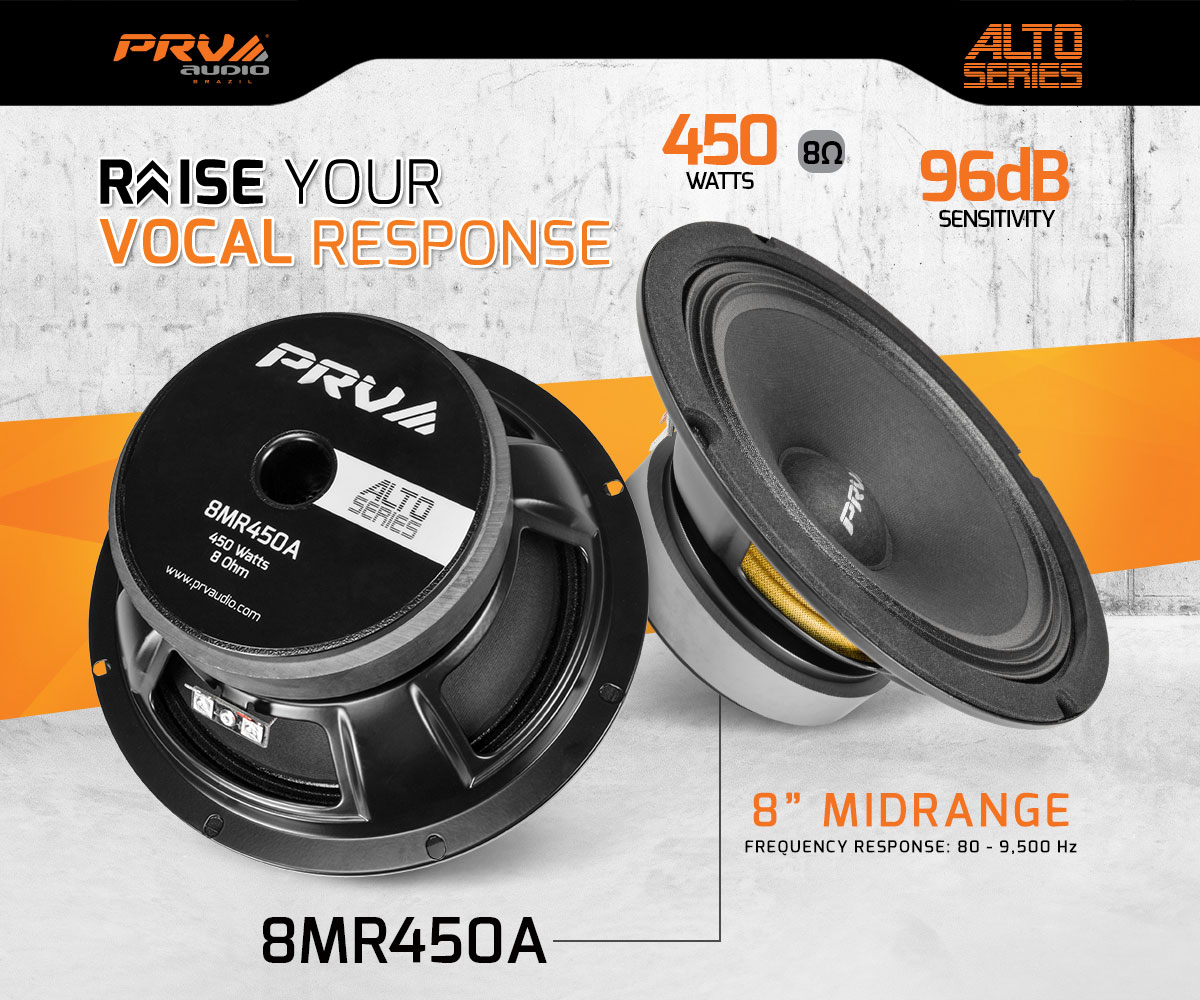

8" MIDRANGE LOUDSPEAKER

8MR450A

In stock

8″ Midrange – 8 Ohm
Ferrite Magnet
96 dB – 450 Watts

$44.91

In stock

PRICE FOR SINGLE UNIT

BUY MORE, SAVE MORE

SKU: 8MR450A Category: Low Frequency Speakers Tags: ALTO SERIES, MIDRANGE

Features

PRV Audio’s ALTO Series were carefully crafted and voiced to reproduce a natural, smooth sound while remaining dynamic. To get the superior fidelity, a special composite cone is used to smooth frequency response and to keep the moving mass low, increasing the efficiency.

All new features on the 8MR450A make it capable of high output and low distortion, this midrange is perfect for filling in the important midrange response in any high output sound system. Great Addition to the ALTO Series!

2″ DUAL layer CCAW voice coil wound on a glass fiber former, 8 ohms
Low inductance for great transients and extended high frequency response up to 9,500 Hz
Large voice coil winding has improves power handle giving it 450 watts RMS continuous program power rating
High sensitivity of 96 db makes this a great budget choice for high output home, car, and professional audio systems
Full copper sleeve on the pole-piece for low distortion and inductance

The new 8MR450A from ALTO Series has everything you want in a mid range pro audio loudspeaker, without sacrificing performance we have designed a compact and versatile footprint with only 3.21” of mounting depth.

The 38 mm (1.5 in) copper clad aluminum wire is wound in a double layer using a high temperature resin adhesive on a strong ventilated glass fiber former. Also, a copper sleeve is included on the pole piece which reduces inductance to improve the high frequency response.

A triple roll cloth surround, combined with an optimized fiber pressed paper cone, ensure the speaker’s frequency response is smooth and extended.

This professional midrange speaker is purpose-built to cover from 100 Hz to 6,000 Hz in three-way speakers, but also works great as a door speaker in car audio applications and a woofer in two-way satellite speaker concept.

Technical Details

GENERAL SPECIFICATIONS

Nominal Diameter	8″ (203 mm)
Nominal impedance	8 Ohms
Nominal Power Handling	225 Watts
Continuous Program Power (RMS)	450 Watts
Max Peak Power	900 Watts
Sensitivity 2.83V at 1m	96 dB
Recommended Hi Pass Crossover For Full Power Handling	140 Hz 12db Per Octave Crossover
Frequency Response	80 – 9,500 Hz
Voice Coil Diameter	1.5″ (38 mm)
Voice Coil Wire	CCAW
Voice Coil Winding Depth	11.0 mm
Former Material	Kapton
Magnetic Gap Depth	6.0 mm
Frame Material	Stamped Steel

^{*Nominal power handling is defined as the maximum RMS power that the speaker can handle in a 2-hour test with a pink noise with 6dB of crest factor and a bandpass filter with 12db/oct tuned in its usable frequency range.} ^{**Continuous Program Power (RMS) is the maximum power that the speaker can handle considering a regular musical program using our recommended filters, this power can be used to define the optimum amplifier power to avoid a clean signal without clipping or saturation.} ^{***Max Peak Power is the maximum power operation for the speaker, this power is allowed just for a few fractions of a second, usually found just on the peaks of the music. Keeping this power for a little longer timer will damage the speaker.}

THIELE-SMALL PARAMETERS

Equivalent Volume	Vas	34.86 l
Excursion (mathematical)***	Xmax	4.00 mm
Free Air Resonance	Fs	65.26 Hz
Mechanical Factor	Qms	15.19
Electrical Factor	Qes	0.57
Total Factor	Qts	0.55
Cone Area	Sd	241 cm²
Mechanical Mass	Mms	13.78 g
Bl Factor	Bl	7.58 Tm
Dc Resistance	Re	5.8 Ohms
Inductance	Le	0.257 mH at 1 kHz
Mechanical Mass Without Air	Mmd	11.67 g
Mechanical Compliance	Cms	0.432 mm/N

***Xmax=(Voice coil winding depth-Magnetic Gap depth)/2+ Mgnetic Gap Depth/4

EXTRA INFO

Overall Diameter	8.22″ (209 mm)
Front Mount Baffle Cutout	7.26″ (184.5 mm)
Mounting Depth	3.21″ (81.5 mm)
Overall Depth	3.50″ (89 mm)
Net Weight	4.63 Lbs (2.1 kg)
Shipping Weight	5.07 Lbs (2.3 kg)
Carton Dimensions W x L x H	8.66 x 8.66″ x 4.17″ (220 x 220 x 106 mm)
