8MR500SEAL PRO
-
- 8″ Midrange – 8 Ohm
- Sealed Basket
- 97 dB – 500 Watts
$69.91
In stock
PRICE FOR SINGLE UNIT
Features
Features
The 8MR500SEAL PRO offers very smooth midrange response to the upper midrange up to 7,500 Hz. Designed to provide definition and high output on midrange frequencies, perfect for use in any high output 3-way system.

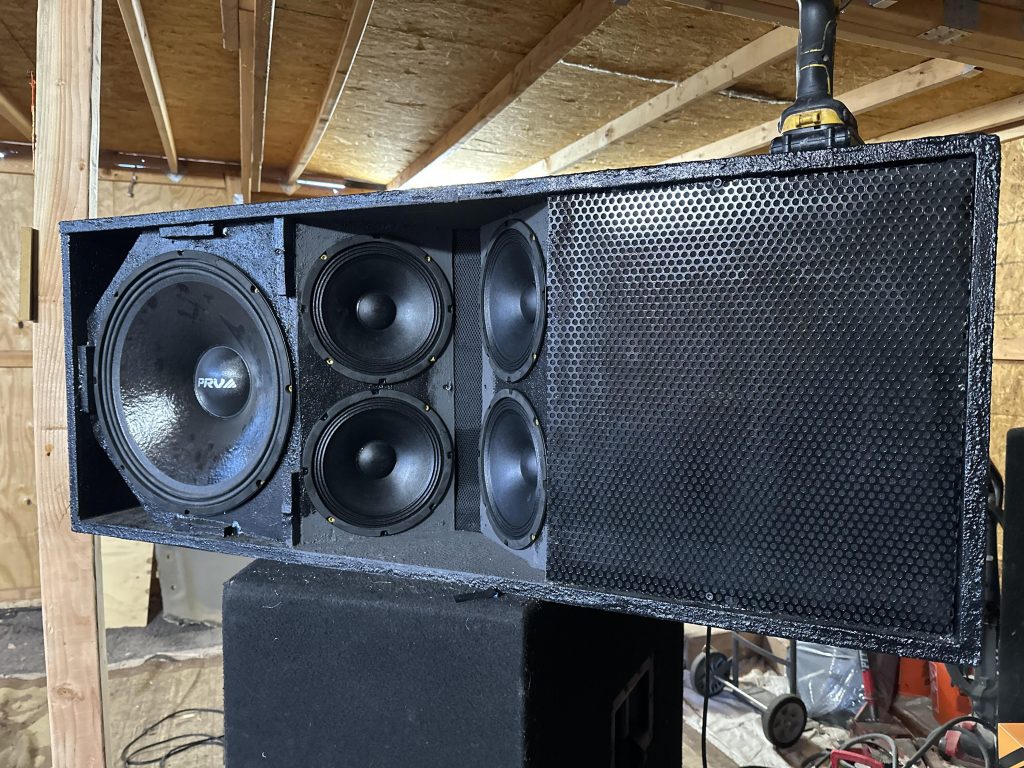

Now you can pair this 8″ speaker with any 10″ or 12″ speaker from our PRO Series, to build the ultimate custom Chuchero® or PRO Audio systems.
- A sealed back basket simplifies cabinet manufacture, eliminating the need for a separate enclosure for other speakers.
- Capable of handling 500 Watt RMS this midrange has enough output capability to keep up with the most powerful drivers, suitable for use in 3-way cabinet systems ( Midbass + Seal Basket + High Frequency Driver or Tweeter).
- Its naturally damped paper cone is coated with a waterproof coating, ensuring high performance even in harsh damp or wet weather conditions.
- Optimized to deliver detailed reproduction of mid-range frequencies from 300Hz to 7,500Hz. A powerful output peak at 400hz reaches 104dB of sensitivity at 1w/1m.
A light paper cone is mated to a large 2″ voice coil for great power handling of 500 watts. A durable spider suspension, woven cloth surround, and closed back pressed steel basket are combined for durability over many hours of use.
Cabinet builders gravitate towards this driver for use in their systems when looking for a powerful sealed basket midrange, to keep up with high sensitivity low frequency speakers.
PRV 8″ Sealed Basket Midrange 8MR500SEAL PRO Audio Speaker / 8 Ohm – High Performance Waterproof Cone
Technical Details
GENERAL SPECIFICATIONS
Nominal Diameter | 8″ (203 mm) |
Nominal impedance | 8 Ohm |
Nominal Power Handling | 250 Watts |
Continuous Program Power (RMS) | 500 Watts |
Max Peak Power | 1000 Watts |
Sensitivity 2.83V at 1m | 97 dB |
Recommended Hi Pass Crossover** **For Full Power Handling | 400 Hz** **12db Per Octave Crossover |
Frequency Response at -10DB | 400 – 7,500 Hz |
Voice Coil Diameter | 2″ (50 mm) |
Voice Coil Wire | CCAW |
Voice Coil Winding Depth | 12.0 mm |
Former Material | Kapton |
Magnetic Gap Depth | 8.0 mm |
Frame Material | Stamped Steel |
THIELE-SMALL PARAMETERS
Equivalent Volume | Vas | 0.97 l |
Excursion (mathematical)*** | Xmax | 4.00 mm |
Free Air Resonance | Fs | 392.2 Hz |
Mechanical Factor | Qms | 18.14 |
Electrical Factor | Qes | 2.58 |
Total Factor | Qts | 2.26 |
Cone Area | Sd | 241 cm² |
Mechanical Mass | Mms | 13.63 g |
Bl Factor | Bl | 8.83 Tm |
Dc Resistance | Re | 6.0 Ohm |
Inductance | Le | 0.25 mH at 1 kHz |
Mechanical Mass Without Air | Mmd | 11.53 g |
Mechanical Compliance | Cms | 0.012 mm/N |
***Xmax=(Voice coil winding depth-Magnetic Gap depth)/2+ Mgnetic Gap Depth/4
EXTRA INFO
Overall Diameter | 8.26″ (209.7 mm) |
Front Mount Baffle Cutout | 7.20″ (183 mm) |
Mounting Depth | 3.09″ (78.5 mm) |
Overall Depth | 3.40″ (86.5 mm) |
Net Weight | 6.40 Lbs (2.90 kg) |
Shipping Weight | 7.0 Lbs (3.18 kg) |
Carton Dimensions W x L x H | 9.05″ x 9.05″ x 3.94″ (230 x 230 x 100 mm) |
