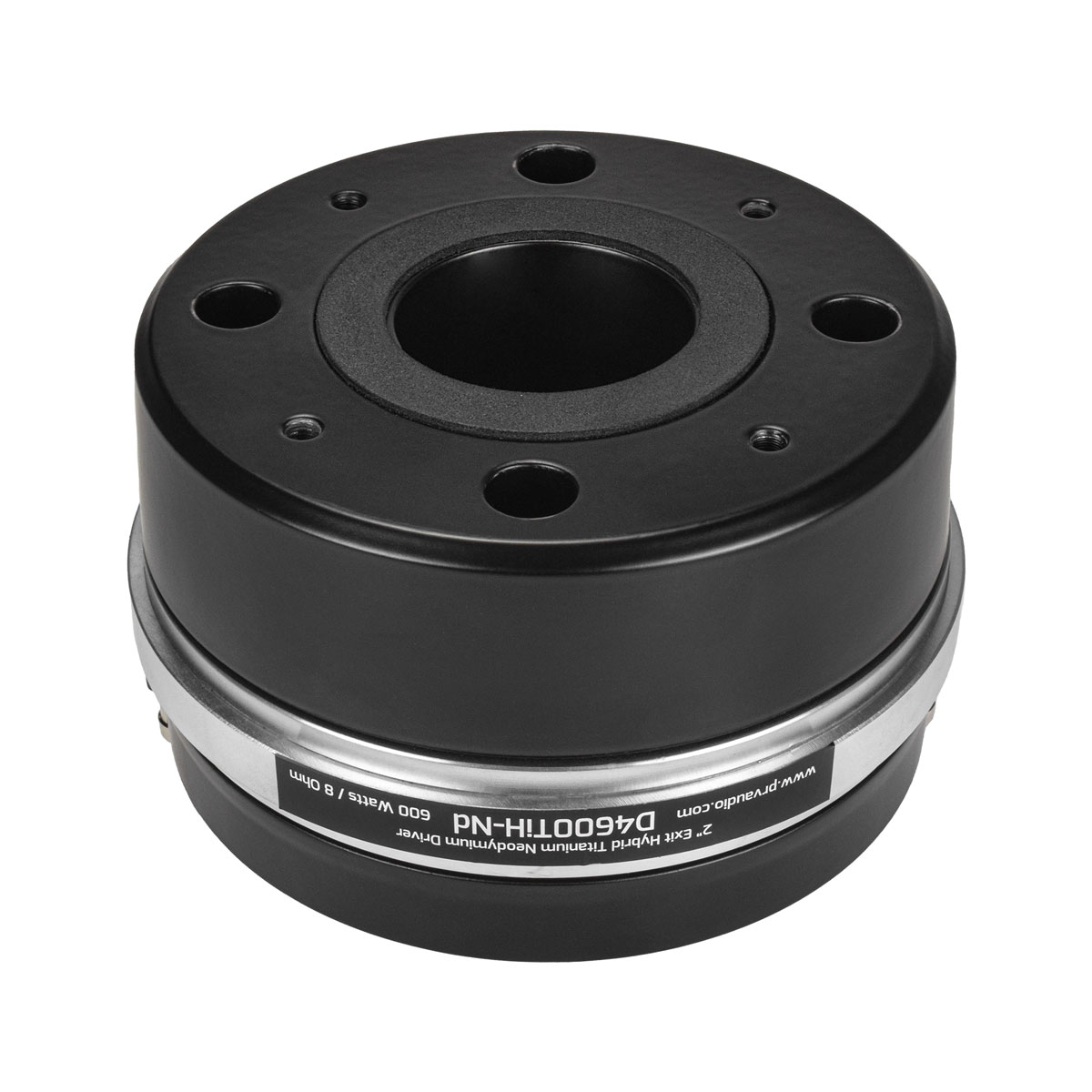

D4600TiH-Nd
- 2″ Mids & Highs Driver
- Titanium Hybrid Diaphragm
- 111 dB – 600 Watts
$382.42
Out of stock
PRICE FOR SINGLE UNIT
Features
Features

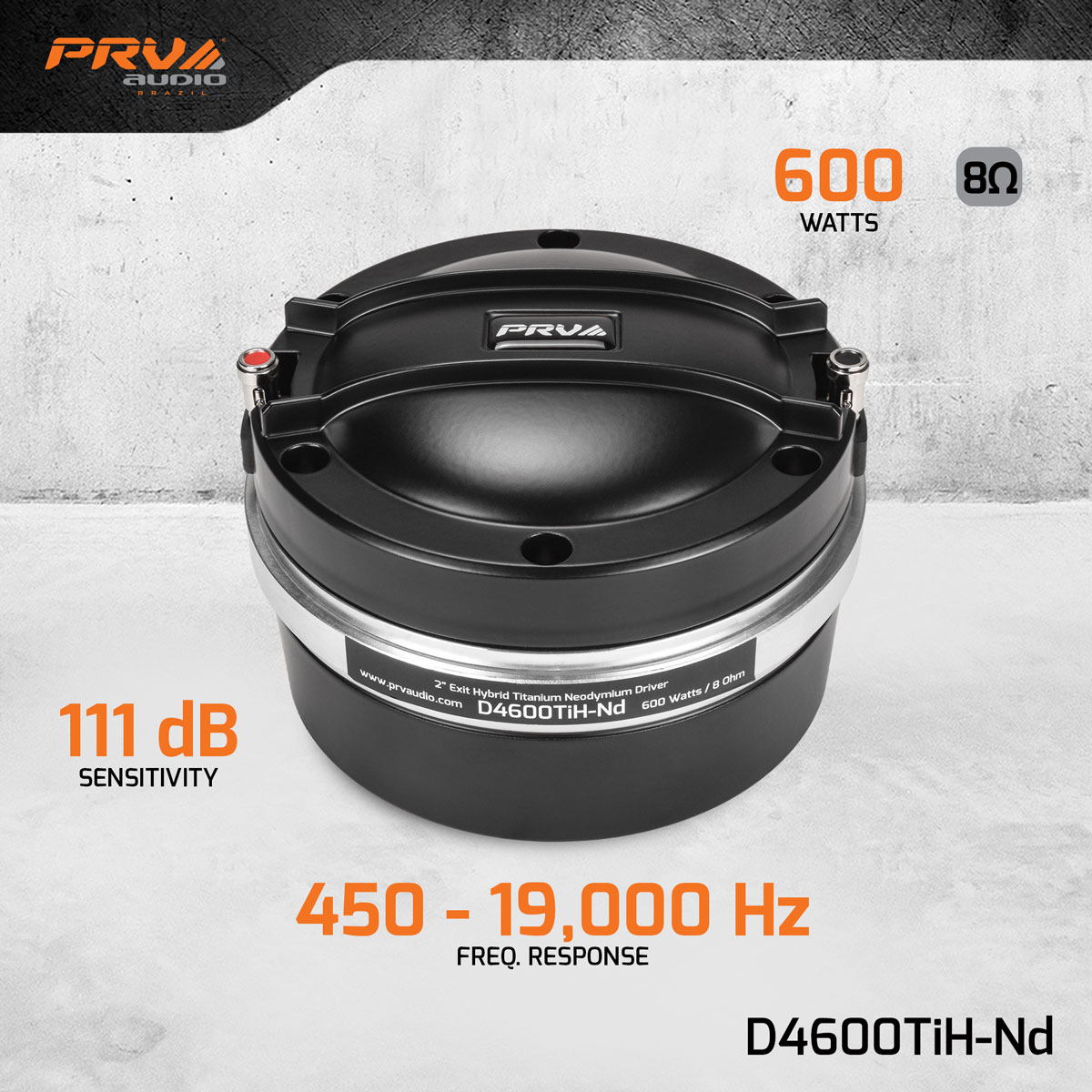

Its extended frequency range (from 450 to 19,000 Hz) has an unmatched sound quality output, with the highest sensitivity in its class. The 111 dB efficiency provides competition-level performance.
- Its Hybrid diaphragm takes this driver to a new category of high output and smooth mid-range frequency response.
- Car audio SPL enthusiasts use this 2” driver for vocal reinforcement on 2-way systems.
- The large high temperature 4 inch voice coil can handle up to 600 watts RMS of musical power
- For the highest output audio systems, this 111 dB efficient driver provides competition performance.
- Features a strong 5.75″ diameter neodymium ring magnet that reduces overall size and weight.

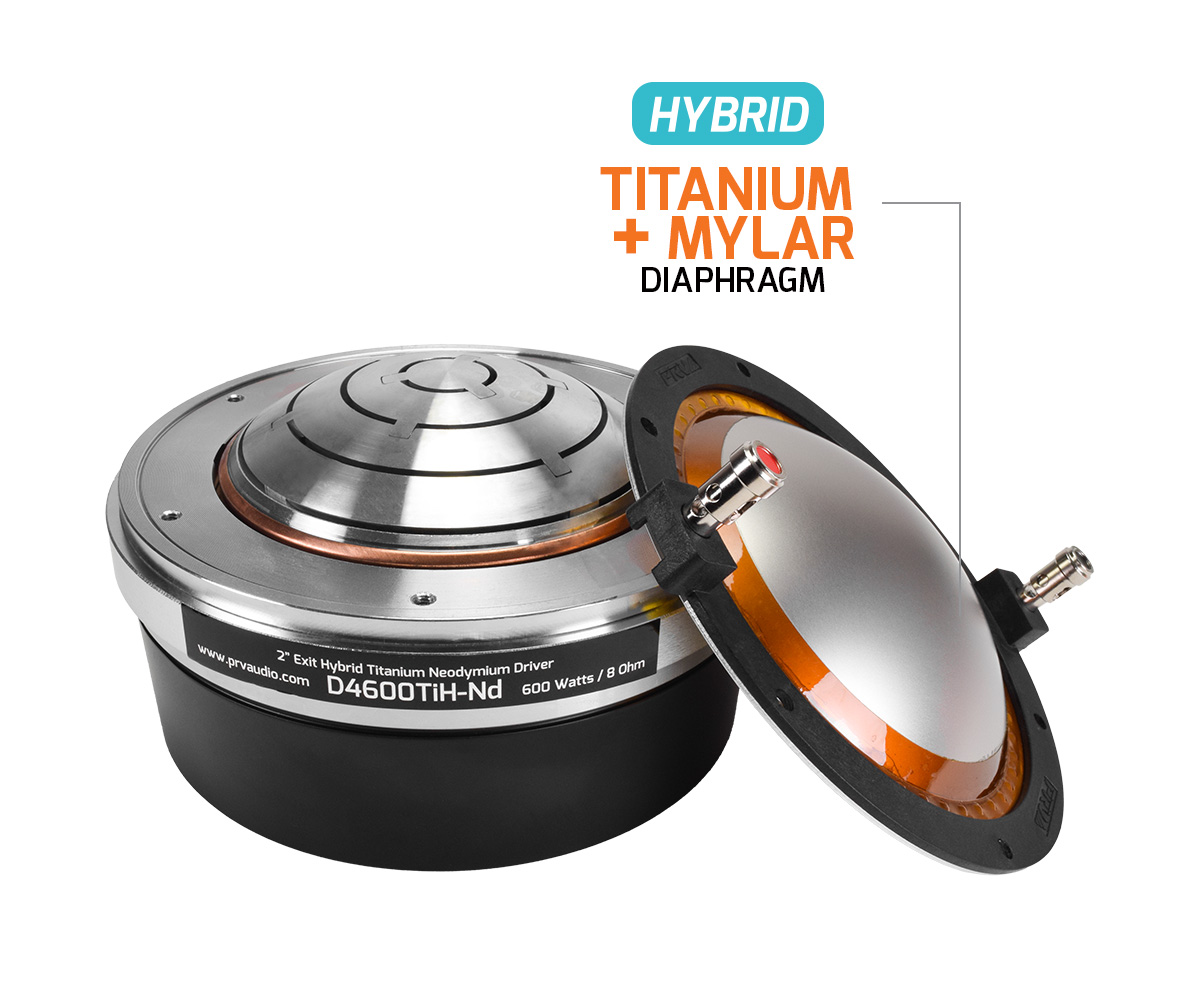

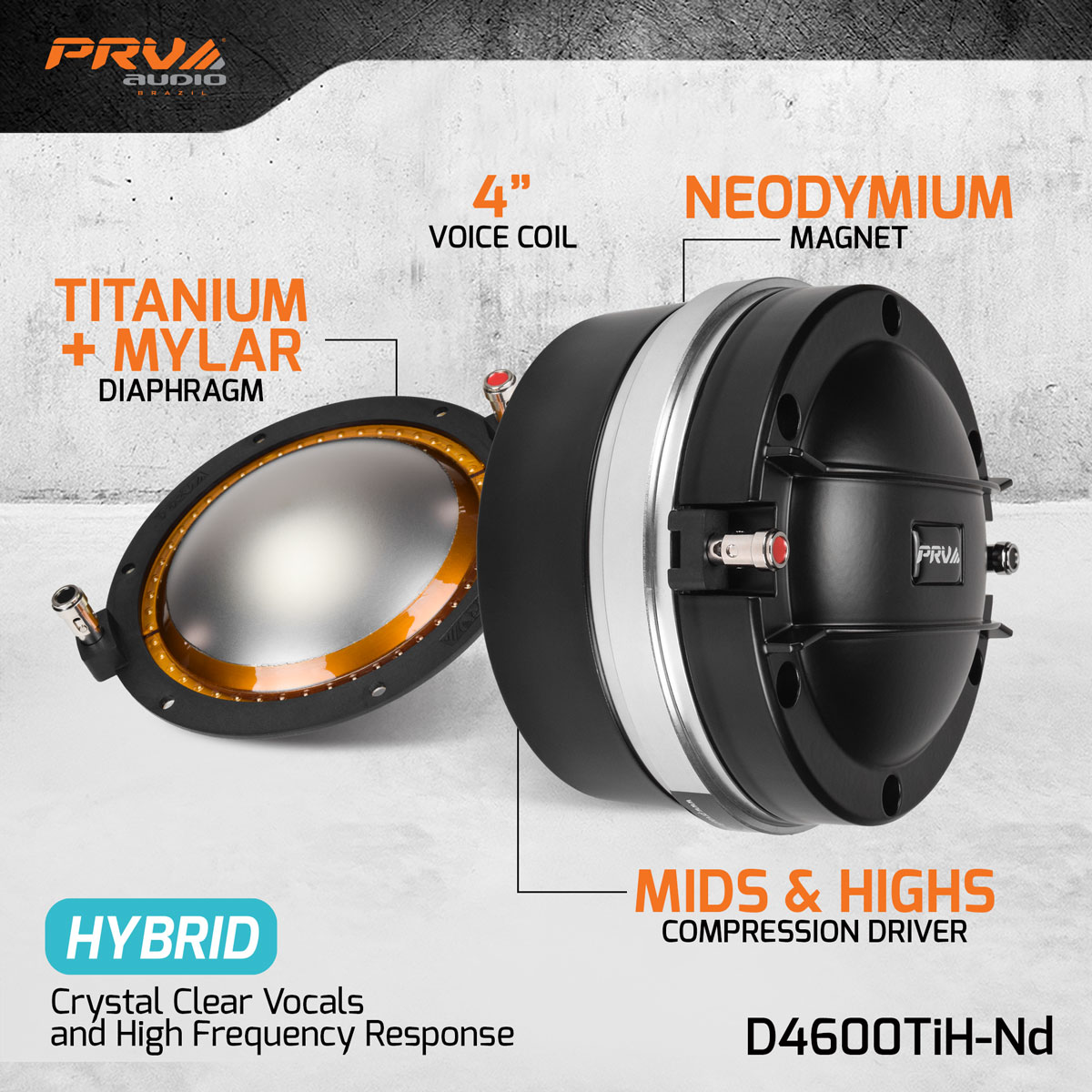

Pushing the limits of today’s new technology, we have an exceptional non-standard 4″ voice coil attached to a pure titanium diaphragm with an exclusive Mylar suspension, providing sound accuracy with non-fatigued suspension.
The hydrib diaphragm is attached to a copper-clad aluminum wire with Kapton® former for a high 600 Watts RMS musical power handling, when used with recommended HPF using PRV Digital Signal Processor DSP
- 650 Hz at 12 dB per octave filter Crossover / BT12
- 600 Hz at 18 dB per octave filter Crossover / BT18
Its incredible output capabilities make this mids and highs driver one of the loudest vocal drivers on the market!
Using a 5.75″ diameter neodymium motor provides a more compact design for easy front-mount installation with WGP22-50 horns, providing a compact yet powerful driver that solves the spacing and weight issues for large systems.
We have created a compact and most powerful driver yet that solves the critical component spacing and weight issue.

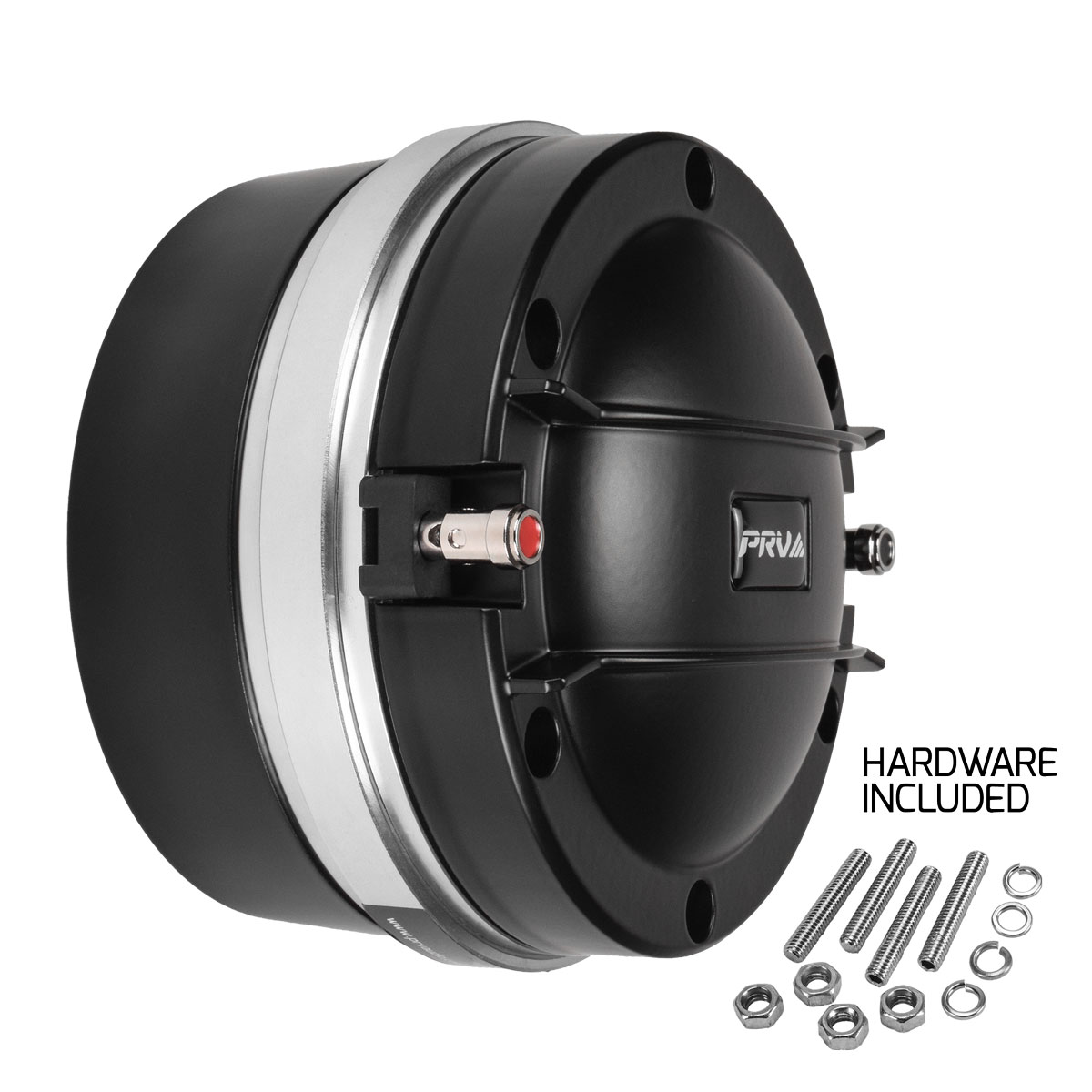

Mounting hardware is included.

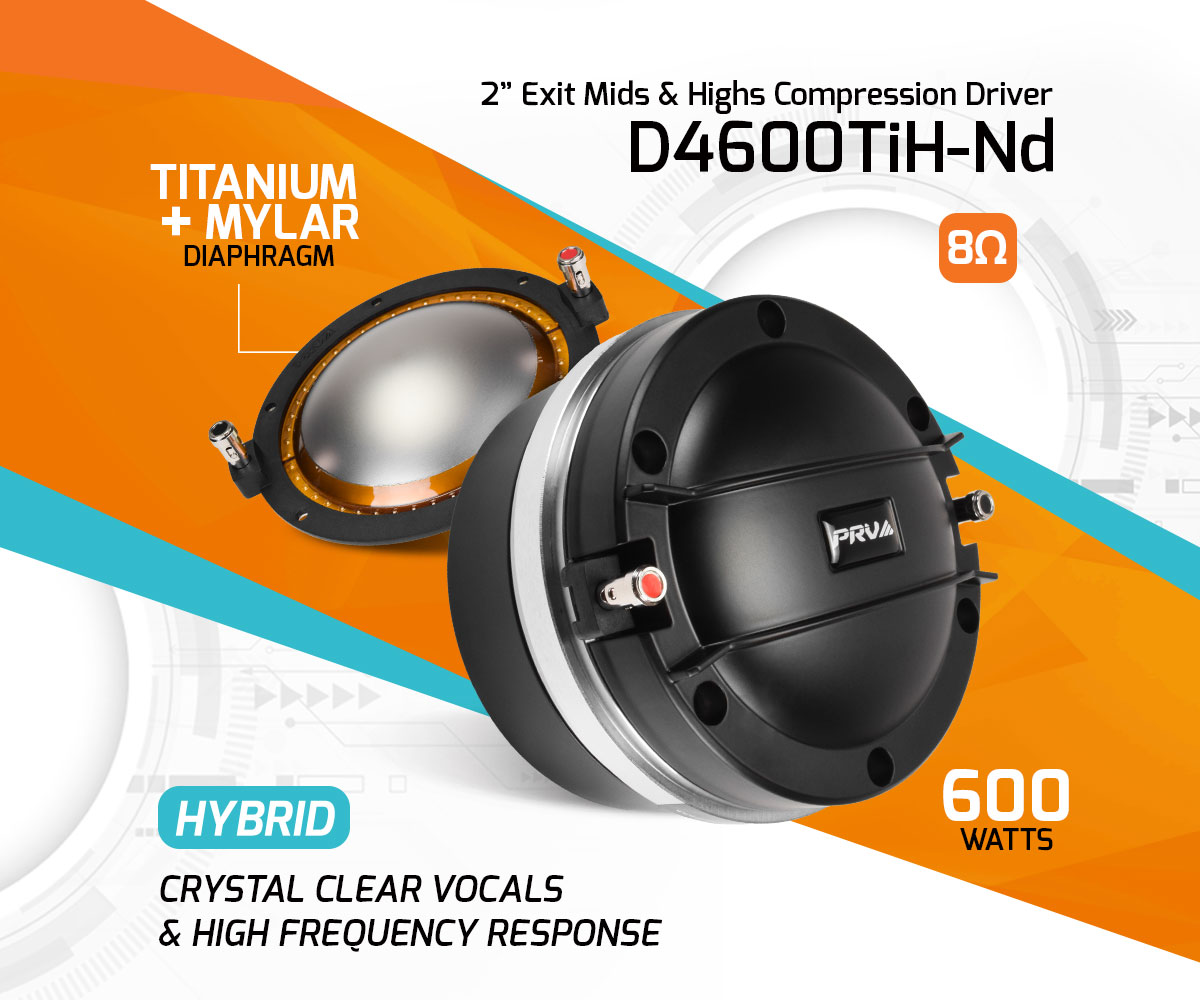

PRV Hybrid 2″ Neodymium Mids & Highs Driver D4600TiH-Nd 600 Watts 4” Voice Coil 8 Ohm – Titanium + Mylar Diaphragm
Technical Details
GENERAL SPECIFICATIONS
| Exit Throat Diameter | 2” (50 mm) |

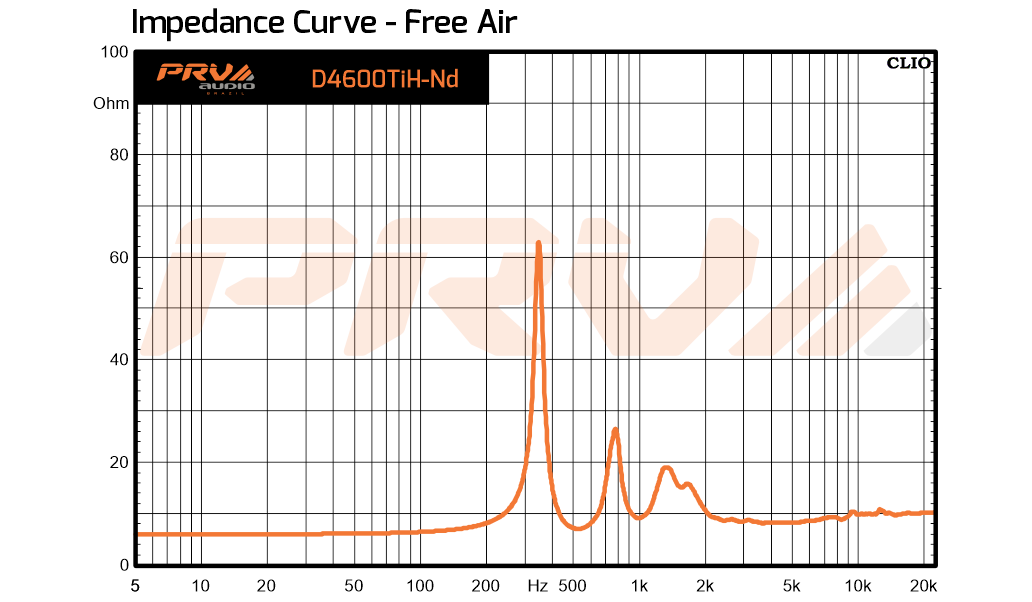

| Nominal impedance | 8 Ohm |
| Rated Power Handling* | 300 Watts |
| Program Power | 600 Watts |
| Peak Power | 1200 Watts |
| Sensitivity 2.83V at 1m | 111 dB |
| Recommended Hi Pass Crossover For Full Power Handling | 650 Hz 12db/oct Crossover |

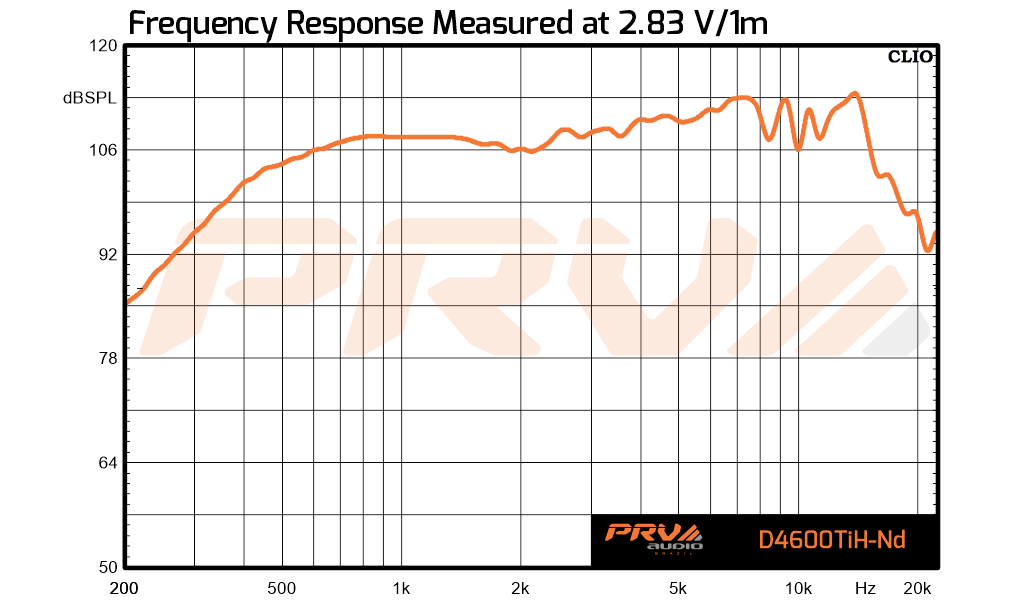

| Frequency Response at -10dB | 450 – 19,000 Hz |
| Voice Coil Diameter | 4″ (101 mm) |
| Voice Coil Wire | CCAW |
| Voice Coil Former Material | Kapton |
| Diaphragm Material | Titanium-Mylar |
| Flux Density | 2.5 T |
| Magnet Material | Neodymium |
EXTRA INFO

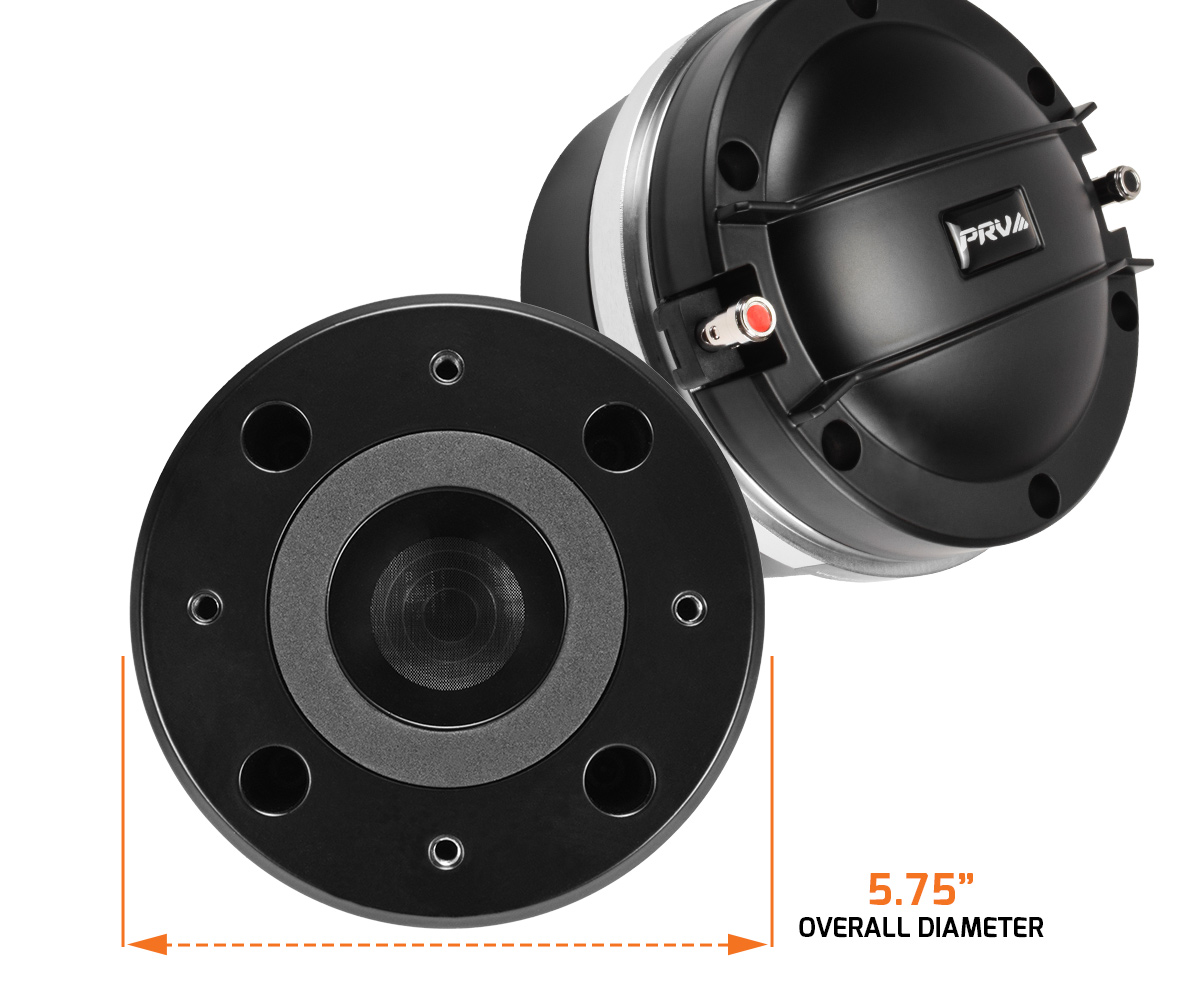

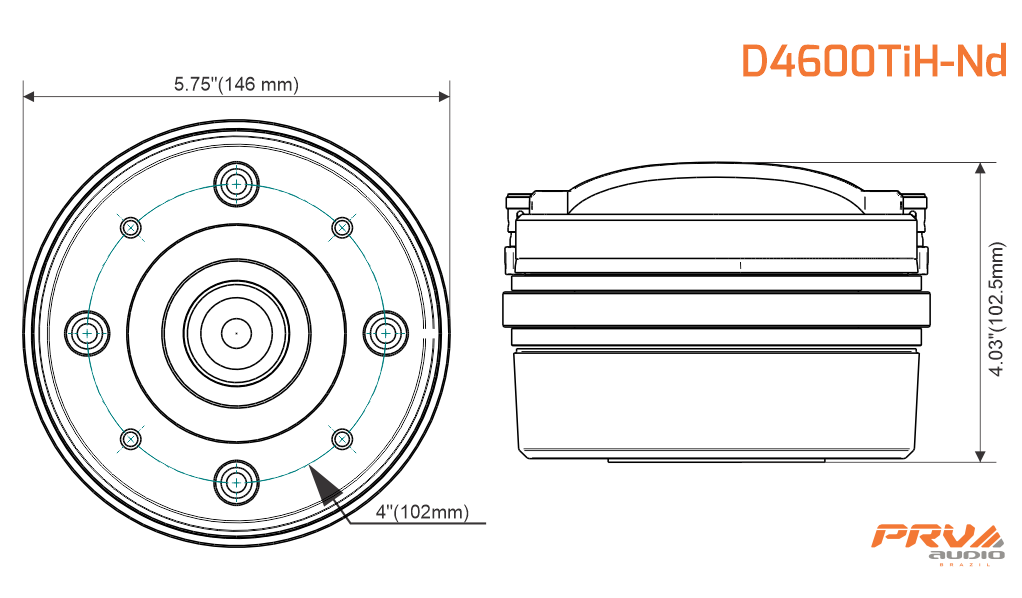

| Overall Diameter | 5.75″ (146 mm) |
| Overall Depth | 4.03″ (102.5 mm) |
| Mounting Bolt circle | M6 x 4 4″ (102 mm) |
| Net Weight | 8.60 lbs (4.90 kg) |
| Shipping Weight | 9.35 lbs (4.25 kg) |
| Carton Dimensions W x L x H | 6.8″ x 6.3″ x 5.13” (165 x 165 x 145 mm) |
Repair Parts

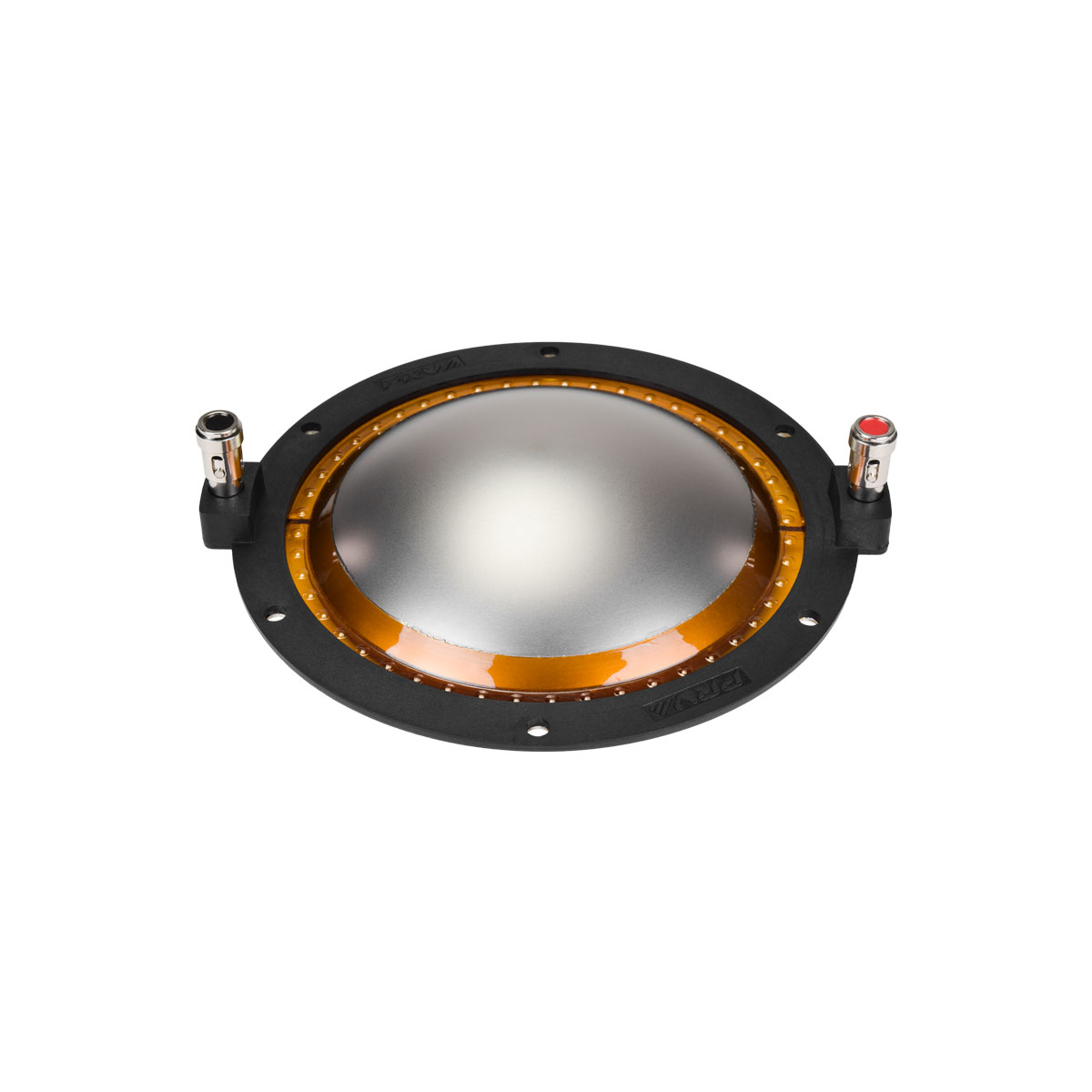

Replacement Diaphragm for D4600TiH-Nd
