MDX2000.4 1 Ohm
-
- Full Range Amp
- MINI 4 Channel
- 4x 500 Watts 1Ω
- MSRP:
- Price:
- BLACK FRIDAY SALE: $179.00
In stock
PRICE FOR SINGLE UNIT
Features
Features
The mini MDX2000.4 1 Ohm delivers 2000 Watts RMS power over 4 channels in a compact, modern amplifier.
Designed for high performance systems that require high power output but have very little space to spare, the MDX Series features exclusive and patented technologies that ensure a high definition sound quality in the most compact and reliable design.
Engineered to be the most efficient amplifier able to deliver impressive power output while minimizing the strain on your electrical system. This means you can enjoy the benefits of high power performance without draining your battery quickly.
- A small footprint mini heavy duty heatsink make this micro amplifier easy to install anywhere in vehicles, motorcycles, 4-wheelers: Overall 9″ Width by 5.90″ Length and only 2.60″ Height.
- 4 x 500 watts at 1 Ohm TRUE RMS certified at full range output Digital Class D Brazilian Technology, gives you the benefit of wiring multiple speakers and dividing the power per channel.
- 2 Channel Bridged – Double the power output to your speakers by bridging two channels. 2x 1000 Watts RMS at a minimum impedance of 2 Ohms per bridged channel.
- The latest technology on surface mount components ensures best performance against vibration and superior sound quality, allowing enthusiasts and competitors to build the system of their dreams
Its high power output with its multichannel technology eliminates the need for multiple amplifiers, when you can use this amplifier in 4, 3 or 2 channel configurations.

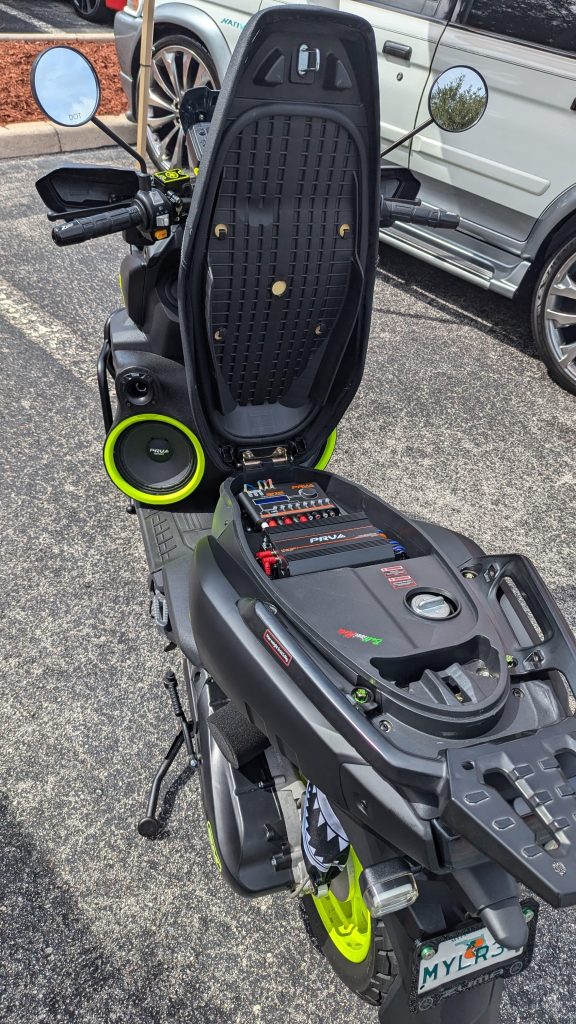

The MDX Series is ideal for motorsport applications such as custom motorcycles, ATVs and Slingshots!
Its 1 Ohm channels allow you to install 16x 4 Ohm drivers or tweeters, 4 per channel in parallel, giving out 125 watts per component.
500 Watts at 1 Ohm per Channel
1000 Watts at 2 Ohm per Bridged Channel
High Output that takes up little space!
Featuring a mini heavy-duty heatsink, as well as a built-in cooling fan, this amplifier runs cool under even the most demanding playlists.
At only 3.85 lbs allows any custom system to achieve the highest performance and weight ratio possible.
PRV Audio MDX2000.4 1 Ohm MINI 4 Channel Car Audio Amplifier 4 x 500 Watts RMS at 1 Ohm – Ultra Compact Stereo Amp
Popular Installation configurations with this amplifier:
Its high power output channels allow you to install 4x 4 Ohm speakers, drivers or tweeters in parallel per channel, giving up to 125 watts per component.
Its high power output channels allow you to install 4x 8 Ohm speakers, drivers or tweeters in parallel per channel, giving up to 250 watts per component.
Its high power output channels allow you to install 2x 4 Ohm speakers, drivers or tweeters in parallel per channel, giving up to 500 watts per component.
Before Installing:
You must follow the instructions for the product’s installation to guarantee optimal performance. If you have any questions, get in touch with us. Before using the amplifier, always follow these guidelines:
• Make sure the amplifier is switched off before adding or removing any connections. This prevents possible damage to equipment.
• Keep all cables as far away as possible from the ignition cables, electronic injection modules and starter switch since they may cause noise interference; Minimum recommended installation distance between amplifier is 1.25”.
• Always use OFC 4 AWG Copper wire for power and ground and minimum of 12 AWG speaker wire and good quality connectors. Copper-clad aluminum wire (CCAW) must not be used. This guarantees reliability and performance.
• To avoid damaging the cables, make sure that they do not touch sharp metal edges. Important: For this amp use a 100A fuse 12 inches away from the battery as a safety precaution.
The power rating data is based on equipment from the PRV Audio Group laboratory. Rated power tested with 60Hz to 1KHz sinusoidal signal and THD <= 1%, with resistant load referring to the indicated measurements. The electronic components and the manufacturing process can present manufacturing variations, thus leading to a variation in the measurements made. This amplifier is designed to perform on music applications (with speakers), any load test (resistant load) is not recommended.
PRV Audio products are guaranteed for a period of ONE (1) YEAR from the date of original purchase against any manufacturer’s defects in material and workmanship under normal use.
Technical Details
GENERAL SPECIFICATIONS
| Impedance | 1 Ohm per Channel |
| Channels | 4 Channel |
| Rated RMS Power at 14.0 V at 1 Ohm | 4x 500 Watts RMS |
| Rated RMS Power at 14.0 V at 2 Ohm | 4x 320 Watts RMS |
| Bridged Rated RMS Power at 14.0 V at 2 Ohm | 2x 1000 Watts RMS |
| Average Efficiency | 87% |
| Operating Voltage | 8 to 16 Volts |
| Musical Current Draw | 95 A |
| Minimal Power Wire Input | (OFC) 4 Gauge wires |
| Built-in Crossover | Fixed HPF & LPF at 80 Hz |
| Minimal Speaker Wire Output | 12 Gauge |
| Frequency Response(-3dB) | 10 – 22,000 Hz |
| Min. Input Sensitivity for Max. Output | 0.2 to 4v |
| Signal Input | RCA Cables |
| Signal to Noise | >90 dB |
| Protection System | High Temperature / Short circuit on Output |
| Heat Sink Type | Mini Heavy Duty Cast Aluminum |
| Dimensions ( Width x Depth x Height ) | 9.00″ x 5.90″ x 2.60″ |
| Weight | 3.85 Lbs |
