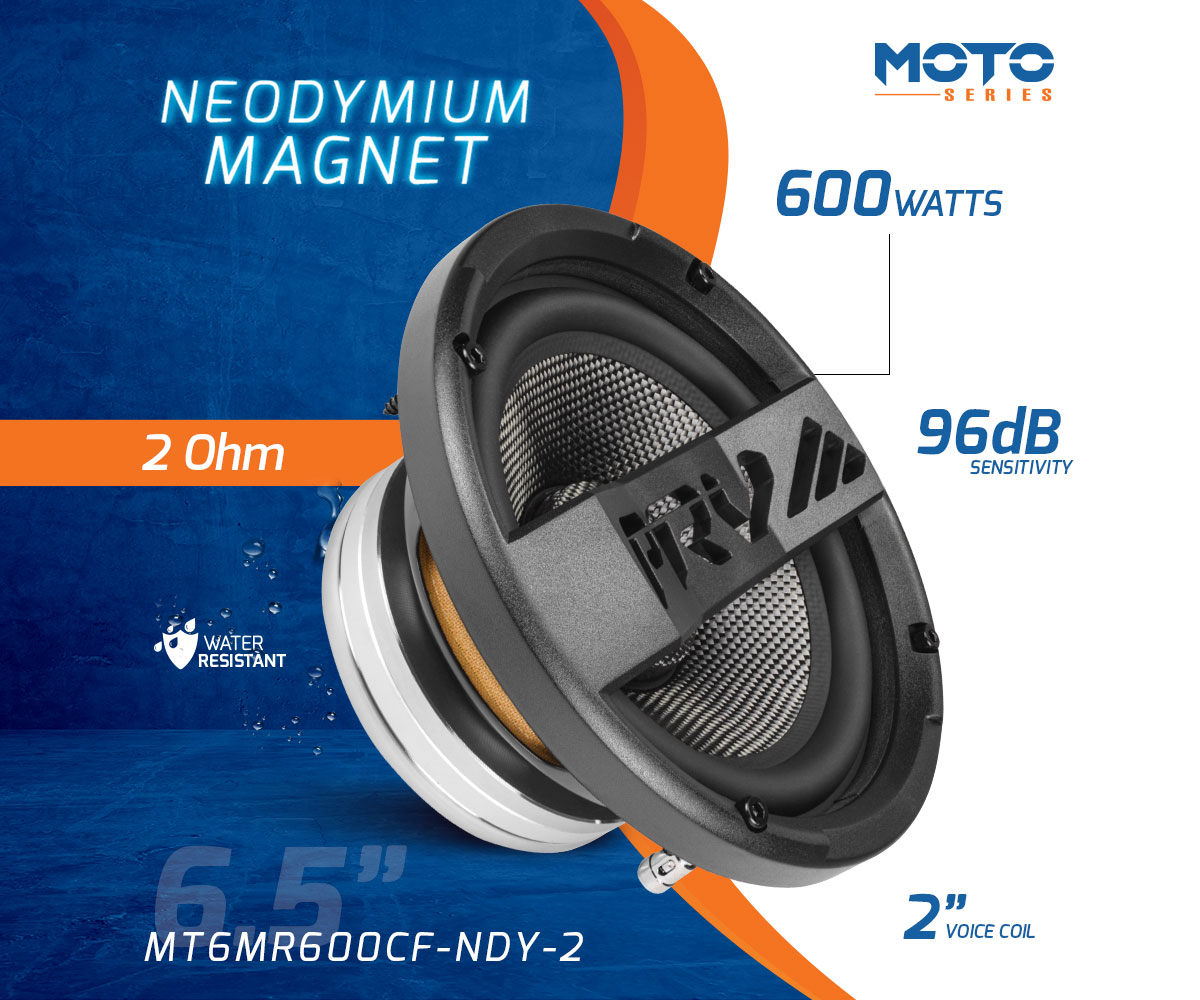

6.5" NEODYMIUM MIDRANGE LOUDSPEAKER

MT6MR600CF-NDY-2

In stock

-

  • 6.5″ Midrange – 2 Ohm
  • Neodymium Magnet
  • 96 dB – 600 Watts

$179.91

In stock

PRICE FOR SINGLE UNIT

SKU: MT6MR600CF-NDY-2 Categories: , Tags: ,

Features

Features

PRV Audio is proud to present our new MOTO Series MT6MR600CF-NDY-2, high performance 6.5″ speaker dedicated for motorsports installations, focused on utilizing all the power from a 2 or 4 channel amplifier, with 1 speaker per channel to match the amplifier’s lowest impedance and maximum power output.

This midrange loudspeaker established the new benchmark for vocal reproduction for outdoor applications, making it ideal for improving the sound system in your boat, UTV, 4 wheeler, Slingshot or Motorcycle.

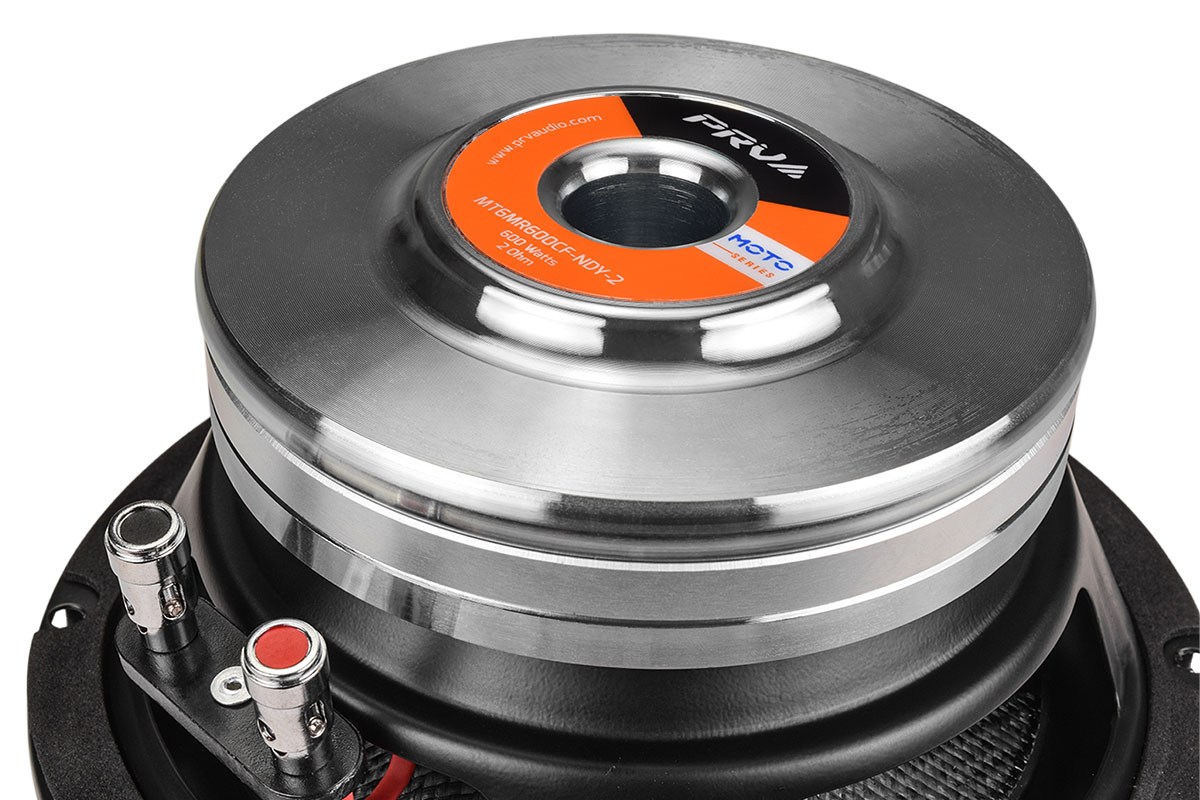

Due to the premium materials used in its construction, such as a carbon fiber cone, a high-temperature voice coil, and a strong neodymium magnet motor, this speaker produces its natural sound with remarkably low distortion.


  • Water Resistant Speaker with true PRO audio Midrange Performance
  • Carbon Fiber Cone with Rubber Suspension to Handle Outdoor Applications
  • Full Range Sound, its Low inductance Technology extends its frequency response up to 12,000 Hz
  • Able to handle 600 Watts RMS, this is the perfect mid for 4 Wheelers, Slingshots, and Motorcycles that want the highest output from a single speaker.
  • 2 Ohm Impedance – allows you to maximize your amplifier’s power output at the lowest resistance, eliminating the need for bridging, allowing you to use all four channels simultaneously.
  • Grill and screws are included.

Aside from its attractive appearance, this carbon fiber cone is exceptionally light, surprisingly rigid, and provides great damping to keep narrow peaks under control.

Despite its extremely compact design, our technical team was able to achieve precision in the vocal reproduction range, resulting in the famous PRV audio PRO Audio sound.

A special treated surround and flat spider suspends the cone and keep it linear through the limits of excursion with minimal restriction, further improving dynamics and transients.


MOTO Series is dedicated to delivering outstanding pro audio performance to your motorsports application.

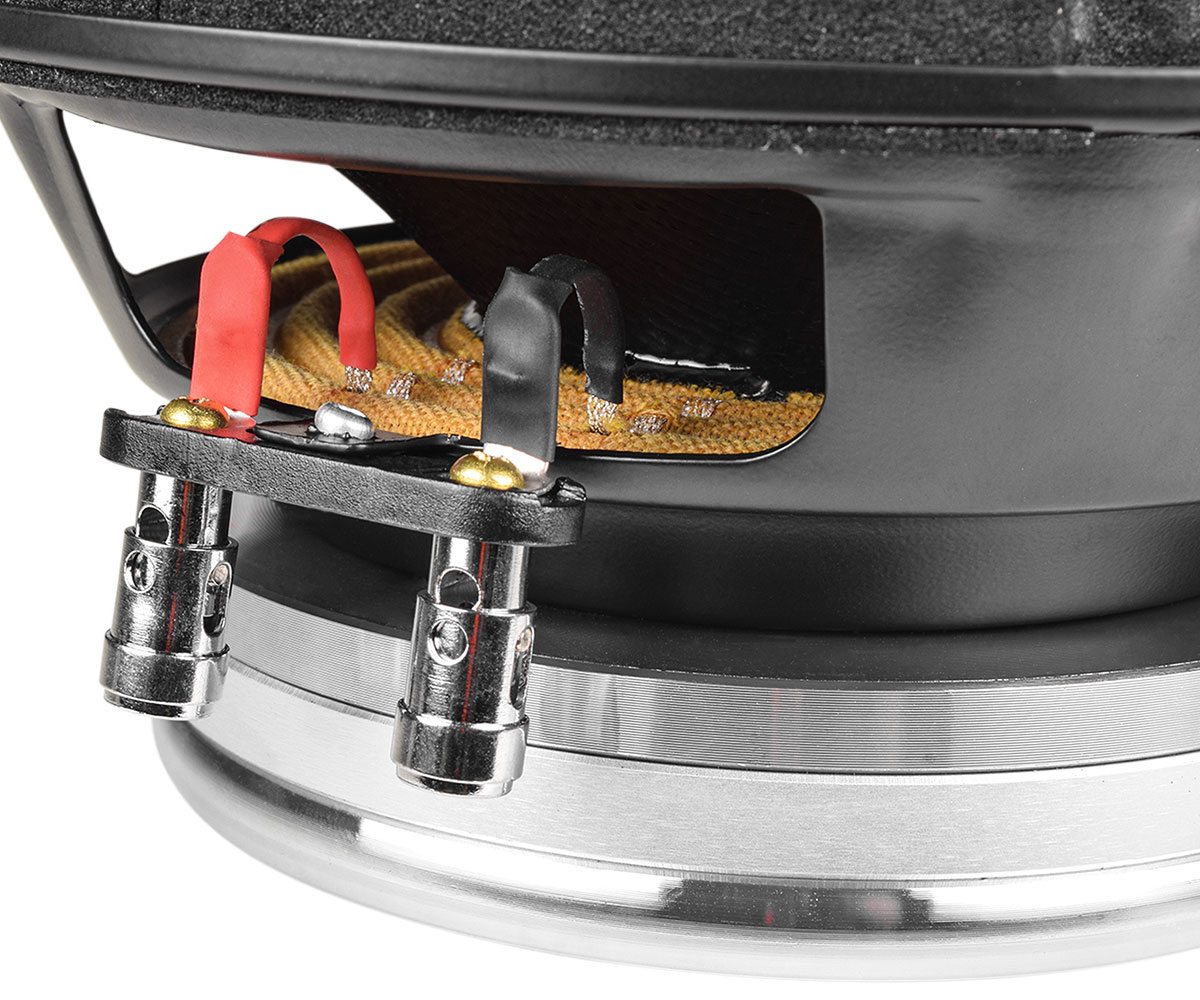

This midrange features many premium components, one of which is stitched lead wires, which connect the voice coil to the terminals through a single layer spider suspension, all being driven by a copper-clad aluminum wire voice coil providing high efficiency and excellent power handling, complemented by a high strength neodymium motor that immerses the voice coil in a strong magnetic field.

You can expect excellent off-axis and transient response from this water-resistant speaker for a great, controlled sound, making an easy transition to a super tweeter.


Built for loud, clear vocal performance, PRV Audio’s MT6MR600CF-NDY-2 features a 2 Ohm voice coil, making it easy to provide 600 Watts with smaller amplifiers.

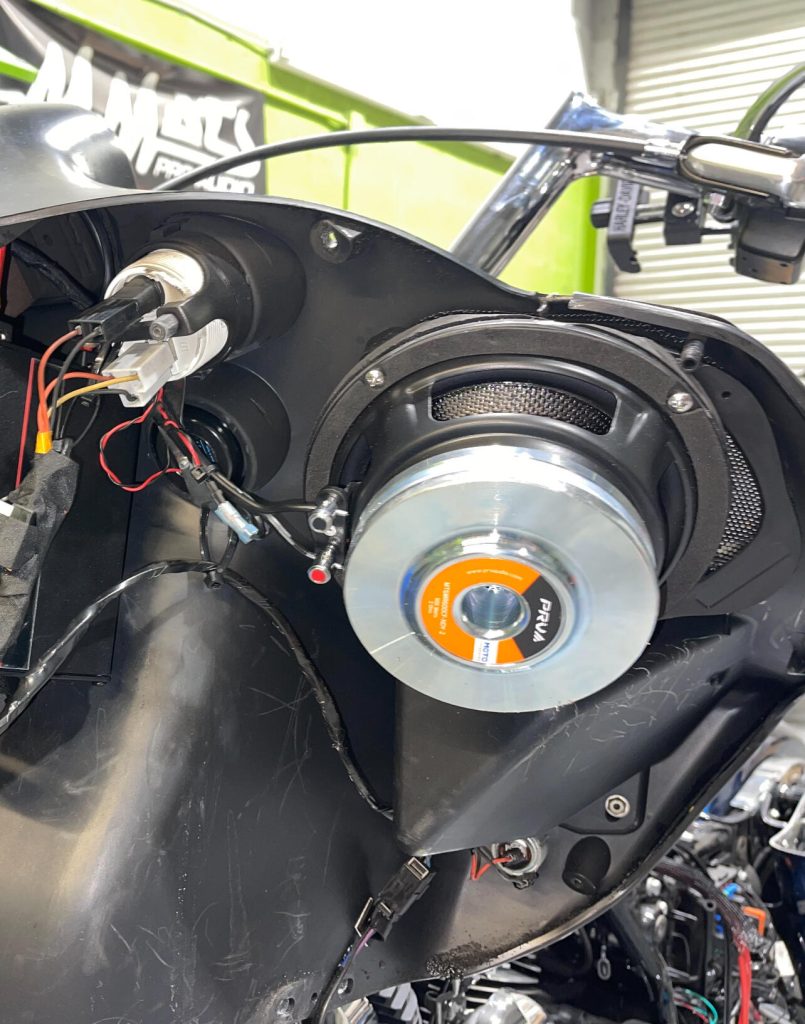

Perfect for front fairing motorcycle setup with 2 speakers wired on MDX1200.2 2 Ohm – 1 speaker per channel.

Everything about this speaker has been designed for reliable and consistent high output levels in a wide frequency bandwidth between 90 and 12,000 Hz, giving you the option of eliminating the need for a super tweeter on your system!


PRV 6.5″ Carbon Fiber Motorcycle Speaker MT6MR600CF-NDY-2 Water Resistant 600 Watts / 2 Ohm Neodymium Midrange

Technical Details

GENERAL SPECIFICATIONS

Nominal Diameter 6.5″ (152 mm)
Nominal impedance 2 Ohm
Nominal Power Handling* 300 Watts
Continuous Program Power (RMS)** 600 Watts
Max Peak Power*** 1200 Watts
Sensitivity 2.83V at 1m 96 dB
Recommended Hi Pass Crossover For Full Power Handling 95 Hz 12db Per Octave Crossover
Frequency Response 90 – 12,000 Hz
Voice Coil Diameter 2″ (49.5 mm)
Voice Coil Wire CCAW
Voice Coil Winding Depth 10.0 mm
Former Material Kapton
Magnetic Gap Depth 7.0 mm
Frame Material Stamped Steel
6MB400 Frequency Response
*Nominal power handling is defined as the maximum RMS power that the speaker can handle in a 2-hour test with a pink noise with 6dB of crest factor and a bandpass filter with 12db/oct tuned in its usable frequency range. **Continuous Program Power (RMS) is the maximum power that the speaker can handle considering a regular musical program using our recommended filters, this power can be used to define the optimum amplifier power to provide a clean signal without clipping or saturation. ***Max Peak Power is the maximum power operation for the speaker, this power is allowed just for a few fractions of a second, usually found just on the peaks of the music. Keeping this power for a little longer timer will damage the speaker.

THIELE-SMALL PARAMETERS

Equivalent Volume Vas 4.38 l
Excursion (mathematical)*** Xmax 3.25 mm
Free Air Resonance Fs 98.8 Hz
Mechanical Factor Qms 13.87
Electrical Factor Qes 0.24
Total Factor Qts 0.24
Cone Area Sd 143 cm²
Mechanical Mass Mms 16.94 g
Bl Factor Bl 9.95 Tm
Dc Resistance Re 2.3 Ohm
Inductance Le 0.100mH at 1 kHz
Mechanical Mass Without Air Mmd 15.98 g
Mechanical Compliance Cms 0.153 mm/N

***Xmax=(Voice coil winding depth-Magnetic Gap depth)/2+ Magnetic Gap Depth/4

6MB400 Impedance

EXTRA INFO

Overall Diameter 6.55″ (166.5 mm)
Front Mount Baffle Cutout 5.72″ (145.5 mm)
Mounting Depth 2.87″ (73 mm)
Overall Depth 3.94″ (100 mm)
Net Weight 4.0 Lbs (1.8 kg)
Shipping Weight 4.41 Lbs (2.0 kg)
Carton Dimensions W x L x H 8.54″ x 8.11″ x 5.35″ (217 x 206 x 136 mm)
6MB400 Loudspeaker
6MB400 Loudspeaker
