8" SHALLOW SUBWOOFER

MT8SW800 D4

In stock

-

  • 8″ Shallow Subwoofer
  • Waterproof
  • 800 Watts Dual 4 Ohm

$129.91

In stock

PRICE FOR SINGLE UNIT

SKU: MT8SW800 D4 Categories: , , Tag:

Features

Features

PRV Audio is proud to present our MT8SW800 D4 Subwoofer from the MOTO Series (MT), a high performance line dedicated to motorsport installations.

Designed for small enclosures, this subwoofer will work in motorcycle saddlebags, slingshot pods, or any other enclosure around 1 cubic foot in size. This sub is made from the best materials and components to withstand the elements, so you can enjoy the highest low frequency output while riding or sitting in an open parking lot.

  • Experience deep, powerful bass on the open road, without having to sacrifice the whole space inside your saddlebags.
  • 4 layer high-temperature copper voice coil capable of handling 800 watts RMS program power, which makes high acoustic output
  • High roll U surround is attached to the cone with dual stitching allowing a generous 14 mm of Xmax for deep bass reproduction without any issues.
  • Another Key premium components that ensure power handling, durability at high excursion are its large premium grade spider with weaved copper tinsel lead.
  • Side Forced Cooling System with vented back plate Design for Better Heat Dissipation
  • Dual 4 Ohm, Works well with Mini MDX1800.1 1 Ohm Connect two subs in parallel to 1 ohm

Its shallow profile takes up very little space inside any enclosure. This compact design will fit and sound great in any saddlebag that has about 1 cubic foot.

Recommended enclosure:

  • Compact Sealed Box: 0.9 cubic feet
  • Compact Ported Box: 1 cubic foot with a 3″ Diameter by 6″ Long Port Tube tuned at 47Hz
  • Optimal Ported Box: 1.25 cubic feet with a 3″ Diameter by 9″ Long Port Tube tuned at 39Hz

This subwoofer established the new benchmark for low frequency for outdoor applications, making it ideal for improving the sound system in your boat, UTV, 4-wheeler, Slingshot or motorcycle.

This 8-inch subwoofer delivers the kind of bass output you feel outdoors, not just vibrations. Also Available in 10 inch – MT10SW1000 D4

PRV 8” Motorsports Subwoofer MT8SW800 Dual 4 Ohm 800 Watts Shallow Sub for Motorcycle Slingshot Waterproof

Technical Details

GENERAL SPECIFICATIONS

Nominal Diameter 8″ (203 mm)
Nominal impedance 4 + 4 Ohm
Nominal Power Handling 400 Watts
Continuous Program Power (RMS) 800 Watts
Max Peak Power 1600 Watts
Sensitivity 1.41V at 1m 81 dB (Parallel VC)
Voice Coil Diameter 2.0″ (50 mm)
Voice Coil Wire Copper
Voice Coil Winding Depth 33.0 mm
Former Material Black Aluminum
Magnetic Gap Depth 10 mm
Frame Material Die Cast Aluminum
*Nominal power handling is defined as the maximum RMS power that the speaker can handle in a 2-hour test with a pink noise with 6dB of crest factor and a bandpass filter with 12db/oct tuned in its usable frequency range. **Continuous Program Power (RMS) is the maximum power that the speaker can handle considering a regular musical program using our recommended filters, this power can be used to define the optimum amplifier power to avoid a clean signal without clipping or saturation. ***Max Peak Power is the maximum power operation for the speaker, this power is allowed just for a few fractions of a second, usually found just on the peaks of the music. Keeping this power for a little longer timer will damage the speaker.

THIELE-SMALL PARAMETERS

Equivalent Volume Vas 8.44 l
Excursion (mathematical)*** Xmax 14.00 mm
Free Air Resonance Fs 45.15 Hz
Mechanical Factor Qms 10.35
Electrical Factor Qes 1.00
Total Factor Qts 0.92
Cone Area Sd 213 cm²
Mechanical Mass Mms 96.23 g
Bl Factor Bl 6.78 Tm
Dc Resistance (Parallel VC) Re 1.7 Ohm
Inductance Le 1.18 mH at 1 kHz
Mechanical Mass Without Air Mmd 94.43 g
Mechanical Compliance Cms 0.129 mm/N

***Xmax=(Voice coil winding depth-Magnetic Gap depth)/2+ Mgnetic Gap Depth/4

EXTRA INFO

Overall Diameter 8.31″ (211 mm)
Front Mount Baffle Cutout 7.48″ (190 mm)
Mounting Depth 4.01″ (102 mm)
Overall Depth 5.00″ (127 mm)
Net Weight 8.71 Lbs (3.95 kg)
Shipping Weight 9.92 Lbs (4.5 kg)
Carton Dimensions W x L x H 9.84″ x 9.84″ x 6.3″ (250 x 250 x 160 mm)
PRV AUDIO MT8SW800 D4 DATASHEETDownload
WARNING: Cancer and Reproductive Harm – www.p65warnings.ca.govView our Return Policy.

Customer Reviews

Based on 2 reviews
100%
(2)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
H
H.M.

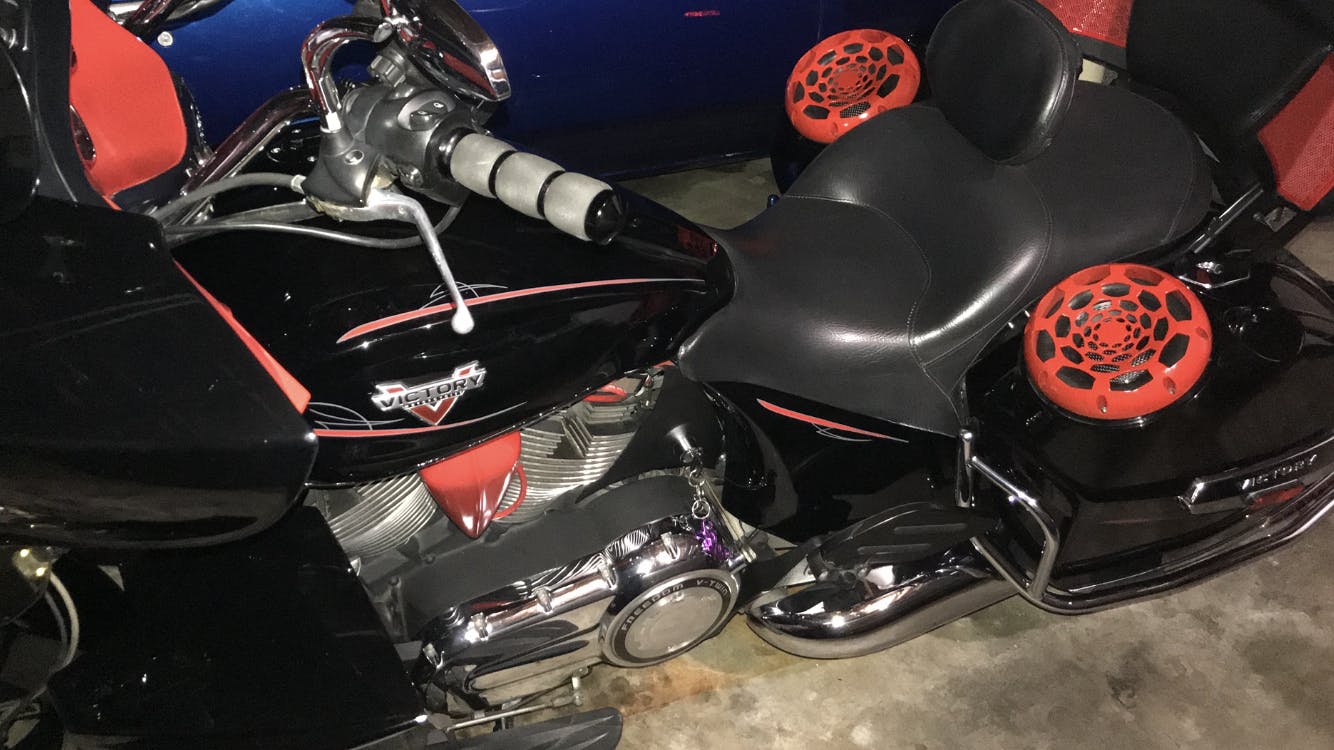

On my tour pack.

Quick delivery used some spacers that I had laying around to dress it up a little. As far as fit and finish it a very solid built item very strong. Dropped right in my tour pack easily and without any modification. Sound is awesome and we still need to tune everything. The sound is very, very, strong.

User picture
J
Jefe' Custom cycles
Works perfect for a Dual 8"

Low Frequency performance at its best

User picture
