6MR250B-4 SLIM
-
- 6.5″ Midrange – 4 Ohm
- Shallow Mount
- 93.5 dB – 250 Watts
$34.91
In stock
PRICE FOR SINGLE UNIT
Features
Features
The MR SLIM series was designed as PRO Audio On Wheels solution for shallow doors, featuring an Aluminum Phase Plug (Bullet). This mid is built like a professional midrange loudspeaker, but it has been designed for use in the mobile audio market, as we called it Pro Audio On Wheels®!
By combining elements from PRO Audio and Car Audio we have developed a NEW type of high efficient midrange that is able to give high levels of output from stock speaker location in your car.
- Slim Design – Perfect for door stock location
- Sound Quality without Cutting up interior Panels
- Endurance at Loudest Volumes
- Vented Air pole piece for heat dissipation
- Center phase plug for even sound distribution
- 4 Ohms Impedance
- Also available in 8″- 8MR400B-4 SLIM

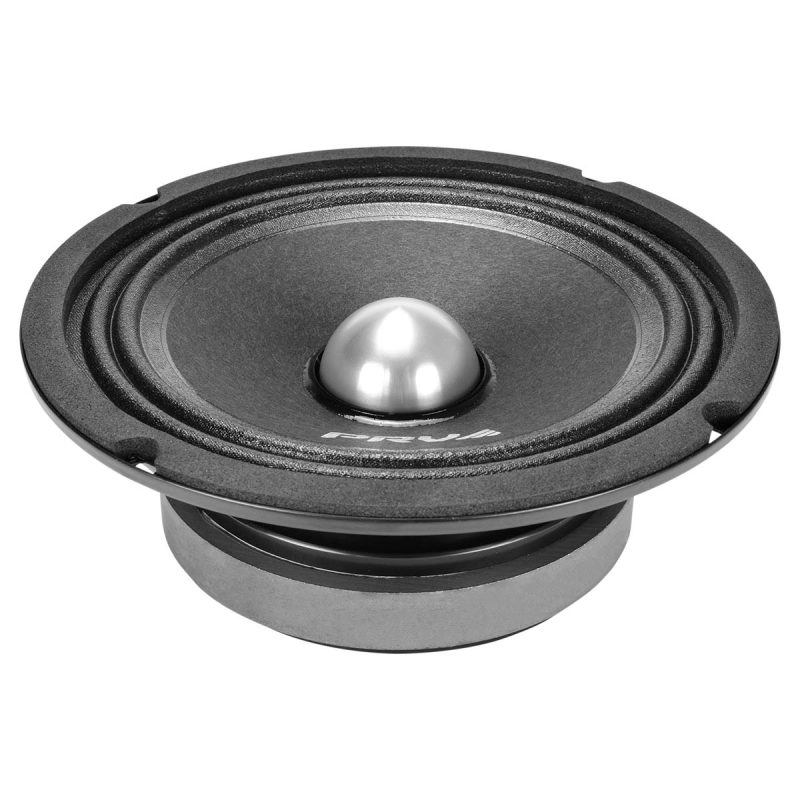

The “bullet” phase plug is made from pure aluminum acting as a radiator cooling system for the voice coil and machined to perfection for even sound dissipation. Beyond good looks, this cone is extremely light, providing excellent damping to keep an incredibly natural yet accurate sound.
Also featuring a cloth M-roll surround helping resonance to be kept under control making for an easy transition to a super tweeter.
The suspension design of this midrange features the single layer spider – which connects to the coil former with premium stitched lead wires, all being driven by a copper-clad aluminum wire voice coil providing high efficiency and excellent power handling.
You can expect outstanding sound stage quality and realistic sound reproduction for a great value.

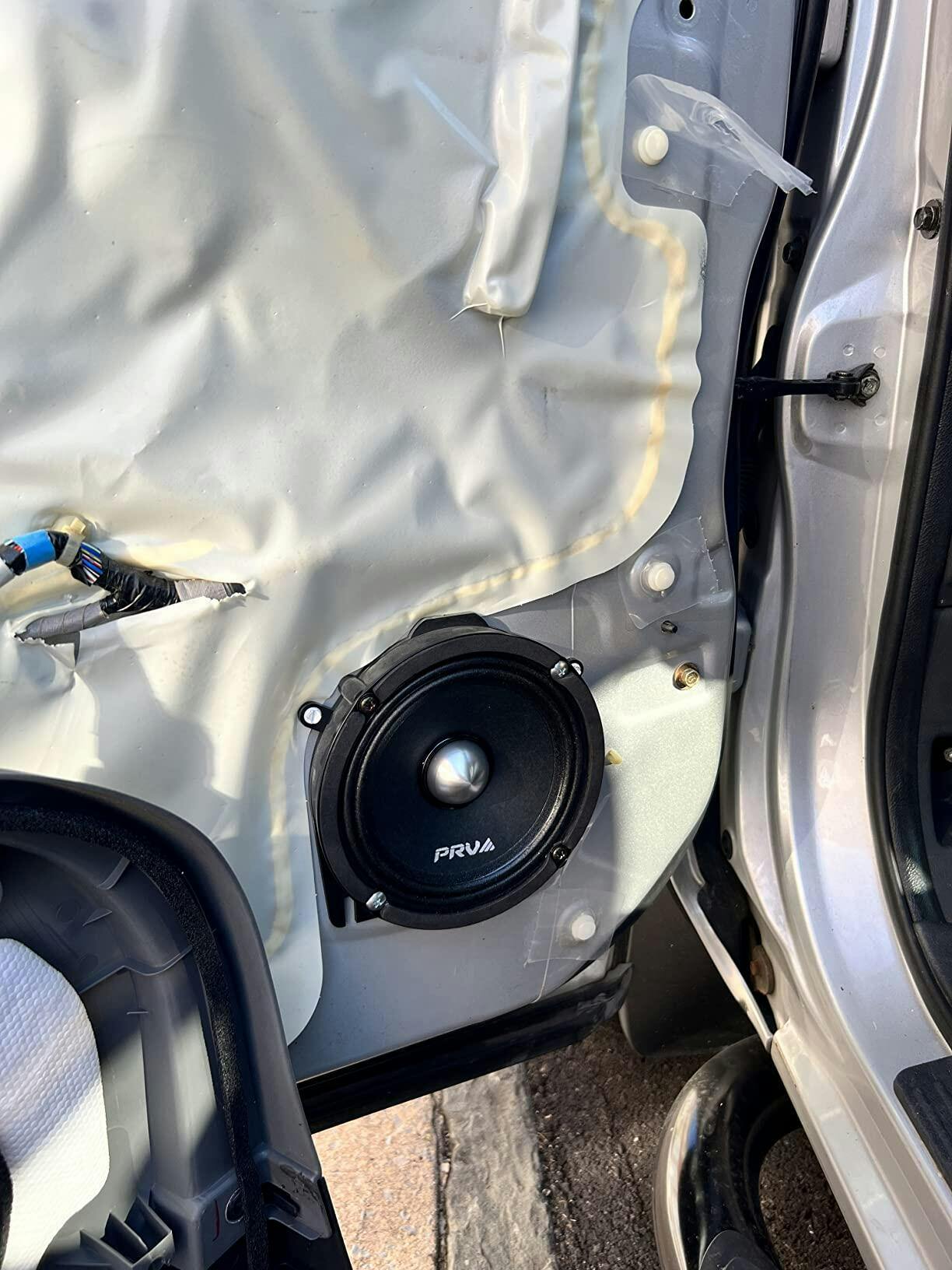

Built for compact spaces and able to handle 250 watts of continuous power. Its slim design makes this the perfect car audio door speaker, allowing it to be utilized in endless ways.
Loud and clear vocals all within 2.14″ of mounting depth without sacrifice quality and performance.
Technical Details
GENERAL SPECIFICATIONS
Nominal Diameter | 6″ (152 mm) |
Nominal impedance | 4 Ohm |
Nominal Power Handling* | 125 Watts |
Continuous Program Power (RMS)** | 250 Watts |
Max Peak Power*** | 500Watts |
Sensitivity 2.00V at 1m | 93.5 dB |
Recommended Hi Pass Crossover For Full Power Handling | 145 Hz 12db Per Octave Crossover |
Frequency Response | 145 – 8,000 Hz |
Voice Coil Diameter | 1.5″ (38 mm) |
Voice Coil Wire | CCAW |
Voice Coil Winding Depth | 9.5 mm |
Former Material | Kapton |
Magnetic Gap Depth | 6.0 mm |
Frame Material | Stamped Steel |
THIELE-SMALL PARAMETERS
Equivalent Volume | Vas | 4.0 l |
Excursion (mathematical)*** | Xmax | 3.25 mm |
Free Air Resonance | Fs | 142.9 Hz |
Mechanical Factor | Qms | 28.73 |
Electrical Factor | Qes | 0.85 |
Total Factor | Qts | 0.82 |
Cone Area | Sd | 143 cm² |
Mechanical Mass | Mms | 8.89 g |
Bl Factor | Bl | 5.82 Tm |
Dc Resistance | Re | 3.6 Ohms |
Inductance | Le | 0.135 mH at 1 kHz |
Mechanical Mass Without Air | Mmd | 7.92 g |
Mechanical Compliance | Cms | 0.139 mm/N |
***Xmax=(Voice coil winding depth-Magnetic Gap depth)/2+ Mgnetic Gap Depth/4
EXTRA INFO

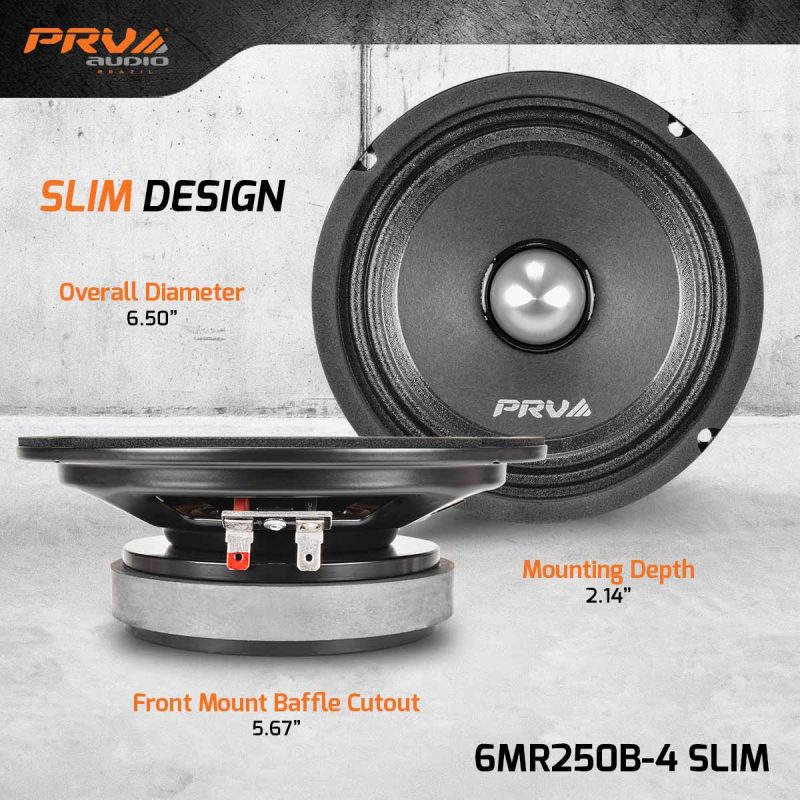

Overall Diameter | 6.50″ (165 mm) |
Front Mount Baffle Cutout | 5.67″ (144 mm) |
Mounting Depth | 2.14″ (54.5 mm) |
Overall Depth | 2.38″ (60.5 mm) |
Net Weight | 3.53 Lbs (1.60 kg) |
Shipping Weight | 3.96 Lbs (1.80 kg) |
Carton Dimensions W x L x H | 6.89″ x 6.89″ x 2.95″ (175 x 175 x 75 mm) |
