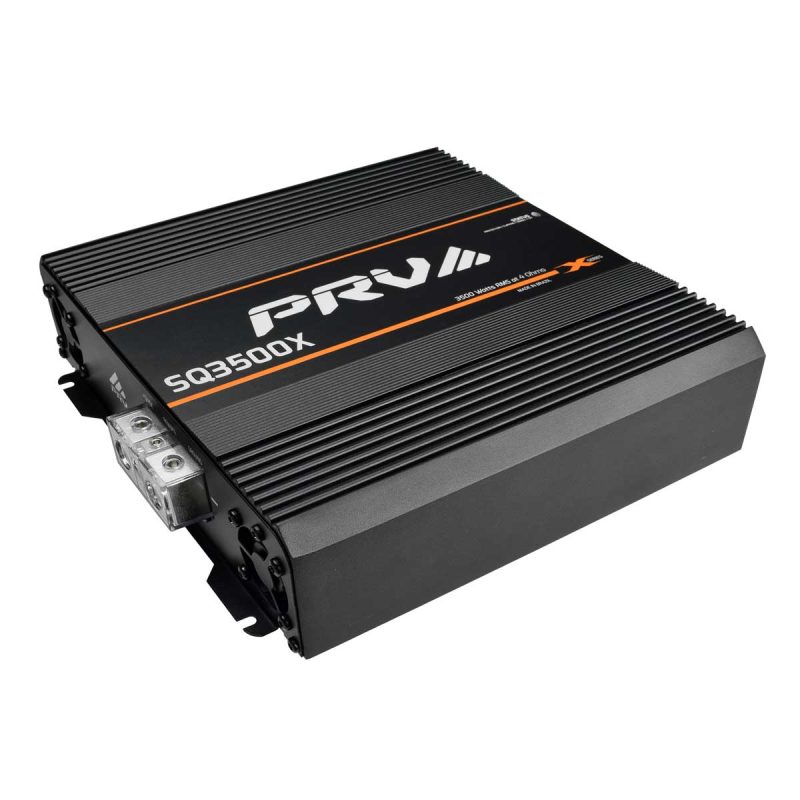

SQ3500X 4Ω

Out of stock
  • Full Range Amp
  • Class D 1 Channel
  • 3500 Watts RMS 4Ω

$279.91

Out of stock

PRICE FOR SINGLE UNIT

Join the waitlist to be emailed when this product becomes available

SKU: SQ3500X 4 Ohms Category: Tags: , , ,

Features

X Series: The new generation of sound quality amplifiers delivers the most innovative and powerful Brazilian Technology in full range class xD 12 Volts amplifiers on the market.

Our engineering team focused on achieving Sound Quality first, and then on making our X Series amplifiers amazingly powerful, efficient and durable.

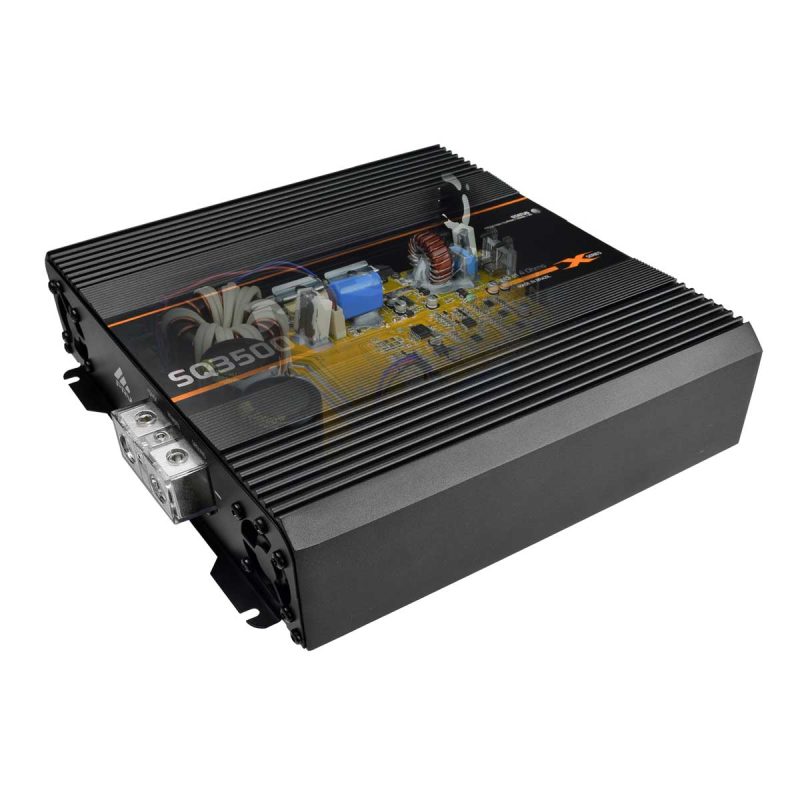

These efforts led to a remarkable SQochre-Xwire power supply technology combined with using some of the highest quality and most reliable electrical components, featuring an overbuilt power supply on a heavy-duty PCB board taking this amplifier to the next level of performance with incredible dynamic power output.

PRV SQ11000X

Designed to produce a serious 3500 watts at 4 ohms at 13.0 Volts with a dynamic power rating of over 4,000 Watts, the SQ3500X amplifier is a great choice for high power loudspeaker systems.

Our proprietary SQochre-Xwire power supply delivers a massive output with real-world input voltage levels at an excellent sound quality at a high-efficiency rate of 84%.

Channels 1 Channel
Rated RMS Power at 13.0 V at 4 Ohms 3500 Watts
Rated RMS Power at 13.0 V at 8 Ohms 2100 Watts

Rated RMS Power at 12.0 V at 4 Ohms 3000 Watts
Rated RMS Power at 12.0 V at 8 Ohms 1800 Watts


Technology Highlights

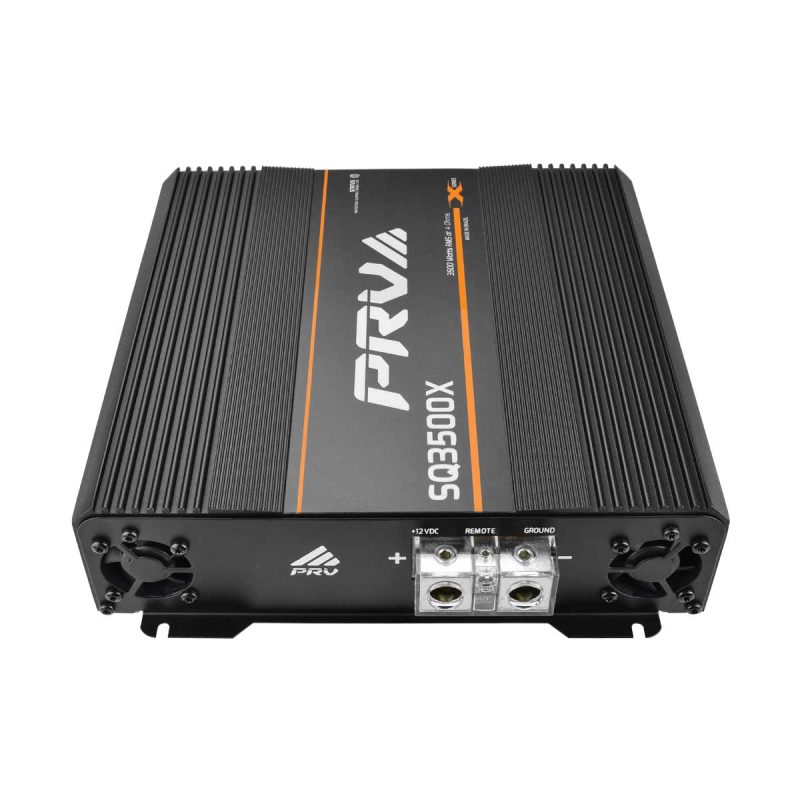

  • Single 1/0 Gauge power and ground terminals, which translates for maximum current flow and therefore higher power output
  • Dual 10 Gauge positive and negative terminals, more connections for easy installation on multi-speaker systems.
  • Heavy-duty Components – Overbuilt to perform
  • HD Sound Quality – Frequency response up to 25,000Hz

Mosfet-image---X-Series

High Grade Competition MOSFETs

PRV X Series amplifiers use custom TO-247 MOSFETs. These have 60% more metal tab area for more power capacity, lower impedance, and improved heat dissipation over traditional MOSFET on most Brazilian Amplifiers



Power-Supply---X-Series-

SQochre-Xwire power supply

Produces exceptional power at low 12.0 volts, designed to work off a real-world voltage with unsurpassed total efficiency from very compact designs with a unique enhanced high switching frequency



caps-image---X-Series

High Capacitance Reserve

Large capacitor bank designed to store more energy and provide a high dynamic sound, capable of astonishing power output over 4000 Watts





Class XD

Full Range Class xD amplifier has 75-85% efficiency ratings vs. 40-60% efficiency ratings of class A/B amplifiers. Which translates to less current draw and more power



heatsink---X-Series

True Heat sink

Real Aluminum cast-alloy heat sink enables the SQ3500X to have one of the smallest footprints in its power class while maintaining maximum heat dissipation under the most demanding conditions. Weighing 8.50 Lbs!



Blanced-inputs---X-Series

Balanced Differential and High Sensitivity Inputs

Differential inputs eliminate noise picked up by signal cables. Our System uses better quality components than a basic single-ended design






Before Installing:

Before connecting your amplifier review all recommendations thoroughly, Any connection to the amplifier input or output must be performed only when the amplifier is OFF.

• The gauge of the power supply wiring is extremely important to reach the desired amplifier output and for the amplifier’s safety. Not using the recommended wire gauge will result in power loss and overheating of cables. It is important that the power supply cables are the shortest possible length. Always use 100% Cooper cables and good quality connectors. This guarantees the sound’s quality and fidelity; To avoid damaging the cables, make sure that they do not touch sharp metal edges. Important: Use a fuse 12 inches away from the battery as a safety precaution

• Keep all cables as far away as possible from the ignition cables, electronic injection modules, and starter switch since they may cause noise interference

• In order to avoid interferences, the signal cables (RCA) must be kept away from the original wiring of the vehicle and from any other power supply cable.

• Amplifier must be installed in a solid and ventilated area. Do not mount the amplifier to the back of a subwoofer box; excess vibration may cause damage to the amplifier.

The power-rated data are based on equipment from the PRV Audio Group laboratory. Frequency reference of 60Hz to 1kHz with THD+N to ≤1 % in impedance referring to the indicated in each measurement. The electronic components and the manufacturing process can present manufacturing variations, thus leading to a variation in the measurements made. This amplifier is designed to perform on music applications (with speakers), any load test (resistant load) is not recommended.



PRV Audio products are guaranteed for a period of ONE (1) YEAR from the date of original purchase against any manufacturer’s defects in material and workmanship under normal use.

Technical Details

GENERAL SPECIFICATIONS

Impedance 4 Ohms
Channels 1 Channel
Rated RMS Power at 13.0 V at 4 Ohms 3500 Watts
Rated RMS Power at 13.0 V at 8 Ohms 2100 Watts
Average Efficiency 84%
Rated RMS Power at 12.0 V at 4 Ohms 3000 Watts
Rated RMS Power at 12.0 V at 8 Ohms 1800 Watts
Operating Voltage 11 to 15 Volts
Minimum Battery Bank + 220A Alternator 60 Ah
Musical Current Draw 180 Ah
Minimum Power Wire Single Input – 0 Gauge Wire
Minimum Speaker Wire 14 Gauge
Frequency Response(+/-3dB) 25 Hz to 25,000 Hz
Min. Input Sensitivity for Max. Output 290 mV
Signal Input 1 Pair RCA
Protection System Low Supply Voltage / Shortage on Output / Low Impedance on Output
Signal to Noise >90 dB
Heat Sink Type Heavy Duty Cast Aluminum
Dimensions ( W x D x H ) 8.25″ x 10.25″ x 2.75″
Weight 8.50 Lbs

The power-rated data are based on equipment from the PRV Audio Group laboratory. Frequency reference of 60Hz to 1kHz with THD+N to ≤1 % in impedance referring to the indicated in each measurement. The electronic components and the manufacturing process can present manufacturing variations, thus leading to a variation in the measurements made. This amplifier is designed to perform on music applications (with speakers), any load test (resistant load) is not recommended.


PRV Audio Amplifiers Manual – Download
