PRV AudioSuper TweetersTW1000Ph
TW1000Ph---Side-View
TW1000Ph---Highlights---Specs
TW1000Ph---Magnet-Side-View
TW1000Ph---Highlights---Dimensions
TW1000Ph---Still-View
TW1000Ph---Magnet-View
TW1000Ph---Front-View
PRO AUDIO SUPER TWEETER

TW1000Ph

In stock

-

  • Phenolic Tweeter
  • Ferrite Magnet
  • 106 dB – 200 Watts

$39.91

In stock

PRICE FOR SINGLE UNIT

SKU: TW1000Ph Category: Tag:

Features

Features

The new PRV TW1000Ph delivers the combination of pleasant crystal clear sound and long lasting quality.

The durable Phenolic Diaphragm is mounted inside and out to reduce the amount of moving mass, extending the high frequency response to a more natural sound than a metallic diaphragm. The bullet-shaped horn design on the TW1000Ph allows it to deliver a high output and longer throw with 40° x 40° dispersion.

The use of a 1.83” copper voice coil with an unique Aluminum back plate heatsink design improves the power handling and durability for any professional large environment application.

  • Type: Super Tweeter
  • Nominal Impedance: 8 Ohms
  • Rated AES Power Handling (RMS): 100 Watts
  • Program Power: 200 Watts
  • Voice Coil Diameter: 1.83″

Technical Details

GENERAL SPECIFICATIONS

Nominal impedance 8 Ohms
Rated AES Power Handling (RMS) 100 Watts
Program Power 200 Watts
Sensitivity 2.83V at 1m 106 dB
Recommended Hi Pass Crossover**
**For Full Power Handling		 5000 Hz**
**12db Per Octave Crossover
Frequency Response at -10dB 4,000 – 20,000 Hz
Voice Coil Diameter 1.83”(46.5 mm)
Voice Coil Wire Copper
Voice Coil Former Material Kapton
Diaphragm Material Phenolic
Flux Density 1.58 T
Magnet Material Ferrite
*Nominal power handling is defined as the maximum RMS power that the speaker can handle in a 2-hour test with a pink noise with 6dB of crest factor and a bandpass filter with 12db/oct tuned in its usable frequency range. **Continuous Program Power (RMS) is the maximum power that the speaker can handle considering a regular musical program using our recommended filters, this power can be used to define the optimum amplifier power to provide a clean signal without clipping or saturation. ***Max Peak Power is the maximum power operation for the speaker, this power is allowed just for a few fractions of a second, usually found just on the peaks of the music. Keeping this power for a little longer timer will damage the speaker.



EXTRA INFO

Overall Depth 3.10” (78.75 mm)
Mounting Depth 2.84” (58.0 mm)
Overall Width 4.58” (116.5 mm)
Overall Height 5.27” (134.0 mm)
Cutout Diameter 4.41” (112.0 mm)
Net Weight 2.55 lbs (1.19 kg)
Shipping Weight 2.67 lbs (1.21 kg)
Carton Dimensions W x L x H 5.43” x 4.92” x 3.54”
(138 x 125 x 90 mm)



PRV AUDIO TW1000Ph DATASHEETDownload

Repair Parts

Replacement Diaphragm for TW1000Ph

WARNING: Cancer and Reproductive Harm – www.p65warnings.ca.govView our Return Policy.

Customer Reviews

Based on 9 reviews
89%
(8)
0%
(0)
11%
(1)
0%
(0)
0%
(0)
C
Carlos Tameles
👍🏽👍🏽👍🏽👍🏽👍🏽

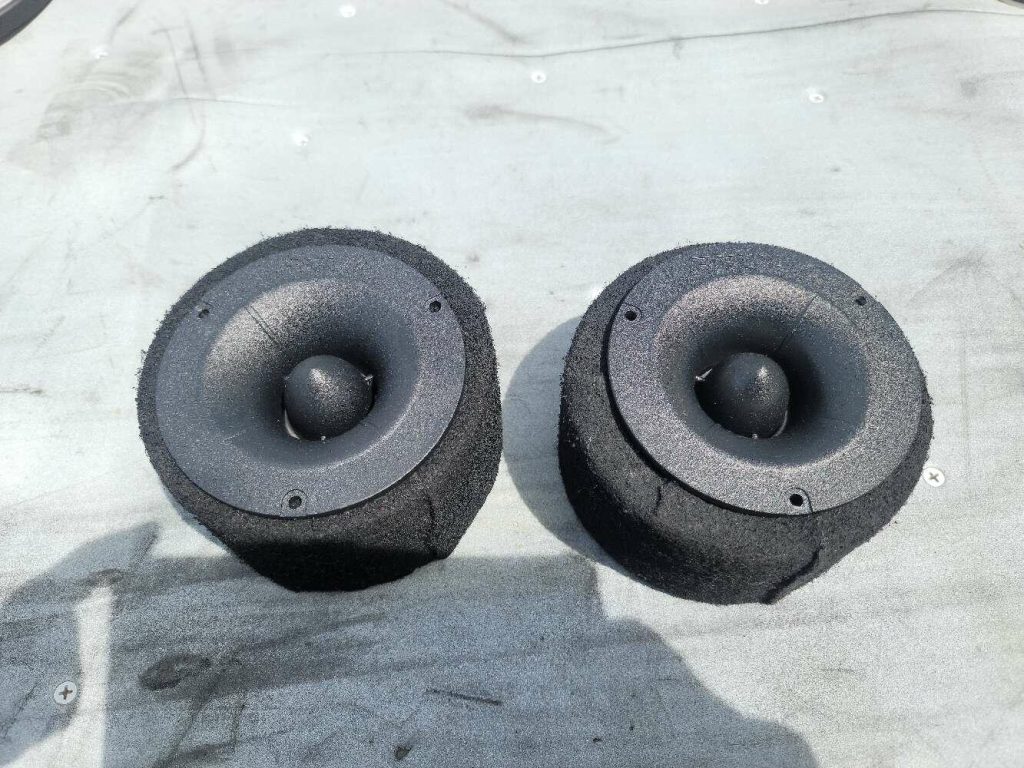

This was a replacement for one of my tweeters that broke, it still played but the structure or shell was broken, as far as the tweeters they are good and sound amazing.
