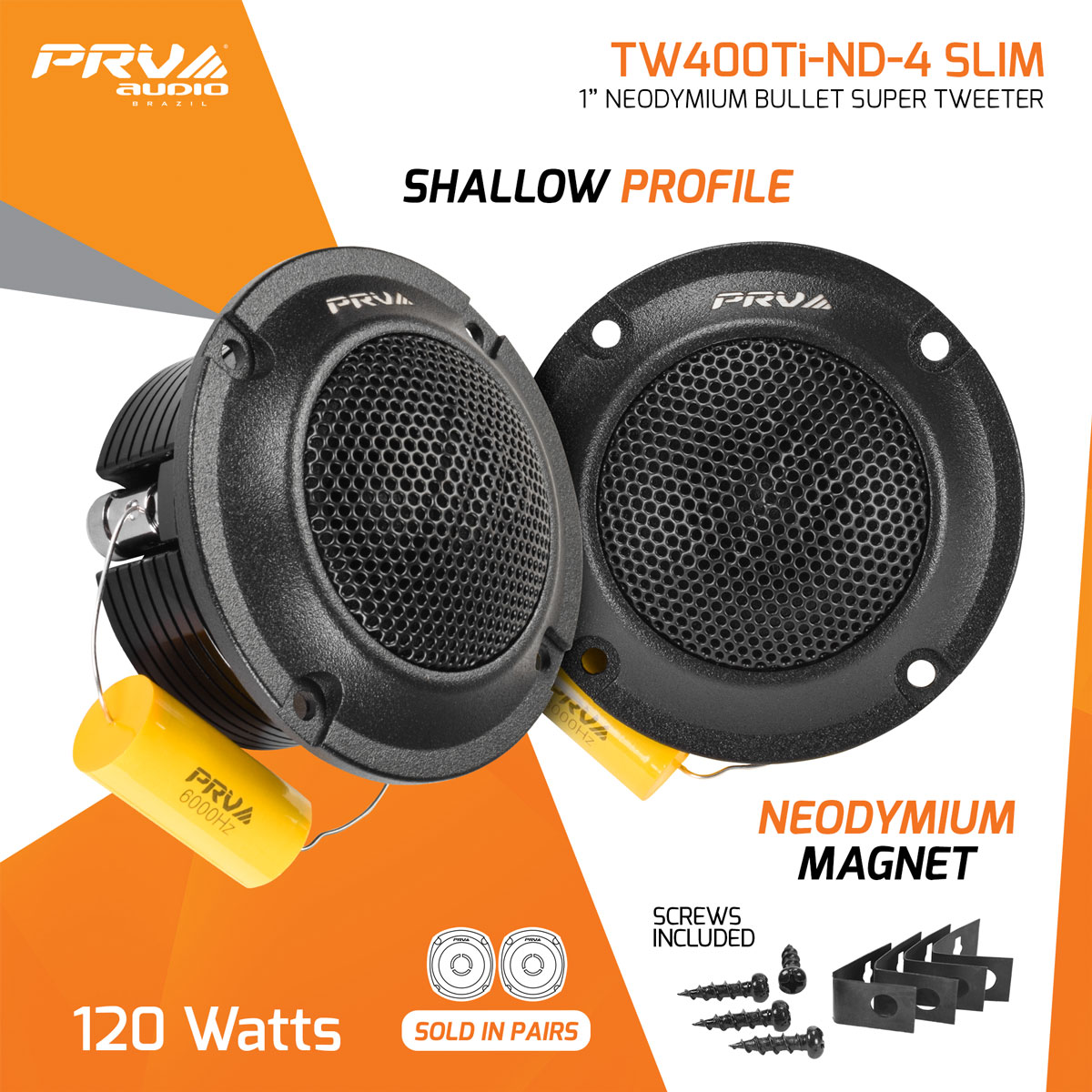

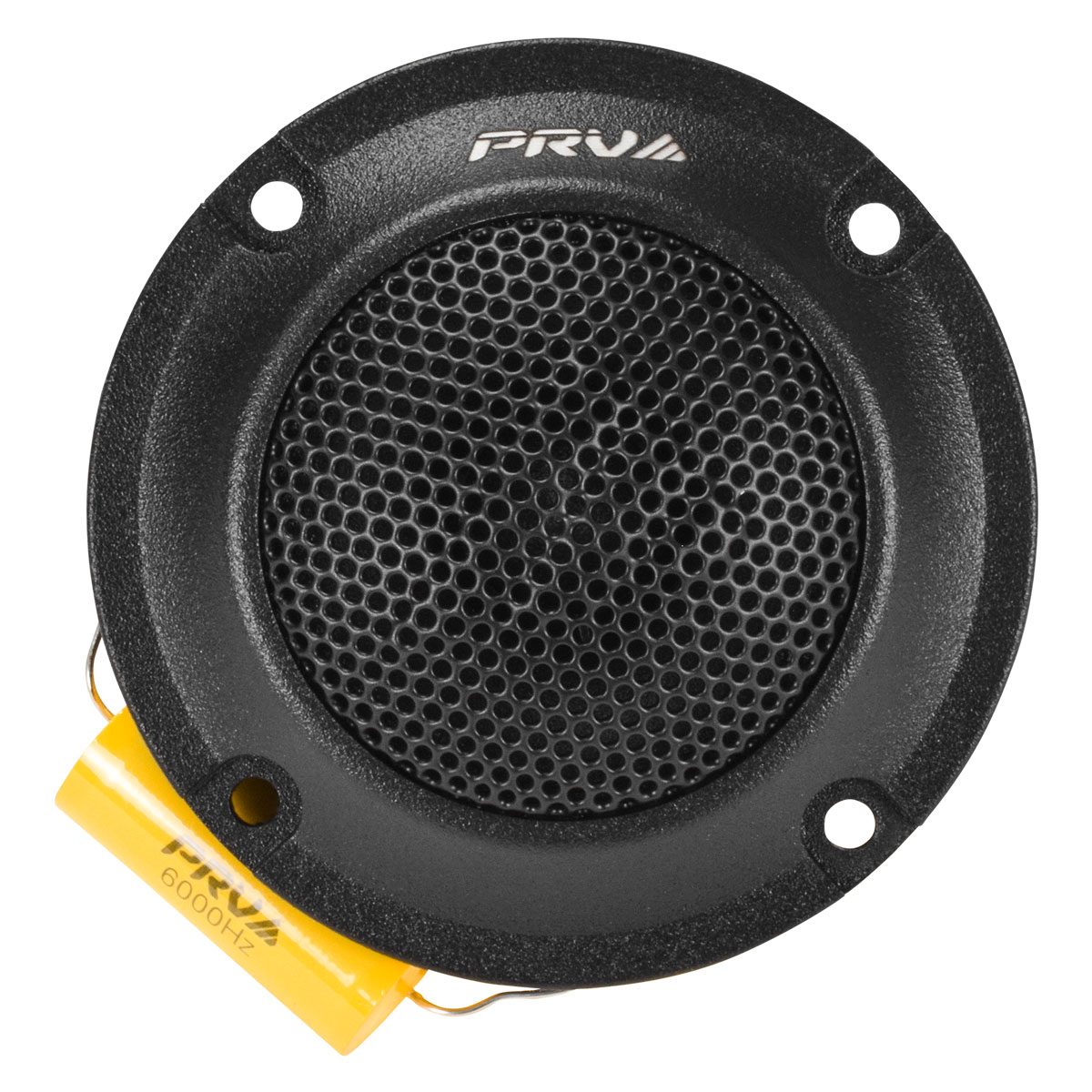

TW400Ti-Nd-4 SLIM (PAIR)
- Titanium Tweeter
- Neodymium Magnet
- 105 dB – 120 Watts
$42.42
In stock
PRICE PER PAIR
Features
Features
The PRV Audio TW400Ti-Nd-4 SLIM Super Tweeter offers a smooth response and extremely high efficiency from high mid range through high range frequencies. This compact tweeter is part of a wide family from the TW400Ti-Nd Series, featuring a strong neodymium motor which increases its efficiency and lowers its weight and size dramatically without compromising any performance.
- Designed to fit in tight spaces without any major modifications
- Titanium diaphragm for an accurate and detailed response
- Designed to add high output, high frequency response to any interior system
- Hidden push terminal connection, takes less space on installation

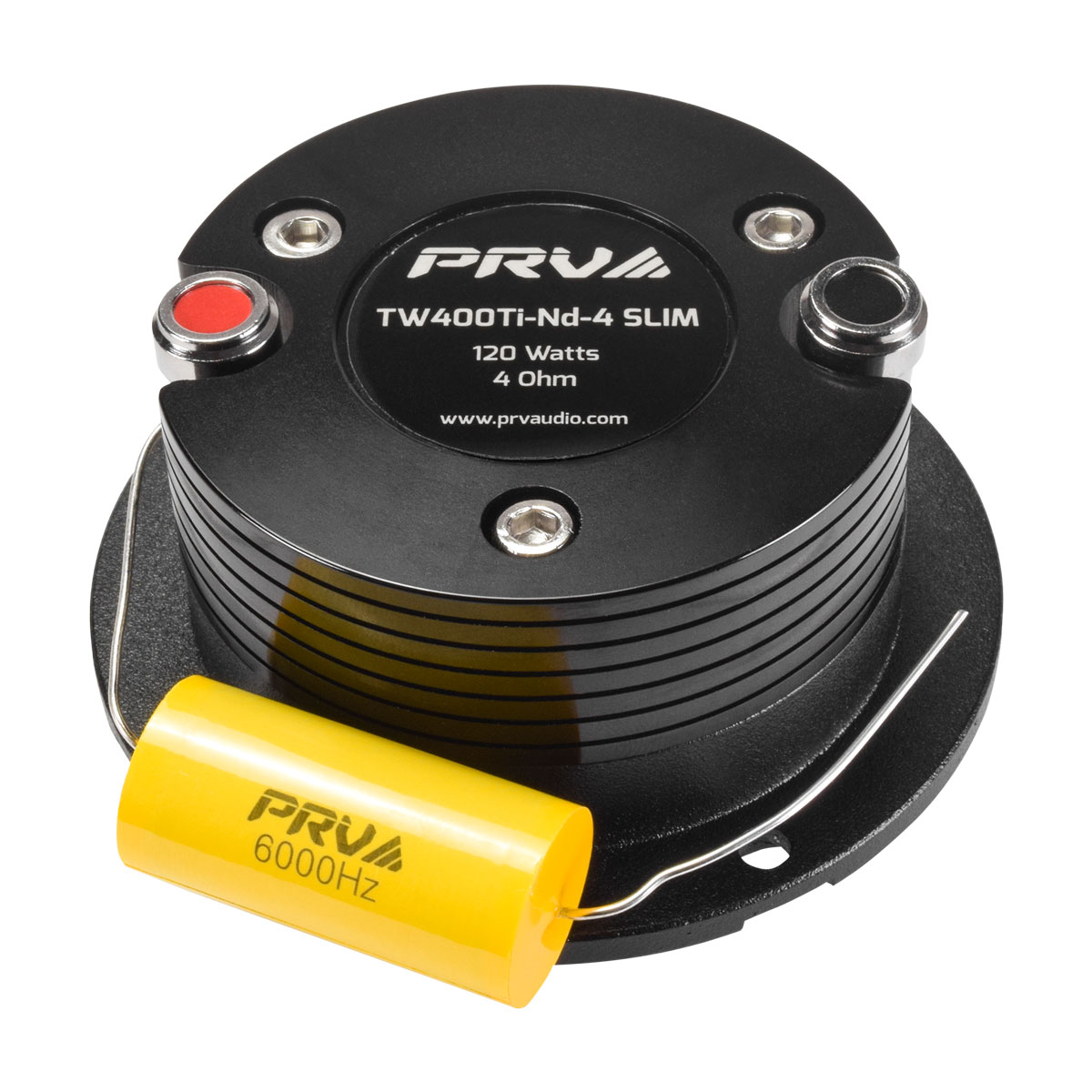

- Built-in capacitors act as a crossover and attenuates the low frequencies for smooth frequency response
- Able to take a ton of power! Up to 120 watts RMS of power handling are on tap with a 12 dB/octave crossover at 6,000 Hz

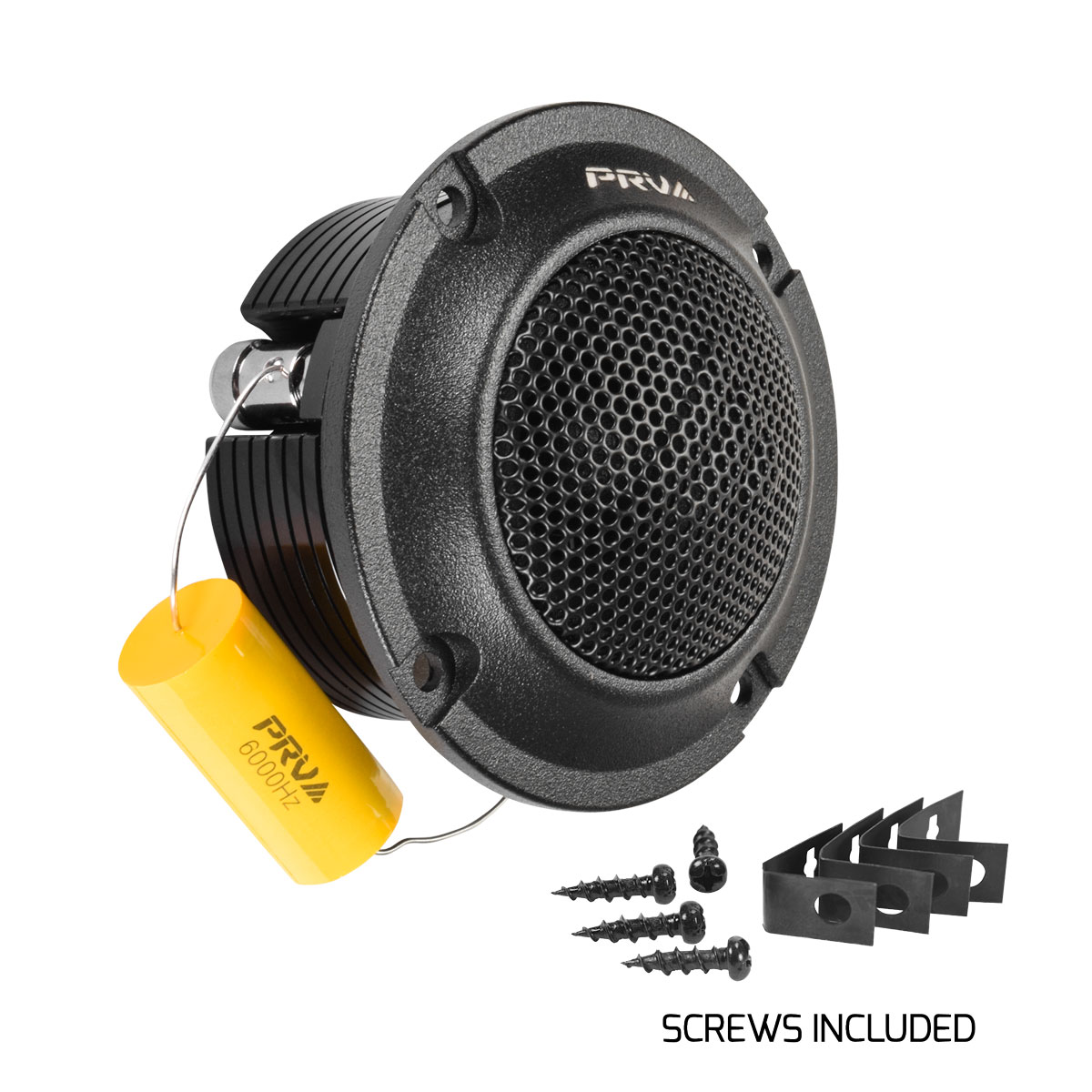

- Sold in Pairs – Mounting Screws are included, Also available in White
Add detail to any speaker with PRV Audio’s TW400Ti-Nd-4 SLIM 1″ exit titanium super compact bullet super tweeter!
The titanium diaphragm combines with the durable, yet lightweight, Kapton™ voice coil former for sensitivity levels of up to 105 dB from 4,500 to 20,000 Hz.. The tweeter is perfect for Pro Audio On Wheels® applications.
Due to the premium materials used in its construction, such as a titanium diaphragm, a high-temperature voice coil, and a strong neodymium magnet motor, this produces a remarkably high frequency.
After several months of research and development, we were able to obtain a high level of output from this neodymium motor and an unique diaphragm design for the TW400Ti-Nd Series. Featuring a new concept, easy to replace diaphragm ( solderless ) makes a very easy task to fix your tweeter in few minutes.
PRV Shallow Car Audio Bullet Tweeter TW400Ti-Nd-4 SLIM BLACK Neodymium 4 Ohm 3″ Rounded – Ultra Slim Easy to Mount Tweeters (Pair)
Recommended Crossover Guide:
Recommended HPF using PRV Digital Signal Processor DSP when using up to 120 Watts RMS musical power ( without clipping ) with Capacitor
- 5000 Hz at 18 dB per octave filter Crossover / BT18
- 7000 Hz at 24 dB per octave filter Crossover / BT24 without capacitor
No LPF crossover for tweeters
Technical Details
GENERAL SPECIFICATIONS
| Nominal impedance | 4 Ohm |
| Nominal Power Handling* | 60 Watts |
| Continuous Program Power (RMS)** | 120 Watts |
| Max Peak Power*** | 240 Watts |
| Sensitivity 2.00V at 1m | 105 dB |
| Recommended High Pass Crossover For Full Power Handling |
6000 Hz 12db/oct Crossover |
| Frequency Response at -10dB | 4,500 – 20,000Hz |
| Voice Coil Diameter | 1.0″ (25 mm) |
| Voice Coil Wire | CCAW |
| Voice Coil Former Material | Kapton |
| Diaphragm Material | Titanium |
| Flux Density | 1.45 T |
| Magnet Material | Neodymium |
*Nominal power handling is defined as the maximum RMS power that the speaker can handle in a 2-hour test with a pink noise with 6dB of crest factor and a bandpass filter with 12db/oct tuned in its usable frequency range.
**Continuous Program Power (RMS) is the maximum power that the speaker can handle considering a regular musical program using our recommended filters, this power can be used to define the optimum amplifier power to avoid a clean signal without clipping or saturation.
***Max Peak Power is the maximum power operation for the speaker, this power is allowed just for a few fractions of a second, usually found just on the peaks of the music. Keeping this power for a little longer timer will damage the speaker.
EXTRA INFO

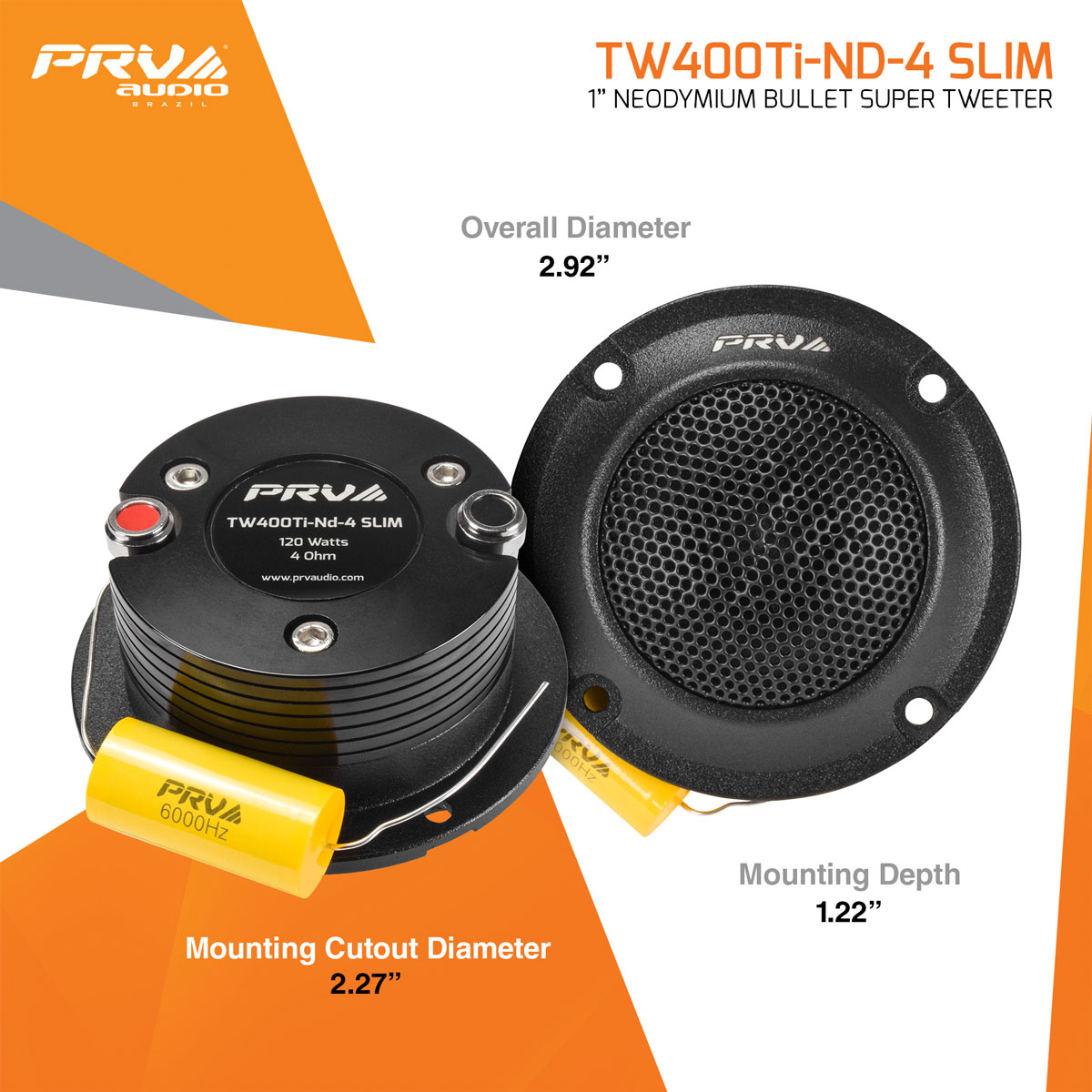

| Overall Depth | 1.93″ (49 mm) |
| Mounting Depth | 1.22″ (31 mm) |
| Overall Diameter | 2.92″ (74 mm) |
| Cutout Diameter | 2.27″ (57.7 mm) |
| Net Weight | 0.66 lbs (0.30 kg) |
| Shipping Weight (pair) | 1.54 lbs (0.70 kg) |

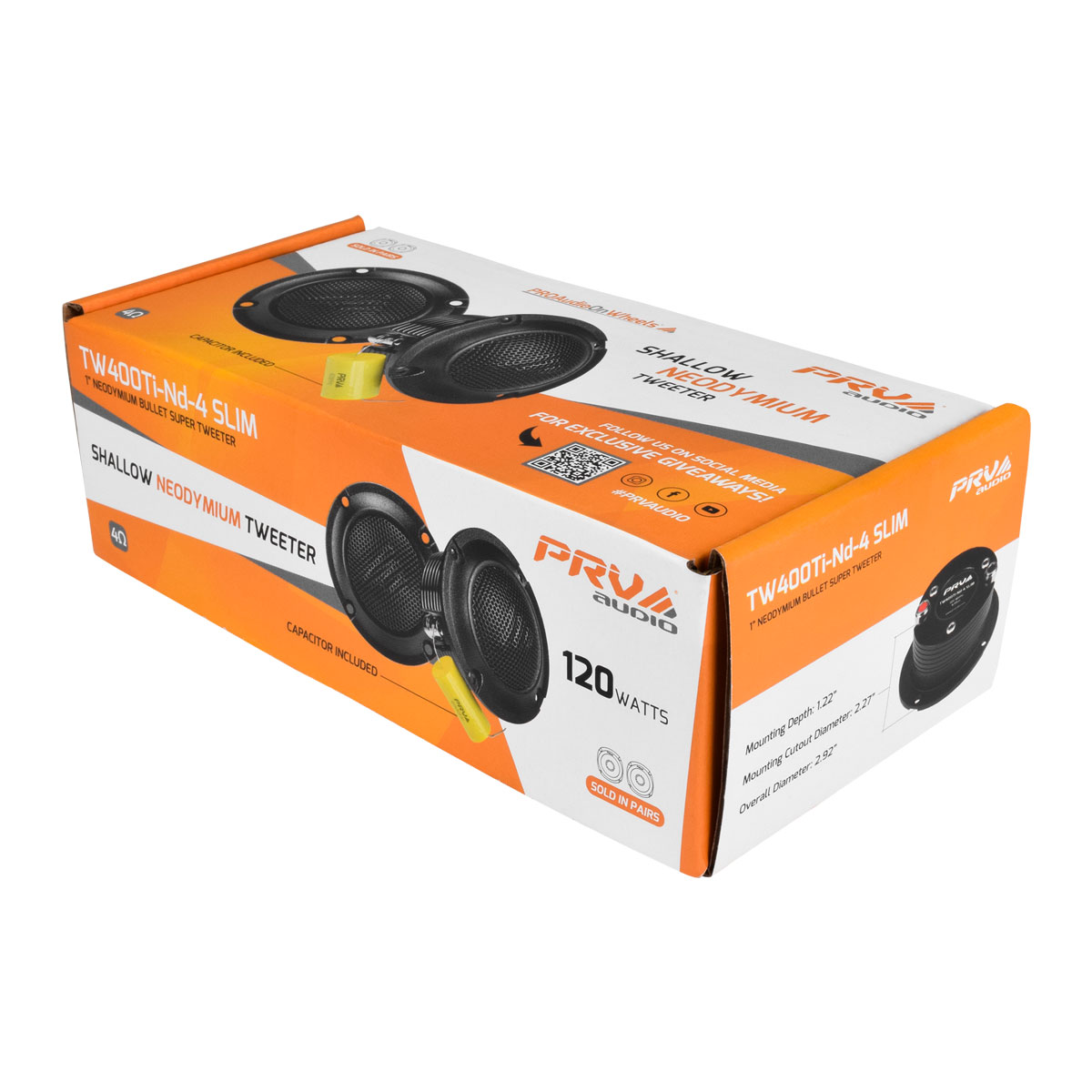

| Carton Dimensions W x L x H | 6.77″ x 3.15″ x 1.99″ (172 x 80 x 50 mm) |
Repair Parts
Replacement Diaphragm for TW400Ti-Nd-4 SLIM
15 reviews for TW400Ti-Nd-4 SLIM (PAIR)
| 5 star | 86% | |
| 4 star | 13% | |
| 3 star | 0% | |
| 2 star | 0% | |
| 1 star | 0% |
Customer Images
TW400Ti-Nd-4 SLIM (PAIR)
Q & A
TW400Ti-Nd-4 SLIM (PAIR)

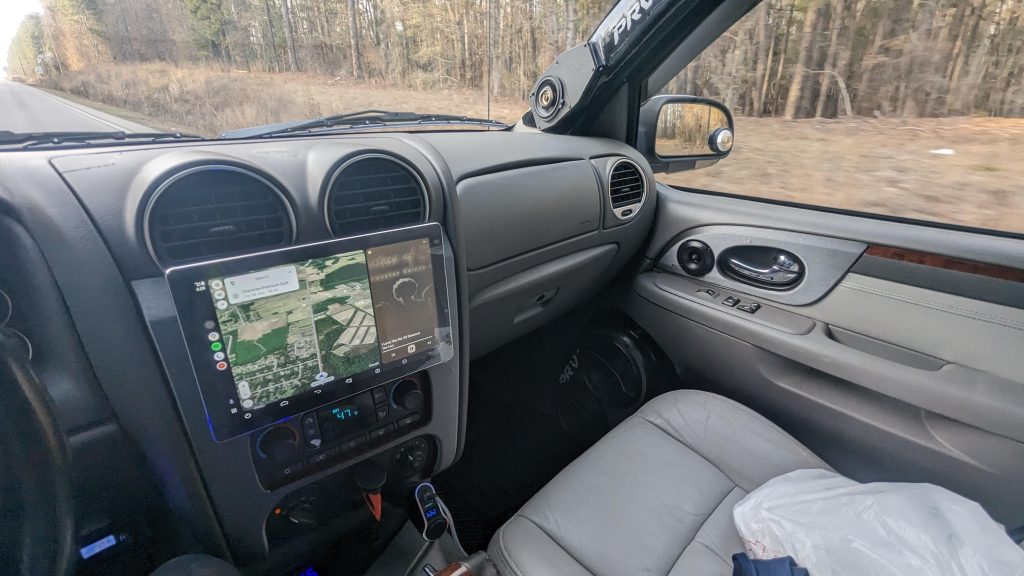

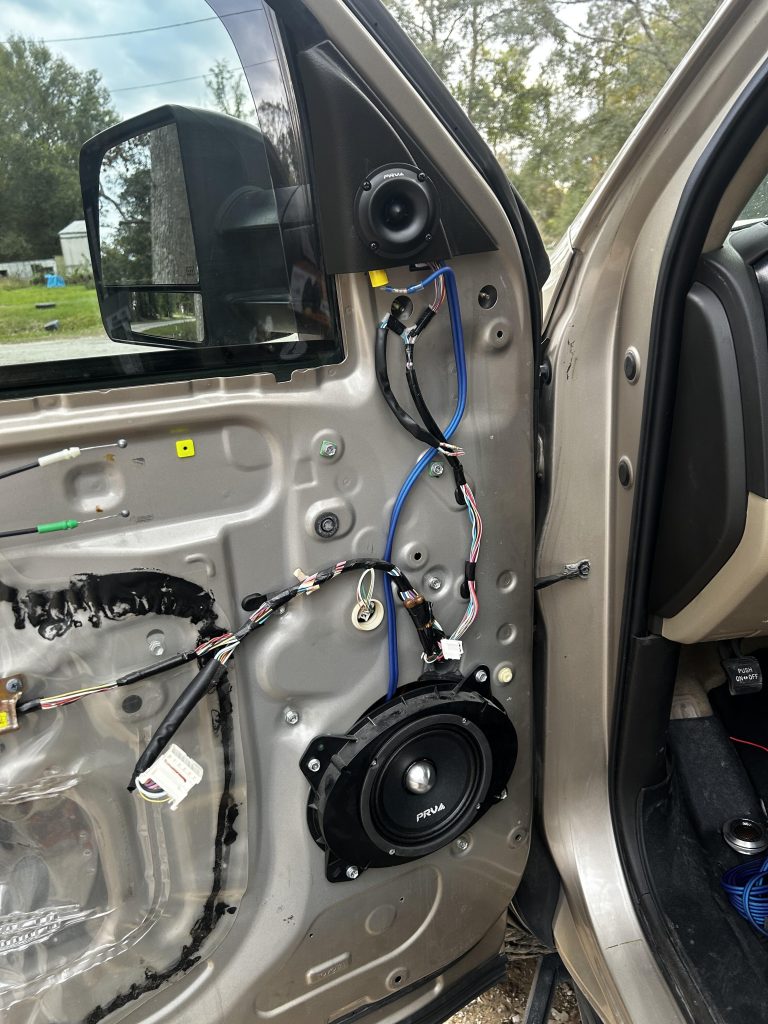

Great little tweets I have the normal ones in my truck and sent pictures of them but then bought these slim design and put in brother’s 63 bel air and he loves them great sound as all the PRVs tat I have bought.
They sound amazing crisp very clear and loud great product.

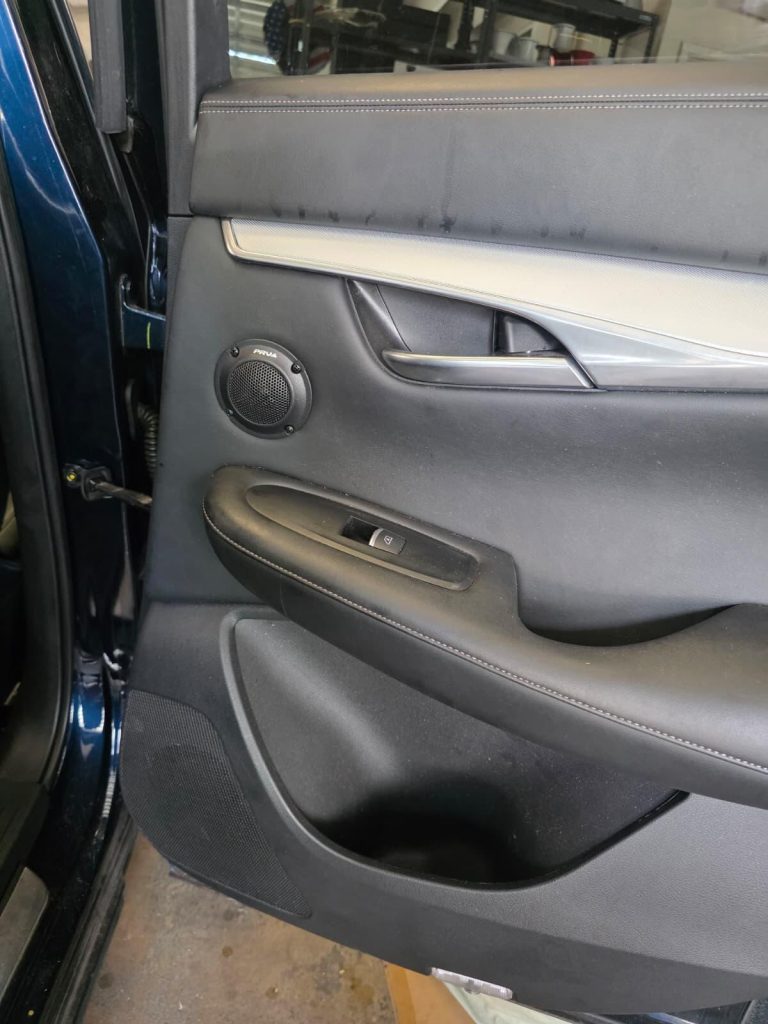

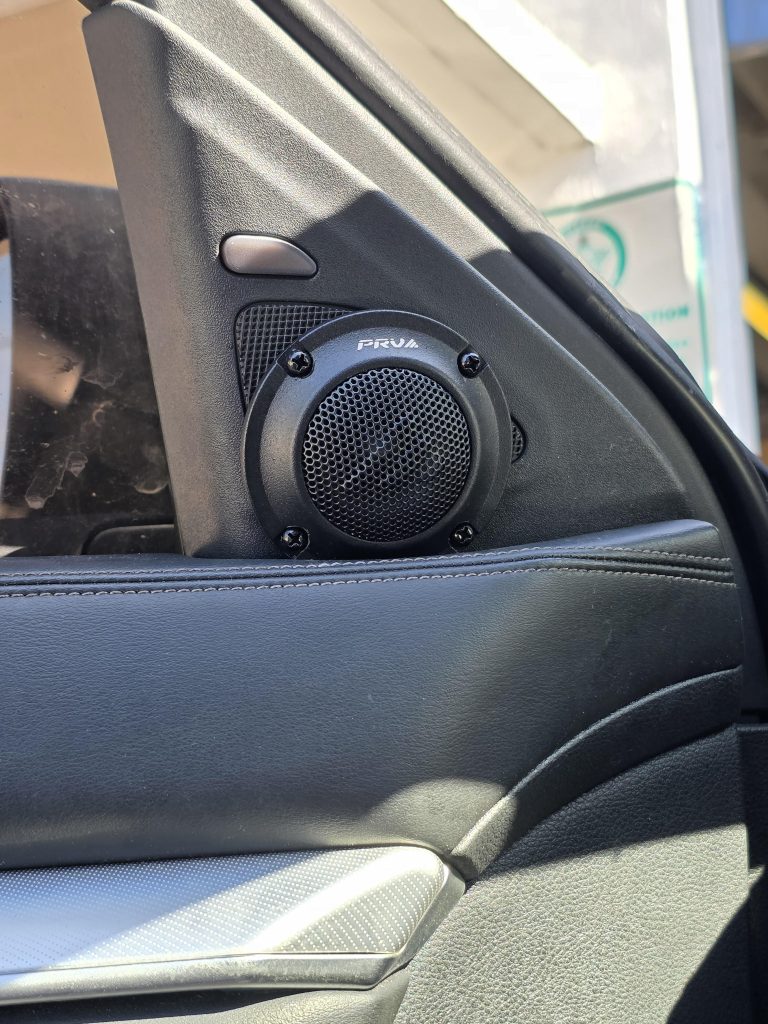

This tweeter has great output despite its compact size, I was able to integrate it to my door without much trouble and it sounds incredible. I would just like this one to be offered in white too! Then it would have been perfect!
This titanium neo tweeter is a beast for its size.
Super compact, perfect for tight installs but don’t let the size fool you. It screams. Clean, crisp highs that cut through everything without taking up space. Perfect for anywhere you need loud and clear in a small footprint.

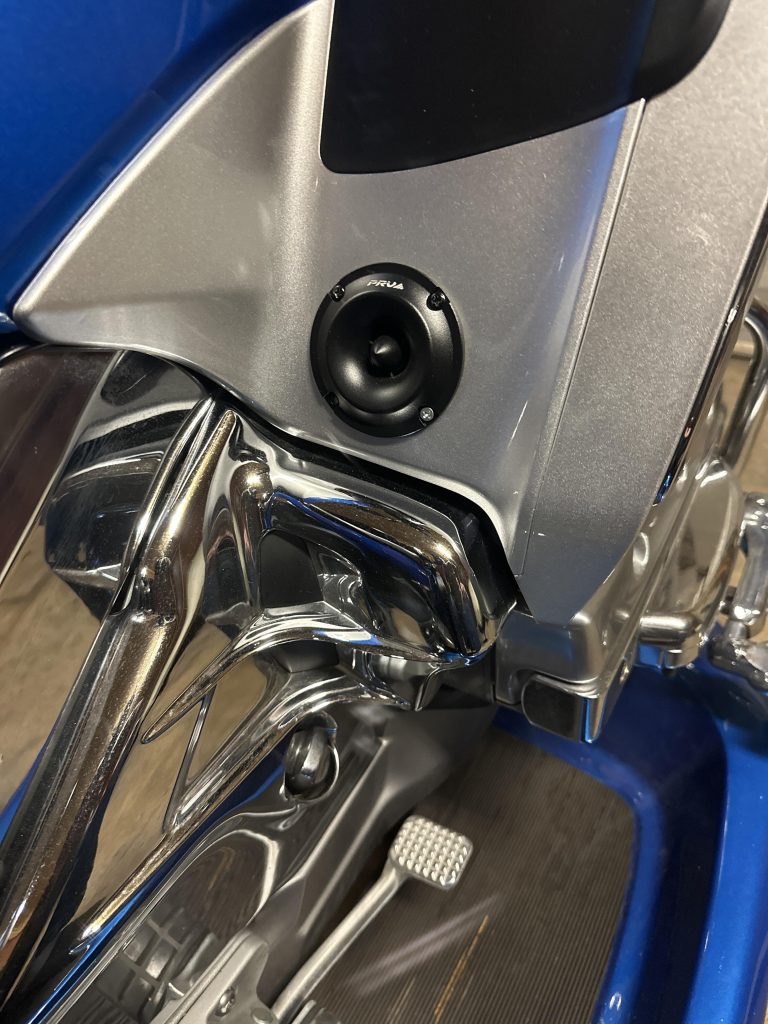

This is 2nd pair great speakers just not waterproof installed on my motorcycle
I used to have the skar audio spx tweeters and they sounded good. Now that I have changed to these prv tweeters it’s a completely different animal. I didn’t make any other changes to the amp settings or eq settings on the headunit. I only changed tweeters and these are absolutely incredible. Very crisp and sharp sounding. I was very impressed with how much louder they are. Can’t even have the radio as loud as I used to. These tweeters pared with the midrange prv 6.5 tweeters on a salt 200.4 is a fantastic quality. The volume of the music in the video is at 22 where the max before clipping is at 27. Gain knob for sub is turned down.
I’ve had these for almost a year. They sound as good as the day I installed them. I’ve the recommended power on these and they get very loud and a tad bit bright but nothing my dsp couldn’t fix. Overall and satisfied with the sound quality, build quality and reliability.
Those tweeters sounds awesome…..
They sound amazing crisp very clear and loud great product.
Very good I love them
