WG08-25
-
- Mini 1″ Exit Screw-On
- 1.72″ Mounting Depth
- Black Finish
$7.91
In stock
PRICE FOR SINGLE UNIT
Features
Features
Screw-on mini waveguide WG08-25 from PRV Audio is an exponential horn to consider! At 1.72″ of depth, this horn makes installation easy in tight spaces.
A standard 1-3/8″-18 TPI Screw on mount is compatible with any PRV 1″ exit screw-on compression drivers. The WG08-25 is constructed from non-resonant ABS plastic, making it perfect for outdoor or automotive use. Acoustic loading is maintained down to 1600 Hz.
- Its slim mounting depth of 1.72″, with an ultra small 3.31″ x 3.31″ faceplate, takes up very little mounting space, allowing you to mount a compression driver between speakers.
- Designed to deliver big performance in very limited space, when you add any PRV 1″ Exit Driver to it.
- Its 90° x 90° dispersion pattern is ideal for short throw applications
- Non-resonant reinforced plastic construction, with unique pattern dispersion to minimize reflection for a more consistent sound
- Recommended minimum crossover frequency of 1,600 Hz
- Includes 4x screws
Technical Details
GENERAL SPECIFICATIONS
| Throat Diameter | 1” (25.4mm) |
| Mounting Type | Screw-on |
| Thread dimensions | 1-3/8″ |
| Nominal Coverage | |
| Horizontal | 90° |
| Vertical | 90° |
| Flare type | Exponential |
| Material | Plastic (ABS) |
| Finish / Coating | Black |
| Dimensions | |
| Height | 3.31″ (84mm) |
| Width | 3.31″ (84mm) |
| Depth | 1.95″ (49.5mm) |
| Mount Depth | 1.72″ (43.5mm) |
| Baffle Cutout | |
| Width | 2.80″ (71mm) |
| Height | 3.31″ (84mm) |
| Net weight | 0.13lb (0.06kg) |
Customer Reviews
Great products from prv as always
I like how short and small they are this will make horn fit anywhere

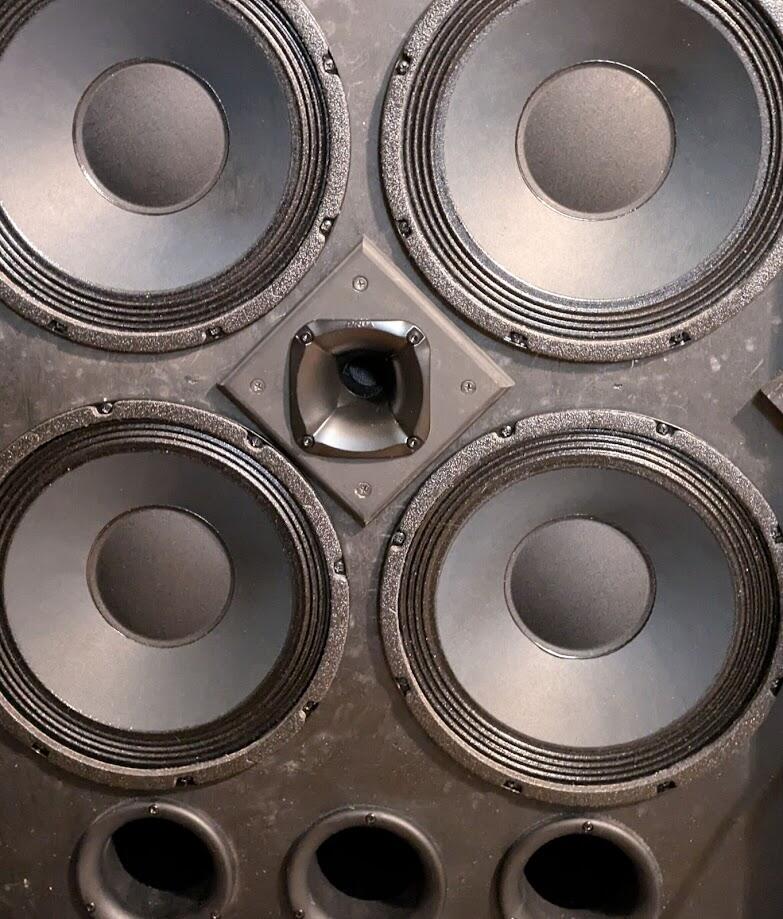

I recently replaced my stock, China made 4 Ohm Eminence 4X10 speakers in my Ampeg SVT-410HLF cabinet with some 8 Ohm American made Eminence BP102's. These sounded much better to me but the natural roll off was 1800Hz, so I removed the stock 4K (HP) crossover and installed a PRV 1800Hz/2500Hz (selectable) crossover with a PRV D290Py-B that I had around already and used an adapter to mount the 5 lb compression driver to this super mini little horn. It takes it easily and the cabinet has never sounded better. Thanks PRV for making such great, affordable, audio parts!!
Great quality product good for small spaces and shipping was quick
I love the minu
They are convenient and sound great and they are space savers
Loves these they have great quality and looks amazing can’t ask for anything better PRV you did it again thanks for the great product
