Features



Give your Compression Driver a most unique look with our grey car audio color horn – WGP14-50 GREY DUAL TONE waveguide featuring a Chrome and Matter Finish.

Its new Dual Tone finish is composed of a chrome lip and matte finish inside giving an unique finishing, making this new series the most unique color horn for drivers in the PROAudioOnWheels® market

This WGP14-50 DUAL TONE has a 2″ throat and 45° x 45° dispersion, which makes this perfect for applications where a tight coverage pattern is needed.

These round grey horns provide a perfect dispersion to minimize floor and wall reflections with uniform on and off axis frequency response from 600 Hz to beyond 25 kHz with. All archived within this small horn design with a mounting depth of only 5.02″.

• 2″ throat with standard 4-bolt mounting pattern
• Non-resonant reinforced plastic construction
• Grey Color with Chrome lid with matte UV resistant finish
• 45° x 45° Nominal Coverage with Limit frequency of 600 Hz

This conical waveguide short throat design, will surprisingly increase output on any compression driver, giving it a sound amplification over 21 dB.

GENERAL SPECIFICATIONS

Throat Diameter	2” (50.8 mm)
Mounting Type	Bolt-on
Hole Dimensions	0.31″ 8 mm
Bolt Circle	4″ 101.6 mm
Nominal Coverage
Horizontal	45°
Vertical	45°
Flare type	Exponential
Material	Plastic (ABS)
Finish / Coating	Several Colors

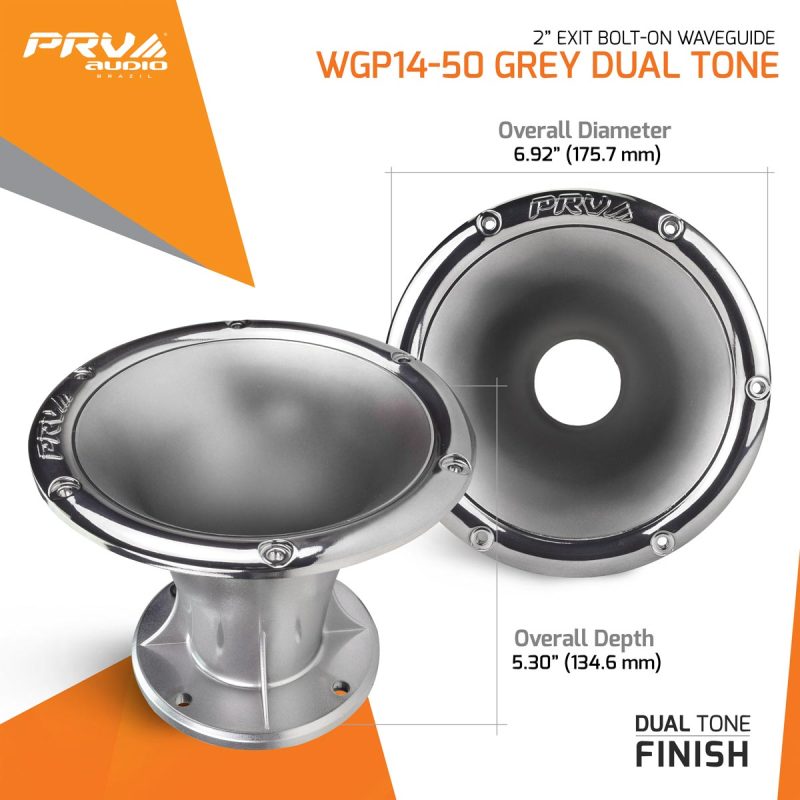

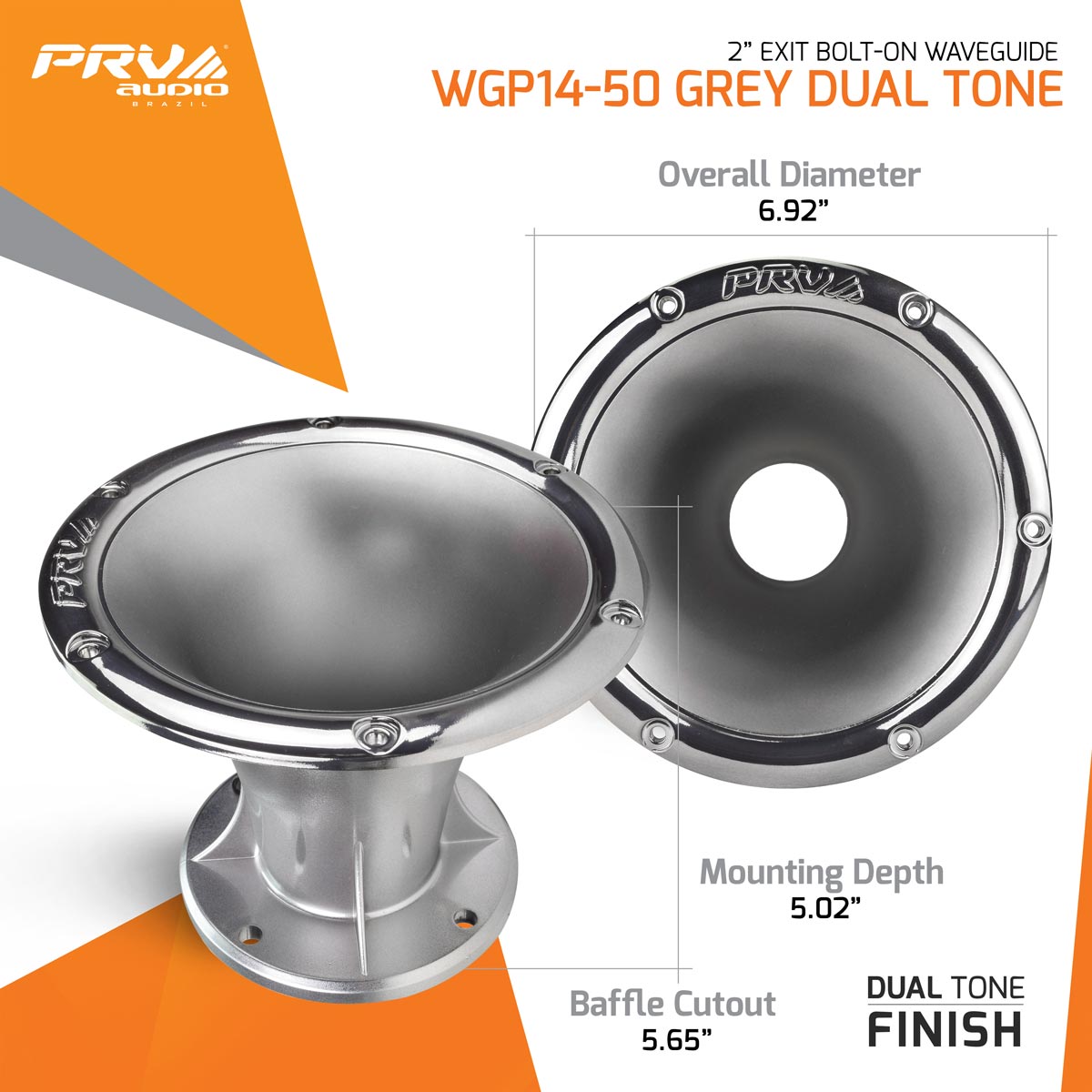

Dimensions
Height	6.92″ (175.7 mm)
Width	6.92″ (175.7 mm)
Depth	5.30″ (134.6 mm)
Mounting Depth	5.02″ (127.6 mm)
Baffle Cutout
Diameter Circle	5.75″ (146 mm)
Net weight	0.51 lb (0.23 kg)
