Moto Series MT10W1200-NDY-4 has been engineered to give your custom motorcycle saddlebags the ultimate low frequency midbass response, considering the tough environment on the roads.
PRV Audio is proud to present our new MOTO Series (MT), high performance PRO audio line dedicated for motorsports installations, focused on bringing to you the latest innovative materials and components to resist weather conditions and to provide the highest sound reproduction possible.
Optimized for use in compact enclosures this mid is ideal for motorcycle saddlebags
1,200 watts RMS power makes high acoustical output
Rubber Surround allows a generous 1.65″ peak-to-peak excursion
Powerful neodymium magnet structure features distortion-canceling fixtures
Fast transient response, deep low tones and dynamic mid bass
Weather-resistant paper cone and dust cap with true PRO audio midbass performance
The MT10W1200-NDY-4 sets a new performance standards that combines durability, efficiency, and maximum displacement into a great looking midbass speaker that will deliver the deepest low frequency response with power and authority.
Custom tooled surround allows long throw while maximizing cone surface area, to get superior fidelity and high efficiency!
The special composite cone is built with non-pressed paper for reduced break-up and treated to be water resistant, delivering a smooth frequency response and a low moving mass, increasing the efficiency of the speaker, with a generous 1.65″ peak-to-peak excursion before damage.
Extensive motor venting cools the voice coil enabling high power handling with low power compression. The large 3″ voice coil allows for 1200 Watts of Amplifier RMS Power, and warrants the outstanding cooling system implemented into the motor.
Its powerful optimized neodymium motor is vented to provide excellent cooling for its voice coil. This neo magnet also helps decreasing the weight on the speaker comparing to a ferrite magnet motor. This compact design will fit and sound great on any saddlebag that has about 1 cubic feet.
Able to stand up to the use and abuse on bike sound competitions its 3″ voice coil that is wound inside-outside on a fiberglass former features a generous 18 mm winding length for extended Xmax and less distortion.
High sensitivity rating of 97 dB 1W/1M which makes it capable of generating a lot of output!
Technical Details
GENERAL SPECIFICATIONS
Nominal Diameter
10″ (254 mm)
Nominal impedance*
4 Ohm
Nominal Power Handling**
600 Watts
Continuous Program Power (RMS)
1200 Watts
Max Peak Power***
2400 Watts
Sensitivity 2.00V at 1m
97.0 dB
Recommended Hi Pass Crossover*
*For Full Power Handling
65 Hz*
*12db Per Octave Crossover
Frequency Response
40 – 4,000 Hz
Voice Coil Diameter
3″ (76 mm)
Voice Coil Wire
CCAW
Voice Coil Winding Depth
18.0 mm
Former Material
Glass Fiber
Magnetic Gap Depth
10.0 mm
Frame Material
Die Cast Aluminum
*Nominal power handling is defined as the maximum RMS power that the speaker can handle in a 2-hour test with a pink noise with 6dB of crest factor and a bandpass filter with 12db/oct tuned in its usable frequency range. **Continuous Program Power (RMS) is the maximum power that the speaker can handle considering a regular musical program using our recommended filters, this power can be used to define the optimum amplifier power to avoid a clean signal without clipping or saturation. ***Max Peak Power is the maximum power operation for the speaker, this power is allowed just for a few fractions of a second, usually found just on the peaks of the music. Keeping this power for a little longer timer will damage the speaker.
THIELE-SMALL PARAMETERS
Equivalent Volume
Vas
41.24 l
Excursion (mathematical)***
Xmax
6.5 mm
Free Air Resonance
Fs
46.9 Hz
Mechanical Factor
Qms
7.94
Electrical Factor
Qes
0.31
Total Factor
Qts
0.30
Cone Area
Sd
373 cm²
Mechanical Mass
Mms
54.1 g
Bl Factor
Bl
12.29 Tm
Dc Resistance
Re
3.0 Ohm
Inductance
Le
0.376 mH at 1 kHz
Mechanical Mass Without Air
Mmd
50.0 g
Mechanical Compliance
Cms
0.212 mm/N
***Xmax=(Voice coil winding depth-Magnetic Gap depth)/2+ Mgnetic Gap Depth/4
Running these braced and ported with regular bags and they rock. Running with Soundigital 3000.1 watch out now.
1-10 of 14 reviews
G NASTY BROWN
These speakers are nothing but the truth loud –hard hitting and they drop that bass well I MEAN WELL !!!!
will be purchasing another set just because 😉
Naheshema Sutton
These’s PRV 10’s are thre truth. They Thump and withstand the hard base that it provides. Great Speakers
Mario Urrutia
Great speaker
I bought a set for my Street Glide loved them so I bought another set for my Road King
Hector Montero

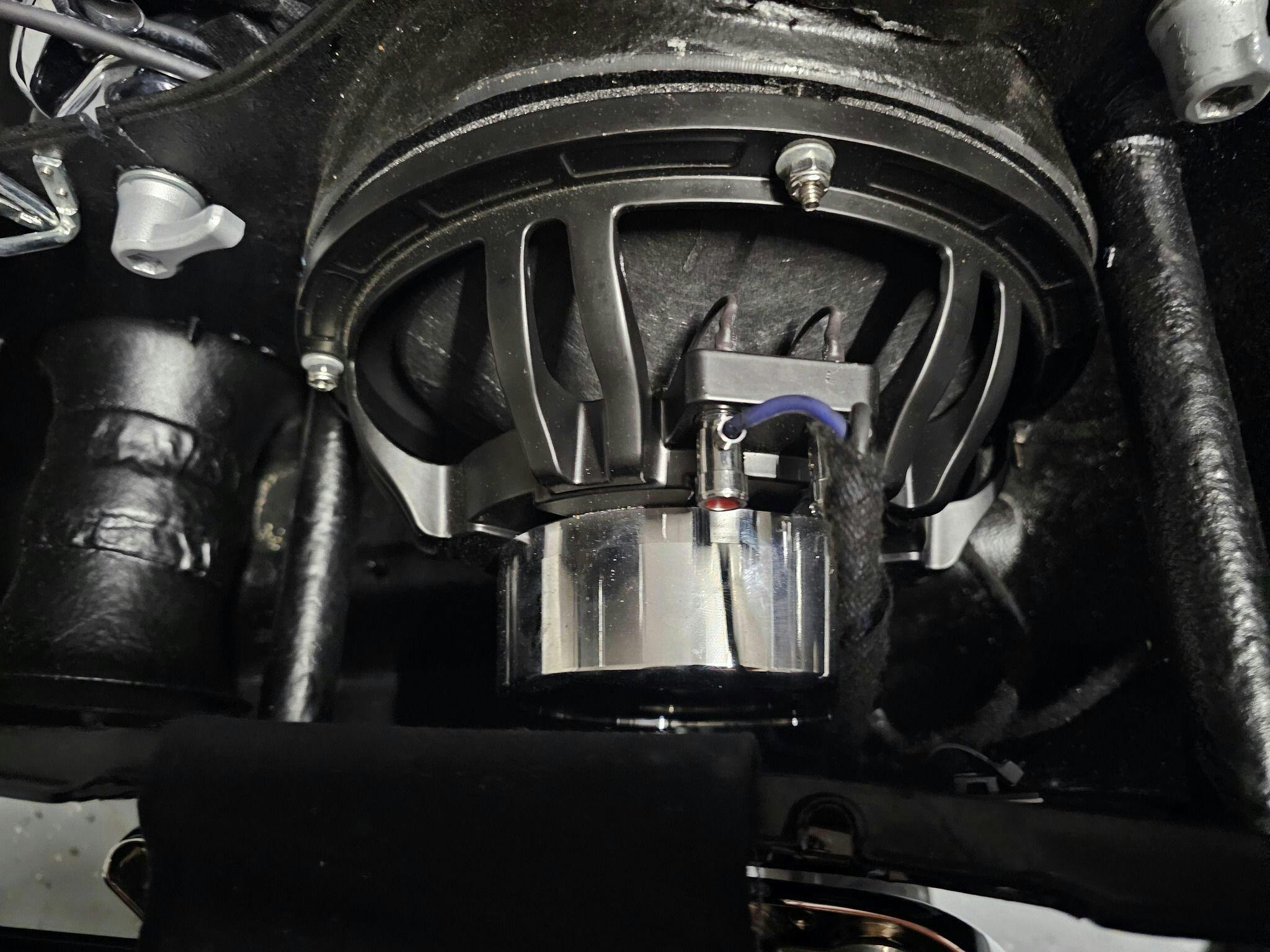

My two 10" mid's in my saddlebags.
