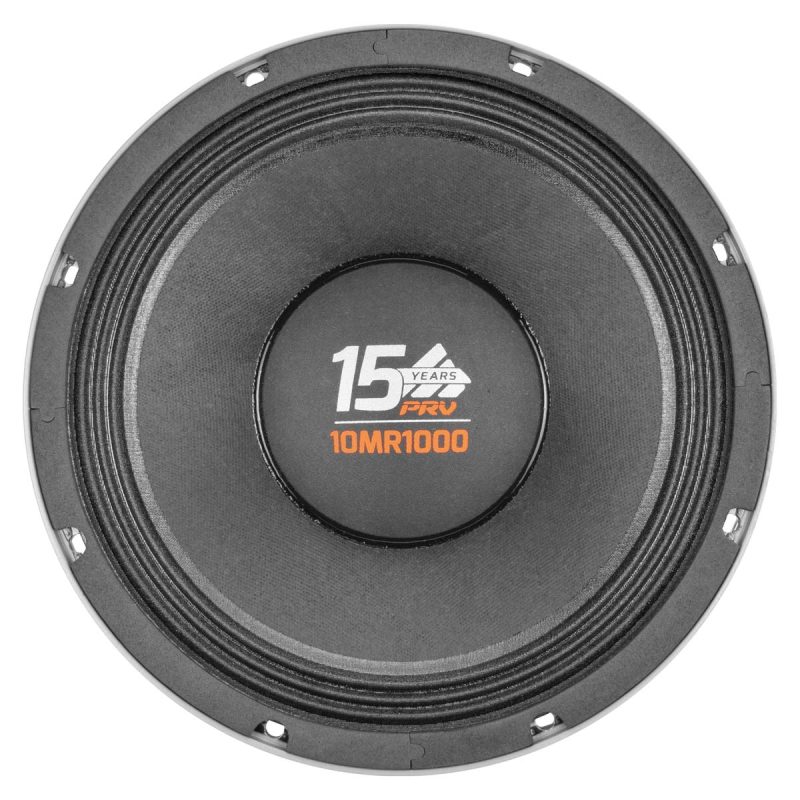

10MR1000 Anniversary Edition
-
- 10″ Mid Range – 8 Ohms
- Ferrite Magnet
- 99 dB – 1000 Watts
This product is discontinued
and no longer available.
Features
Features
We are celebrating our 15 year anniversary by launching a limited edition version of the legendary 10MR1000. The PRV Audio 10MR1000 pro audio loudspeaker was our first product dedicated to the Pro Audio On Wheels® market.
We carefully designed and developed a product that custom installers wanted for their big projects. Reaching a 99 dB Sensitivity back in 2012 made this midrange speaker exceed vocal performance like no other. Offering outstanding durability and high power handling. This speaker was specially designed for high SPL in the midrange frequencies and is assembled with the top of the line components for long lasting play during intense use. The coated woven surround offers smooth accurate geometry during hard play.
The 10MR1000 offers a 2.5” CCAW voice coil on a Kapton former that will guarantee very high efficiency while providing smooth and accurate response. The light weight cone provides an excellent curve response linear to 6 kHz and makes the 10MR1000 a very good solution for high quality two or three way systems and is perfect for the extreme car audio installer looking for a 10” door speaker.
The large magnet assembly attached to a sturdy reinforced cast aluminum frame completes the 10MR1000 to ensure a solid support structure, for long lasting play in most any environment. PRV Audio, your source for extreme pro audio loudspeakers.
Highlights
- Same 10MR1000 from 2012
- 15th Year Anniversary – Limited Edition
- Nominal Impedance: 8 Ohms
- Rated Power Handling: 500 Watts
- Program Power: 1000 Watts
- Sensitivity (1W/1m): 99 dB
- Voice Coil Diameter: 2.5″
Technical Details
GENERAL SPECIFICATIONS
Nominal Diameter | 10″ (254 mm) |
Nominal impedance | 8 Ohms |
Rated AES Power Handling (RMS) | 500 Watts |
Program Power | 1000 Watts |
Sensitivity 2.83V at 1m | 99 dB |
Recommended High Pass Crossover** **For Full Power Handling |
220 Hz* *12db Per Octave Crossover |
Frequency Response at -10dB | 60 – 6500 Hz |
Voice Coil Diameter | 2.5″ (64 mm) |
Voice Coil Wire | CCAW |
Former Material | Kapton |
Frame Material | Die Cast Aluminum |
THIELE-SMALL PARAMETERS
Equivalent Volume | Vas | 39.48 l |
Excursion (mathematical)*** | Xmax | 5.0 mm |
Free Air Resonance | Fs | 61.61 Hz |
Mechanical Factor | Qms | 24.39 |
Electrical Factor | Qes | 0.36 |
Total Factor | Qts | 0.36 |
Cone Area | Sd | 405 cm² |
Mechanical Mass | Mms | 38.64 g |
Bl Factor | Bl | 16.96 Tm |
Dc Resistance | Re | 7.0 Ohms |
Inductance | Le | 0.50 mH at 1 kHz |
Mechanical Mass Without Air | Mmd | 34.06 g |
Mechanical Compliance | Cms | 0.172 mm/N |
***Xmax=(Voice coil winding depth-Magnetic Gap depth)/2+ Mgnetic Gap Depth/4
EXTRA INFO
Overall Diameter | 10.43” (265 mm) |
Front Mount Baffle Cutout | 9.33” (237 mm) |
Mounting Depth | 4.92” (125 mm) |
Overall Depth | 5.35” (136 mm) |
Net Weight | 14.26 Lbs (6.46 kg) |
Shipping Weight | 15.63 Lbs (7.09 kg) |
Carton Dimensions W x L x H | 12.60” x 12.60” x 7.48” (320 x 320 x 190 mm) |
Repair Parts
Recone Kit for 10MR1000 Anniversary Edition Loudspeaker
