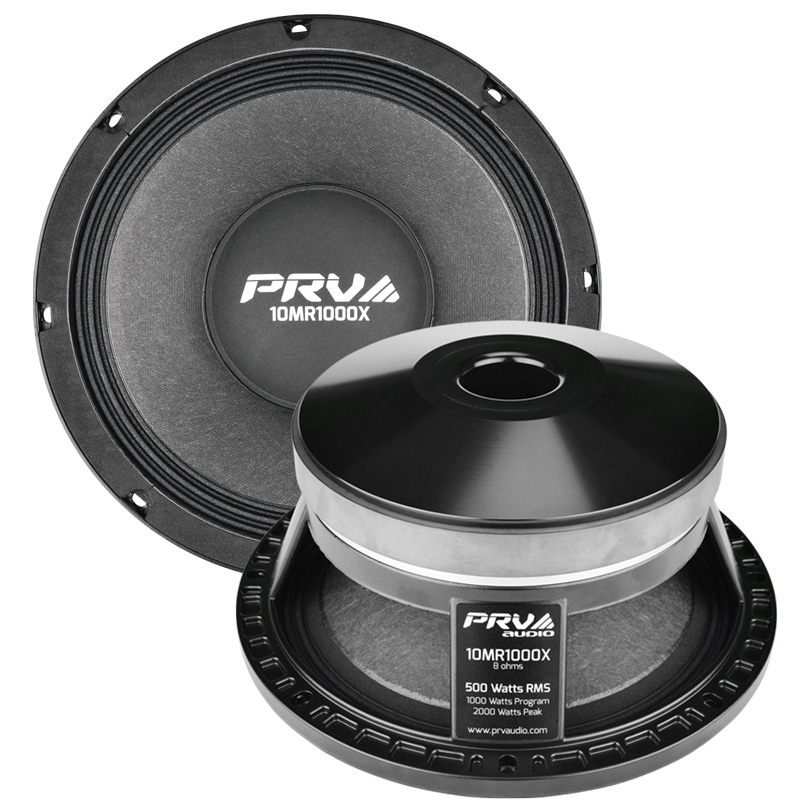

10MR1000X
-
- 10″ Midrange – 8 Ohm
- Ferrite Magnet
- 100 dB – 1000 Watts
$169.91
In stock
PRICE FOR SINGLE UNIT
Features
Features
X-treme midrange performance is what PRV Audio’s 10MR1000X is all about. The PRV Audio 10MR1000X is the evolution of our line, after intense 2 years of development we have created the midrange loudspeaker that offers outstanding durability. This specially designed loudspeaker is assembled with top of the line components for long lasting play, even during intense use.
- 3″ Inside/Out aluminum voice coil wound on fiberglass former for hi-temp performance, 8 ohms
- 1,000 watts continuous program power rating makes high acoustical output
- Excellent performance in compact enclosures
- 100 dB sensitivity, which makes it capable of generating a lot of output!
- Detailed vocal reproduction, high fidelity response
A coated woven surround offers smooth, precise geometry during hard play. The light weight cone provides excellent linear response up to 3 kHz, making the 10MR1000X a great solution for high quality two or three-way systems.

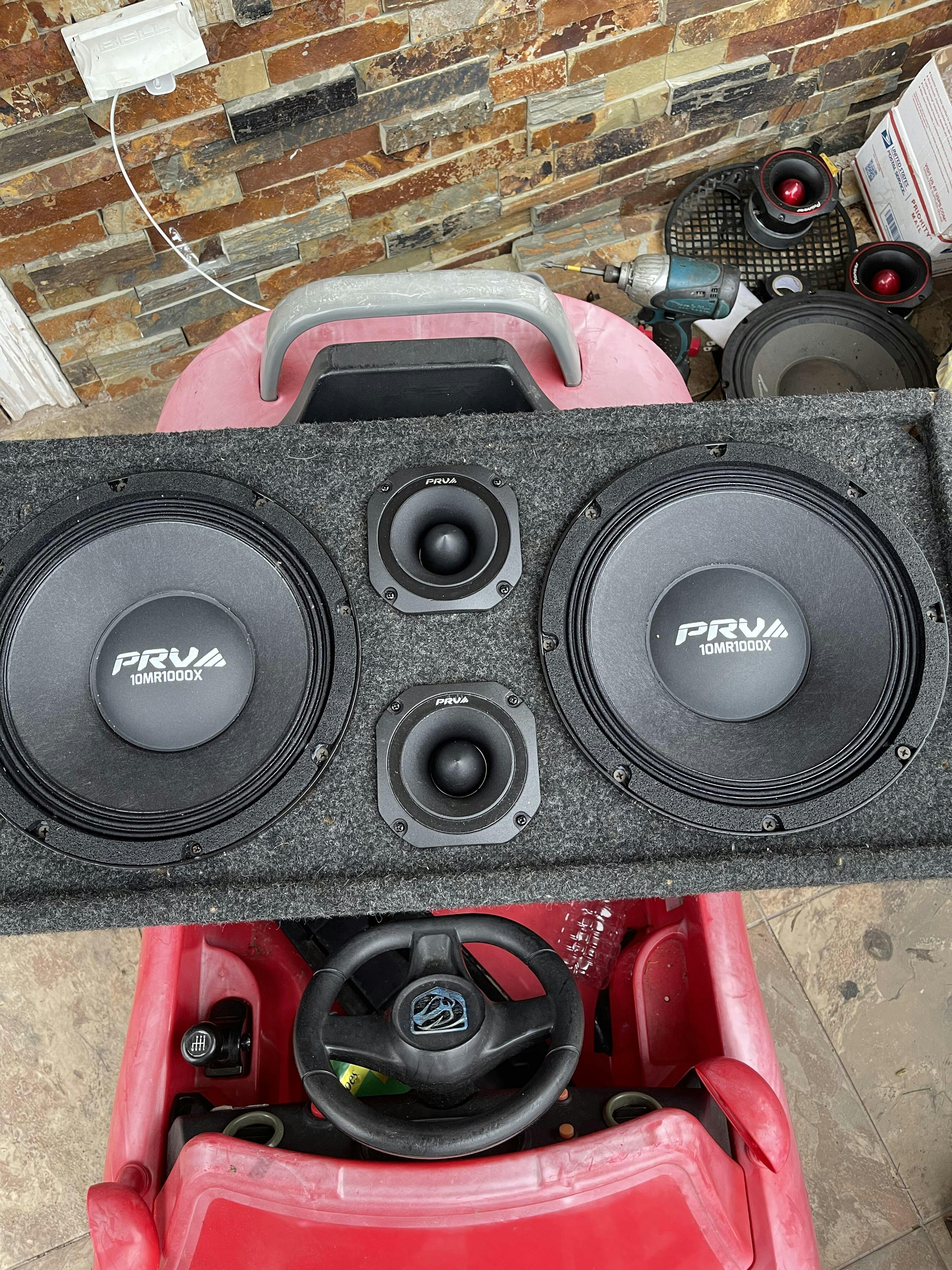

Extreme car audio enthusiasts will find PRV Audio’s 10MR1000X to be the perfect 10″ midrange door speaker, capable of handling up to 500 watts RMS power (with a suggested 140 Hz, 18 dB/octave high pass filter in place)! The large magnet assembly is attached to a sturdy, reinforced cast-aluminum frame.
High power handling at sensitivity rating of 100 dB 1W/1M which makes it capable of generating a lot of output!
The 3″ inside/outside copper voice coil is wrapped on a glass fiber former for heat resistance and high efficiency, while providing smooth and accurate response. Not only can it handle the force of 500 watts RMS, it does so while remaining linear from 300 to 3,000 Hz.
Technical Details
GENERAL SPECIFICATIONS
Nominal Diameter | 10″ (254 mm) |
Nominal impedance | 8 Ohms |
Rated AES Power Handling (RMS) | 500 Watts |
Program Power | 1000 Watts |
Sensitivity 2.83V at 1m | 100 dB |
Recommended Hi Pass Crossover** **For Full Power Handling |
150 Hz** **12db Per Octave Crossover |
Frequency Response at -10dB | 75 – 6,500 Hz |
Voice Coil Diameter | 3″ (76 mm) |
Voice Coil Wire | Copper |
Voice Coil Winding Depth | 9.0 mm |
Former Material | Glass Fiber |
Magnetic Gap Depth | 8.0 mm |
Frame Material | Die Cast Aluminum |
THIELE-SMALL PARAMETERS
Equivalent Volume | Vas | 28.68 l |
Excursion (mathematical)*** | Xmax | 2.50 mm |
Free Air Resonance | Fs | 72.02 Hz |
Mechanical Factor | Qms | 11.22 |
Electrical Factor | Qes | 0.23 |
Total Factor | Qts | 0.22 |
Cone Area | Sd | 391 cm² |
Mechanical Mass | Mms | 36.26 g |
Bl Factor | Bl | 19.42 Tm |
Dc Resistance | Re | 5.2 Ohms |
Inductance | Le | 0.43 mH at 1 kHz |
Mechanical Mass Without Air | Mmd | 31.89 g |
Mechanical Compliance | Cms | 0.134 mm/N |
***Xmax=(Voice coil winding depth-Magnetic Gap depth)/2+ Mgnetic Gap Depth/4
EXTRA INFO
Overall Diameter | 10.23” (260 mm) |
Front Mount Baffle Cutout | 9.01” (229 mm) |
Mounting Depth | 4.27” (108.5 mm) |
Overall Depth | 4.84” (123 mm) |
Net Weight | 15.43 Lbs (7.0 kg) |
Shipping Weight | 16.53 Lbs (7.5 kg) |
Carton Dimensions W x L x H | 11.22” x 11.22” x 6.89” (285 x 285 x 175 mm) |
Repair Parts
Recone Kit for 10MR1000X Loudspeaker
