10" MID RANGE LOUDSPEAKER

10MR2000-NDY

In stock
  • 10″ Mid Range – 8 Ohms
  • Neodymium Magnet
  • 99 dB – 2000 Watts

$219.99

In stock

PRICE FOR SINGLE UNIT

SKU: 10MR2000-NDY Category: Tag:

Features

Highlights

  • Nominal Impedance: 8 Ohms
  • Rated AES Power Handling (RMS): 1000 Watts
  • Program Power: 2000 Watts
  • Sensitivity (1W/1m): 99 dB
  • Voice Coil Diameter: 4″

WARNING: Cancer and Reproductive Harm – www.p65warnings.ca.gov

Technical Details

GENERAL SPECIFICATIONS

Nominal Diameter 10″ (254 mm)
Nominal impedance 8 Ohms
Rated AES Power Handling (RMS) 1000 Watts
Program Power 2000 Watts
Sensitivity 2.83V at 1m 99 dB
Recommended Hi Pass Crossover** **For Full Power Handling 160 Hz** **12db Per Octave Crossover
Frequency Response at -10dB 90 – 6,500 Hz

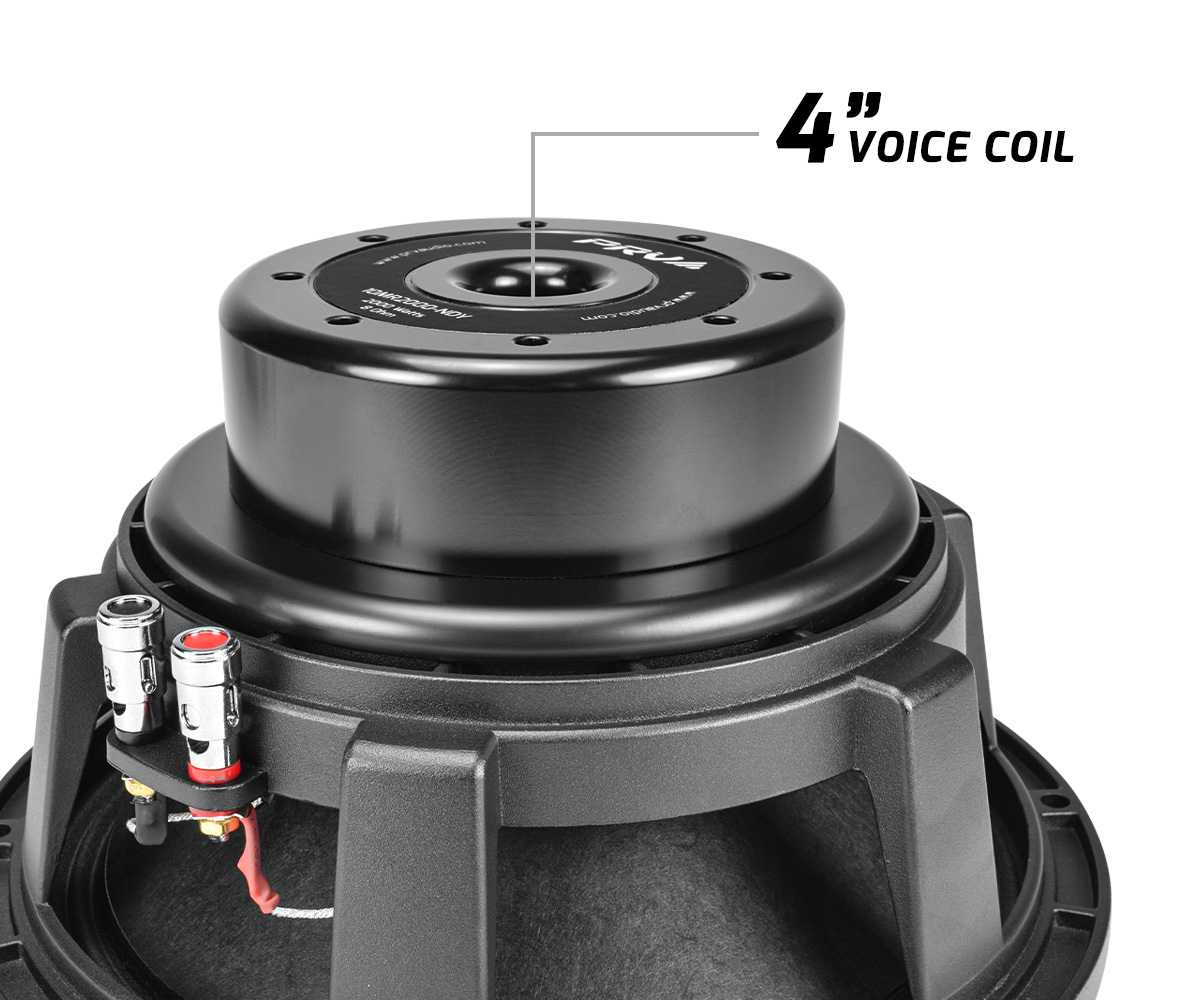

Voice Coil Diameter 4″ (101 mm)
Voice Coil Wire Copper
Voice Coil Winding Depth 18.8 mm
Former Material Glass Fiber
Magnetic Gap Depth 9.0 mm
Frame Material Die Cast Aluminum

THIELE-SMALL PARAMETERS

Equivalent Volume Vas 27.98 l
Excursion (mathematical)*** Xmax 7.15 mm
Free Air Resonance Fs 54.48 Hz
Mechanical Factor Qms 1.54
Electrical Factor Qes 0.21
Total Factor Qts 0.21
Cone Area Sd 373 cm²
Mechanical Mass Mms 59.33 g
Bl Factor Bl 21.73 Tm
Dc Resistance Re 5.0 Ohms
Inductance Le 0.50 mH at 1 kHz
Mechanical Mass Without Air Mmd 35.96 g
Mechanical Compliance Cms 0.143 mm/N

***Xmax=(Voice coil winding depth-Magnetic Gap depth)/2+ Mgnetic Gap Depth/4


EXTRA INFO

Overall Diameter 10.43” (265 mm)
Front Mount Baffle Cutout 9.33” ( 237 mm)
Mounting Depth 5.08” (129 mm)
Overall Depth 5.49” (139.5 mm)
Net Weight 12.78 Lbs (5.8 kg)
Shipping Weight 14.55 Lbs (6.6 kg)
Carton Dimensions W x L x H 12.6” x 12.6” x 7.8” (320 x 320 x 195 mm)
