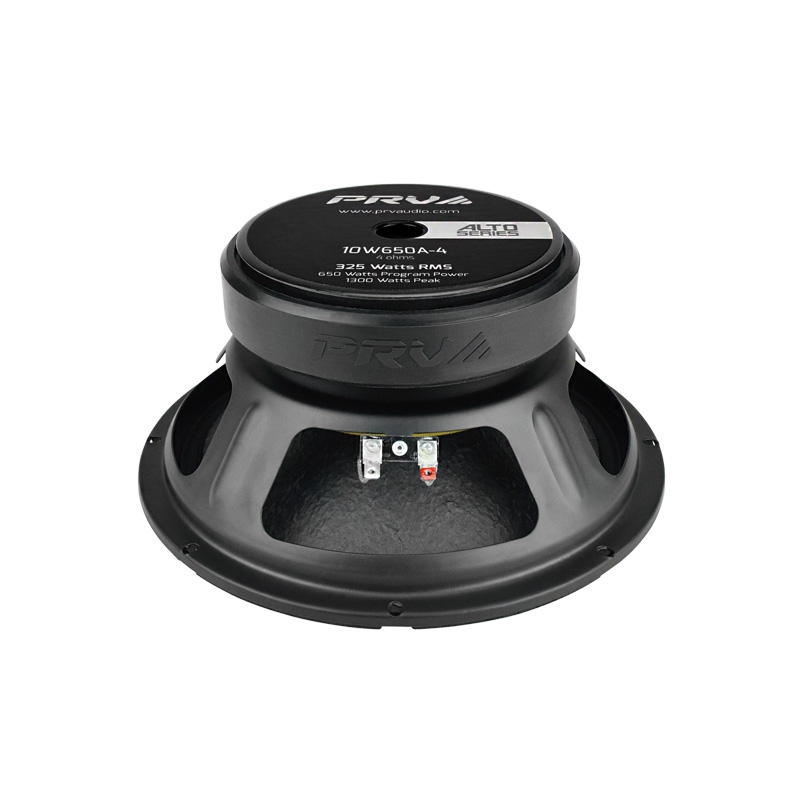

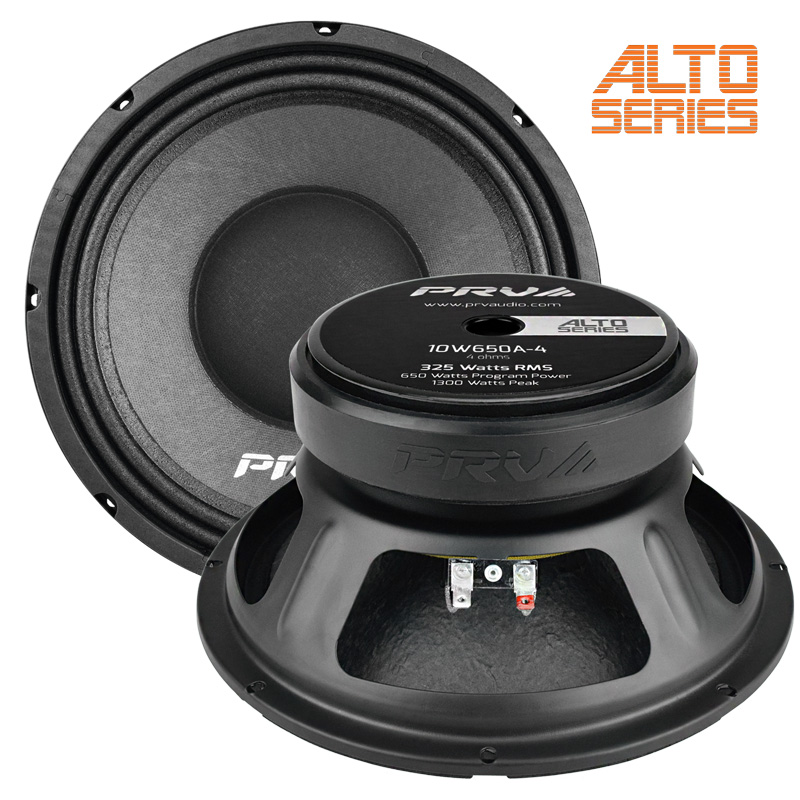

10" PRO AUDIO WOOFER

10W650A-4

In stock
  • 10″ Woofer – 4 Ohms
  • Ferrite Magnet
  • 97 dB – 650 Watts

$69.91

In stock

PRICE FOR SINGLE UNIT

SKU: 10W650A-4 Category: Tag:

Features

Features

High fidelity meets high output — PRV Audio ALTO Series Woofers. Audio experts and professional musicians know that tone can make or break a performance, in the studio or on the stage. That’s why PRV Audio’s Alto Series woofers were carefully crafted and voiced to create a natural, smooth sound while remaining dynamic.

To get the right sound, a special composite cone is built with non-pressed paper (visible on the back side) for reduced break-up and smooth sound. A unique, woven-cloth dustcap helps to achieve high sensitivity by reducing moving mass, while helping to cool the voice coil.

You’ll find that Alto Series woofers work remarkably well in vented and sealed cabinets, as woofers in two-way speakers or midrange speakers in three-way systems, and even shine when used as bass guitar and guitar speakers. Upgrade to the PRV Audio ALTO Series… You’ll thank us later!


Highlights

  • Nominal Impedance: 4 Ohms
  • Rated AES Power Handling (RMS): 325 Watts
  • Program Power: 650 Watts
  • Sensitivity (1W/1m): 97 dB
  • Voice Coil Diameter: 2.5″

Technical Details

GENERAL SPECIFICATIONS

Nominal Diameter 10″ (254 mm)
Nominal impedance 4 Ohms
Rated AES Power Handling (RMS) 325 Watts
Program Power 650 Watts
Sensitivity 2.00V at 1m 97 dB
Recommended Hi Pass Crossover**
**For Full Power Handling
150 Hz**
**12db Per Octave Crossover
Frequency Response at -10dB 75 – 5,500 Hz
Voice Coil Diameter 2.5″ (65.5 mm)
Voice Coil Wire CCAW
Voice Coil Winding Depth 13.0 mm
Former Material Kapton
Magnetic Gap Depth 10.00 mm
Frame Material Stamped Steel




THIELE-SMALL PARAMETERS

Equivalent Volume Vas 41.23 l
Excursion (mathematical)*** Xmax 4.00 mm
Free Air Resonance Fs 66.88  Hz
Mechanical Factor Qms 16.07
Electrical Factor Qes 0.40
Total Factor Qts 0.39
Cone Area Sd 415 cm²
Mechanical Mass Mms 33.09 g
Bl Factor Bl 11.23 Tm
Dc Resistance Re 3.7 Ohms
Inductance Le 0.57 mH at 1 kHz
Mechanical Mass Without Air Mmd 28.30 g
Mechanical Compliance Cms 0.171 mm/N

***Xmax=(Voice coil winding depth-Magnetic Gap depth)/2+ Mgnetic Gap Depth/4


EXTRA INFO

Overall Diameter 10.10” (257 mm)
Front Mount Baffle Cutout 9.25” ( 235 mm)
Mounting Depth 4.3” (110 mm)
Overall Depth 4.72” (120 mm)
Net Weight 10.49 Lbs (4.75 kg)
Shipping Weight 12.01 Lbs (5.45 kg)
Carton Dimensions W x L x H 12.2” x 12.2” x 7.28”
(310 x 310 x 185 mm)



WARNING: Cancer and Reproductive Harm – www.p65warnings.ca.gov

Customer Reviews

Based on 21 reviews
95%
(20)
5%
(1)
0%
(0)
0%
(0)
0%
(0)
O
Ovidio Vaquiz

10W650A-4

L
Luis Matias

Good quality

M
M.B.
Update 10w650A-4

Broken in and turned the gain up before clipping and re-set crossovers. WOW!! As loud and clear as some with 8-12 at Slamology with just 4 in the doors!!! About to do rear doors. PRV 6 stars!

K
Karyss Auguste

10W650A-4

M
Mark

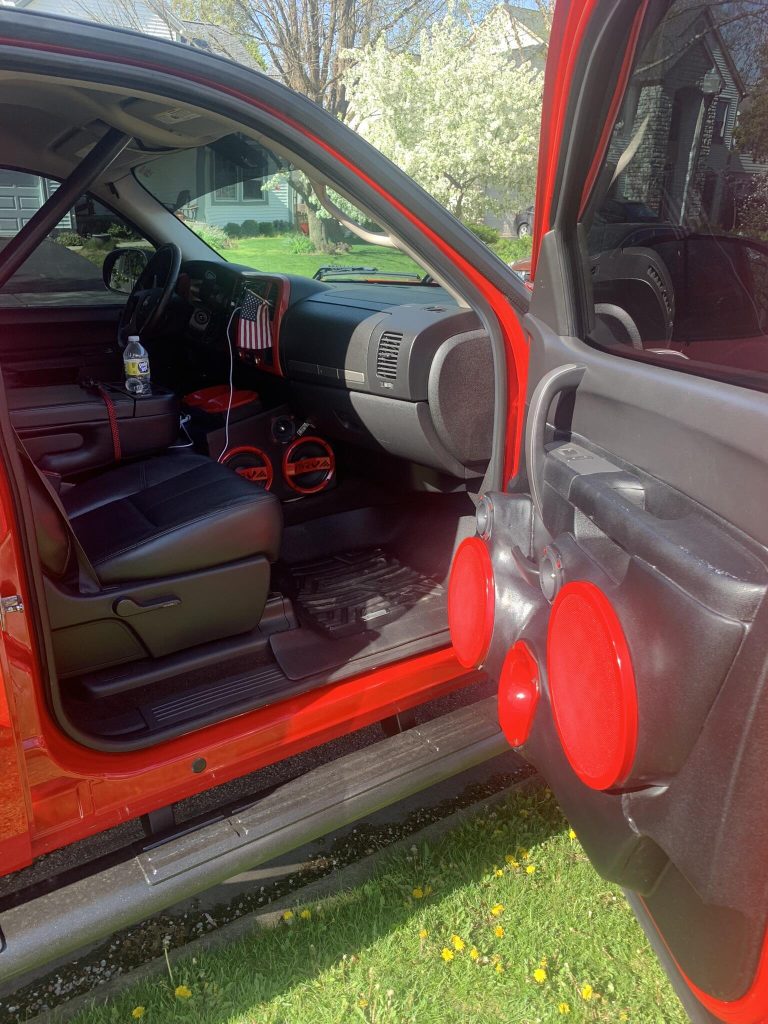

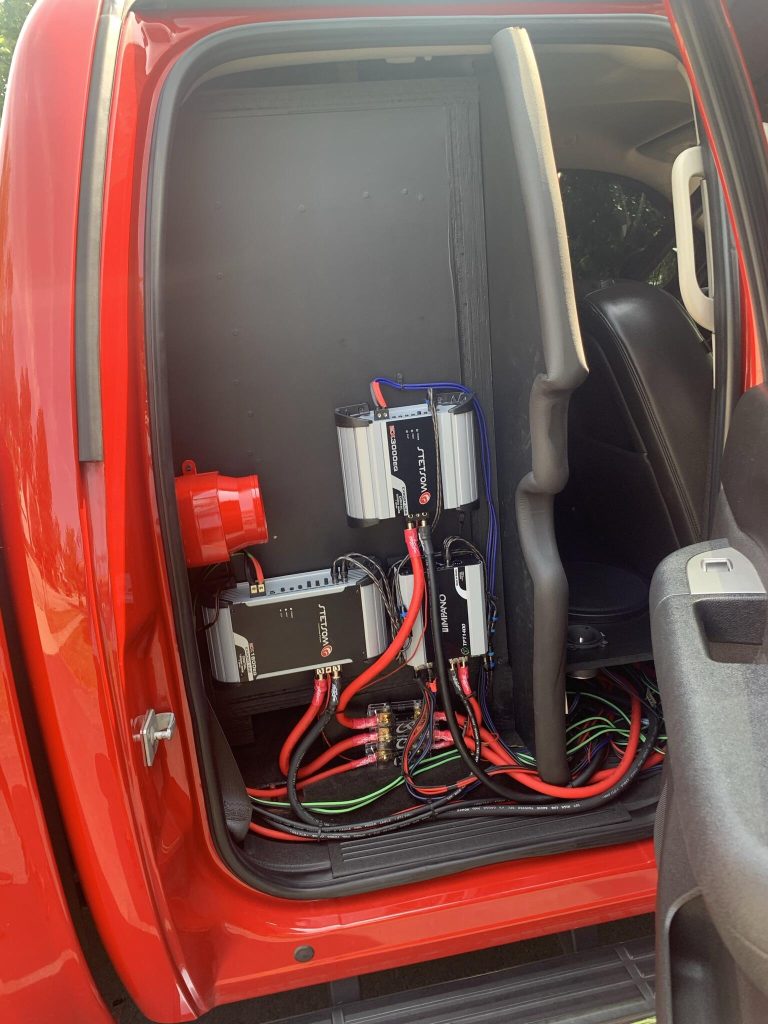

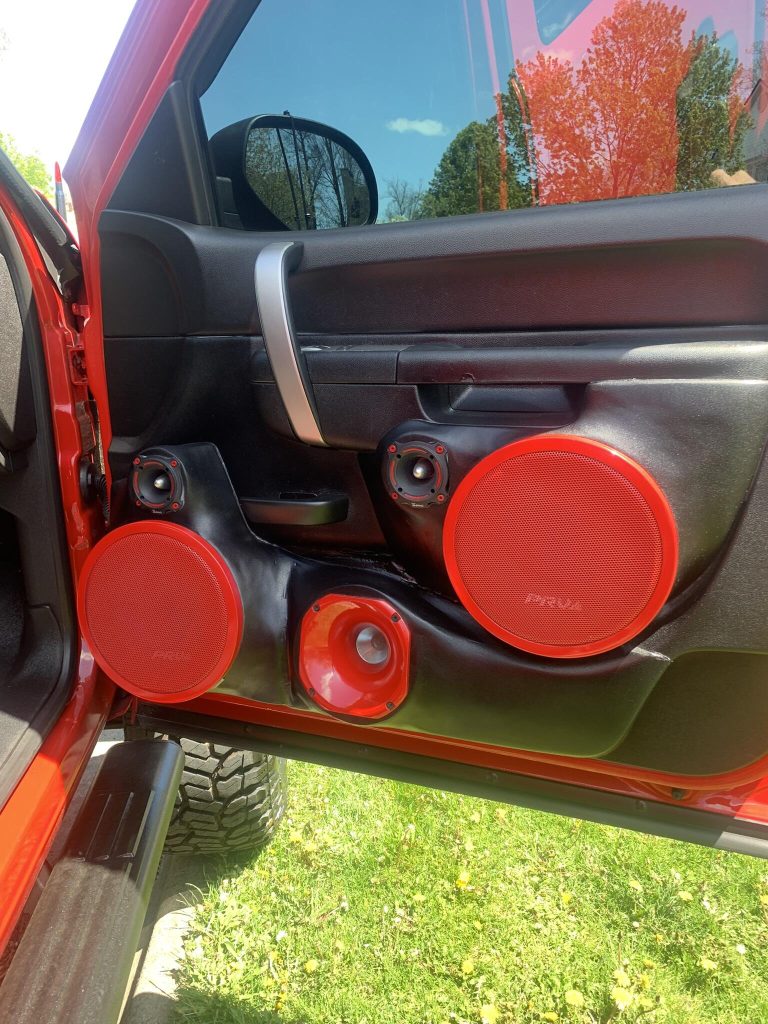

I have 4, 4 ohm version in my Silverado doors on a Stetsom ex3000 wired to 1 ohm. Gain less than half and Unreal volume, clarity and impact! With the subs off these flex my door skins even with 3 layers of sky high deadener! Prv standard mid bass!

×
