10" PRO AUDIO WOOFER

10W650A

(4 customer reviews)
In stock
  • 10″ Woofer – 8 Ohms
  • Ferrite Magnet
  • 97 dB – 650 Watts

$69.99

In stock

PRICE FOR SINGLE UNIT

SKU: 10W650A Category: Tag:

Features

High fidelity meets high output — PRV Audio ALTO Series Woofers. Audio experts and professional musicians know that tone can make or break a performance, in the studio or on the stage. That’s why PRV Audio’s Alto Series woofers were carefully crafted and voiced to create a natural, smooth sound while remaining dynamic.

To get the right sound, a special composite cone is built with non-pressed paper (visible on the back side) for reduced break-up and smooth sound. A unique, woven-cloth dustcap helps to achieve high sensitivity by reducing moving mass, while helping to cool the voice coil.

You’ll find that Alto Series woofers work remarkably well in vented and sealed cabinets, as woofers in two-way speakers or midrange speakers in three-way systems, and even shine when used as bass guitar and guitar speakers. Upgrade to the PRV Audio ALTO Series… You’ll thank us later!


Highlights

  • Nominal Impedance: 8 Ohms
  • Rated AES Power Handling (RMS): 325 Watts
  • Program Power: 650 Watts
  • Sensitivity (1W/1m): 97 dB
  • Voice Coil Diameter: 2.5″

WARNING: Cancer and Reproductive Harm – www.p65warnings.ca.gov

Technical Details

GENERAL SPECIFICATIONS

Nominal Diameter 10″ (254 mm)
Nominal impedance 8 Ohms
Rated AES Power Handling (RMS) 325 Watts
Program Power 650 Watts
Sensitivity 2.83V at 1m 97 dB
Recommended Hi Pass Crossover**
**For Full Power Handling
150 Hz**
**12db Per Octave Crossover
Frequency Response at -10dB 75 – 5,500 Hz
Voice Coil Diameter 2.5″ (65.5 mm)
Voice Coil Wire CCAW
Voice Coil Winding Depth 13.0 mm
Former Material Kapton
Magnetic Gap Depth 8.0 mm
Frame Material Stamped Steel




THIELE-SMALL PARAMETERS

Equivalent Volume Vas 34.04 l
Excursion (mathematical)*** Xmax 4.50 mm
Free Air Resonance Fs 72.31 Hz
Mechanical Factor Qms 16.34
Electrical Factor Qes 0.47
Total Factor Qts 0.46
Cone Area Sd 415 cm²
Mechanical Mass Mms 34.04 g
Bl Factor Bl 14.09 Tm
Dc Resistance Re 6.1 Ohms
Inductance Le 0.79 mH at 1 kHz
Mechanical Mass Without Air Mmd 29.24 g
Mechanical Compliance Cms 0.142 mm/N

***Xmax=(Voice coil winding depth-Magnetic Gap depth)/2+ Mgnetic Gap Depth/4


EXTRA INFO

Overall Diameter 10.10” (257 mm)
Front Mount Baffle Cutout 9.25” ( 235 mm)
Mounting Depth 4.3” (110 mm)
Overall Depth 4.72” (120 mm)
Net Weight 10.49 Lbs (4.75 kg)
Shipping Weight 11.25 Lbs (5.10 kg)
Carton Dimensions W x L x H 11.02” x 11.02” x 5.98”
(280 x 280 x 152 mm)



Customer questions & answers

  1. 0 votes
    Answered by the admin

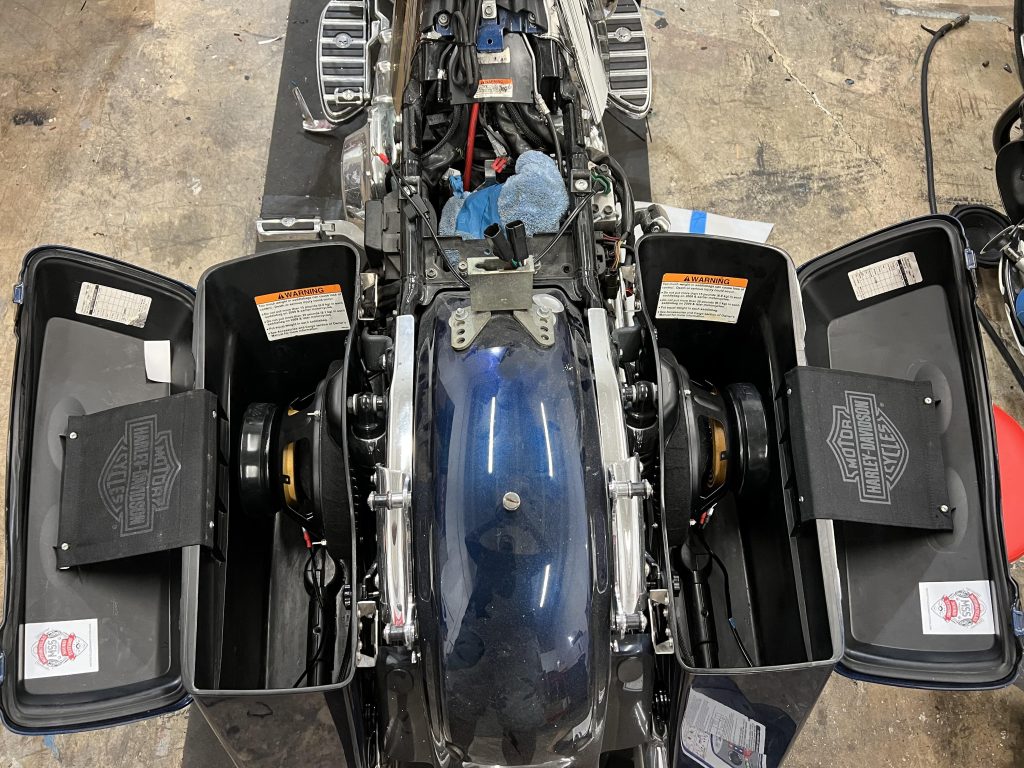

    Frequency response is between 75-5500Hz. We recommend using between 150-3000hz for full power handling. However, in a motorcycle application ran on less power you can run the frequency a bit lower. This depends on your tuning capability. We also recommend the 4 ohm version if you will only use 2 speakers in your system.

    https://prvaudio.com/products/10w650a-4/



  2. 0 votes
    Q What amplifier do you recommend using to connect four 10W650A? answer now
    Asked by santiago_axiel on October 5, 2019 10:39 pm
    Answered by the admin

    I recommend an A1MH PRO 2 OHM for 4 10W650A 8 OHM speakers.

    https://prvaudio.com/products/a1mh-pro-2/

Send me a notification for each new answer.

4 reviews for 10W650A

  1. remone woods

  2. Jaslin Matos

  3. Jaslin Matos

  4. remone woods

Add a review

Your email address will not be published. Required fields are marked *

Repair Parts

Recone Kit for 10W650A and 10W650A-NDY Loudspeakers



Videos

PRV AUDIO 10W650A Loudspeaker
