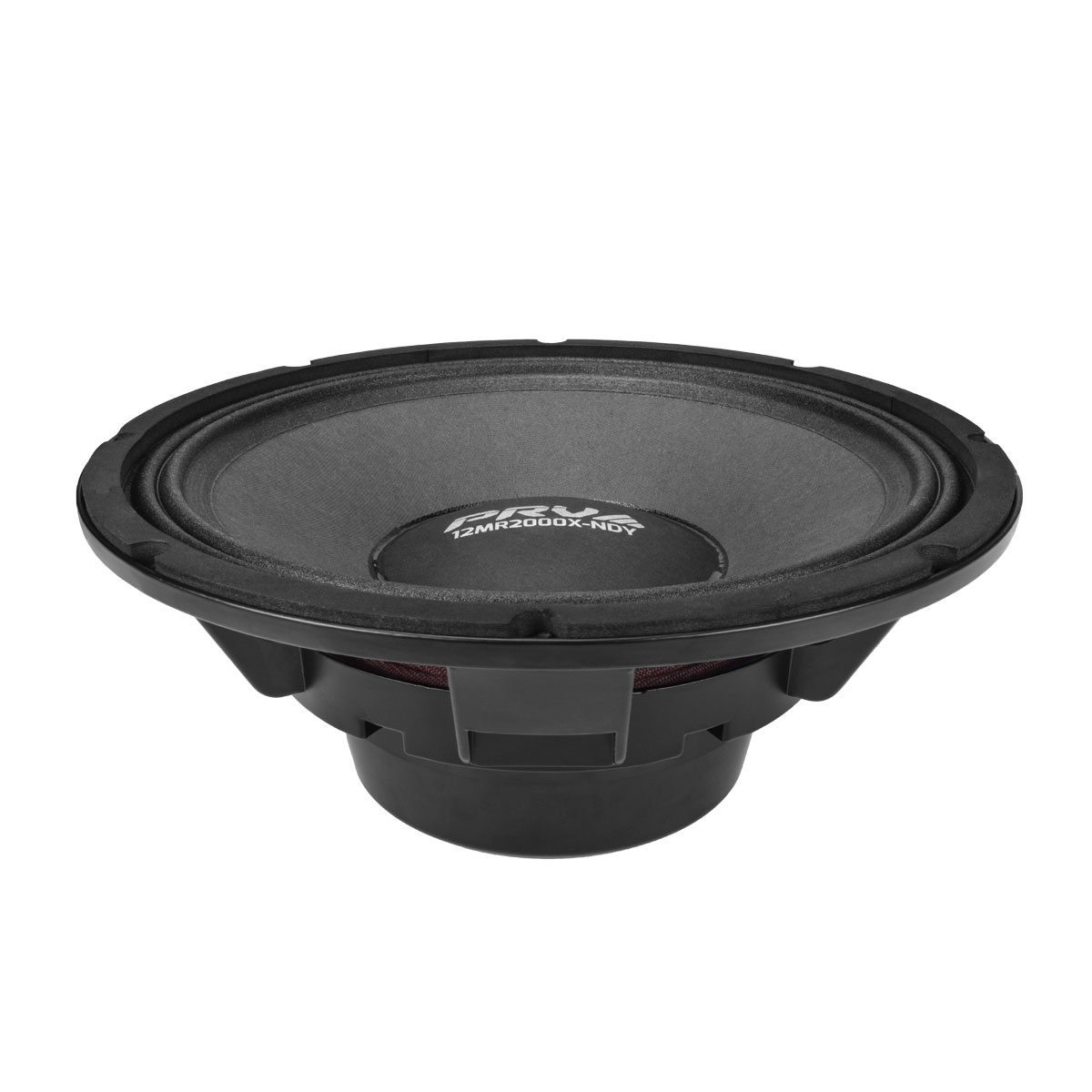

X-treme midrange performance is what PRV Audio’s 12MR2000X-NDY is all about.

Made to be a class leading midrange in the pro audio realm, this speaker has a high output sensitivity of 100 dB and only weighs 13.45 pounds. This midrange loudspeaker is optimized for professional audio or (musical instrument) speaker system applications, and large car audio competition systems.

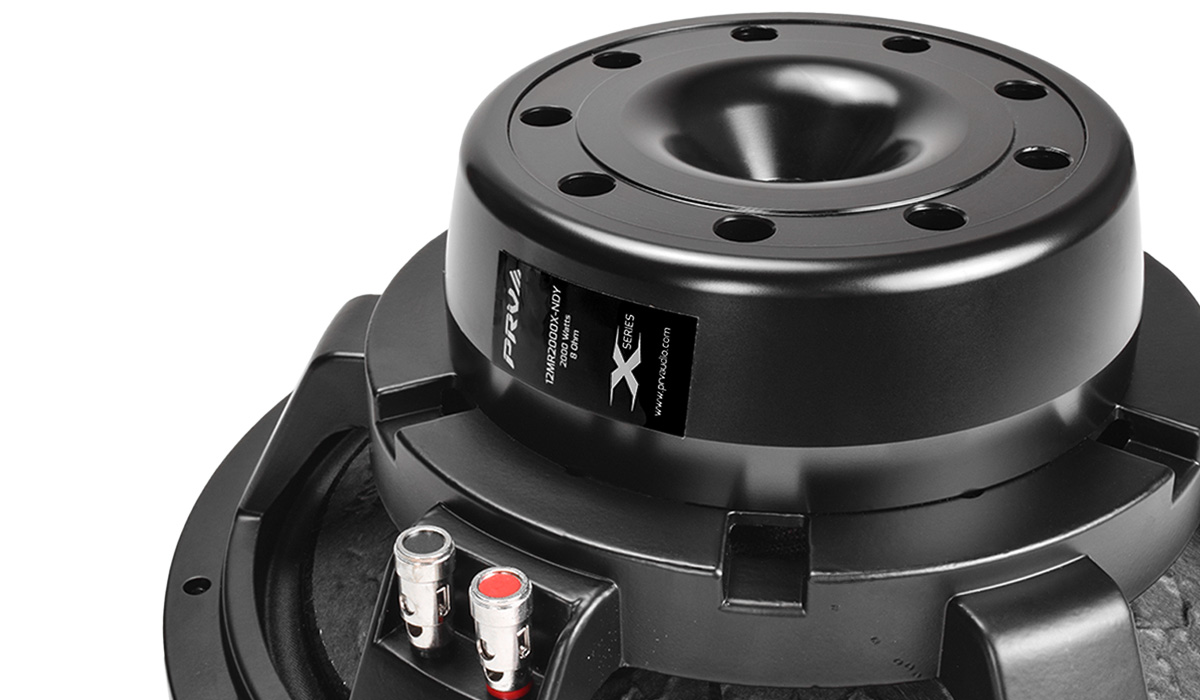

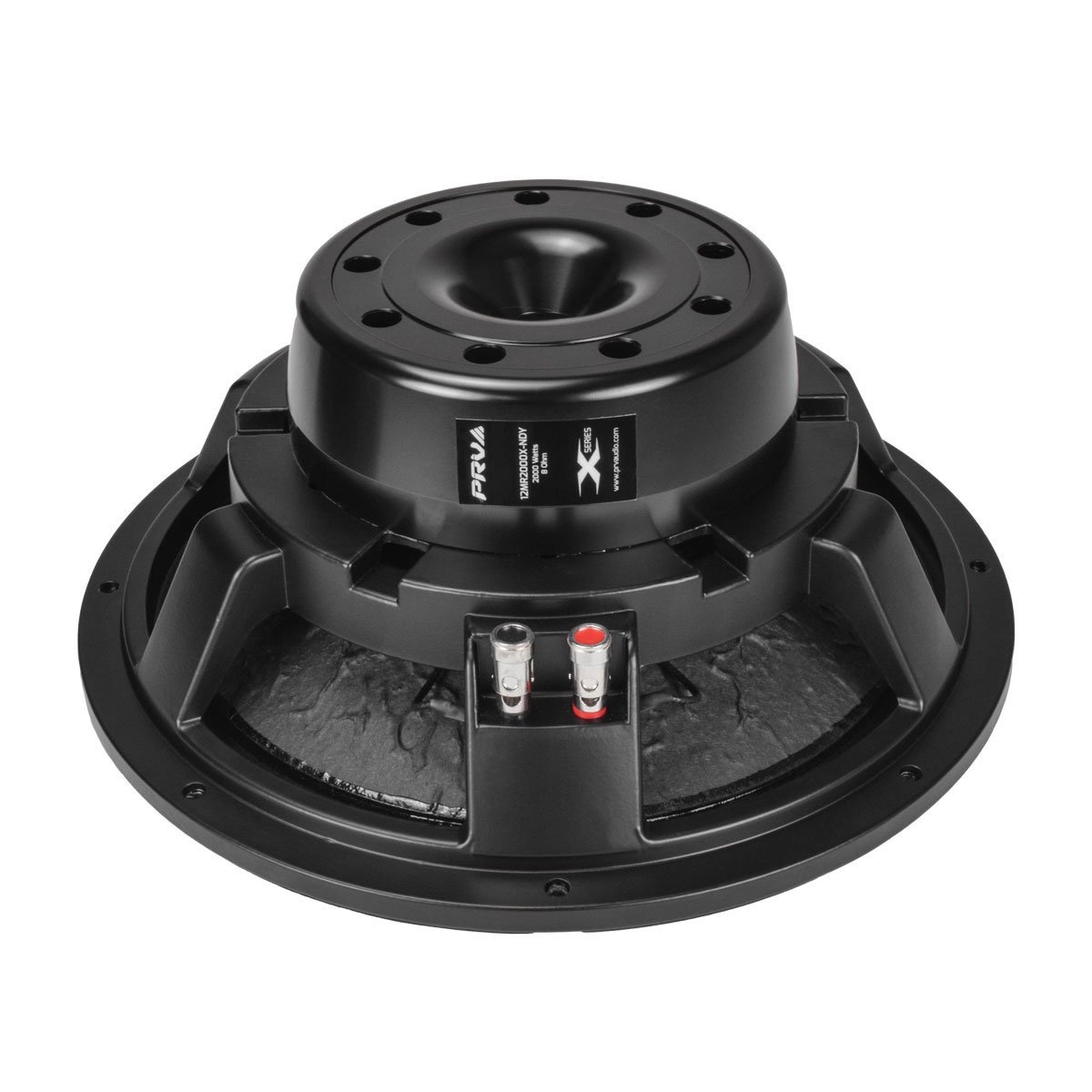

Featuring a powerful neodymium motor assembly assures high flux concentration. Its magnetic structure significantly improves thermal connection and heat dissipation. This increases power handling and lowers power compression, with an optimum power to weight ratio.

X Series is dedicated to delivering extreme midrange performance, capable of high output and high power handling, while delivering a smooth vocal response.

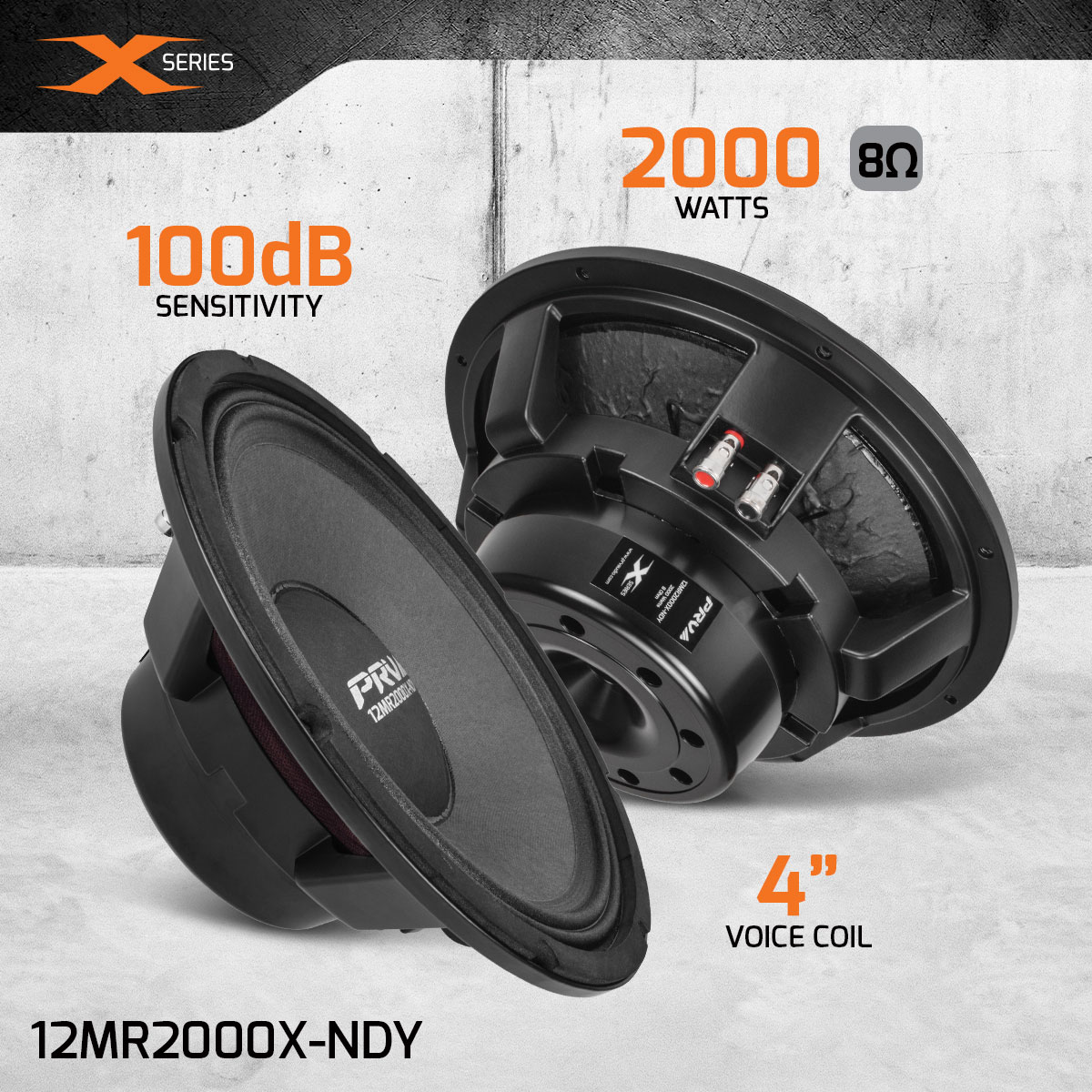

• 2,000 Watts RMS with 100 dB efficiency for amazing output capability
• 6.10 mm Xmax allows excellent control to deliver high impact midbass
• Detailed vocal response and pristine instrument sound reproduction
• Excellent performance in compact enclosures

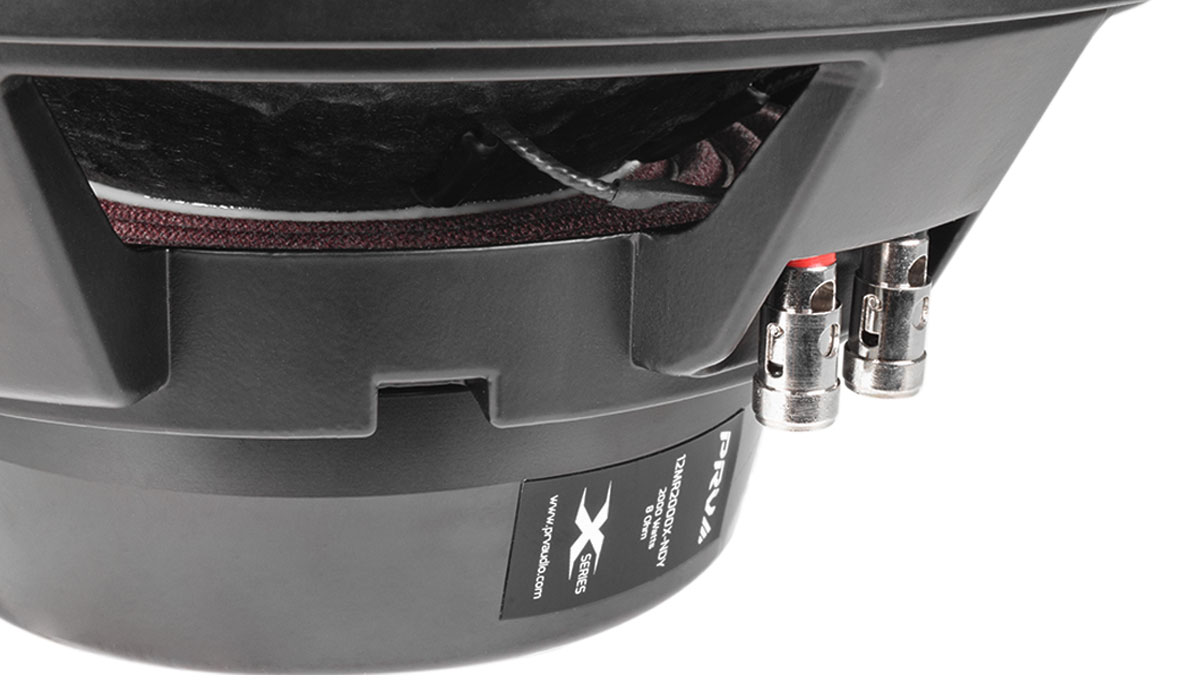

• Extensive venting keeps the 4” voice coil cool improving reliability when pushed to the limit

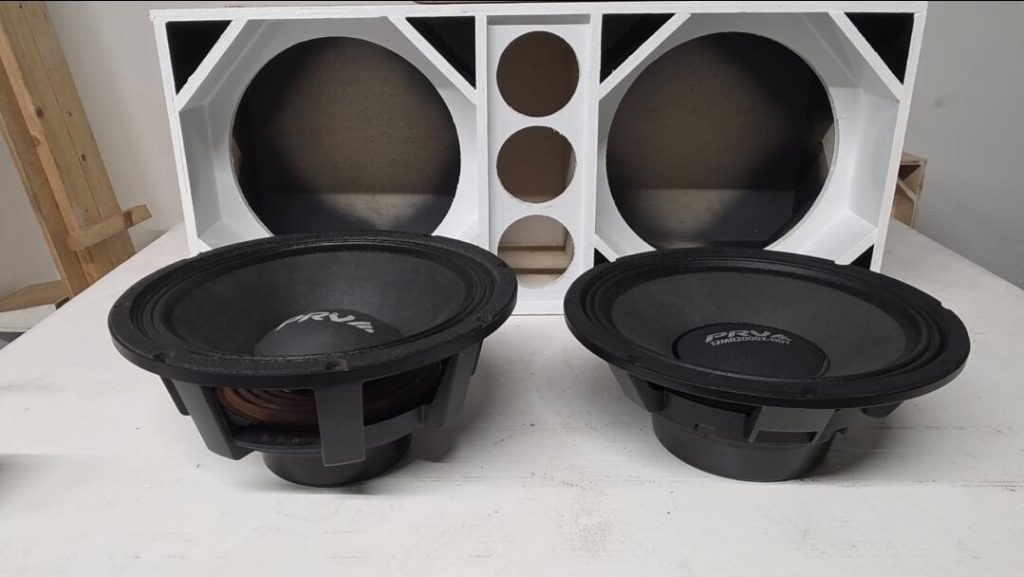

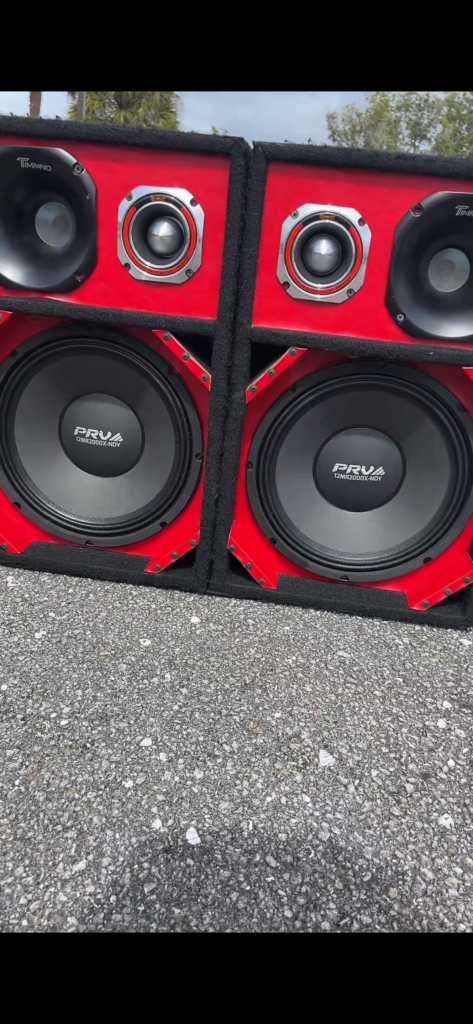

Built to perform vocals with punchy midbass, a great option for custom Chuchero® speaker box and custom door panels, where weight and performance needs to have the perfect balance.

Its high energy, rare-earth neodymium motor, combined with other fine materials, were chosen to increase sensitivity and power handling to deliver the finest details in audio, as demanded by most audiophiles and custom builders in the car audio and custom builders.

The 4″ voice coil is wrapped on a glass fiber former for heat resistance and high efficiency, bringing out fine details in audio and reproducing them accurately at concert-level volume.

Its composite cone is built with non-pressed paper for reduced break-up and smooth sound.

The high power handling, combined with 100 dB sensitivity, allows this mid to produce incredible dynamics and low distortion when pushed to incredible output levels.

PRV 12″ Midrange Speaker 12MR2000X-NDY 2000 Watts / 8 Ohm High Power Neodymium PRO Audio Loudspeaker

Recommended Installation Guide:

Recommended boxes for optimal upper midrange output:
4 Triangle Ported box size: 0.55 ft3 (approx: 13”x13”x6”)
Port size: 3” x 3”x 4.25” by 4” deep

1 Slot Ported box size: 0.65 ft3 (approx: 14”x12”x7”)
Port size: 12” x 1.75” x 4” deep

2 Speakers – 1x QS5000 at 2 Ohm, 2 speakers in parallel
4 Speakers – 1x QS7000 at 2 Ohm, 4 speakers in parallel
8 Speakers – 1x QS16000 at 1 Ohm, 8 speakers in parallel

Recommended HPF using PRV Digital Signal Processor DSP when using up to 2000 Watts RMS musical power ( without clipping )

• 160 Hz at 12 dB per octave filter Crossover / BT12
• 135 Hz at 18 dB per octave filter Crossover / BT18

If you have compression drivers on your system the recommended LPF is 3,800 at 18 dB per octave filter Crossover / BT18 but you may set it lower to blend in better depending on the other components in your system, or you may not use a LPF at low power to take advantage of its high frequency response.
