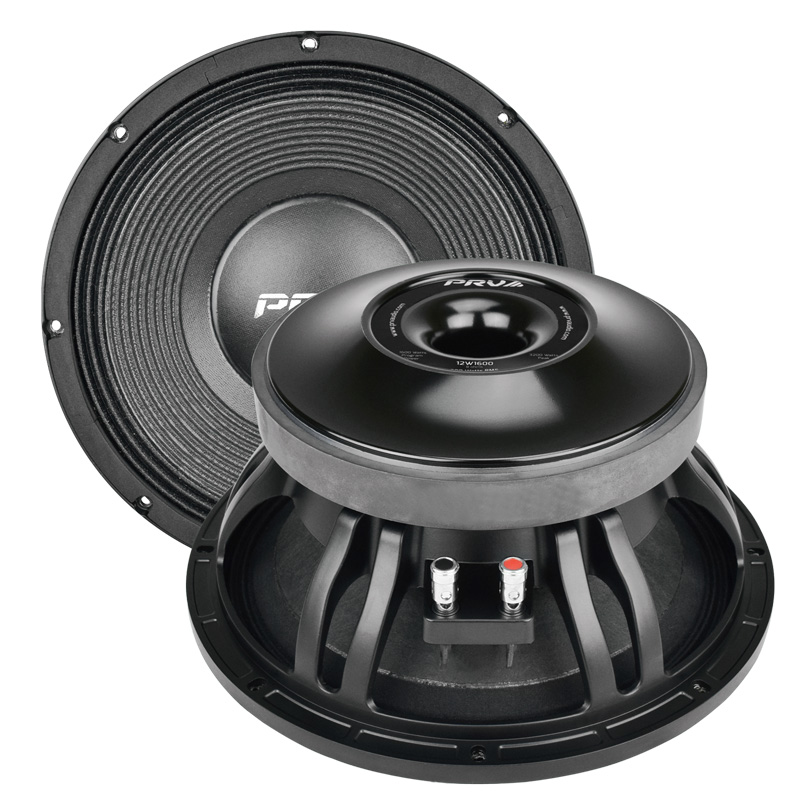

12" WOOFER LOUDSPEAKER

12W1600

In stock
  • 12″ Woofer – 8 Ohms
  • Ferrite Magnet
  • 94 dB – 1600 Watts

$189.99

In stock

SKU: 12W1600 Category: Tag:

Features

Designed to make tremendous amounts of bass, the 12W1600 12″ woofer can be used in small vented or sealed cabinet. The shallow 5.51″ mounting depth and high EBP makes it ideal for compact folded horn enclosures.

Its 4″ copper voice coil is wound inside-outside on a fiberglass former and features a generous 27.5 mm winding length for extended Xmax. Low distortion output is achieved by mating a durable, treated paper cone to an M-Roll surround for stability and driving it with an inside/outside voice coil for ultra-linear control. Spring-loaded push terminals make installation a snap while offering a secure connection to your speaker wires.


Highlights

  • Nominal Impedance: 8 Ohms
  • Rated Power Handling: 800 Watts
  • Program Power: 1600 Watts
  • Sensitivity (1W/1m): 94 dB
  • Voice Coil Diameter: 4″

WARNING: Cancer and Reproductive Harm – www.p65warnings.ca.gov

Technical Details

GENERAL SPECIFICATIONS

Nominal Diameter 12″ (305 mm)
Nominal impedance 8 Ohms
Rated Power Handling 800 Watts
Program Power 1600 Watts
Sensitivity 2.83V at 1m 94 dB
Recommended Hi Pass Crossover**
**For Full Power Handling
60 Hz**
**12db Per Octave Crossover
Frequency Response at -10dB 55 – 2,500 Hz
Voice Coil Diameter 4″ (100 mm)
Voice Coil Wire Copper
Voice Coil Winding Depth 27.0 mm
Former Material Glass Fiber
Magnetic Gap Depth 12.0 mm
Frame Material Die Cast Aluminum




THIELE-SMALL PARAMETERS

Equivalent Volume Vas 46.99 l
Excursion (mathematical)*** Xmax 10.50  mm
Free Air Resonance Fs 51.22 Hz
Mechanical Factor Qms 14.98
Electrical Factor Qes 0.40
Total Factor Qts 0.39
Cone Area Sd 594 cm²
Mechanical Mass Mms 101.16 g
Bl Factor Bl 20.35 Tm
Dc Resistance Re 5.1 Ohms
Inductance Le 1.26 mH at 1 kHz
Mechanical Mass Without Air Mmd 92.97 g
Mechanical Compliance Cms 0.095 mm/N

***Xmax=(Voice coil winding depth-Magnetic Gap depth)/2+ Mgnetic Gap Depth/4


EXTRA INFO

Overall Diameter 12.40” (315 mm)
Front Mount Baffle Cutout 11.16” (283.4 mm)
Mounting Depth 5.51” ( 140 mm)
Overall Depth 6.04” (153.5 mm)
Net Weight 24.22 Lbs (11.0 kg)
Shipping Weight 26.01.Lbs (11.80 kg)
Carton Dimensions W x L x H 13.38” x 13.38” x 6.69”
(340 x 340 x 170 mm)
