18SW3600
-
- 18″ SubWoofer 8 Ohm
- Ferrite Magnet
- 97 dB – 3600 Watts
$289.91
In stock
PRICE FOR SINGLE UNIT
Features
Features
PRV Audio left no boxes unchecked on the 18SW3600 subwoofer for serious professional audio applications where extremely high power handling and low distortion are required.
- Tall 34 mm winding, 4.5″ voice coil handles 3600 watts Program RMS
- Over 13.5 mm of Xmax for deep bass reproduction
- High BL motor for impressive control and massive output
- Dual forced cooling system. Under the spider and at its pole piece venting allows cooling the voice coil faster.
- Extremely high BL factor and Xmax for outstanding low frequency output
It features high power handling, 4.5″ inner and outer wound voice coil, fiberglass fiber former, powerful optimized ferrite motor, ribbed paper cone and waterproof cone treatment – all specially designed to provide powerful and accurate sub-bass frequencies with low distortion and low power compression.
The dual forced cooling system guarantees a very efficient voice coil ventilation for minimum power compression and incredible power handling.
Thanks to the optimized ferrite motor assembly of 30 mm, the 18SW3600 is lighter than a comparable ferrite driver at this power handling, making it perfect for mobile DJs and portable PA systems where the highest power handling is wanted with minimum weight.
A double silicon spider system ensures excellent control during large excursions of 54 mm peak-to-peak excursion before damage. A fully optimized T-pole design generates the minimum amount of flux modulation.
Technical Details
GENERAL SPECIFICATIONS
| Nominal Diameter | 18″ (457 mm) |
| Nominal impedance | 8 Ohm |
| Nominal Power Handling | 1800 Watts |
| Continuous Program Power (RMS) | 3600 Watts |
| Max Peak Power | 7200 Watts |
| Sensitivity 2.83V at 1m | 97 dB |
| Recommended Hi Pass Crossover** **For Full Power Handling |
45 Hz** **12db Per Octave Crossover |
| Frequency Response | 35 – 1,300 Hz |
| Voice Coil Diameter | 4.5″ (114 mm) |
| Voice Coil Wire | Copper |
| Voice Coil Winding Depth | 34.0 mm |
| Former Material | Glass Fiber |
| Magnetic Gap Depth | 15 mm |
| Frame Material | Die Cast Aluminum |
THIELE-SMALL PARAMETERS
| Equivalent Volume | Vas | 279.7 l |
| Excursion (mathematical)*** | Xmax | 13.25 mm |
| Free Air Resonance | Fs | 32.5 Hz |
| Mechanical Factor | Qms | 10.72 |
| Electrical Factor | Qes | 0.38 |
| Total Factor | Qts | 0.36 |
| Cone Area | Sd | 1340 cm² |
| Mechanical Mass | Mms | 215.1 g |
| Bl Factor | Bl | 25.53 Tm |
| Dc Resistance | Re | 5.6 Ohms |
| Inductance | Le | 2.75 mH at 1 kHz |
| Mechanical Mass Without Air | Mmd | 187.3 g |
| Mechanical Compliance | Cms | 0.112 mm/N |
***Xmax=(Voice coil winding depth-Magnetic Gap depth)/2+ Mgnetic Gap Depth/4
EXTRA INFO

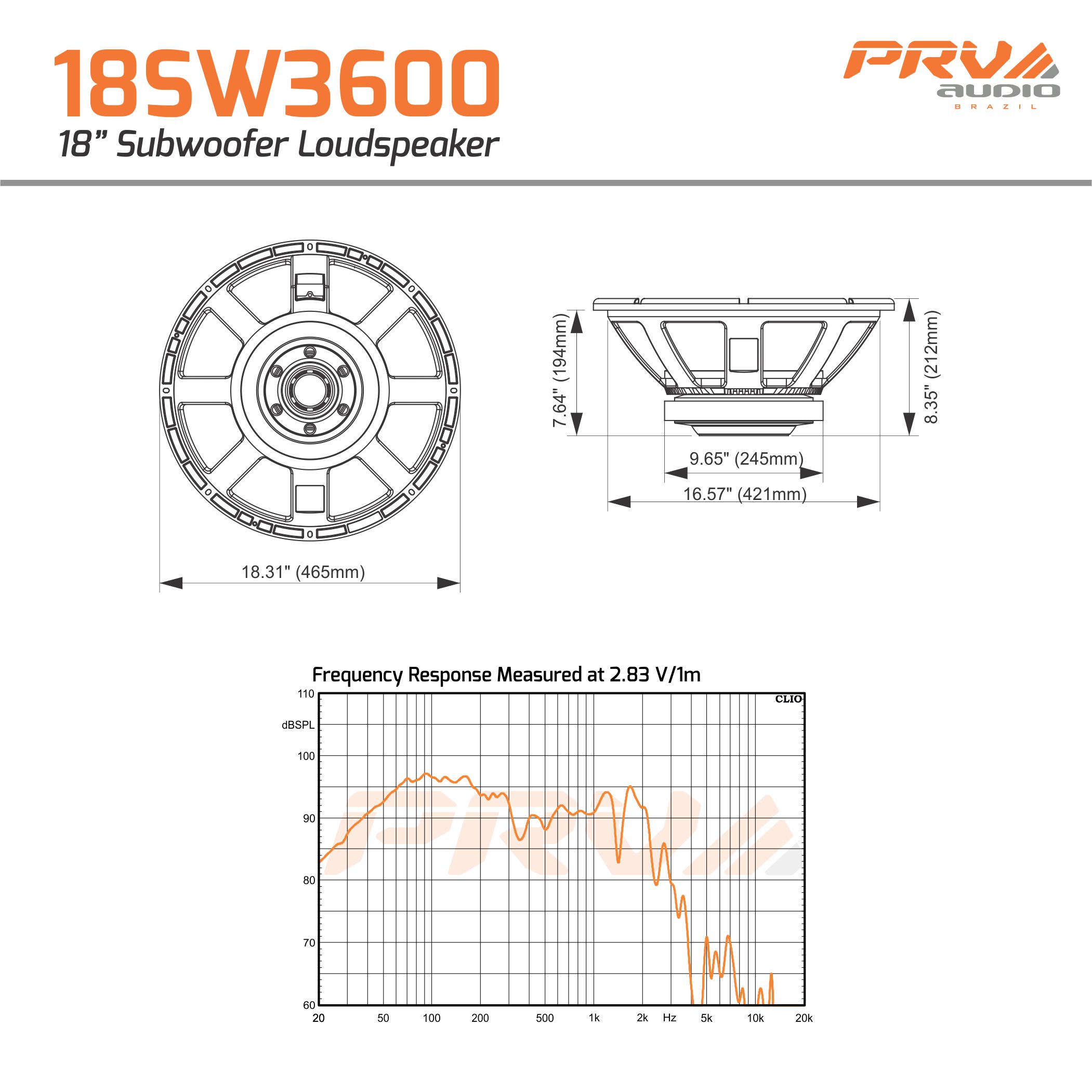

| Overall Diameter | 18.31” (465 mm) |
| Front Mount Baffle Cutout | 16.57” (421 mm) |
| Mounting Depth | 7.64” (194 mm) |
| Overall Depth | 8.35” (212 mm) |
| Net Weight | 31.96 Lbs (14.5 kg) |
| Shipping Weight | 35.27 Lbs (16 kg) |
| Carton Dimensions W x L x H | 19.49” x 19.49” x 10.23” (495 x 495 x 260 mm) |
Repair Parts
Recone Kit for 18SW3600 Loudspeaker
Customer Reviews
Muy buenas y con mucho poder 💪 😊 la entrega rápida y eficiente

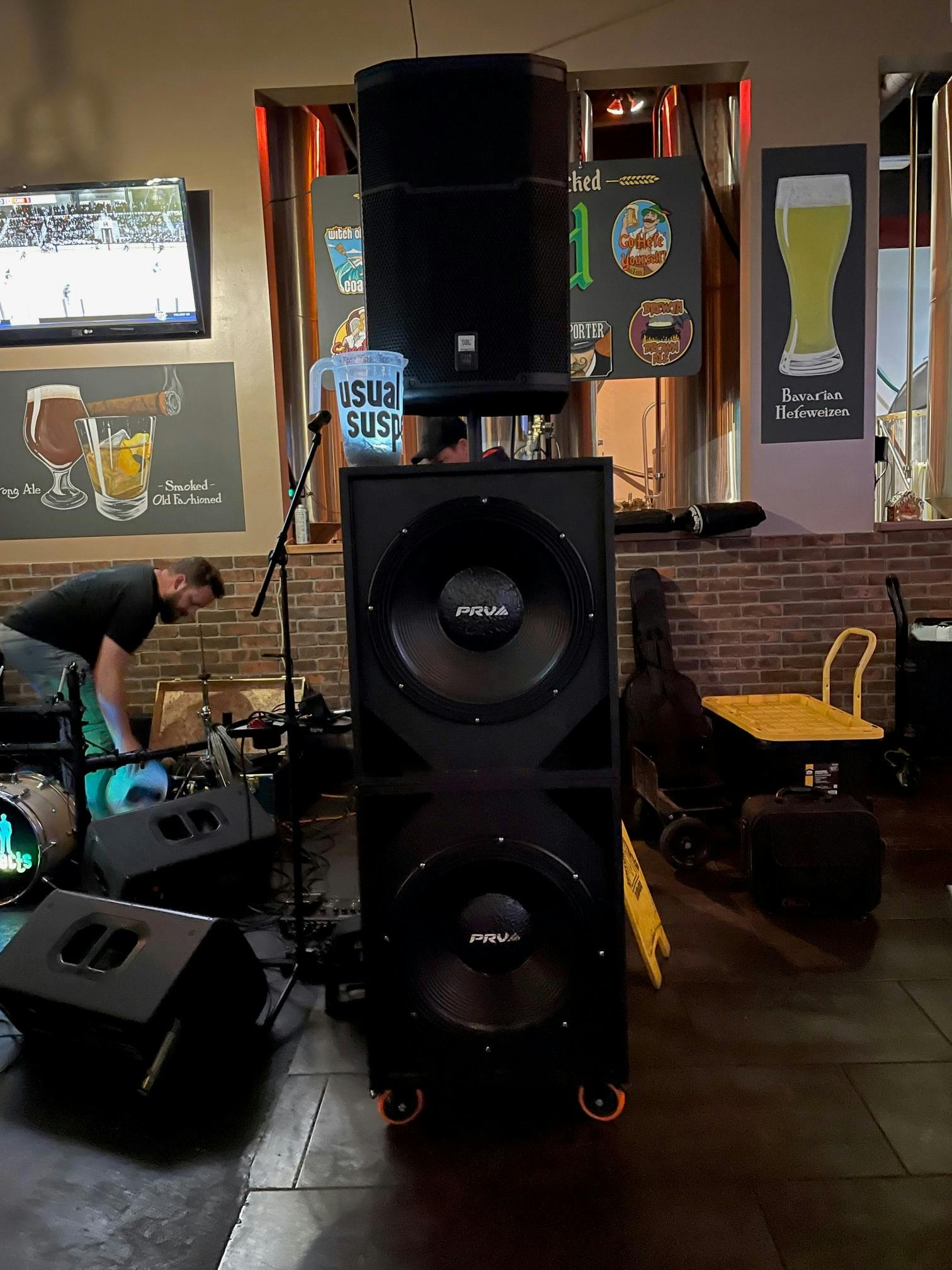

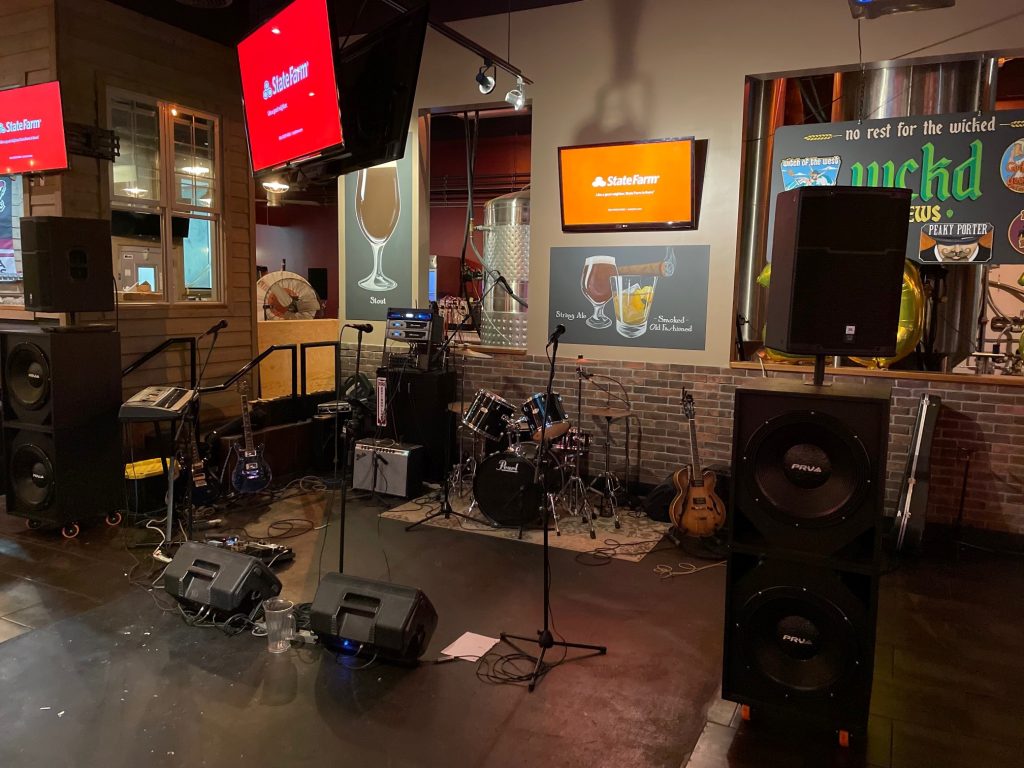

We just finished a new PA project. The owners of a local brewery wanted strong PA that would produce big sound when they wanted it for live music, but also provide well reinforced bottom end and lower levels. The 18SW3600's are performing flawlessly so far. The bottom end it tight and articulate and showing no signs of power compression when we push the rig. They are extremely low distortion to the point the owner of the brewery is amazed with the result. The best way I can describe them is effortless bottom end with excellent low frequency extension. Each woofer is in 4.8cuft net, tuned to 35Hz, which is working extremely well. The enclosures are a little smaller than the ideal simulated result, but the 18SW3600's don't seem to mind being in a little smaller air space (we were trying to hit a target form factor). I would highly recommend these woofers.

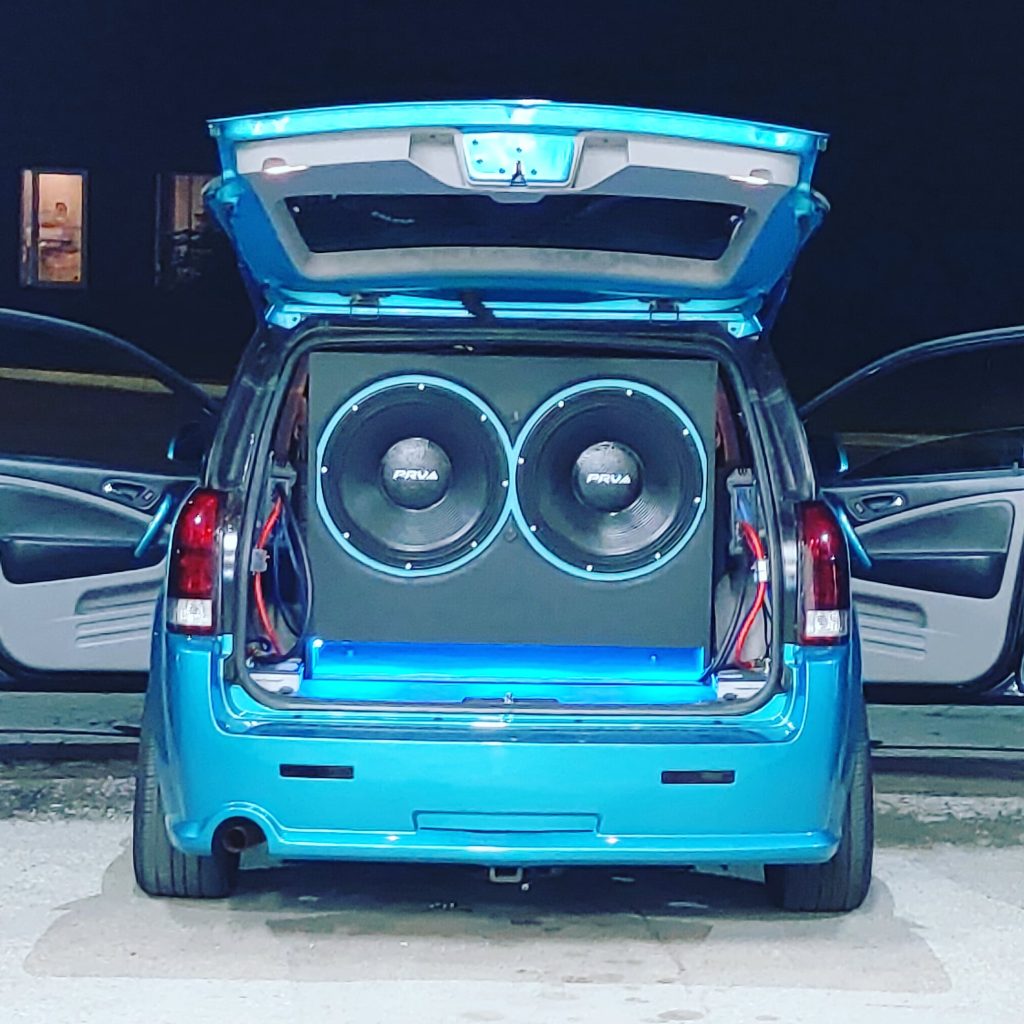

I have 2 of these in my suv running at about half power an there just insane. Hit 149 db. Very excited to get them up to full power
Great subwoofers
Awesome speakers that make me smile !!!!
PRV makes the best products!!
