4" MIDRANGE LOUDSPEAKER

4MR60-4

In stock
  • 4″ Mid Range – 4 Ohms
  • Ferrite Magnet
  • 90 dB  – 60 Watts

$22.49

In stock

PRICE FOR SINGLE UNIT

SKU: 4MR60-4 Category: Tag:

Features

This full range speaker delivers broad frequency coverage and flat midrange response that ensures vocals and instruments to deliver ideal sound. The 4” PRV Audio 4MR60-4 is a pro audio midrange with very high sensitivity and a smooth extended frequency response up to 8 kHz. The small dimensions and high output make it very useful to use in compact line array systems as a transition between the mid bass and high frequency way.

Each material and component such as the woven fiber glass cone, large spider, and rubber surround is carefully chosen to ensure a great sound quality and low distortion, it even operates at high power. It is also applicable in home theaters, satellites, and surround speakers as well as in car audio when you are limited in space and require extended frequency response. Each material and component such as the woven fiber glass cone, large spider, and rubber surround is carefully chosen to ensure a great sound quality and low distortion, it even operates at high power.

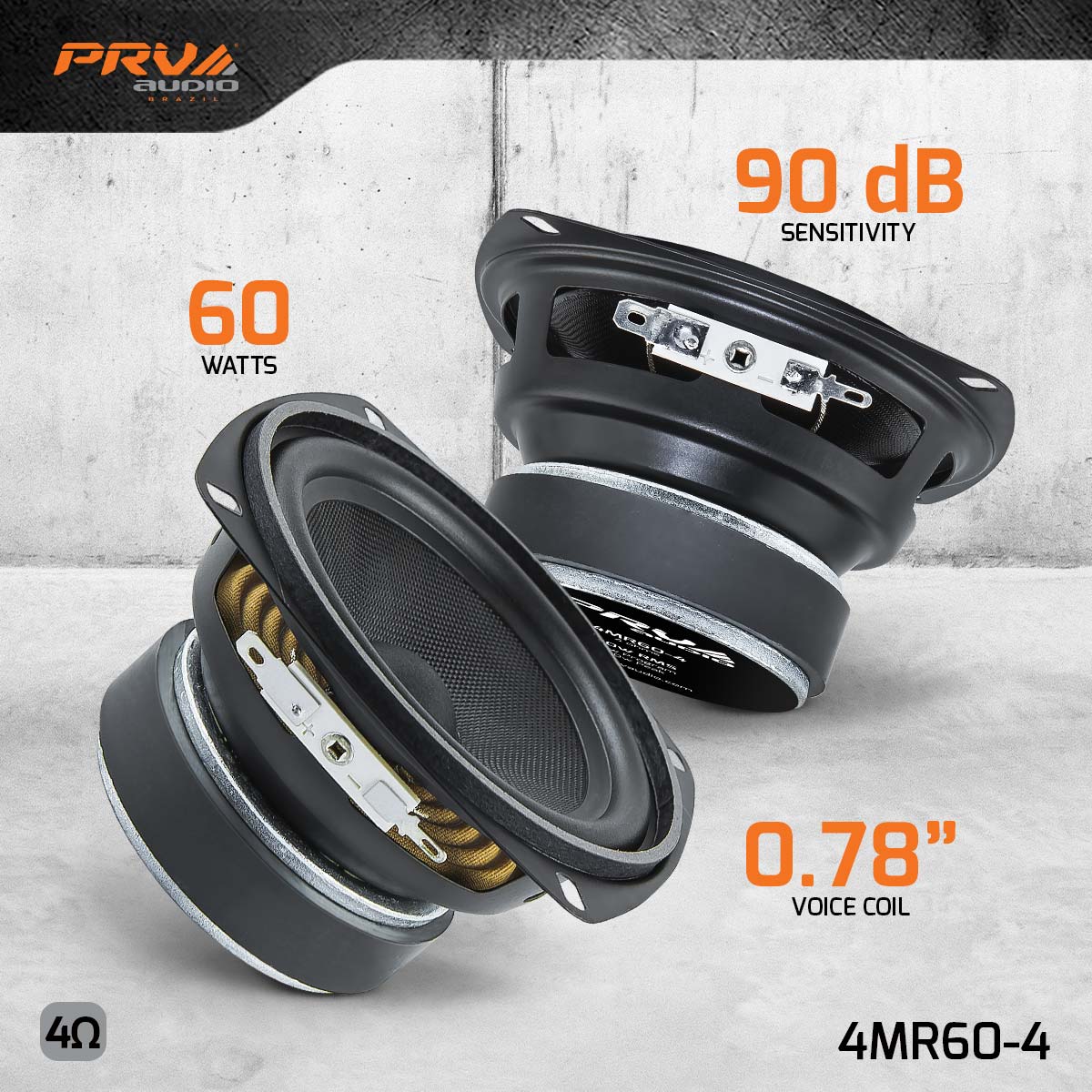

Highlights

  • Nominal Impedance: 4 Ohms
  • Rated AES Power Handling (RMS): 30 Watts
  • Program Power: 60 Watts
  • Sensitivity (1W/1m): 90 dB
  • Voice Coil Diameter: 0.78″

WARNING: Cancer and Reproductive Harm – www.p65warnings.ca.gov

Technical Details

GENERAL SPECIFICATIONS

Nominal Diameter 4” (101.6 mm)
Nominal impedance 4 Ohms
Rated AES Power Handling (RMS) 30 Watts
Program Power 60 Watts
Sensitivity 2.00V at 1m 90 dB
Recommended Hi Pass Crossover* *For Full Power Handling 190 Hz** **12db Per Octave Crossover
Frequency Response at -10dB 90 – 15,000 Hz
Voice Coil Diameter 0.78” (20 mm)
Voice Coil Wire CCAW
Voice Coil Winding Depth 7.5 mm
Former Material Kapton
Magnetic Gap Depth 3.5 mm
Frame Material Stamped Steel

THIELE-SMALL PARAMETERS

Equivalent Volume Vas 3.26 l
Excursion (mathematical)*** Xmax 2.87 mm
Free Air Resonance Fs 89.88 Hz
Mechanical Factor Qms 7.34
Electrical Factor Qes 0.75
Total Factor Qts 0.68
Cone Area Sd 57 cm²
Mechanical Mass Mms 4.32 g
Bl Factor Bl 3.42 Tm
Dc Resistance Re 3.6 Ohms
Inductance Le 0.20 mH at 1 kHz
Mechanical Mass Without Air Mmd 4.07 g
Mechanical Compliance Cms 0.725 mm/N

***Xmax=(Voice coil winding depth-Magnetic Gap depth)/2+ Mgnetic Gap Depth/4

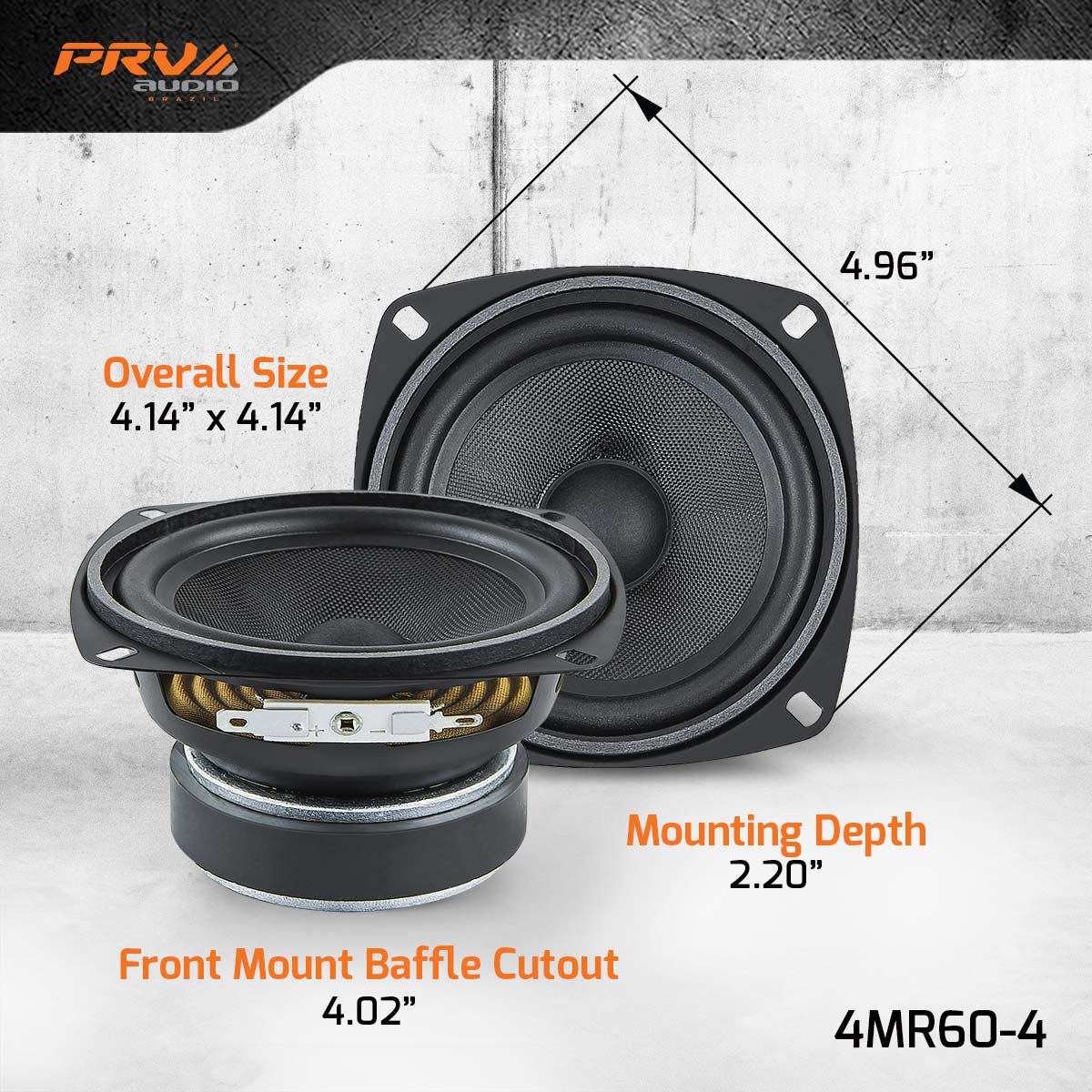

EXTRA INFO

Overall Diameter 4.96” (126 mm)
Front Mount Baffle Cutout 4.02” (102 mm)
Mounting Depth 2.20” (56 mm)
Overall Depth 2.36” (60 mm)
Net Weight 1.15 Lbs (0.52 kg
Shipping Weight 1.24 Lbs (0.56 kg)
Carton Dimensions W x L x H 4.68” x 4.68” x 3.15” (119 x 119 x 80 mm)

Customer questions & answers

  1. 0 votes
    Answered by the admin

    Yes, you can use this speaker in a car audio application.

  2. 0 votes
    Q It has replacement cone kit?? answer now
    Asked by Jhon on March 28, 2019 6:21 pm
    Answered by the admin Hi Jhon, unfortunately there is not recone kit available for this product.
