6MB550FT
- 6.5″ Midbass – 8 Ohm
- Ferrite Magnet
- 94.5dB – 550 Watts
$76.42
Out of stock
PRICE FOR SINGLE UNIT
Features
Features
PRV Audio’s 6MB550FT 6.5″ Forte Series midbass was specially tailored to give you more Xmax and less distortion on mid low midbass frequencies, with its Peak-to-Peak excursion going up to 14 mm (0.55″) this speaker can give a heck of a punch!

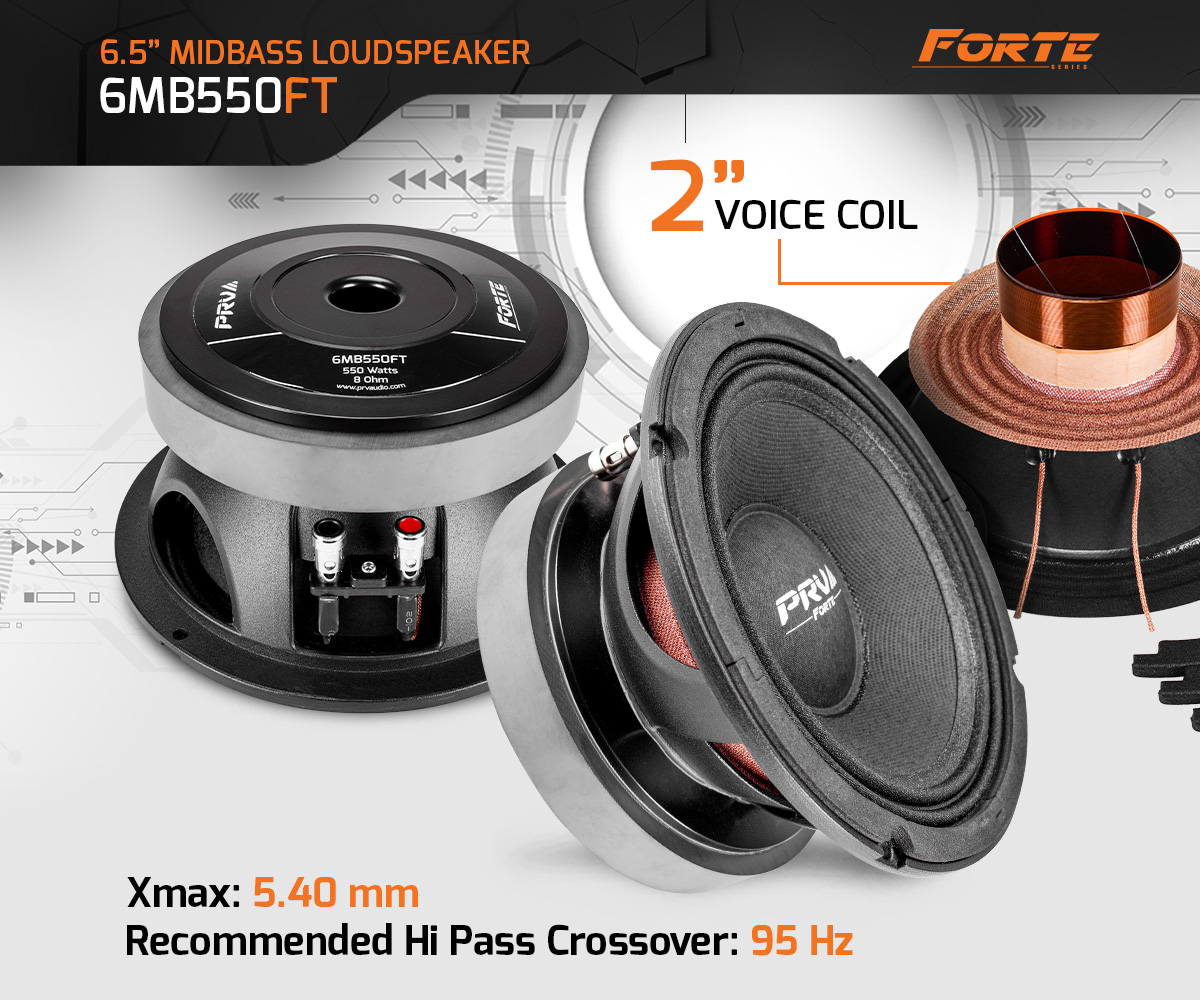

The tall 2″ voice coil ensures high heat dissipation and the necessary motor strength to deliver high sensitivity even on high power with the minimum distortion with recommended High Pass filter of 95Hz at 12 dB Octave.
All this attention to detail makes the 6MB550FT one impressive driver. With 94.5 dB efficiency and 550 watts power handling this midbass speaker is ideally used in stage monitor, auditorium, touring, and outdoor systems. The smooth response from 85 to 7,500 Hz makes it perfect for 2 or 3-way designs.
- Designed to handle low frequency at a high power output. Also Available at 4 Ohm model.
- Xmax 5.40 mm – 14 mm Peak-to-Peak excursion before damage
- A huge magnet for increased efficiency and control

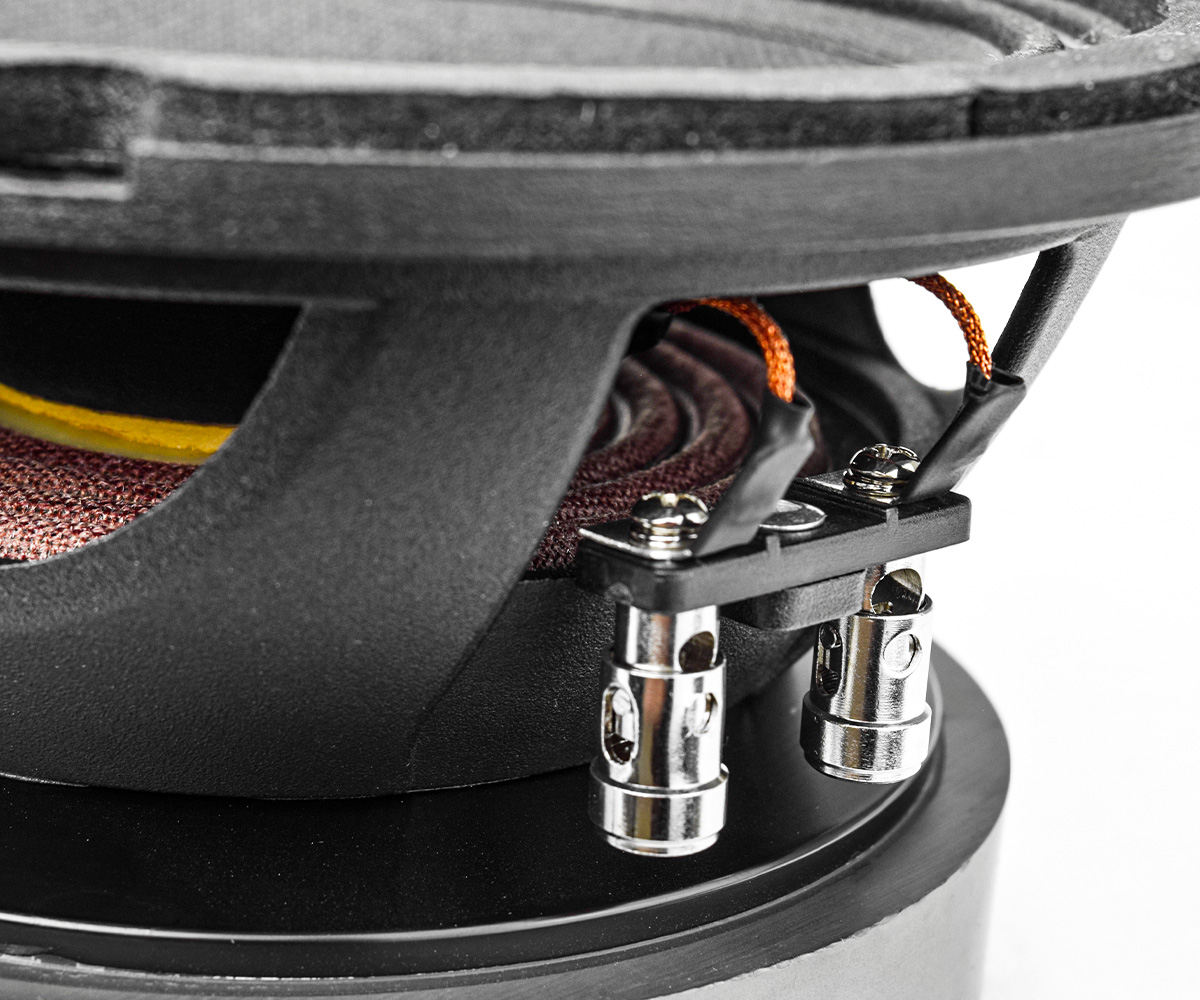

- High power copper tinsel lead wire. Able to handle 550 Watts RMS
- Vented pole piece minimizes power compression and increases power handling
- Rigid cast aluminum frame can withstand the use and abuse of pro and car audio
- Natural paper cone and double-roll surround for smooth response
A rigid cast aluminum frame with spokes to minimize reflections back into the cone. To drive the voice coil, a large ferrite magnet is used with a very precise machined top and bottom plate.
The additional forced vent in the backplate for the coil allows this driver to handle up to 550 watts RMS without issue.
This midbass will stand up to years of serious professional use!
Its special composed spider reduces distortion at a high excursion and double roll surround keep cone travel linear at high excursion, while its copper tinsel lead wire is capable of high current transfer makes this driver not only unique but gives all high-performance characteristics and high-quality components providing exceptional clarity, detail, and dynamics sound.

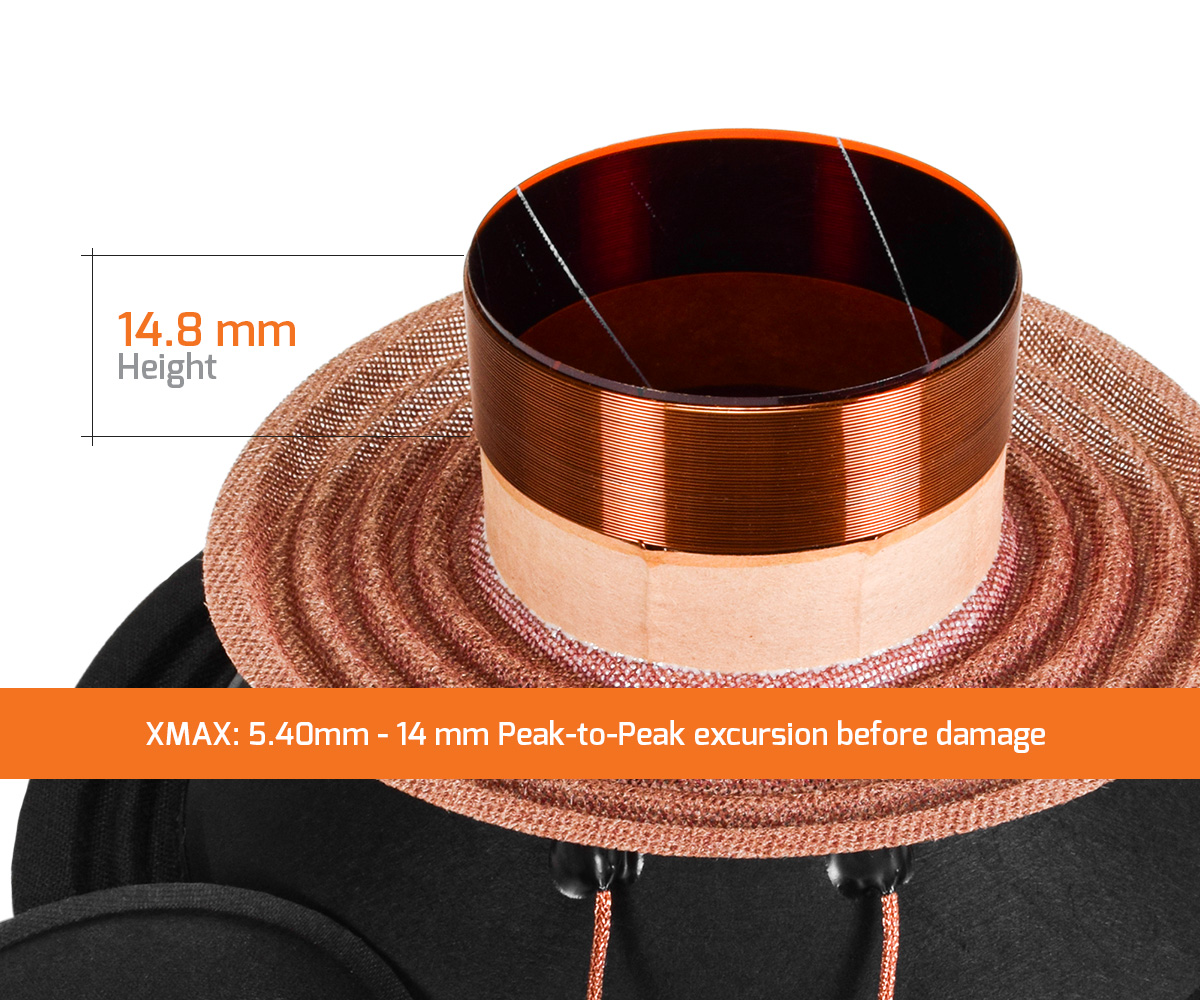

Its CCAW voice coil has 14.8 mm of winding wire, giving it an incredible 5.40 mm Xmax with capability of 14 mm Peak-to-Peak excursion before damage, which allows its cone to travel over 0.55″ giving a heck of punch.
Featuring a paper cone has a special high strength paper pulp composition designed to achieve the best possible linearity within the middle frequency range and a special cone treatment specifically dedicated to improving the dampening properties of the moving assembly, thus considerably improving the smooth frequency response.
PRV 6.5″ Midbass Speaker 6MB550FT 550 Watts / 8 Ohm – High Excursion 2” Voice Coil Car Audio Loudspeaker
Recommended Amplifier configurations and crossover points:
2 Speakers – 1x MDX1200.2 2 Ohm, 2 speakers in parallel on bridged channel
4 Speakers – 1x QS3000 2 Ohm, 4 speakers in parallel
8 Speakers – 1x QS5000 1 Ohm, 8 speakers in parallel
Recommended HPF using PRV Digital Signal Processor DSP when using up to 550 Watts RMS musical power ( without clipping )
- 95 Hz at 12 dB per octave filter Crossover / BT12
- 90 Hz at 18 dB per octave filter Crossover / BT18
If you have compression drivers on your system the recommended LPF is 6,500 at 18 dB per octave filter Crossover / BT18 but you may set it lower to blend in better depending on the other components in your system, or you may not use a LPF at low power to take advantage of its high frequency response.
Technical Details
GENERAL SPECIFICATIONS
| Nominal Diameter | 6″ (152 mm) |
| Nominal impedance | 8 Ohm |
| Nominal Power Handling* | 275 Watts |
| Continuous Program Power (RMS)** | 550 Watts |
| Max Peak Power*** | 1100 Watts |
| Sensitivity 2.83V at 1m | 94.5 dB |
| Recommended Hi Pass Crossover For Full Power Handling | 95 Hz 12db Per Octave Crossover |

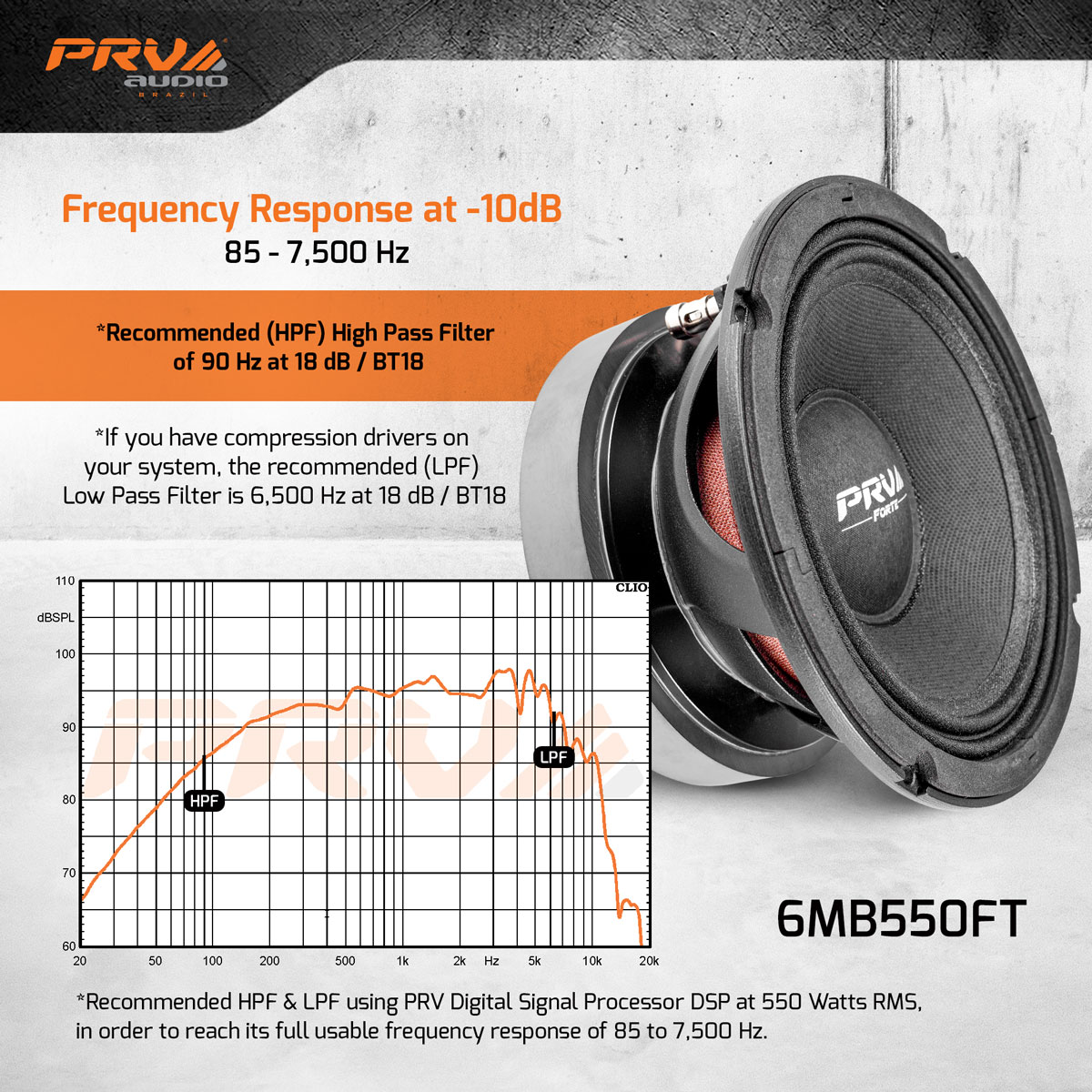

| Frequency Response | 85 – 7,500 Hz |
| Voice Coil Diameter | 2″ (51 mm) |
| Voice Coil Wire | CCAW |
| Voice Coil Winding Depth | 14.8 mm |
| Former Material | Kapton |
| Magnetic Gap Depth | 8.0 mm |
| Frame Material | Die cast aluminum |
THIELE-SMALL PARAMETERS
| Equivalent Volume | Vas | 8.23 l |
| Excursion (mathematical)*** | Xmax | 5.40 mm |
| Free Air Resonance | Fs | 84.9 Hz |
| Mechanical Factor | Qms | 3.83 |
| Electrical Factor | Qes | 0.38 |
| Total Factor | Qts | 0.34 |
| Cone Area | Sd | 143 cm² |
| Mechanical Mass | Mms | 12.1 g |
| Bl Factor | Bl | 9.77 Tm |
| Dc Resistance | Re | 5.6 Ohms |
| Inductance | Le | 0.424 mH at 1 kHz |
| Mechanical Mass Without Air | Mmd | 11.1 g |
| Mechanical Compliance | Cms | 0.291 mm/N |
***Xmax=(Voice coil winding depth-Magnetic Gap depth)/2+ Mgnetic Gap Depth/4
EXTRA INFO
| Overall Diameter | 6.48″ (164.5 mm) |
| Front Mount Baffle Cutout | 5.59″ (142 mm) |
| Mounting Depth | 3.33″ (84.5 mm) |
| Overall Depth | 3.64″ (92.5 mm) |
| Net Weight | 5.95 Lbs (2.70 kg) |
| Shipping Weight | 6.28 Lbs (2.85 kg) |
| Carton Dimensions W x L x H | 7.10″ x 7.10″ x 4.92″ (180 x 180 x 125 mm) |
Repair Parts
Recone Kit for 6MB550FT Loudspeaker
21 reviews for 6MB550FT
| 5 star | 100% | |
| 4 star | 0% | |
| 3 star | 0% | |
| 2 star | 0% | |
| 1 star | 0% |

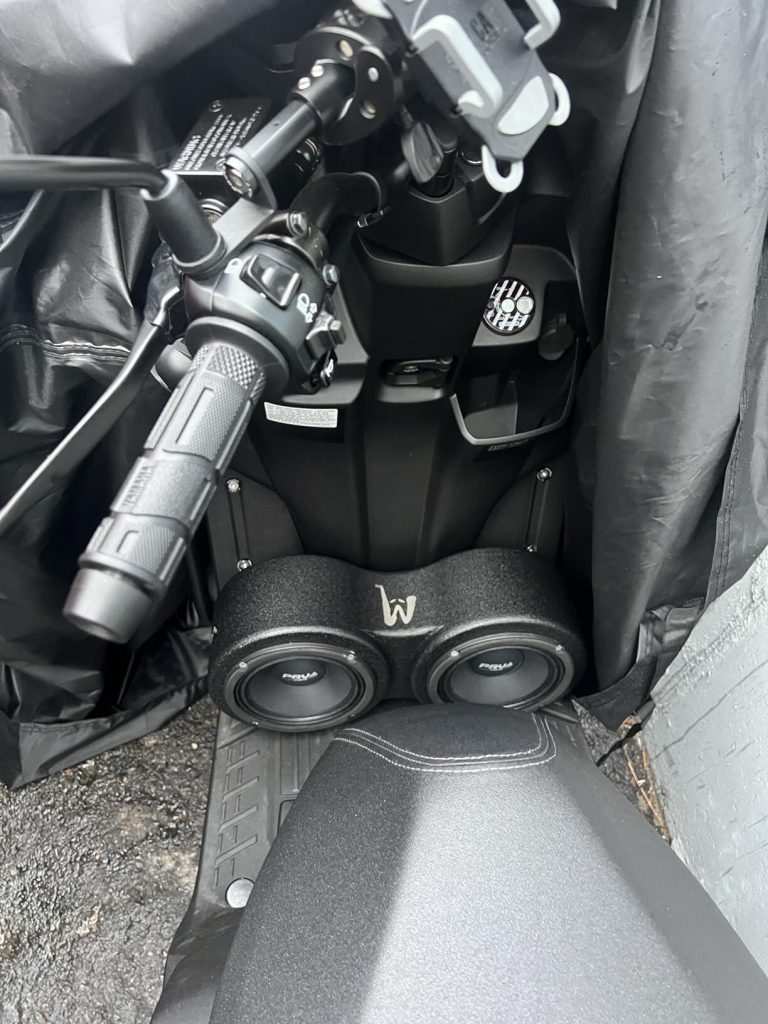

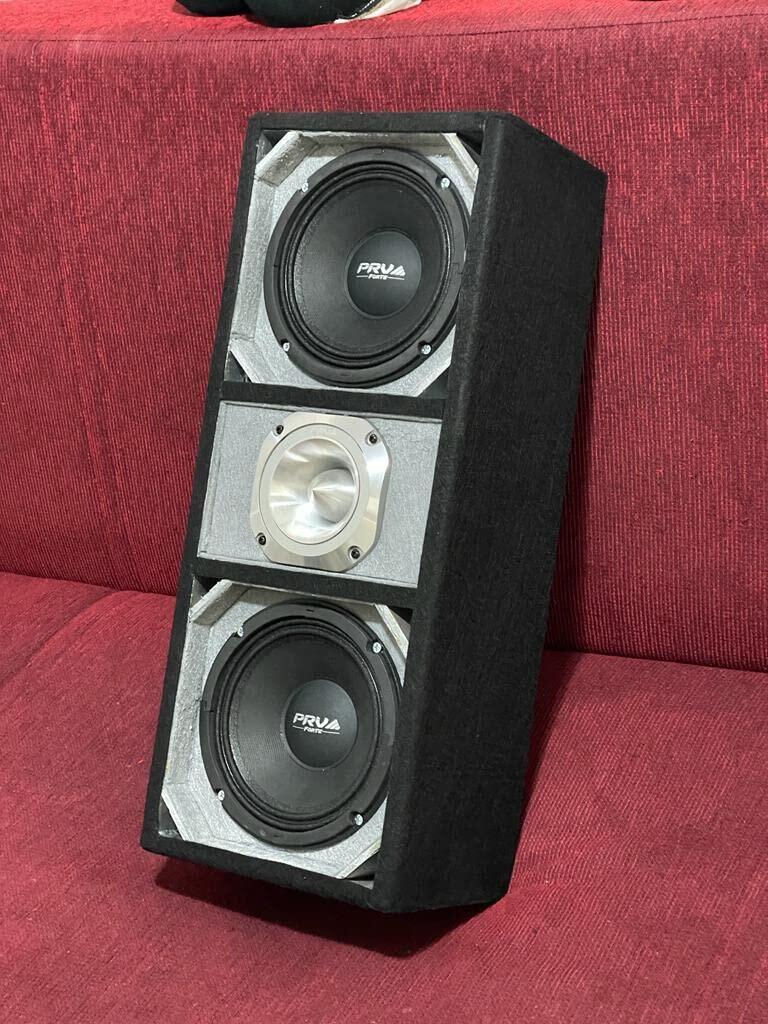

Customer Images
6MB550FT
Q & A
6MB550FT
Extremely clear and loud
Very good and Loud
These are amazing!!!!great quality and the bass is great!
Best 6.5 on the market by far . I plan on doing another set in my SUV soon.
Bought a set to see how the performed and after hearing them I decided to switch all my 6.5 to these
Love them …..there loud n clear
💪🏼💪🏼💪🏼🔊 mi guagua se escucha impresionante un mid boss duro 👍🏼👍🏼🔊
ONE OF THE BEST, VERRY POWERFULL
I’ll recommend it
PRV is a great company to work with not to mention selling some of the loudest products on the market..THESE THINGS SCREAM !! LOVE PRV!
