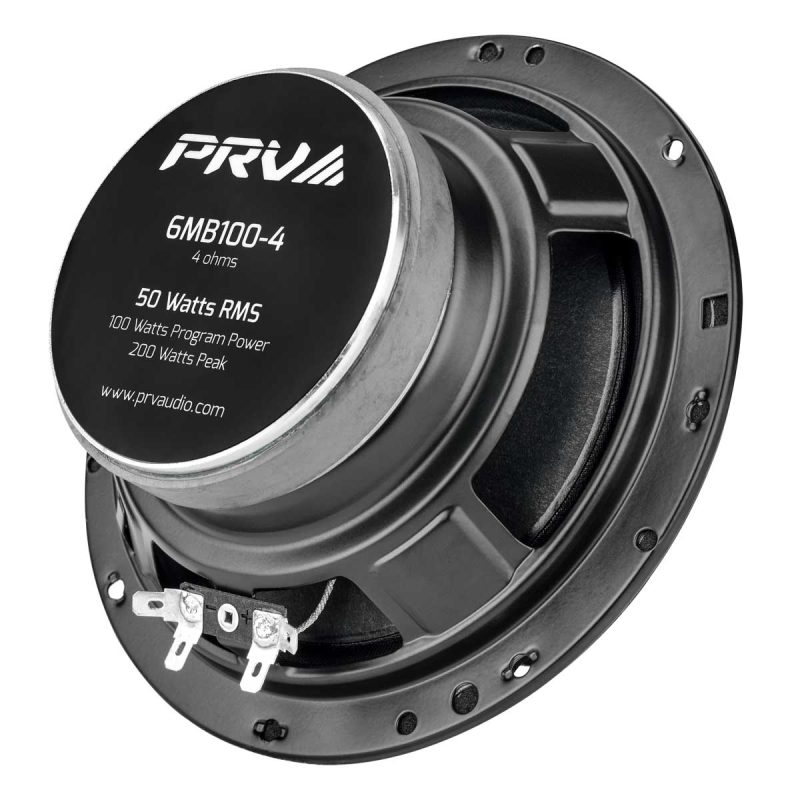

6.5" MIDBASS LOUDSPEAKER

6MB100-4 (PAIR)

In stock

-

  • 6.5″ Midbass – 4 Ohm
  • Ferrite Magnet
  • 90 dB – 100 Watts

$39.91

In stock

PRICE PER PAIR

SKU: 6MB100-4 Categories: , Tag:

Features

Features

We have combined the PRO audio and high fidelity audio into a new type of driver aimed at delivering high levels of clean output from stock speaker locations.

The 6MB100-4 speakers can be used to transform a stock system into a concert level experience without cutting up interior panels. The shallow mounting depth of 2.32″ is designed for easier installation with its standard frame size that fits in many OEM speaker locations. Their standard frame size ensures compatibility with numerous OEM speaker locations.

  • Under 2.32″ (60 mm) mounting depth, with compact diameter magnet motor
  • Broad 90 – 10,000 Hz frequency range for ultimate flexibility
  • Nominal Impedance: 4 Ohms – perfect to install from radio outputs
  • Power handling: 200 Watts RMS per Pair
  • Sensitivity (1W/1m): 90 dB – Improvement over most stock car audio speakers

These Pro Audio On Wheels ® speakers will handle 100 Watts RMS power able to response on a wide frequency range 90 – 10,000 Hz at an excellent sensitivity of 90dB. This PA Style speaker is a great upgrade for listeners wanting to go well beyond the standard factory upgrade.

We have ingeniously merged the realms of PRO audio and high-fidelity audio to create a groundbreaking driver, meticulously designed to achieve elevated levels of pristine output while seamlessly fitting within stock speaker locations.


6.5″ Midbass Speakers 6MB100-4 – 200 Watts PAIR of factory replacement 4 Ohm Car Speakers

Technical Details

GENERAL SPECIFICATIONS

Nominal Diameter 6.5″ (165 mm)
Nominal impedance 4 Ohm
Nominal Power Handling* 50 Watts
Continuous Program Power (RMS)** 100 Watts
Max Peak Power*** 200 Watts
Sensitivity 2.00V at 1m 90 dB
Recommended Hi Pass Crossover For Full Power Handling 90 Hz 12db Per Octave Crossover
Frequency Response 90 – 10,000 Hz
Voice Coil Diameter 1.5″ (38 mm)
Voice Coil Wire CCAW
Voice Coil Winding Depth 8.0 mm
Former Material Kapton
Magnetic Gap Depth 5.0 mm
Frame Material Stamped Steel
PRV AUDIO 6MB100-4 - Frequency
*Nominal power handling is defined as the maximum RMS power that the speaker can handle in a 2-hour test with a pink noise with 6dB of crest factor and a bandpass filter with 12db/oct tuned in its usable frequency range. **Continuous Program Power (RMS) is the maximum power that the speaker can handle considering a regular musical program using our recommended filters, this power can be used to define the optimum amplifier power to avoid a clean signal without clipping or saturation. ***Max Peak Power is the maximum power operation for the speaker, this power is allowed just for a few fractions of a second, usually found just on the peaks of the music. Keeping this power for a little longer timer will damage the speaker.

THIELE-SMALL PARAMETERS

Equivalent Volume Vas 7.22 l
Excursion Xmax*** 2.75 mm
Free Air Resonance Fs 93.2 Hz
Mechanical Factor Qms 5.75
Electrical Factor Qes 1.37
Total Factor Qts 1.10
Cone Area Sd 143 cm²
Mechanical Mass Mms 11.53 g
Bl Factor Bl 4.33 Tm
Dc Resistance Re 3.8 Ohm
Inductance Le 0.22 mH at 1 kHz
Mechanical Mass Without Air Mmd 10.55 g
Mechanical Compliance Cms 0.252 mm/N

***Xmax=(Voice coil winding depth-Magnetic Gap depth)/2+ Mgnetic Gap Depth/4

PRV AUDIO 6MB100-4 - Impedance

EXTRA INFO

Overall Diameter 6.54″ (166 mm)
Front Mount Baffle Cutout 5.60″ (142 mm)
Mounting Depth 2.32″ (59 mm)
Overall Depth 2.55″ (64.7 mm)
Net Weight 2.09 Lbs (0.95 kg)
Shipping Weight 4.89 Lbs (2.22 kg)
Carton Dimensions W x L x H 7.08″ x 14.56″ x 3.1″ (180 x 370 x 80 mm)
PRV AUDIO 6MB100-4 Graphic
