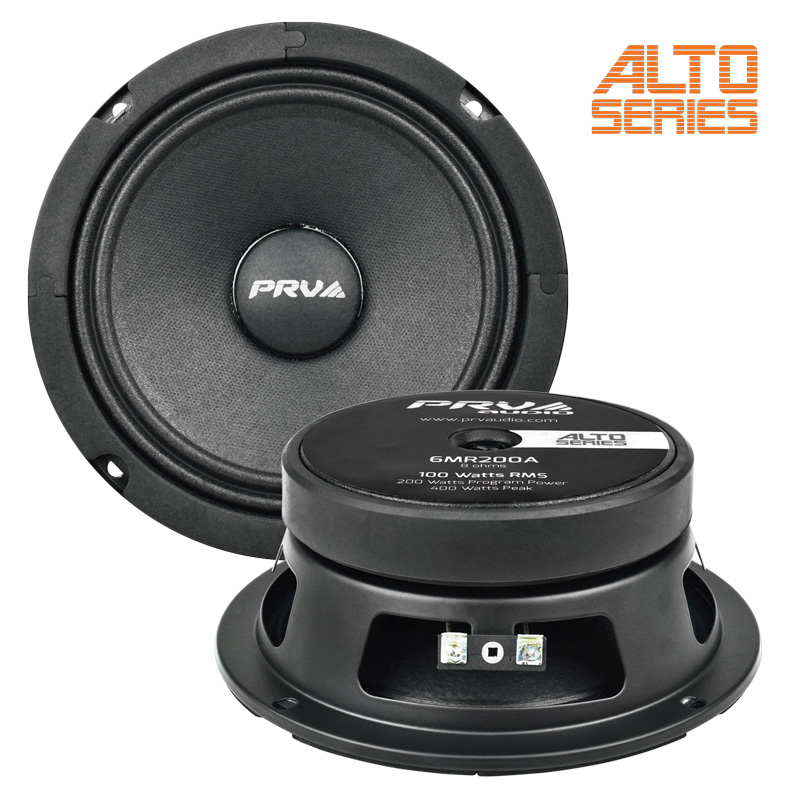

6" MID RANGE LOUDSPEAKER

6MR200A

In stock
  • 6″ Mid Range – 8 Ohms
  • Ferrite Magnet
  • 94 dB – 200 Watts

$34.99

In stock

SKU: 6MR200A Category: Tag:

Features

The 6MR200A mid range speaker is the evolution of the 6MR250A, this unit was designed with the goal of producing the highest possible output from a compact design without sacrificing performance, with only 2.24″ mounting depth. To ensure absolute signal fidelity, a cloth sealed surround is combined with a carefully crafted Kevlar-loaded paper cone. Additionally, a vented pole piece allows heat to escape for reduced power compression.

Use this midrange in professional 3-way live sound cabinets, as a high output car audio door speaker, or as a midrange in a bass guitar speaker.


Highlights

  • Nominal Impedance: 8 Ohms
  • Rated Power Handling: 100 Watts
  • Program Power: 200 Watts
  • Sensitivity (1W/1m): 94 dB
  • Voice Coil Diameter: 1.5″

WARNING: Cancer and Reproductive Harm – www.p65warnings.ca.gov

Technical Details

GENERAL SPECIFICATIONS

Nominal Diameter 6″ (152 mm)
Nominal impedance 8 Ohms
Rated Power Handling 100 Watts
Program Power 200 Watts
Sensitivity 2.83V at 1m 94 dB
Recommended Hi Pass Crossover*
*For Full Power Handling
150 Hz**
**12db Per Octave Crossover
Frequency Response at -10dB 155 – 11,000 Hz
Voice Coil Diameter 1.5″ (38 mm)
Voice Coil Wire Copper
Voice Coil Winding Depth 8.0 mm
Former Material Kapton
Magnetic Gap Depth 5.5 mm
Frame Material Stamped Steel




THIELE-SMALL PARAMETERS

Equivalent Volume Vas 3.16 l
Excursion (mathematical)*** Xmax 2.62 mm
Free Air Resonance Fs 114.1 Hz
Mechanical Factor Qms 13.16
Electrical Factor Qes 1.28
Total Factor Qts 1.17
Cone Area Sd 137 cm²
Mechanical Mass Mms 10.1 g
Bl Factor Bl 6.27 Tm
Dc Resistance Re 5.5 Ohms
Inductance Le 0.26 mH at 1 kHz
Mechanical Mass Without Air Mmd 9.02 g
Mechanical Compliance Cms 0.120 mm/N

***Xmax=(Voice coil winding depth-Magnetic Gap depth)/2+ Mgnetic Gap Depth/4


EXTRA INFO

Overall Diameter 6.59″ (167.5 mm)
Front Mount Baffle Cutout 5.69″ (144.5 mm)
Mounting Depth 2.24″ (57 mm)
Overall Depth 2.5″ 63.5 mm)
Net Weight 3.52 Lbs (1.60 kg)
Shipping Weight 3.79 Lbs (1.75 kg)
Carton Dimensions W x L x H 7.40″ x 7.48″ x 4.45″
(188 x 190 x 113 mm)
