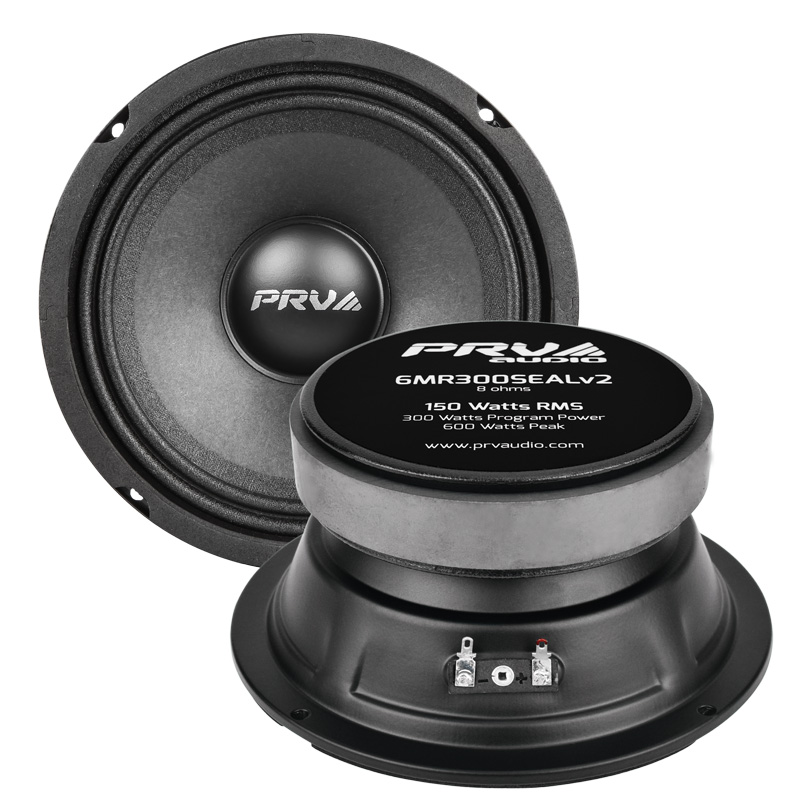

6" SEALED BASKET MIDRANGE LOUDSPEAKER

6MR300SEAL V2

In stock
  • 6″ Mid Range – 8 Ohms
  • Ferrite Magnet
  • 96 dB – 300 Watts

$39.99

In stock

SKU: 6MR300SEAL-v2 Category: Tag:

Features

The new and improved version of the 6MR300SEAL offers very smooth Mid Range response to an upper Mid Range of 7 kHz and is a perfect option for driver replacements in three way cabinets. The design results in outstanding durability and a smooth punch of Mid Bass and Mid Range for small Hi-Fi enclosures in home or pro audio.

The 6MR300SEAL v2 has a sealed basket design, permitting it to reside in the same space as larger woofers without causing distortion to the Mid Bass driver. The large magnet assembly is attached to the sturdy reinforced steel enclosed frame completes the 6MR300SEAL v2 to ensure a solid support structure, for long lasting play in most any environment.


Highlights

  • Nominal Impedance: 8 Ohms
  • Rated Power Handling: 150 Watts
  • Program Power: 300 Watts
  • Sensitivity (1W/1m): 96 dB
  • Voice Coil Diameter: 1.5″

WARNING: Cancer and Reproductive Harm – www.p65warnings.ca.gov

Technical Details

GENERAL SPECIFICATIONS

Nominal Diameter 6″ (152.4 mm)
Nominal impedance 8 Ohms
Rated Power Handling 150 Watts
Program Power 300 Watts
Sensitivity 2.83V at 1m 96 dB
Recommended Hi Pass Crossover**
**For Full Power Handling
400 Hz**
**12db Per Octave Crossover
Frequency Response at -10dB 400 – 7,500 Hz
Voice Coil Diameter 1.5″ (38.1 mm)
Voice Coil Wire Copper
Voice Coil Winding Depth 11.5 mm
Former Material Kapton
Magnetic Gap Depth 5.0 mm
Frame Material Stamped Steel




THIELE-SMALL PARAMETERS

Equivalent Volume Vas 0.33 l
Excursion (mathematical)*** Xmax 4.50 mm
Free Air Resonance Fs 390.6 Hz
Mechanical Factor Qms 10.97
Electrical Factor Qes 2.97
Total Factor Qts 2.34
Cone Area Sd 143 cm²
Mechanical Mass Mms 13.97 g
Bl Factor Bl 8.65 Tm
Dc Resistance Re 6.5 Ohms
Inductance Le 0.34 mH at 1 kHz
Mechanical Mass Without Air Mmd 13.06 g
Mechanical Compliance Cms 0.012 mm/N

***Xmax=(Voice coil winding depth-Magnetic Gap depth)/2+ Mgnetic Gap Depth/4


EXTRA INFO

Overall Diameter 6.57″ (167 mm)
Front Mount Baffle Cutout 5.82″ (148 mm)
Mounting Depth 2.99″ (76 mm)
Overall Depth 3.26″ (83 mm)
Net Weight 4.73 Lbs (2.14 kg)
Shipping Weight 4.85 Lbs (2.20 kg)
Carton Dimensions W x L x H 7.0″ x 7.0″ x 4.0″
(177 x 177 x 104 mm)
