6MR500CF-NDY-4 (PAIR)
- 6″ Mid Range – 4 Ohms
- Neodymium Magnet
- 96 dB – 500 Watts
$294.91
In stock
PRICE PER PAIR
Features
Features
The MR500CF-NDY series was designed for Power sports applications, featuring a water-resistant design to ensure optimum performance taking into account the effects of the outdoor environment!
Ideal for upgrading your sound system in your boat, UTV, 4-wheeler, or motorcycle, this mid range speaker becomes the new standard in vocal reproduction for outdoor applications. Constructed of high-end materials like a carbon fiber cone, high-temperature voice coil, and huge neodymium magnet, this driver produces natural sound with remarkably low distortion.
Highlights
- Water Resistant with true PRO audio mid range performance
- Damped carbon fiber cone lowers moving mass and minimizes unwanted resonances
- Low inductance and extended frequency response
- Powerful neodymium magnet structure features distortion-canceling fixtures
- Fast transient response, minimal tonal coloration, and deep, dynamic mid bass
- Sold in pairs – Grill and screws are included
- Also available in 8″ – 8MR500CF-NDY-4
The tailored response of the 6MR500CF-NDY-4 comes from its exotic yet supremely engineered carbon fiber cone that delivers the signature PRV audio combination of depth and accuracy on vocal reproduction. Beyond good looks, this cone is extremely light, surprisingly rigid, and provides excellent damping to keep narrow peaks under control, resulting in an incredibly natural yet accurate sound.
A rubber surround and large flat spider suspend the cone and keep it linear through the limits of excursion with minimal restriction, further improving dynamics and transients.
The suspension design of this mid range features the single layer spider – which connects to the coil former with premium stitched lead wires, all being driven by a copper-clad aluminum wire voice coil providing high efficiency and excellent power handling, complemented by a high-power neodymium radial slugs that immerse the voice coil in a strong magnetic field.
You can expect excellent off-axis and transient response from this water-resistant mid range for a great sound stage and realistic sound reproduction.
Built for loud, clear vocal performance in tight, compact spaces, PRV Audio’s 6MR500CF-NDY-4 neodymium-powered midrange features a sensitivity of 96 dB (2.83V/1m) and weighs about 3.85 pounds! 4 ohm impedance. Pro Audio On Wheels® Series is dedicated to delivering outstanding pro audio performance to your motorsports application.
A bumped back plate, vented magnet system, vented pole piece, high-temperature voice coil, allow for high power handling while protecting this driver from extreme transient power peaks.
Technical Details
GENERAL SPECIFICATIONS
| Nominal Diameter | 6″ (152 mm) |
| Nominal impedance | 4 Ohms |
| Rated AES Power Handling (RMS) | 250 Watts |
| Program Power | 500 Watts |
| Sensitivity 2.83V at 1m | 96 dB |
| Recommended Hi Pass Crossover** **For Full Power Handling | 95 Hz** **12db Per Octave Crossover |
| Frequency Response at -10dB | 95 – 11,000 Hz |
| Voice Coil Diameter | 2.0″ (50.8 mm) |
| Voice Coil Wire | CCAW |
| Voice Coil Winding Depth | 10.0 mm |
| Former Material | Kapton |
| Magnetic Gap Depth | 7.0 mm |
| Frame Material | Stamped Steel |
THIELE-SMALL PARAMETERS
| Equivalent Volume | Vas | 5.14 l |
| Excursion (mathematical)*** | Xmax | 3.25 mm |
| Free Air Resonance | Fs | 92.5 Hz |
| Mechanical Factor | Qms | 12.85 |
| Electrical Factor | Qes | 0.29 |
| Total Factor | Qts | 0.28 |
| Cone Area | Sd | 143 cm² |
| Mechanical Mass | Mms | 16.49 g |
| Bl Factor | Bl | 10.73 Tm |
| Dc Resistance | Re | 3.5 Ohms |
| Inductance | Le | 0.185 mH at 1 kHz |
| Mechanical Mass Without Air | Mmd | 15.52 g |
| Mechanical Compliance | Cms | 0.179 mm/N |
***Xmax=(Voice coil winding depth-Magnetic Gap depth)/2+ Mgnetic Gap Depth/4
EXTRA INFO
| Overall Diameter | 6.55″ (166.5 mm) |
| Front Mount Baffle Cutout | 5.72″ (145.5 mm) |
| Mounting Depth | 2.91″ (74 mm) |
| Overall Depth | 3.29″ (83.5 mm) |
| Net Weight | 3.85 Lbs (1.75 kg) unit |
| Shipping Weight | 9.15 Lbs (4.15 kg) pair |
| Carton Dimensions W x L x H | 15.7″ x 8.26″ x 5.12″ (400 x 210 x 130 mm) |
Questions & Answers (12)
-

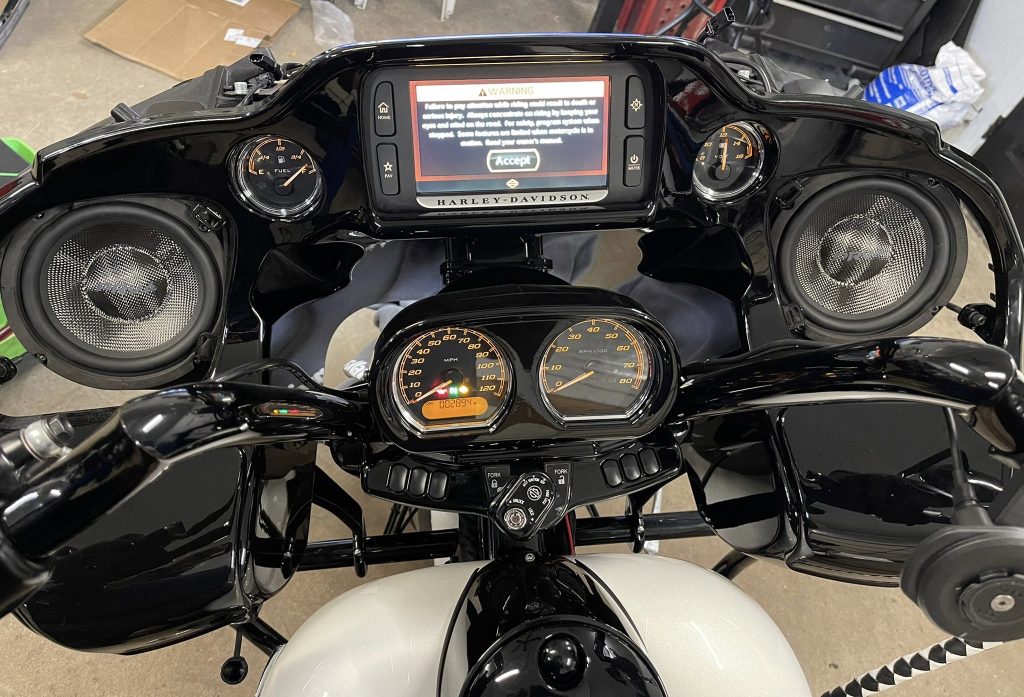

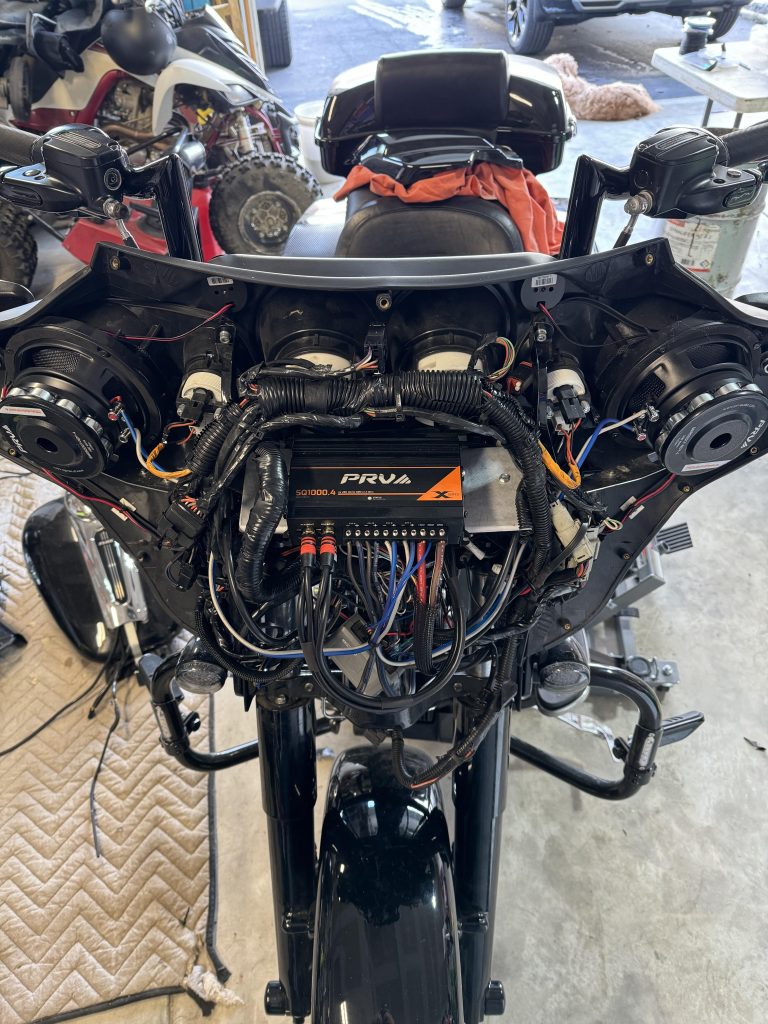

Q Will these fit in a Harley Fairing?Asked by on June 1, 2020 6:34 pmA
These speakers are commonly used in a Harley fairing. Some work may be involved to make them fit depending on which model. All of our speakers require custom installation.
-
Q Are there plans or availability to make these in 8 Ohm versions ?Asked by on May 29, 2020 1:36 pmA
We have the 6MR500-NDY available in 8 ohms but this is not the carbon fiber version. Carbon Fiber is 4ohm only.
-
Q Will the grills for these fit the mr250a mid range speakers that you sell? I have 8 of your Mr 250a midranges in my suburban and I'm worried that they are going to be damaged without grillsAsked by on May 12, 2020 4:35 pmA
These grills will fit all of our 6" speakers.
-
Q Are these meant to mount in 6" or 6.5" cutouts?Asked by on May 10, 2020 8:41 amA
All of the dimensions are under the Technical Details tab. These speakers have outside measurement of 6.55" and the cutout hole size is 5.72".
-
Q What is the IP Rating of these?Asked by on May 8, 2020 6:09 pmA
The front of these speakers are water resistant, not water proof. They do not carry an IP rating.
-
- 1
- 2
-
Repair Parts
Recone Kit for 6MR500CF-NDY-4 Loudspeaker
