NEW!

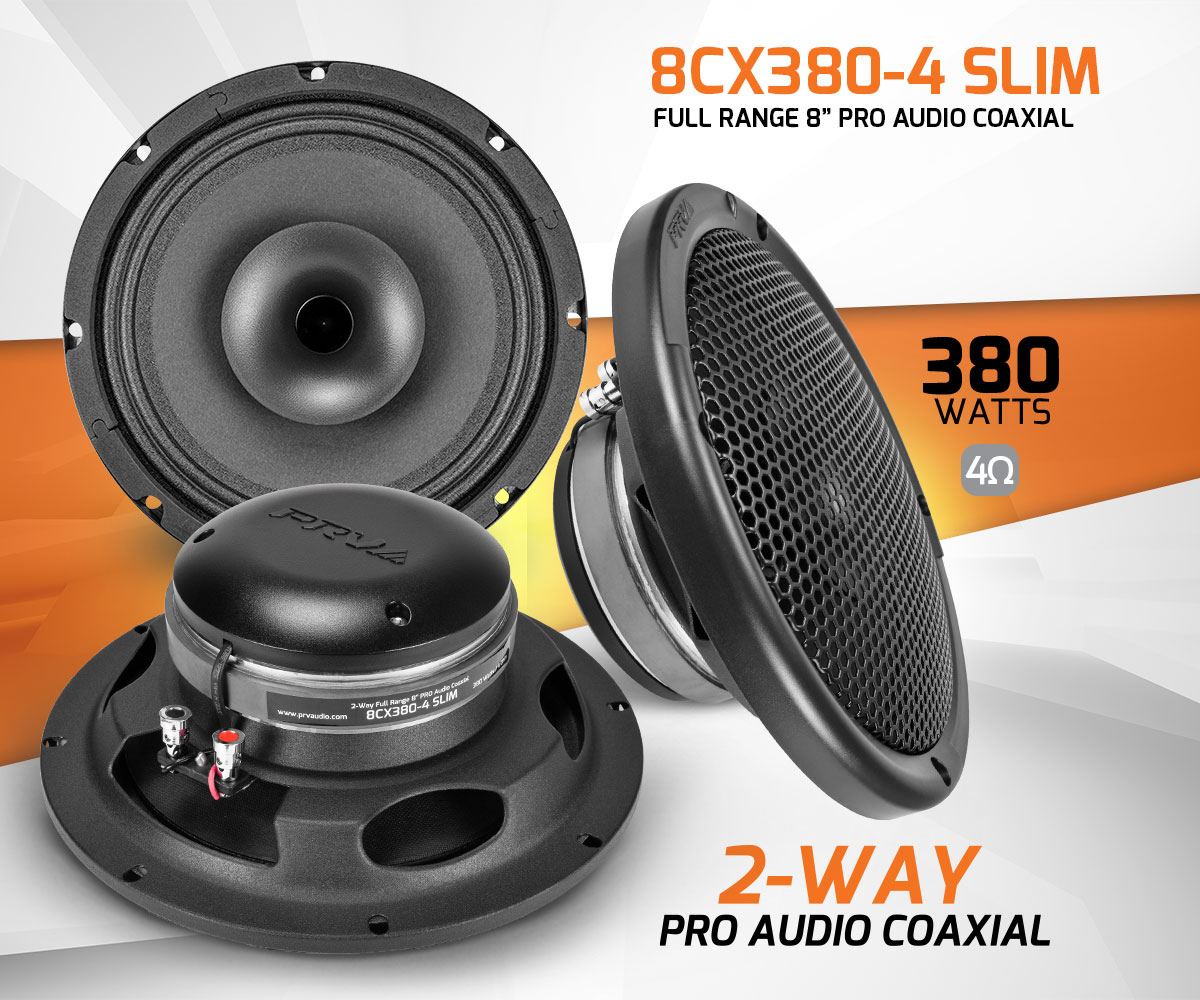

8” FULLRANGE SLIM COAXIAL LOUDSPEAKER

8CX380-4 SLIM

In stock

-

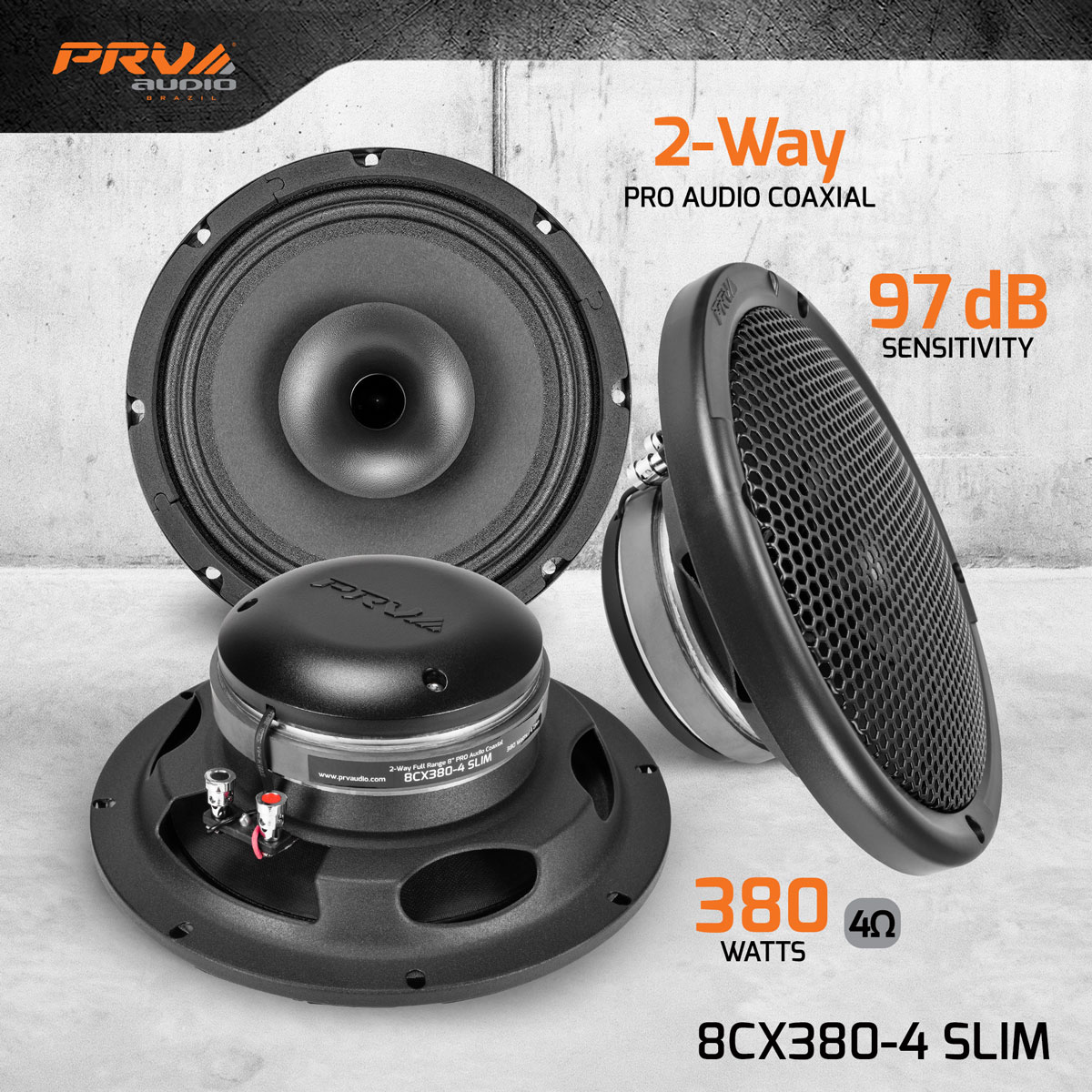

  • 8” Fullrange – 4 Ohm
  • 2-Way Coaxial
  • 97dB – 380 Watts

$69.91

In stock

PRICE FOR SINGLE UNIT

Features

Features

The best of the pro audio and car audio worlds are combined in this compact 8″ speaker! The 8CX380-4 SLIM’s coaxial speaker has a built-in tweeter driver, an innovative design that delivers amazing sound clarity.

For a countless number of applications that require high output sound in small locations where conventional drivers wouldn’t fit, we have carefully blended a super tweeter with our PRO Audio shallow midrange speaker in a compact package. This is the greatest 8″ compact coaxial for custom systems that is both small and loud.

Highlights

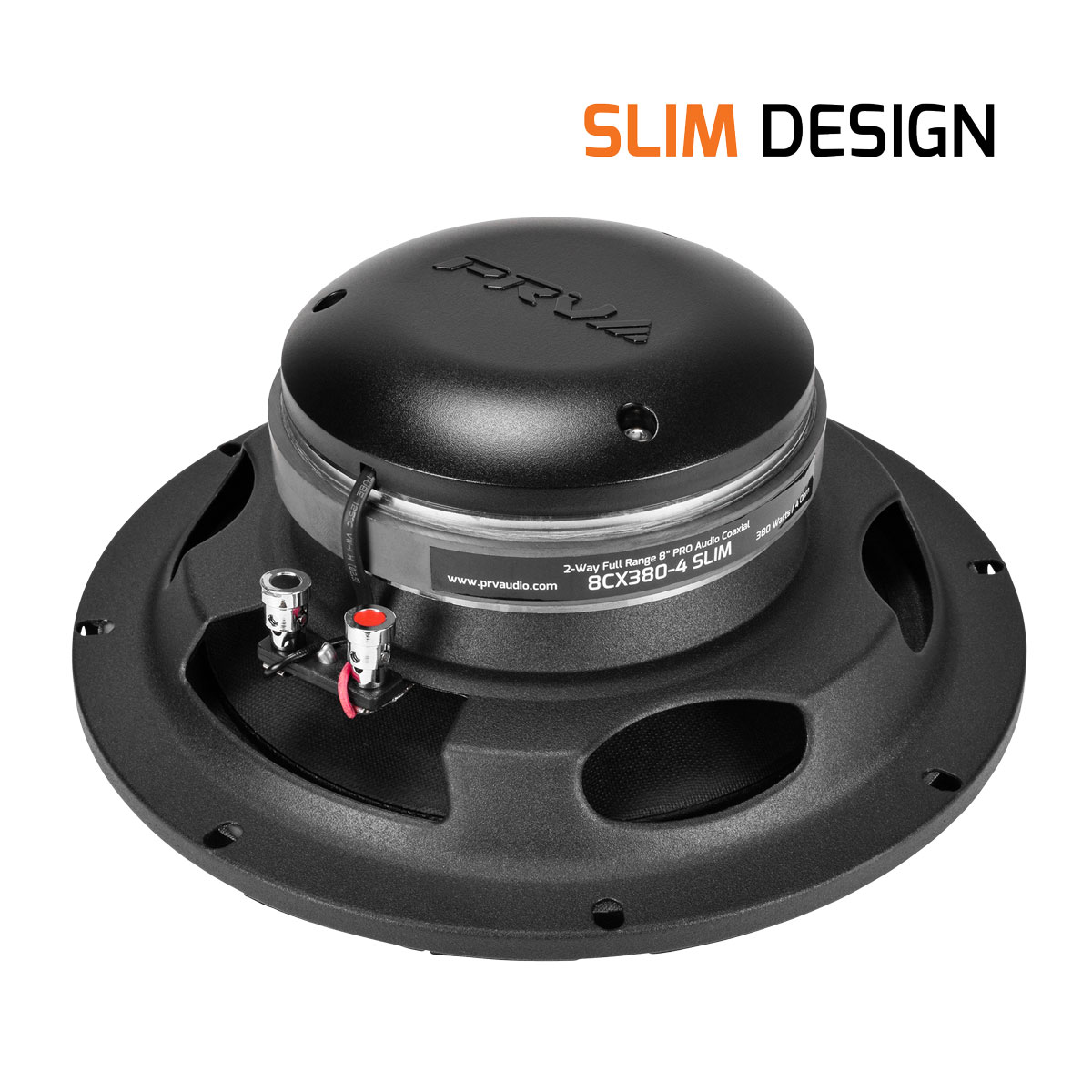

  • Slim Design – Perfect for tight space applications that require PRO Audio sound quality in small areas where conventional drivers wouldn’t fit.

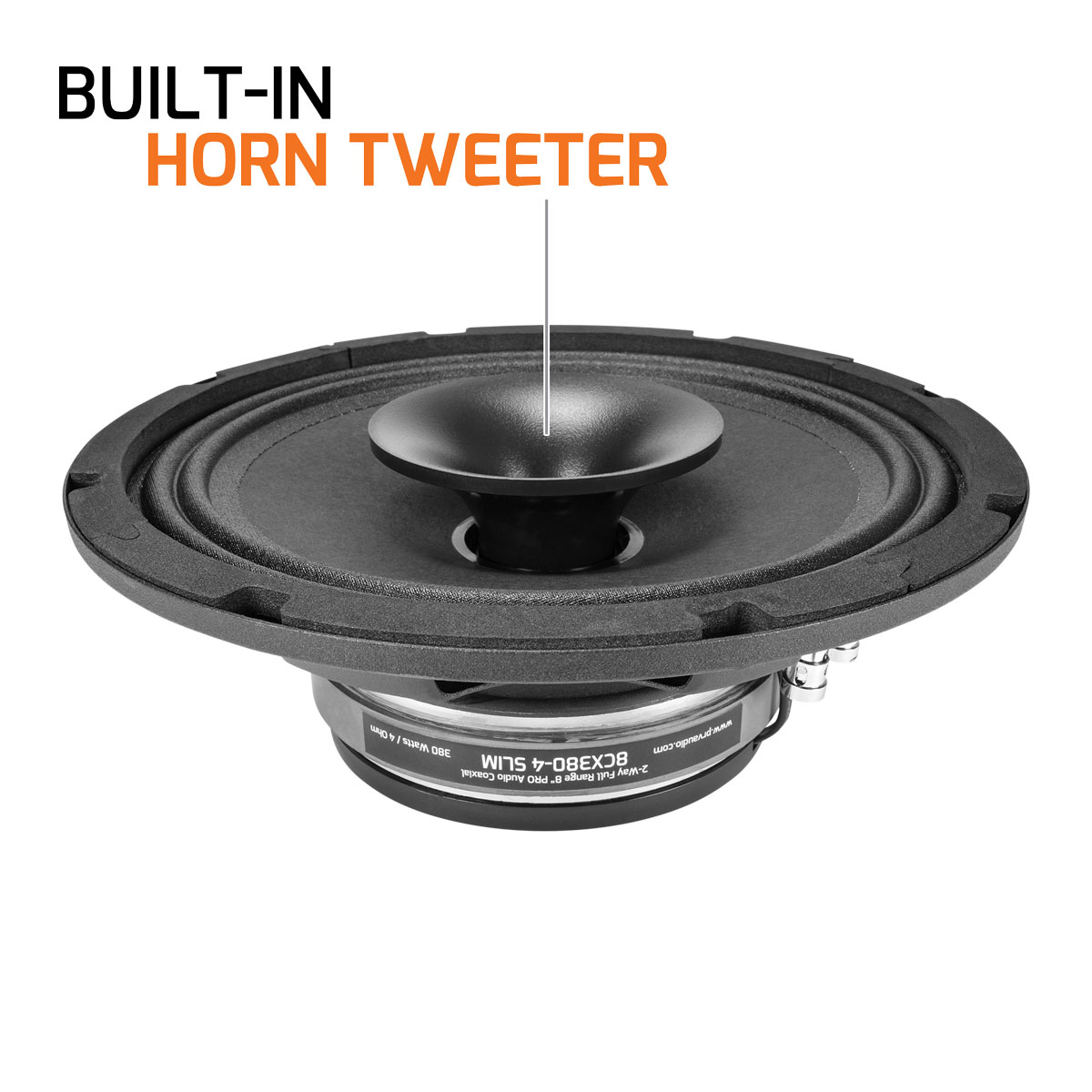

  • Built-in driver tweeter with in-line capacitor attenuates perfectly with the speaker, giving you a rich musical response.
  • 380 Watts RMS Music Power Handling, with a 97 dB Sensitivity, capable of generating a lot sound with a small cone!

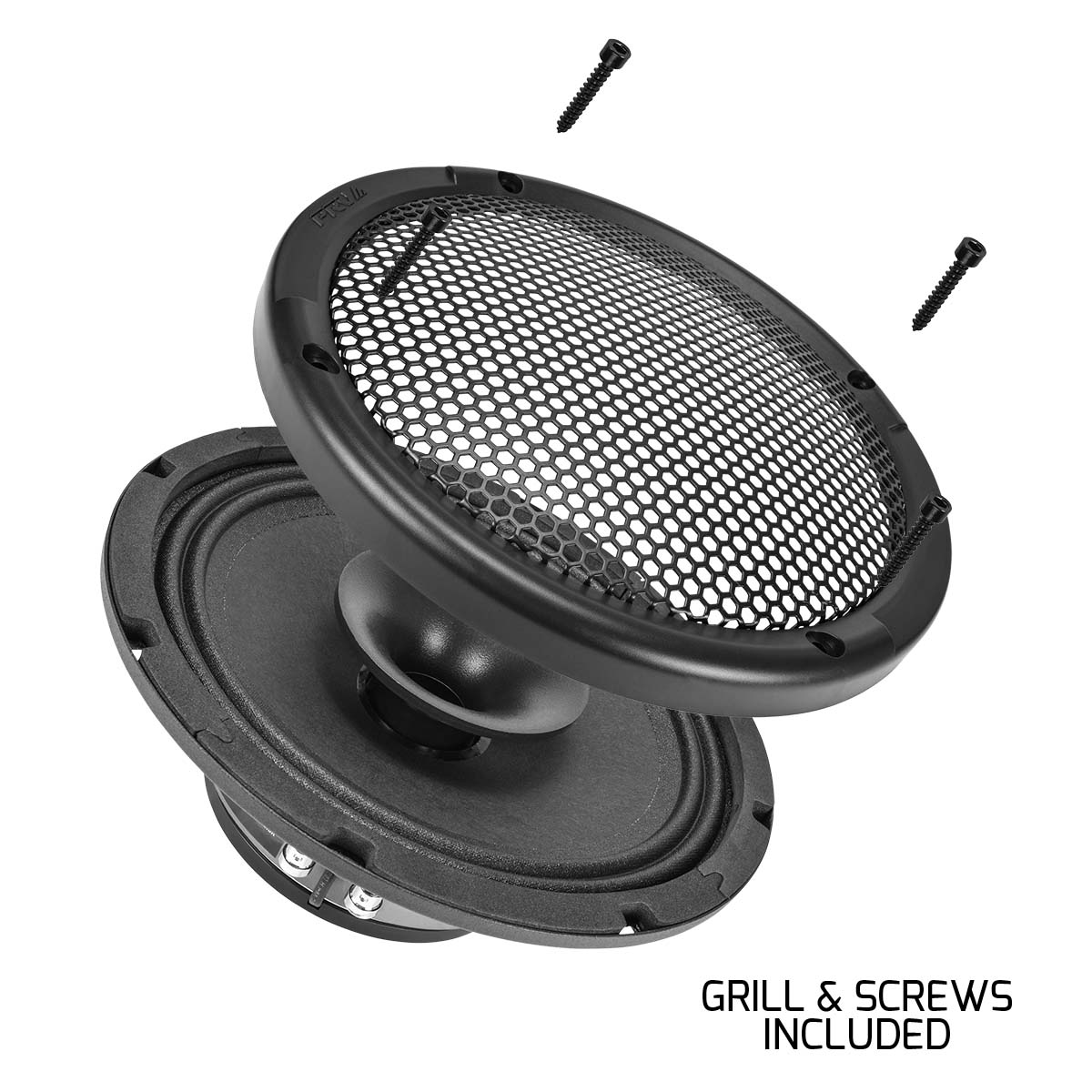

  • Grill and Mounting Screws Included
  • Also available in 6.5″- 6CX380-4 SLIM

By combining elements from the PRO Audio and Car Audio segments, we have developed a new type of highly efficient coaxial that is able to give high levels of output in compact spaces.Its slim design makes this coaxial the perfect speaker, allowing it to be utilized in endless ways.

Loud and clear vocals are all within 2.76′′ of mounting depth without sacrificing quality or performance.


Its specially composed spider reduces distortion on midbass frequencies, and its double roll surround keeps cone travel linear, while its premium tinsel lead wire is capable of high temperatures.

This makes this speaker not only unique but also gives it all high-performance characteristics and high-quality components, providing exceptional clarity, detail, and dynamic sound.

Technical Details

GENERAL SPECIFICATIONS

Nominal and Throat Diameter Low Freq. 8″ (203 mm) High Freq. 1″ (25.4mm)
Nominal impedance 4 Ohm
Nominal Power Handling* 190 Watts
Continuous Program Power (RMS)** 380 Watts
Max Peak Power*** 760 Watts
Sensitivity 2.00V at 1m 97 dB
Recommended Hi Pass Crossover For Full Power Handling 110 Hz 12db Per Octave Crossover
Frequency Response 100 – 20,000Hz
Voice Coil Diameter 1.5″ (38 mm) 1.0″(25mm)
Voice Coil Wire Copper CCAW
Voice Coil Winding Depth 8.0 mm N/A
Former Material Kapton Kapton
Magnetic Gap Depth 5.0 mm N/A
Frame Material S. Steel Mylar
8CX380-4-SLIM Frequency Response
  *Nominal power handling is defined as the maximum RMS power that the speaker can handle in a 2-hour test with a pink noise with 6dB of crest factor and a bandpass filter with 12db/oct tuned in its usable frequency range. **Continuous Program Power (RMS) is the maximum power that the speaker can handle considering a regular musical program using our recommended filters, this power can be used to define the optimum amplifier power to avoid a clean signal without clipping or saturation. ***Max Peak Power is the maximum power operation for the speaker, this power is allowed just for a few fractions of a second, usually found just on the peaks of the music. Keeping this power for a little longer timer will damage the speaker.

THIELE-SMALL PARAMETERS

Equivalent Volume Vas 17.21 l
Excursion (mathematical)*** Xmax 2.75 mm
Free Air Resonance Fs 92.1 Hz
Mechanical Factor Qms 12.43
Electrical Factor Qes 1.19
Total Factor Qts 1.09
Cone Area Sd 235 cm²
Mechanical Mass Mms 13.38 g
Bl Factor Bl 4.83 Tm
Dc Resistance Re 3.6 Ohms
Inductance Le 0.030 mH at 1 kHz
Mechanical Mass Without Air Mmd 11.34 g
Mechanical Compliance Cms 0.223 mm/N

***Xmax=(Voice coil winding depth-Magnetic Gap depth)/2+ Mgnetic Gap Depth/4

8CX380-4-SLIM Impedance

EXTRA INFO

Overall Diameter 8.23″ (209 mm)
Front Mount Baffle Cutout 7.13″ (181 mm)
Mounting Depth 2.93″ (74.5 mm)
Overall Depth 4.10″ (104 mm)(with grill)
Net Weight 4.30 Lbs (1.95 kg)
Shipping Weight 4.85 Lbs (2.20 kg)
Carton Dimensions W x L x H 9.50″ x 9.25″ x 5.50″ (241 x 235 x 140 mm)
8CX380-4-SLIM
8CX380-4-SLIM

Repair Parts

Replacement Diaphragm for 8CX380-4 SLIM

WARNING: Cancer and Reproductive Harm – www.p65warnings.ca.govView our Return Policy.

Customer Reviews

Based on 10 reviews
90%
(9)
10%
(1)
0%
(0)
0%
(0)
0%
(0)

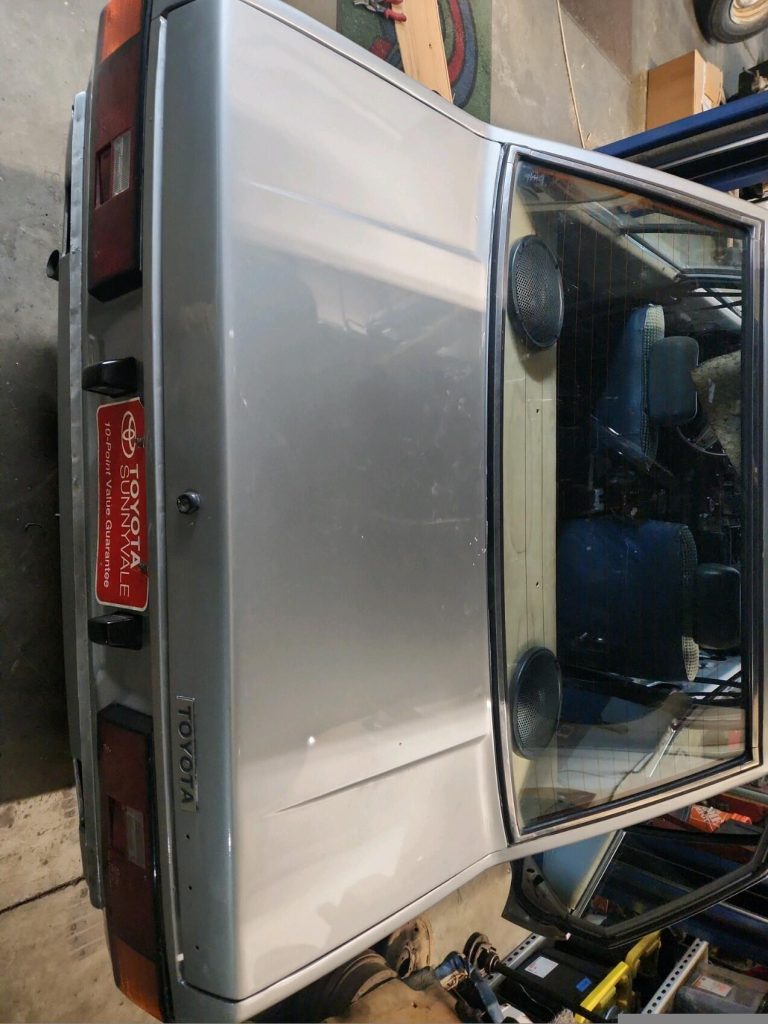

J
Justin Hrenko

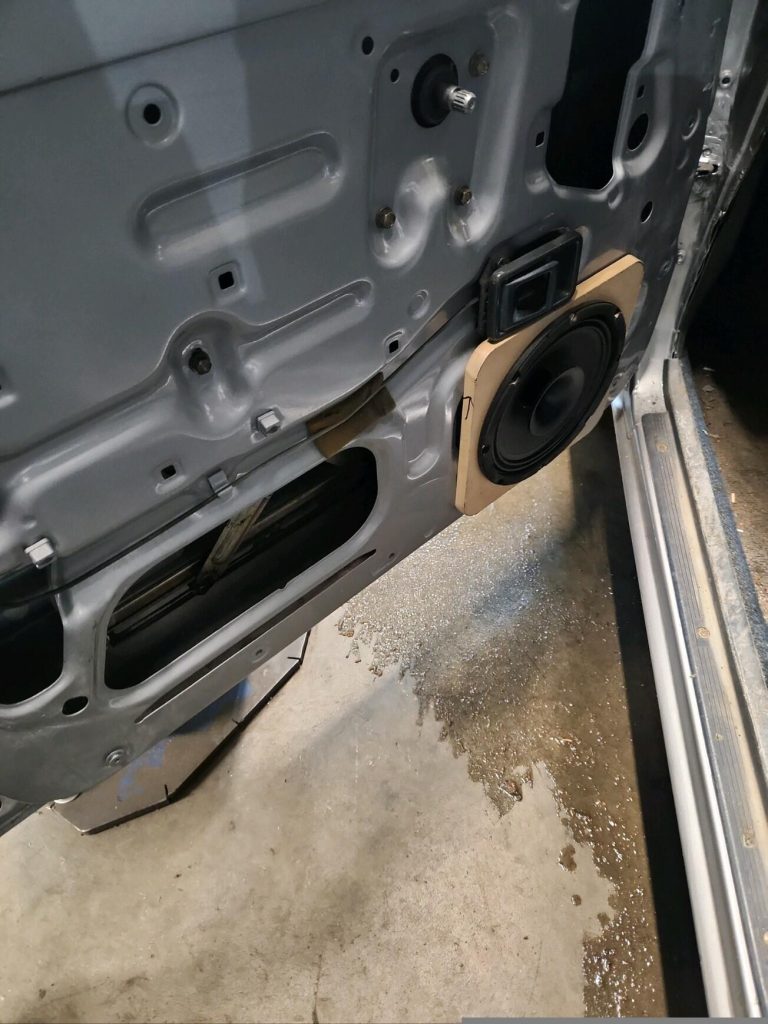

8cx380-4 slim

Great speaker! Super loud and tune out very easy perfect if u want a loud and clear set up!

H
HencastZAudio
clear and Loud I love it

Sound Loud and clear!

F
F.A.
The 8CX380-4 SLIM are great speakers when you don't want to have everything separated.

Great to have speaker and tweeter together, another plus is having one amp for both mids & highs.

R
Ricardo R.

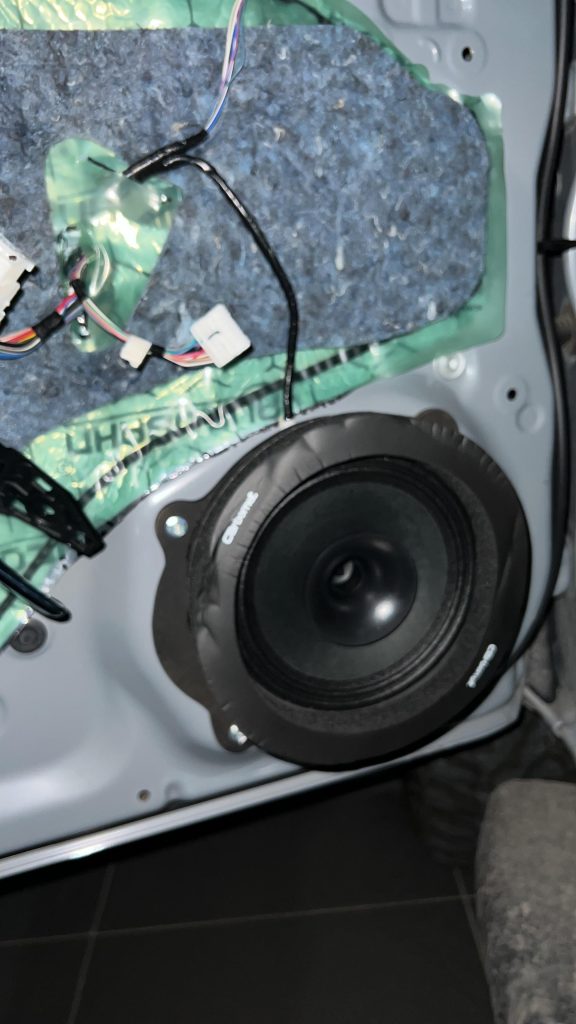

Light and powerfull
