8MR600X-NDY

In stock

8″ Midrange – 8 Ohm
Neodymium Magnet
98 dB – 600 Watts

$189.91

In stock

PRICE FOR SINGLE UNIT

SKU: 8MR600X-NDY Categories: Low Frequency Speakers, New Products Tags: NEODYMIUM SPEAKERS, X SERIES

Features

X-treme midrange performance is what PRV Audio’s 8MR600X-NDY is all about.

Made to be a class leading midrange in the pro audio realm, this speaker has a high output sensitivity of 98.5 dB and only weighs 5 pounds. This midrange loudspeaker is optimized for professional audio or (musical instrument) speaker system applications, and large car audio competition systems.

The powerful halo neodymium magnet assembly assures high flux concentration. Its magnetic structure significantly improves thermal connection and heat dissipation. This increases power handling and lowers power compression, with an optimum power to weight ratio.

Capable of high output and low distortion, this midrange is perfect for filling in the significant midrange response in any high output sound system. Great addition to the X-Series.

2″ DUAL layer CCAW voice coil wound on a Kapton former, 8 Ohm
This specially designed loudspeaker is assembled with top of the line components for long lasting play, even during intense use.
Low inductance and extended frequency response with wide directivity
600 watts RMS continuous program power rating makes high acoustical output
Ideal solution for compact full-range applications demanding high acoustic output
Detailed vocal response and pristine instrument sound reproduction

A coated woven surround offers smooth, precise geometry during hard play. The light weight cone provides excellent linear response taking performance to the next level with its wide frequency bandwidth, high output levels between 3,200 to 10,000Hz

Making the 8MR600X-NDY an excellent solution for high sound quality two or three-way systems.

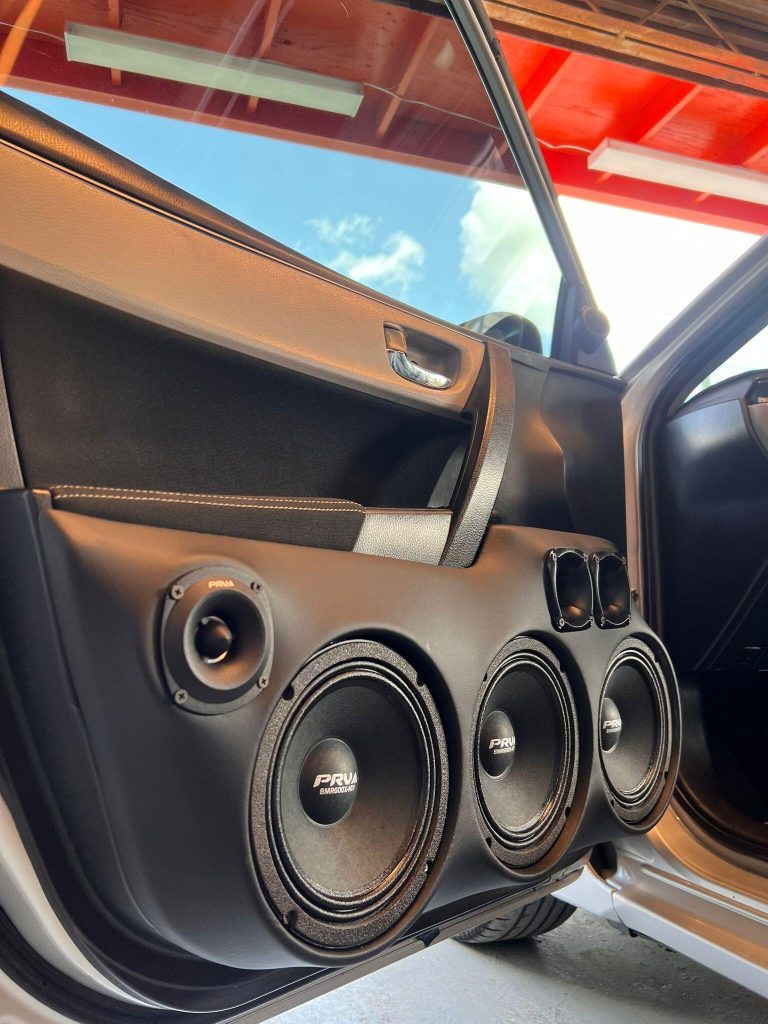

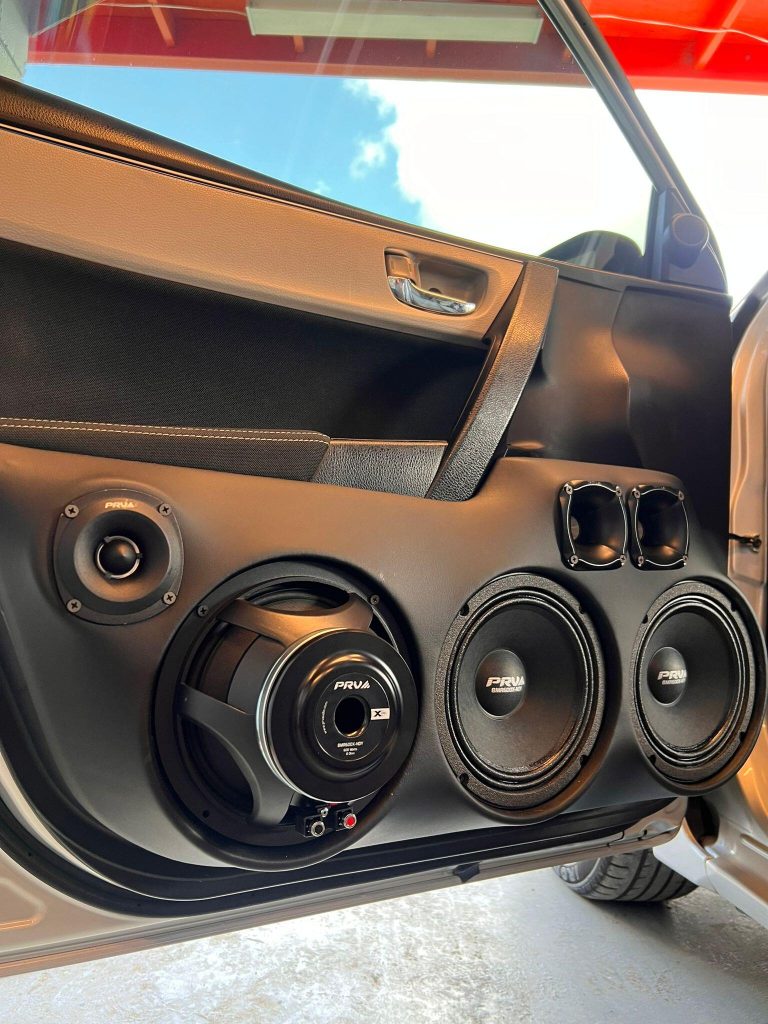

Extreme car audio enthusiasts will find PRV Audio’s 8MR600X-NDY to be the perfect 8″ midrange door speaker, capable of handling up to 600 watts RMS power (with a suggested 125 Hz, 18 dB/octave high pass filter in place tuned with PRV DSP)!

Its high energy, rare-earth neodymium motor, combined with other fine materials, were chosen to increase sensitivity and power handling to deliver the finest details in audio, as demanded by most audiophiles and custom builders in the car audio.

PRV 8″ Midrange Speaker 8MR600X-NDY 600 Watts / 8 Ohm High Power Neodymium PRO Audio Loudspeaker

Technical Details

GENERAL SPECIFICATIONS

Nominal Diameter	8″ (203 mm)
Nominal impedance	8 Ohm
Nominal Power Handling	300 Watts
Continuous Program Power (RMS)	600 Watts
Max Peak Power	1200 Watts
Sensitivity 2.83V at 1m	98.5 dB
Recommended Hi Pass Crossover For Full Power Handling	145Hz 12db Per Octave Crossover
Frequency Response at -10DB	95 – 10,500 Hz
Voice Coil Diameter	2″ (50 mm)
Voice Coil Wire	CCAW
Voice Coil Winding Depth	11.0 mm
Former Material	Kapton
Magnetic Gap Depth	7.0 mm
Frame Material	Die Cast Aluminum

^{*Nominal power handling is defined as the maximum RMS power that the speaker can handle in a 2-hour test with a pink noise with 6dB of crest factor and a bandpass filter with 12db/oct tuned in its usable frequency range.} ^{**Continuous Program Power (RMS) is the maximum power that the speaker can handle considering a regular musical program using our recommended filters, this power can be used to define the optimum amplifier power to avoid a clean signal without clipping or saturation.} ^{***Max Peak Power is the maximum power operation for the speaker, this power is allowed just for a few fractions of a second, usually found just on the peaks of the music. Keeping this power for a little longer timer will damage the speaker.}

THIELE-SMALL PARAMETERS

Equivalent Volume	Vas	12.58 l
Excursion (mathematical)***	Xmax	3.75 mm
Free Air Resonance	Fs	87.6 Hz
Mechanical Factor	Qms	17.78
Electrical Factor	Qes	0.30
Total Factor	Qts	0.29
Cone Area	Sd	232 cm²
Mechanical Mass	Mms	19.73 g
Bl Factor	Bl	15.17 Tm
Dc Resistance	Re	6.3 Ohm
Inductance	Le	0.03 mH at 1 kHz
Mechanical Mass Without Air	Mmd	17.72 g
Mechanical Compliance	Cms	0.167 mm/N

***Xmax=(Voice coil winding depth-Magnetic Gap depth)/2+ Mgnetic Gap Depth/4

EXTRA INFO

Overall Diameter	8.11″ (206 mm)
Front Mount Baffle Cutout	7.16″ (182 mm)
Mounting Depth	3.45″ (87.6 mm)
Overall Depth	3.81″ (96.7 mm)
Net Weight	5.00 Lbs (2.26 kg)
Shipping Weight	5.55 Lbs (2.52 kg)
Carton Dimensions W x L x H	8.66″ x 8.66″ x 4.72″ (220 x 220 x 120 mm)
