1" EXIT PRO AUDIO TITANIUM COMPRESSION DRIVER

D280Ti-S

(5 customer reviews)
In stock

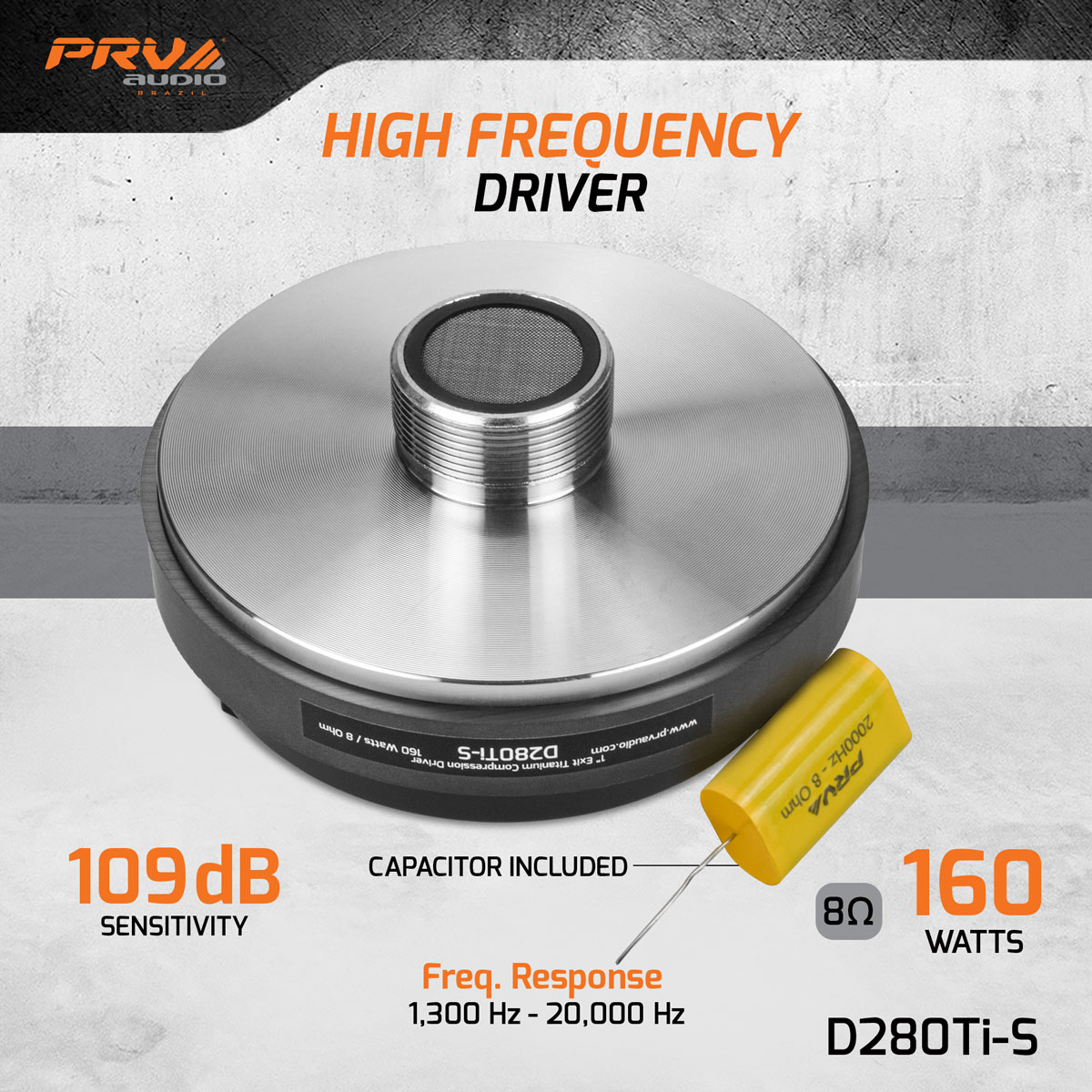

  • Titanium HF Driver
  • 1″ Exit Screw-On
  • 109 dB – 160 Watts

From: $34.99

Clear

PRICE FOR SINGLE UNIT

SKU: D280Ti-S Category: Tags: ,

Features

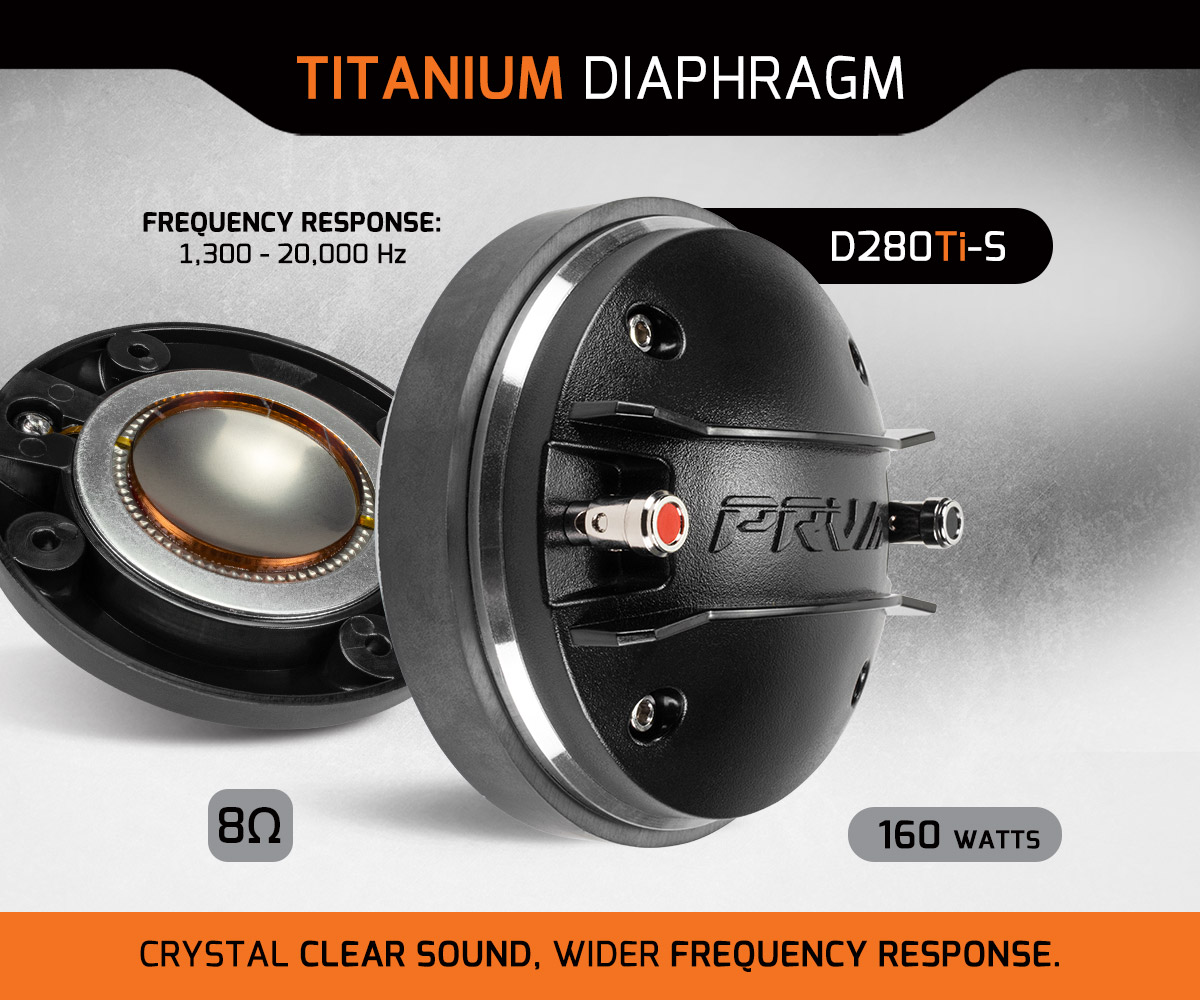

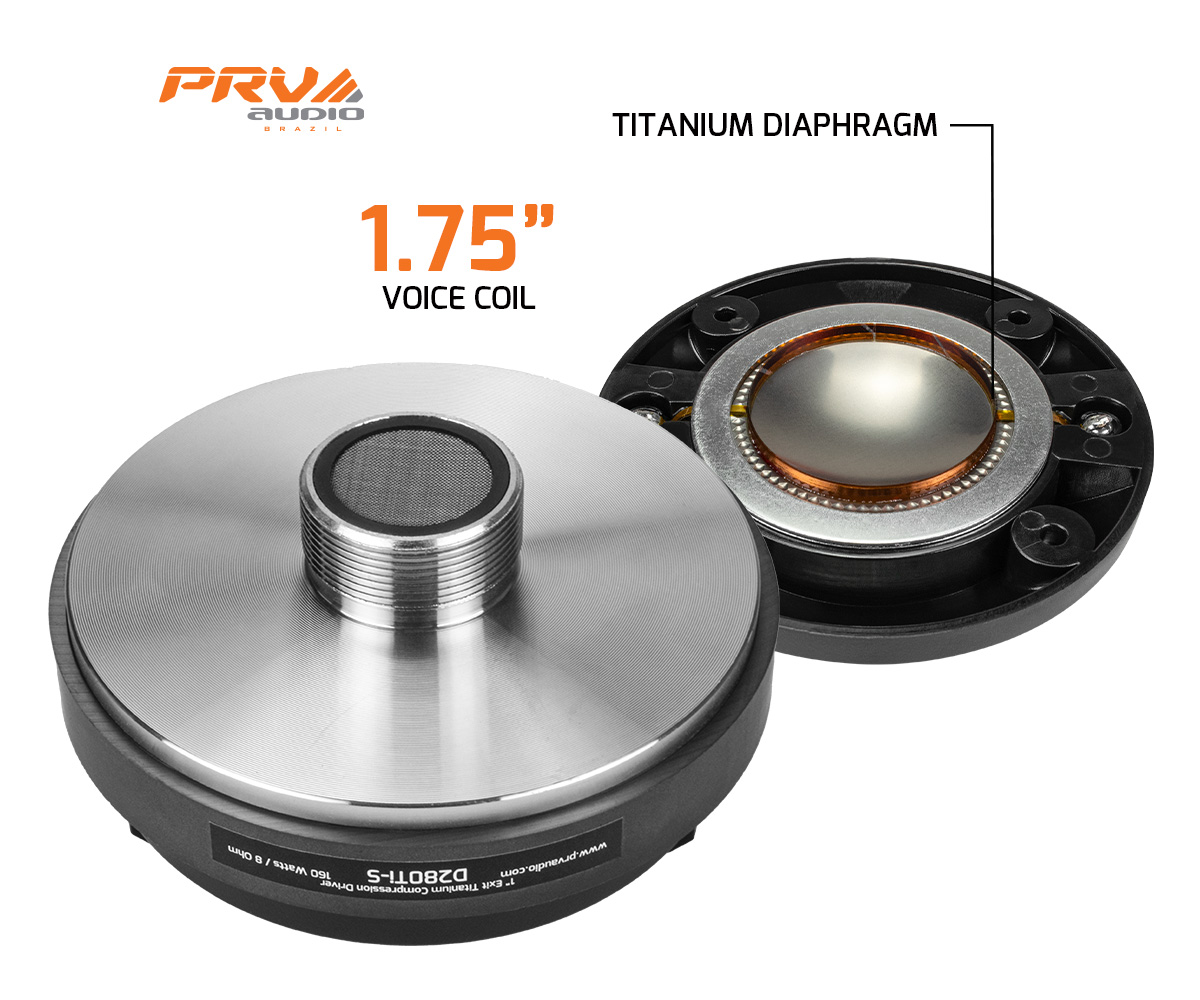

The NEW PRV Audio D280Ti-S Compression Driver offers a surprisingly smooth response and high efficiency from mid-range through high range frequencies thanks to the pure titanium diaphragm.

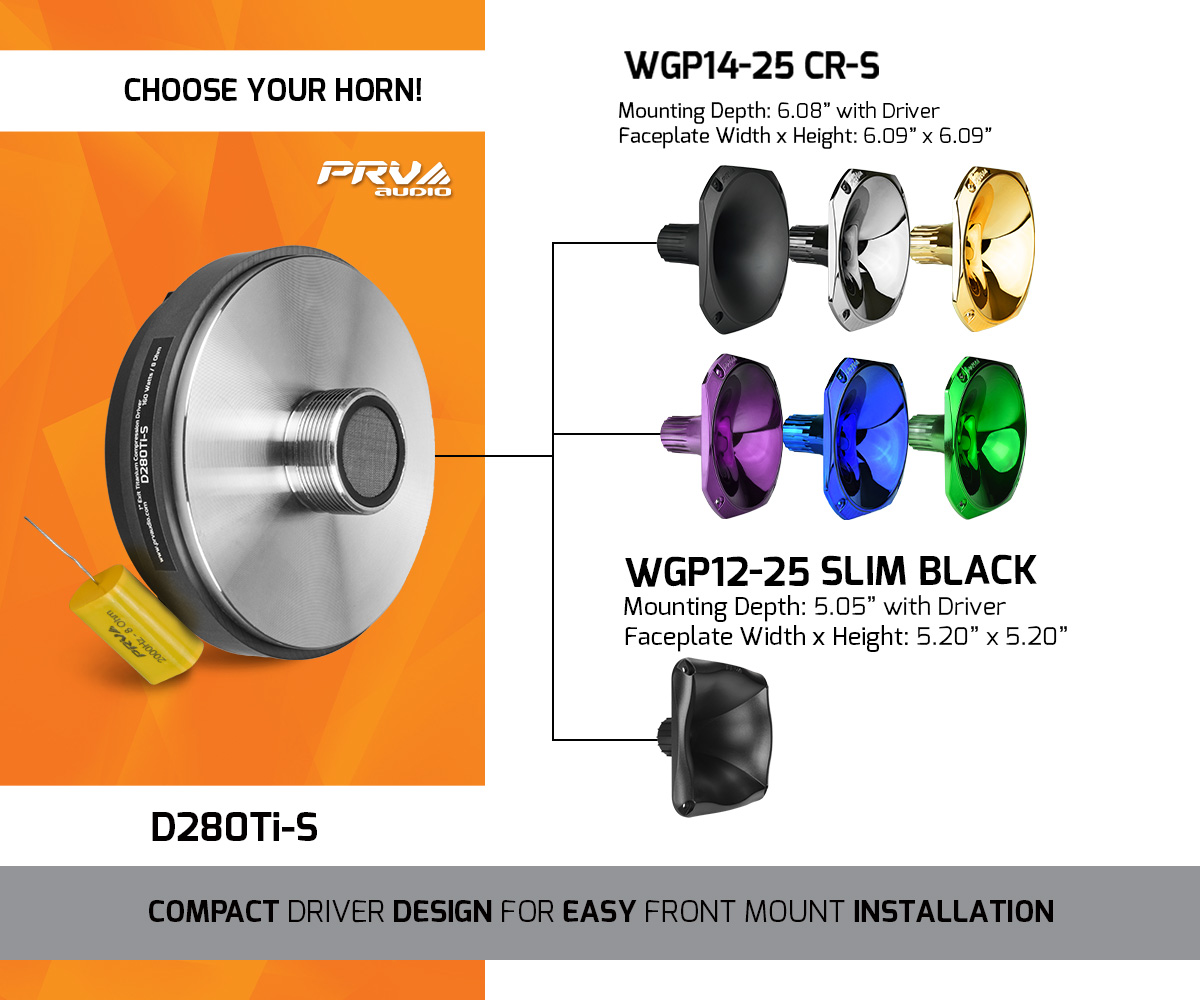

Perfect for studio monitors and stage monitors, and stage speakers where high sound quality is required. A 2 and 3 or bolt pattern ensures easy replacement with current 1” bolt-on horns and weighs just 3.3 lbs. A standard 1 3/8” screw ensures easy replacement with current 1” horns and weighs just 3.3 lbs.

D280Ti-B and D280Ti-S is designed to ensure a quality sound and long lasting play in most any environment and in the rare event you need to make a repair to your driver, simple, quick diaphragm replacements are available.


Highlights

  • Throat Diameter: 1″
  • Type: Screw-On
  • Nominal Impedance: 8Ω
  • Rated AES Power Handling (RMS): 80 Watts
  • Program Power: 160 Watts

WARNING: Cancer and Reproductive Harm – www.p65warnings.ca.gov

Technical Details

GENERAL SPECIFICATIONS

Exit Throat Diameter 1” (25.4mm)

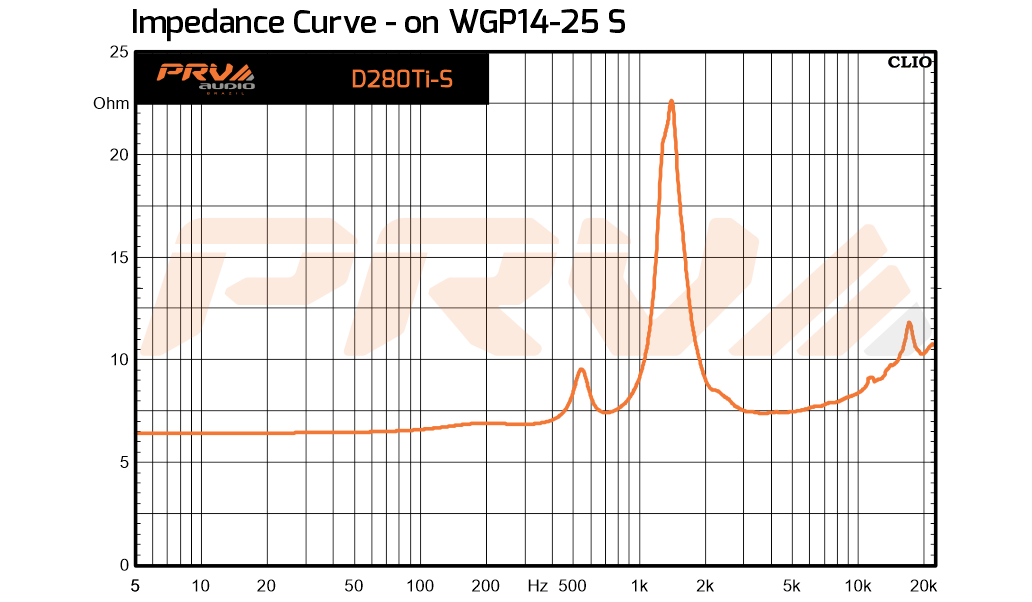

Nominal impedance 8 Ohms
Rated AES Power Handling (RMS) 80 Watts
Program Power 160 Watts
Sensitivity 2.83V at 1m 109 dB
Recommended Hi Pass Crossover**
**For Full Power Handling
1800 Hz**
**12db Per Octave Crossover

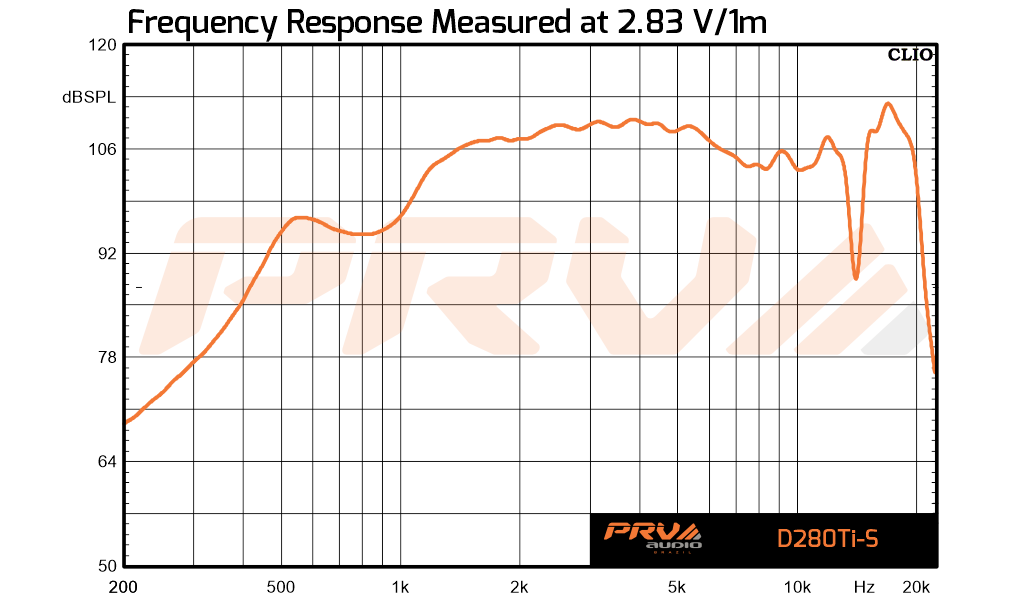

Frequency Response at -10dB 1,300 – 20,000 Hz
Voice Coil Diameter 1.75”(44.4 mm)
Voice Coil Wire CCAW
Voice Coil Former Material Kapton
Diaphragm Material Titanium
Flux Density 1.65 T
Magnet Material Ferrite




EXTRA INFO

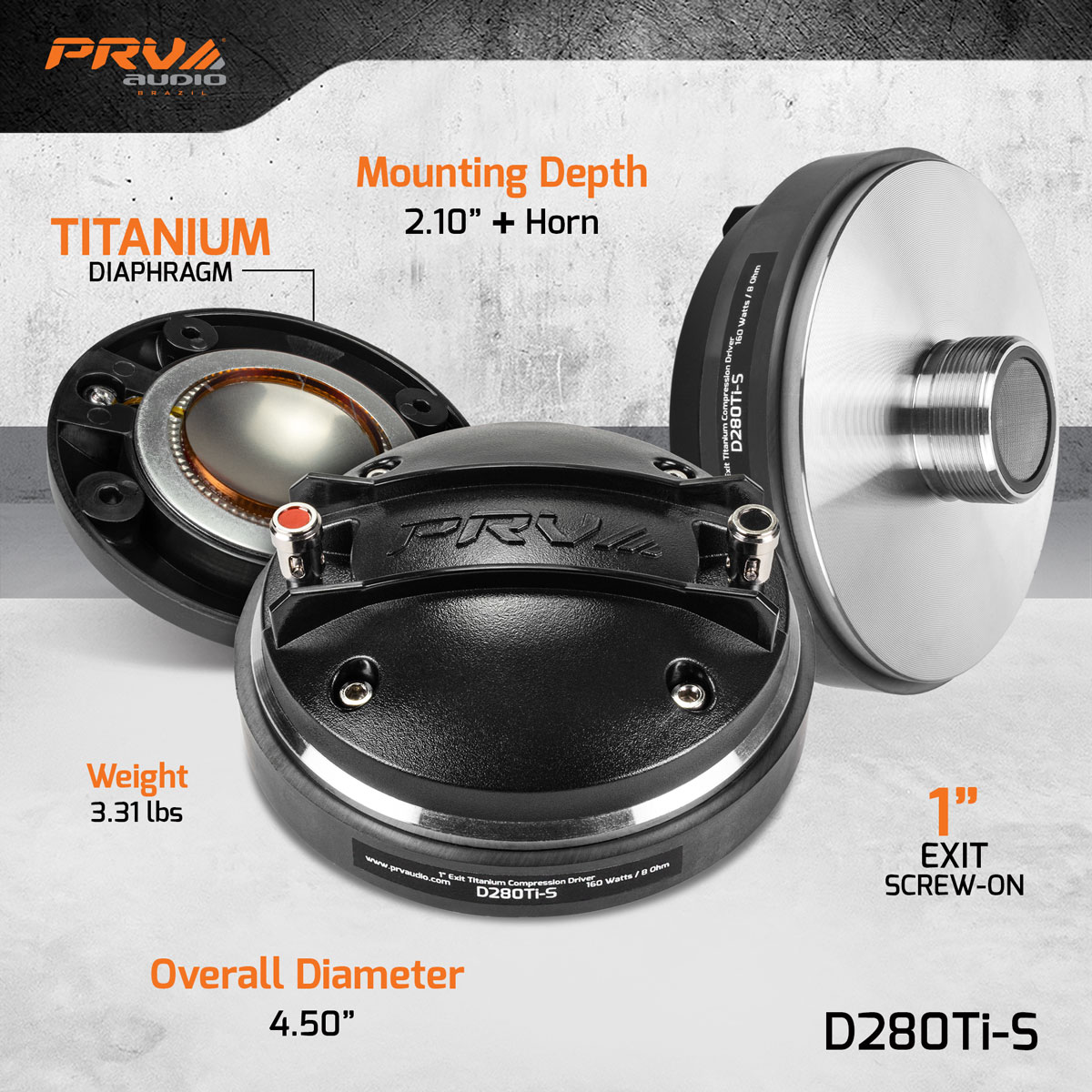

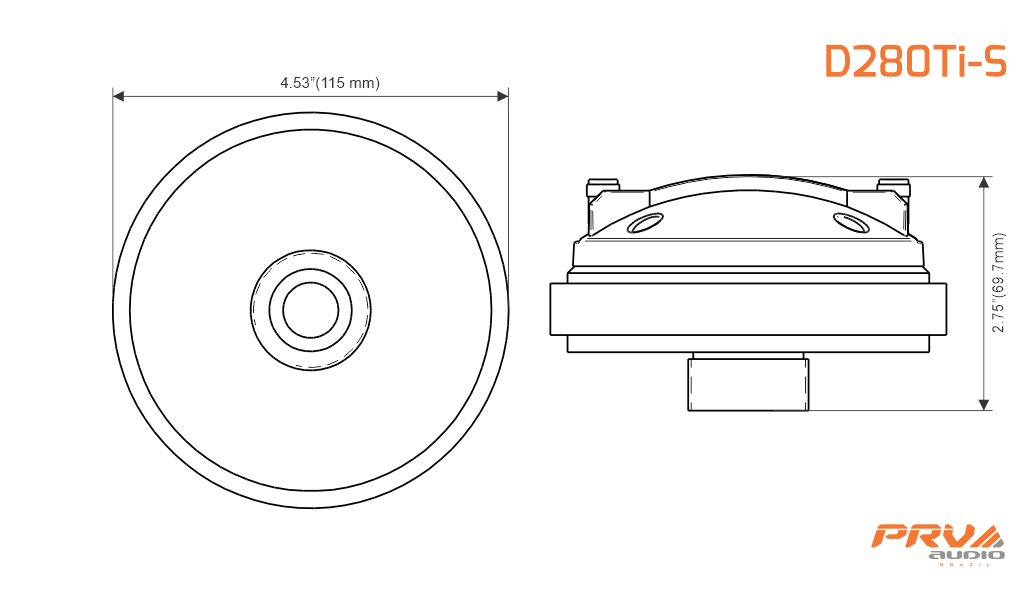

Overall Diameter 4.52” (115 mm)
Overall Depth 2.56” (65 mm)
Mounting Thread 1 3/8” 18 TPI
Net Weight 3.31 lbs (1.5 kg)
Shipping Weight 3.52 lbs (1.59 kg)
Carton Dimensions W x L x H 5.31” x 5.0” x 2.91”
(135 x 127 x 74 mm)



Customer questions & answers

  1. 0 votes
    A

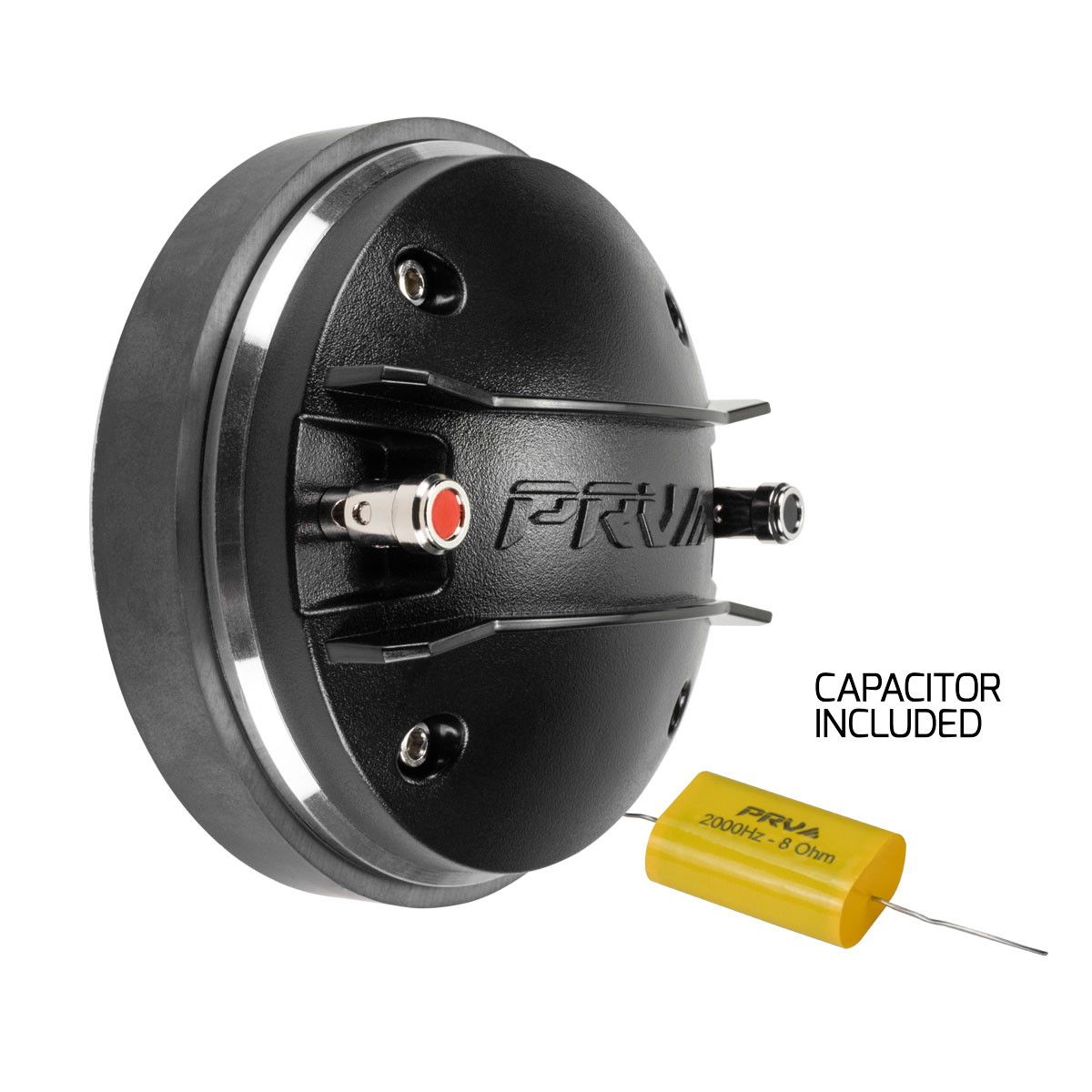

    We recommend that you do not use the capacitor and use the DSP.

  2. 0 votes
    A

    The titanium diaphragm that comes in the D280Ti is proprietary to that driver because it is built into the back cover. Our other diaphragms will not interchange with this driver. You can see the replacement part here to get a better look at the diaphragm design.

  3. 0 votes
    Q What type of diaphragm material this driver has ? answer now
    Asked by admin on August 23, 2019 3:20 pm
    Answered by the admin

    this driver has a Titanium diaphragm, for high fidelity on the high frequency response

  4. 0 votes
    Q Whats the Hi pass filter and Low Pass filter setting ? answer now
    Asked by Jairo V on August 22, 2019 3:34 am
    Answered by the admin

    for the HPF ( High Pass Filter ) we recommend

    Recommended Hi Pass Crossover**
    **For Full Power Handling
    1800 Hz**
    **12db Per Octave Crossover

    for the LPF ( Low Pass Filter ) you can set according to your application, this driver responds up to 20,000Hz so you might not use a LPF

  5. 0 votes
    Q what filter hpf should I use? answer now
    Asked by diego on April 13, 2019 2:49 pm
    Answered by the admin
    Recommended Hi Pass Crossover**
    **For Full Power Handling
    1800 Hz**
    **12db Per Octave Crossover

Send me a notification for each new answer.

5 reviews for D280Ti-S

  1. Logan

  2. Tomas Rivera

    Bueno

  3. Eric M.

    These are seriously loud and produce incredibly clear sound. I first had skar vx1 St tweeters and they were 120 watts rms. These tweeters are easily as loud on maybe 30 watts.

  4. Nephtali M.

  5. Joshua

    Awesome high quality

Add a review

Your email address will not be published. Required fields are marked *

Repair Parts

Replacement Diaphragm for D280Ti-S
