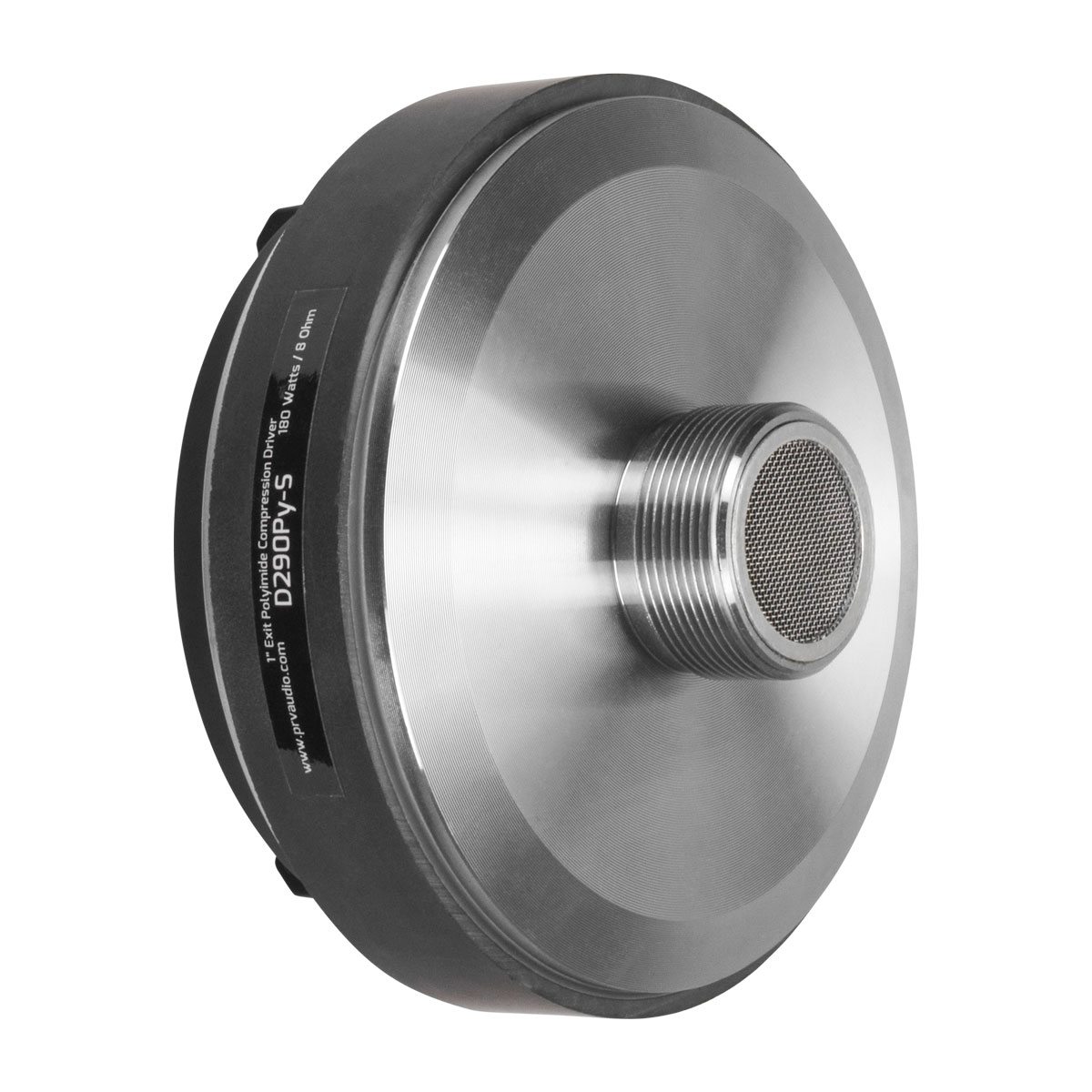

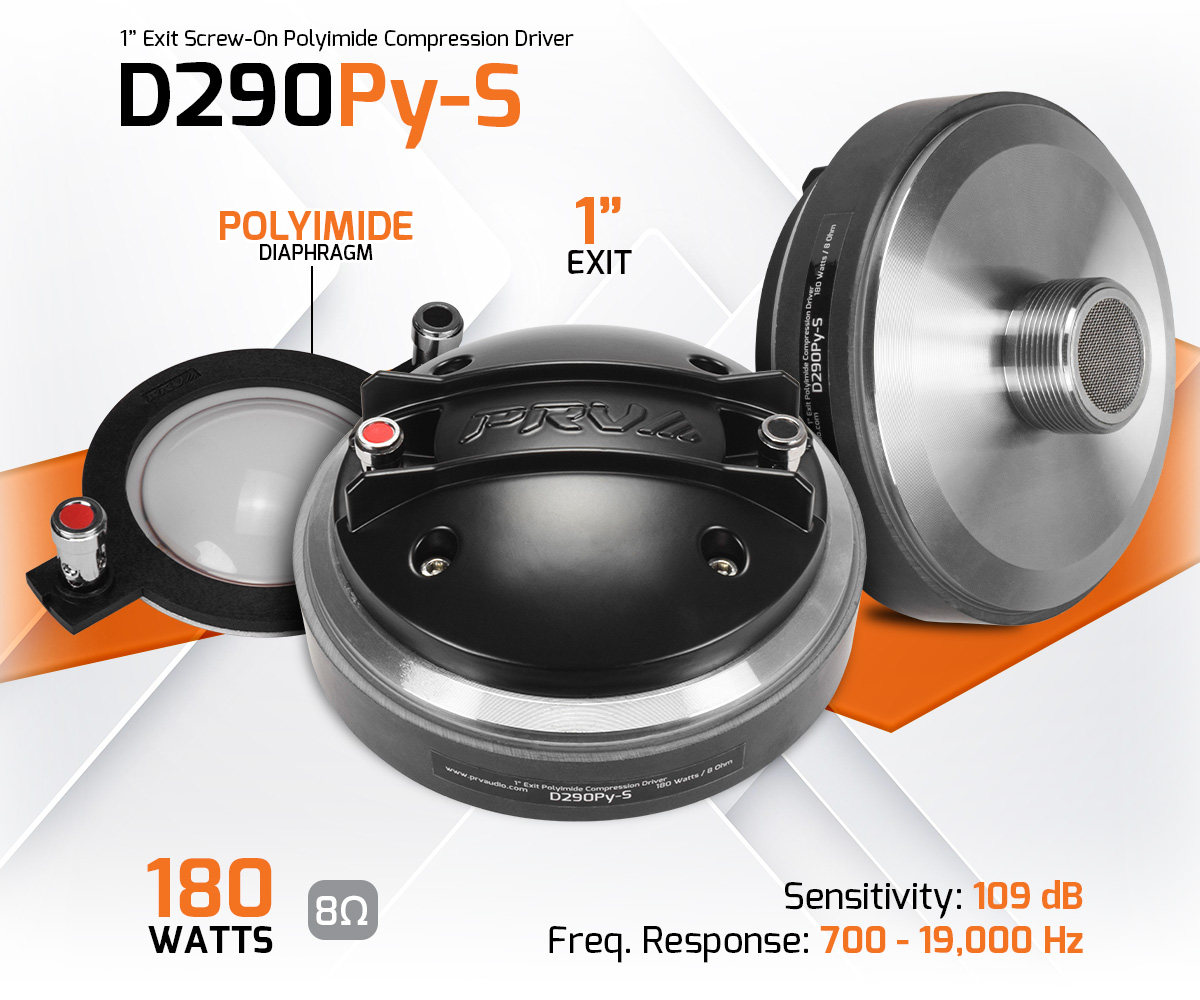

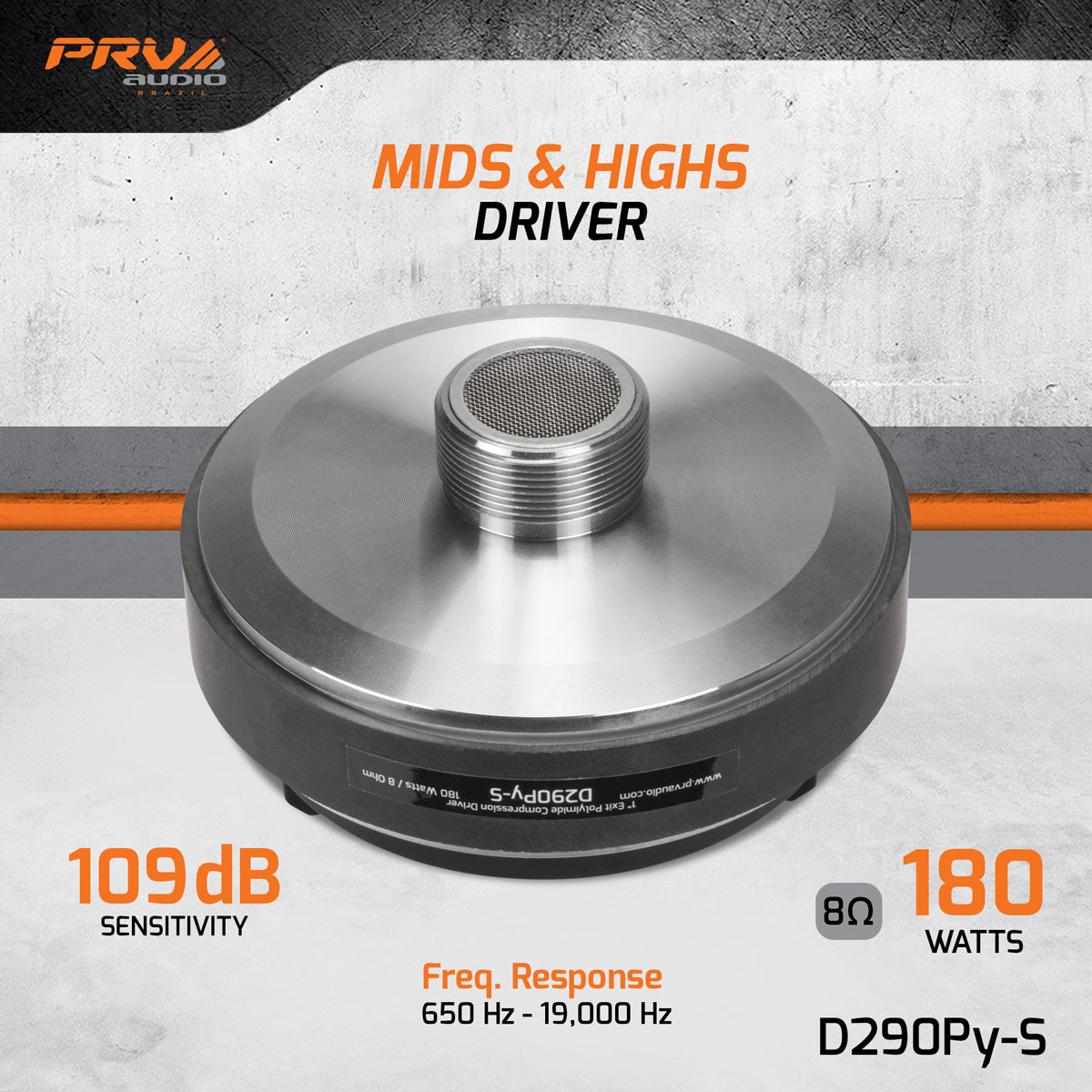

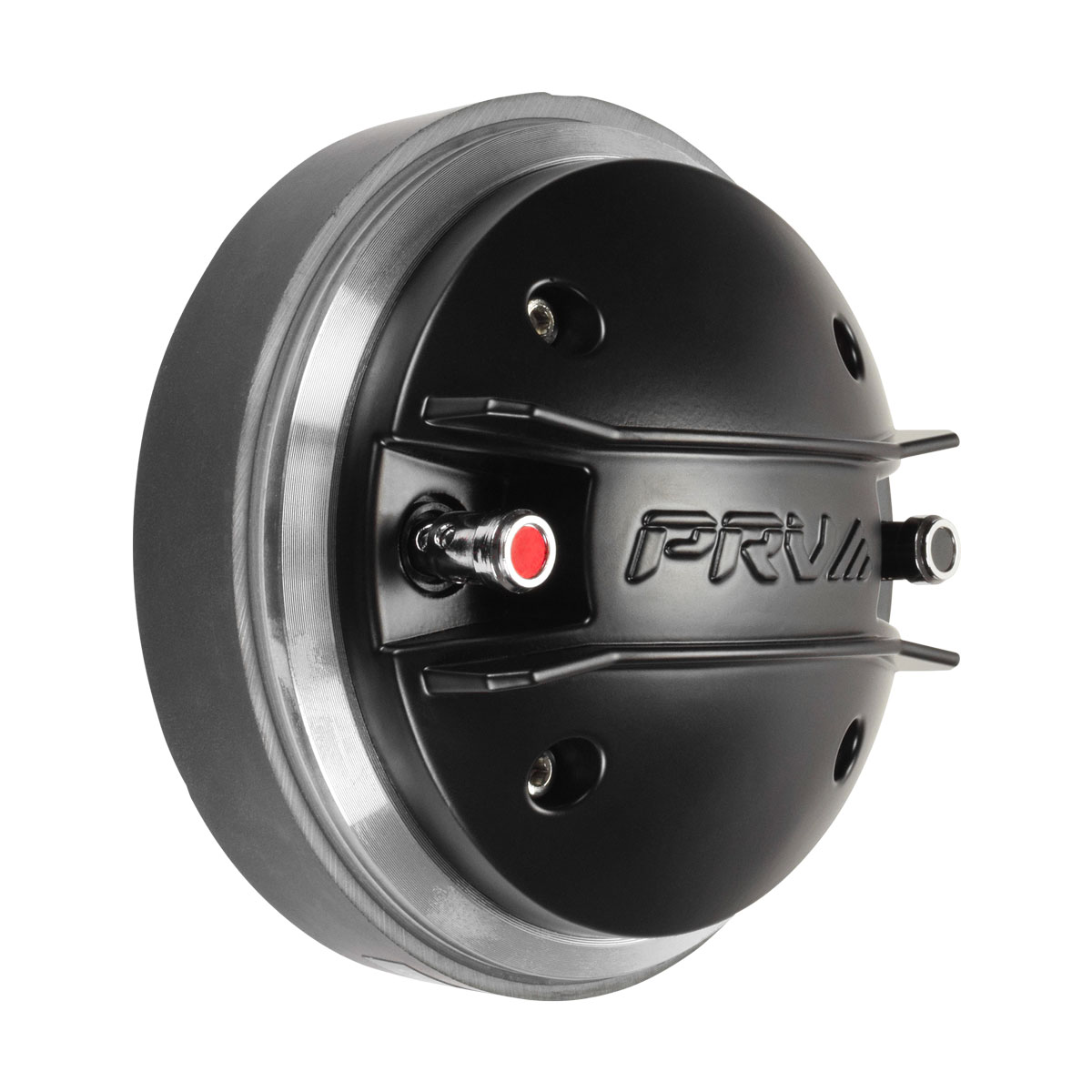

1" EXIT PRO AUDIO POLYIMIDE COMPRESSION DRIVER

D290Py-S

(3 customer reviews)
In stock
  • Polyimide HF Driver
  • 1″ Exit Screw-On
  • 109 dB – 180 Watts

$57.99 – $70.98

Clear

PRICE FOR SINGLE UNIT

SKU: D290Py-S Category: Tags: ,

Features

The PRV Audio D290Py-S 1″ Pro Audio Compression Driver offers unsurpassed vocal and midrange reproduction. Perfect for studio monitors and stage monitors, and stage speakers where high sound quality is required.

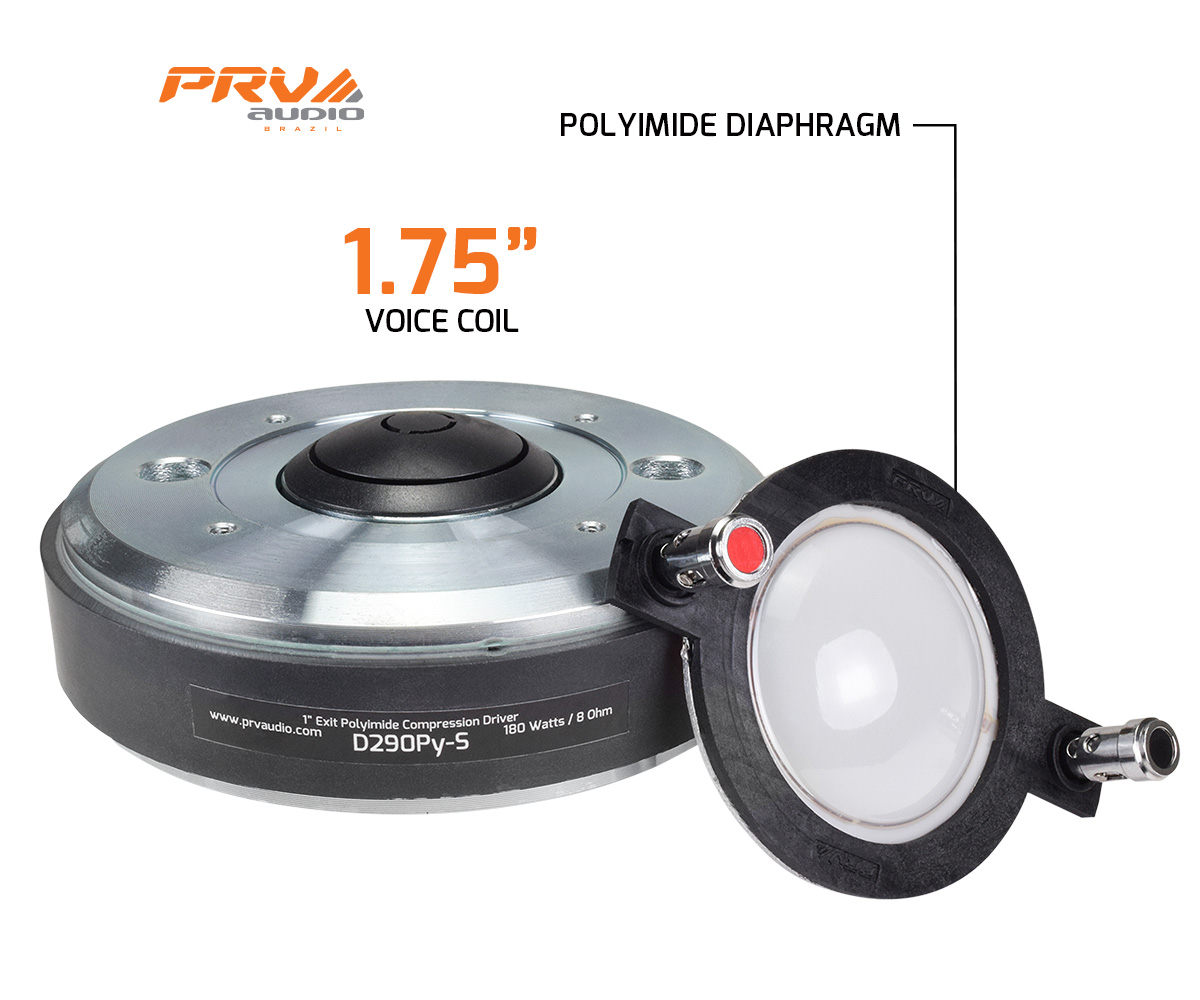

A specially designed and easily replaceable Polyimide diaphragm on a Kapton former results in a more natural sound with smoother and more accurate high frequency reproduction. The D290Py-S is perfect for stage monitors, studio monitors, and other loudspeaker enclosures where high sound quality and light weight is required.

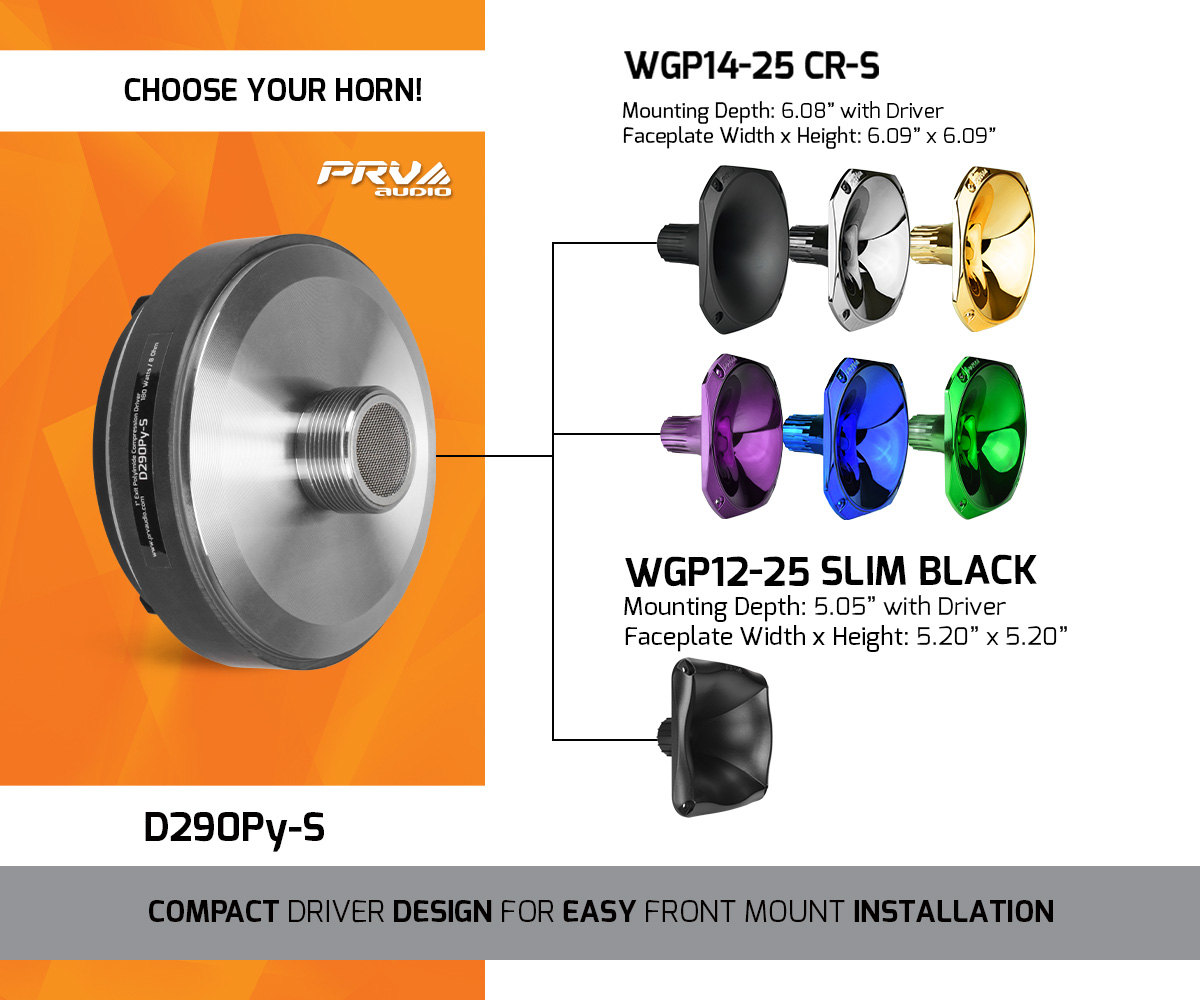

The D290Py-S is assembled with a standard 1 3/8” screw for easy replacement with current 1” horns.

Highlights

  • Throat Diameter: 1″
  • Type: Screw-On
  • Nominal Impedance: 8Ω
  • Rated AES Power Handling (RMS): 90 Watts
  • Program Power: 180 Watts
WARNING: Cancer and Reproductive Harm – www.p65warnings.ca.gov

Technical Details

GENERAL SPECIFICATIONS

Exit Throat Diameter 1” (25.4mm)
Nominal impedance 8 Ohms
Rated AES Power Handling (RMS) 90 Watts
Program Power 180 Watts
Sensitivity 2.83V at 1m 109 dB
Recommended Hi Pass Crossover**
**For Full Power Handling		 1000 Hz**
**12db Per Octave Crossover
Frequency Response at -10dB 650 – 19,000 Hz
Voice Coil Diameter 1.75”(44.4 mm)
Voice Coil Wire Copper
Voice Coil Former Material Kapton
Diaphragm Material Polyimide
Flux Density 1.85 T
Magnet Material Ferrite

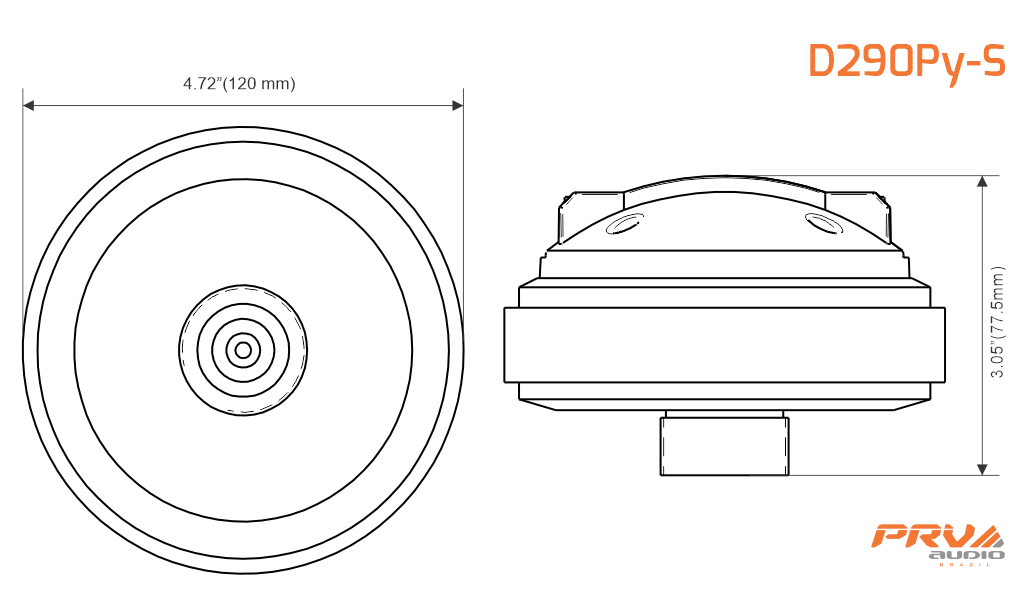

EXTRA INFO

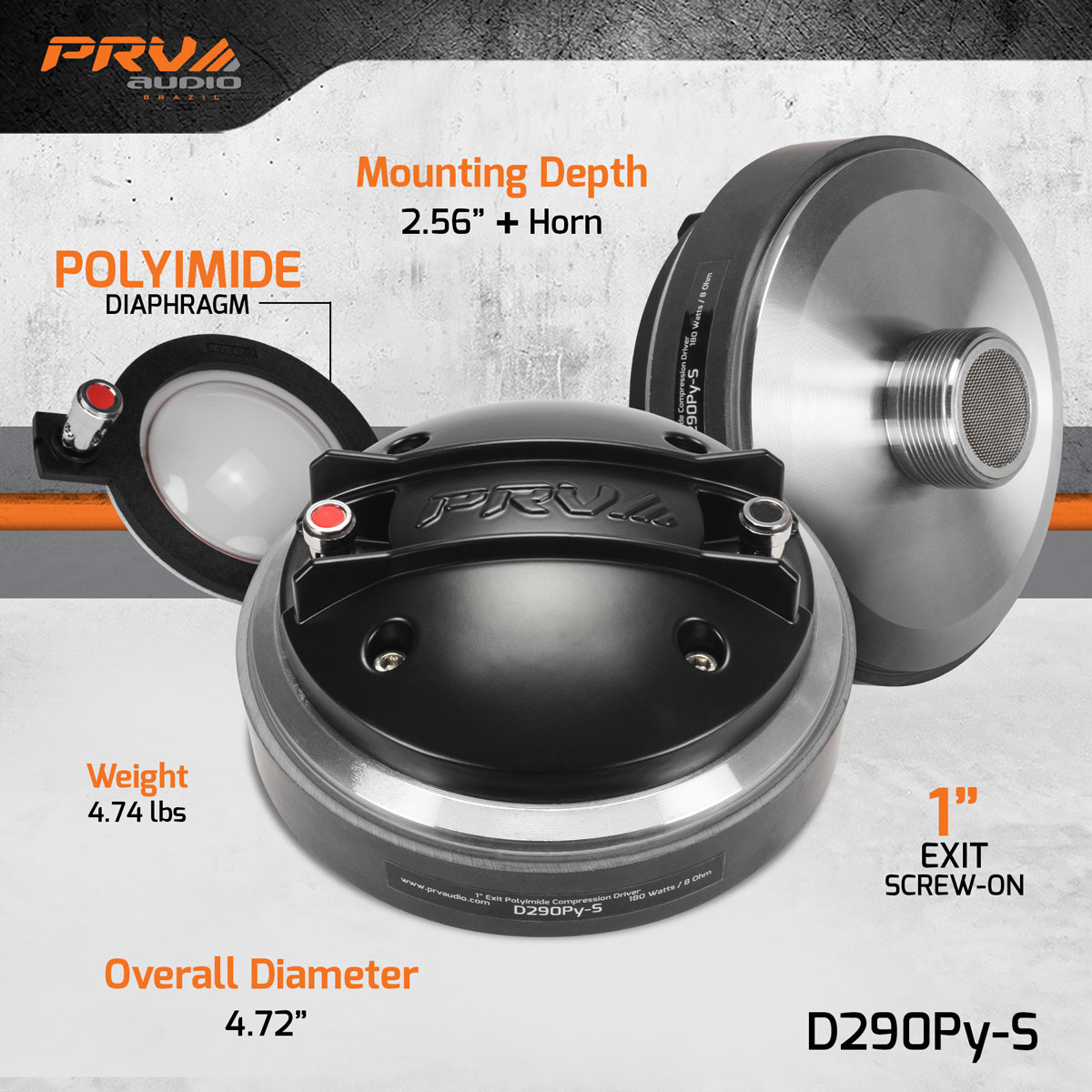

Overall Diameter 4.72” (120 mm)
Overall Depth 3.07” (65 mm)
Mounting Thread 1 3/8” 18 TPI
Net Weight 4.96 lbs (2.25 kg)
Shipping Weight 5.15 lbs (2.33 kg)
Carton Dimensions W x L x H 5.51” x 5.31” x 3.35”
(140 x 135 x 85 mm)



PRV AUDIO D290Py-S DATASHEETDownload
