D3220TiH-Nd
-
- 2″ Mids & Highs Driver
- Titanium Hybrid Diaphragm
- 109 dB – 220 Watts
$149.91
In stock
PRICE FOR SINGLE UNIT
Features
Features
An innovative technology for mids and highs drivers! The Hybrid Diaphragm is the future of high frequency drivers.
With an exclusive Mylar suspension, the D3220TiH-Nd is designed to offer crisp output with a focus on vocals and high frequency response, with accuracy (from 800 to 19,000 Hz) with an emphasis on the critical upper mid-range frequencies. An exclusive driver category for crystal clean sound, wider frequency response.
300 watts RMS Musical Power (when used with the recommended 900 Hz, 18 dB/octave high pass crossover).
- Hybrid Titanium diaphragm with large 3″ Voice Coil, providing dynamic output along with excellent efficiency – 109 dB Sensitivity
- Works great with any Shallow Horn from WGP14-50X Series – Perfect as compression driver for car audio
- Crystal clear natural sound with wider response from 800 to 19,000 Hz
- PRO Audio mids and highs driver, able to handle 220 Watts Continuous Program Power (RMS) with music
The D3220TiH-Nd Titanium Hybrid compression horn driver. This top of the line mids and highs driver features a compact 4.88 diameter neodymium ring magnet.
This allows you to use this horn driver in custom doors and stuntwall systems for vocal reinforcement.We have created a compact and powerful driver that solves the critical component spacing and weight issue in large systems.
The special diameter neodymium driver allows front mounting, making it easy to install, without detaching the driver from any WGP14-50 Horn. The driver diameter measures only 4.88″ having enough clearance to fit inside the 5.75″ baffle cut needed for our 2″ exit horns from the WGP14-50 Series.
Make your system unique with our colored horns. Available on Single Color, Dual Color, and Dual Tone Finish.
Pushing the limits of today’s cutting-edge technology, we have an exceptional 3″ voice coil attached to a pure titanium diaphragm with an exclusive Mylar suspension.
The Hybrid Titanium diaphragm provides sound accuracy with non-fatigued suspension. PRV Audio combines this diaphragm with a high-energy motor for high output over the usable driver bandwidth for effortless, dynamic output over a broad range.

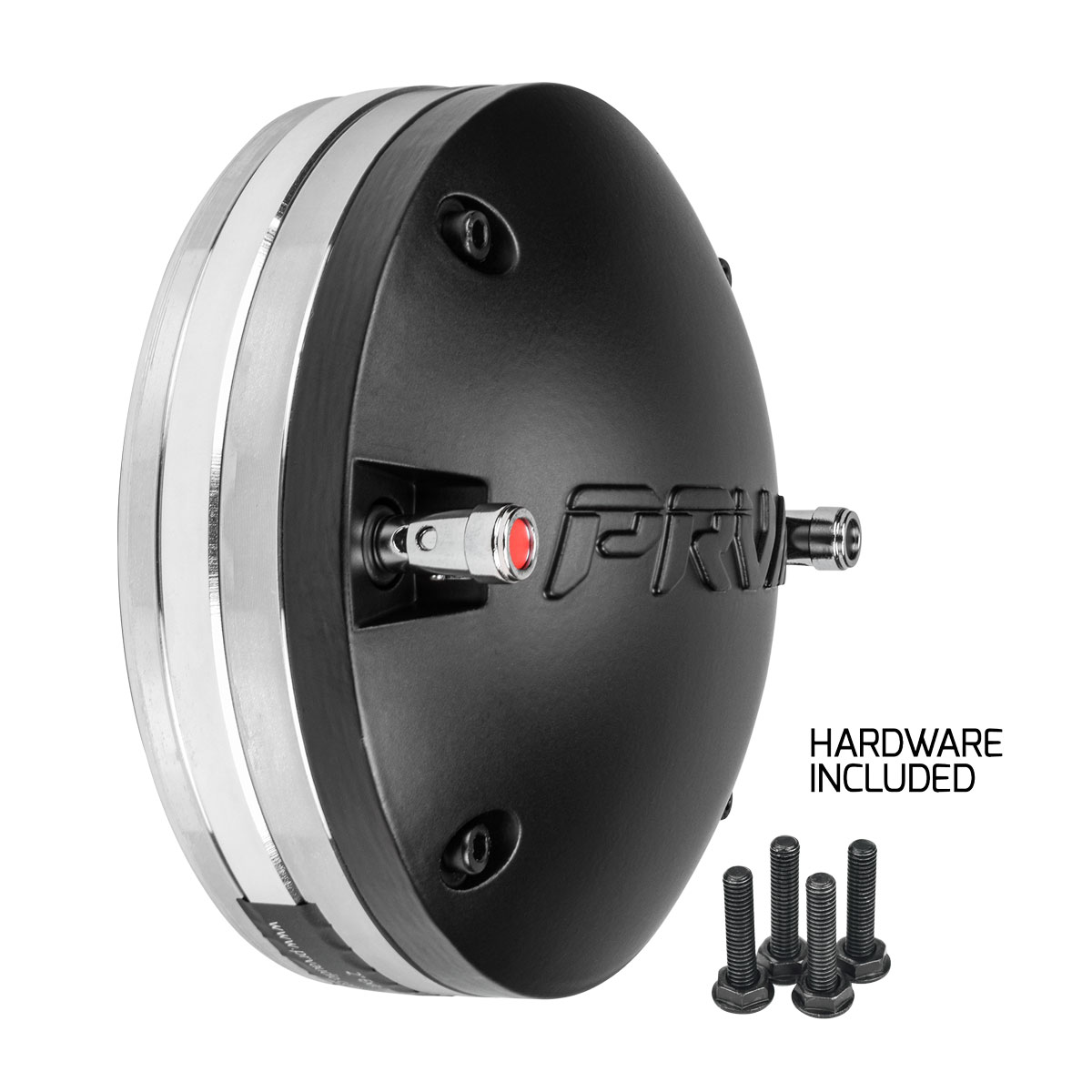

An amazing 109 dB of output with only 1 watt of input power (2.83V), allows the D3220TiH-Nd to be used in even the loudest of environments! Mounting hardware is included.
PRV D3220TiH-Nd Neodymium 2″ Mids and Highs Driver 220 Watts 8 Ohm – Hybrid titanium Diaphragm.
Technical Details
GENERAL SPECIFICATIONS
| Exit Throat Diameter | 2” (50 mm) |
| Nominal impedance | 8 Ohm |
| Nominal Power Handling* | 110 Watts |
| Continuous Program Power(RMS)** | 220 Watts |
| Max Peak Power*** | 440 Watts |
| Sensitivity 2.83V at 1m | 109 dB |
| Recommended Hi Pass Crossover For Full Power Handling |
900 Hz 12db/oct Crossover |
| Frequency Response at -10dB | 800 – 19,000 Hz |
| Voice Coil Diameter | 3” (76 mm) |
| Voice Coil Wire | CCAW |
| Voice Coil Former Material | Kapton |
| Diaphragm Material | Hybrid |
| Flux Density | 2.33 T |
| Magnet Material | Neodymium |
**Continuous Program Power (RMS) is the maximum power that the speaker can handle considering a regular musical program using our recommended filters, this power can be used to define the optimum amplifier power to provide a clean signal without clipping or saturation.
***Max Peak Power is the maximum power operation for the speaker, this power is allowed just for a few fractions of a second, usually found just on the peaks of the music. Keeping this power for a little longer timer will damage the speaker.
EXTRA INFO
| Overall Diameter | 4.88″ (124 mm) |
| Overall Depth | 2.21″ (56 mm) |
| Mounting Bolt circle | M6 x 4″ (102 mm) |
| Net Weight | 5.00 lbs (2.27 kg) |
| Shipping Weight | 5.27 lbs (2.39 kg) |
| Carton Dimensions W x L x H | 5.90″ x 5.31″ x 3.15″ (150 x 135 x 80 mm) |
