2” Exit High Frequency Neodymium Horn Driver Bundle – D4400Ti-Nd + WG14-50 Grey Dual Tone Powerful bundle solution for mid-high vocal and highs reproduction that offers a great response on vocals from 1,300 to 17,000Hz. Perfect component for a 3-Way sound system.
Its high output and smooth midrange frequency response allows you to use this 2″ exit horn driver bundle in almost any high output audio application for vocal reinforcement. Such as: stuntwalls, custom door panels, chuchero ® and designed to make the PROAudioOnWheels® audio systems as unforgettable experience.
Due to its size and power-to-weight ratio, the D4400Ti-Nd has quickly become the preferred choice among professional users as a “Compact yet very Powerful” driver that solves the critical component weight issue! Mounting hardware is included

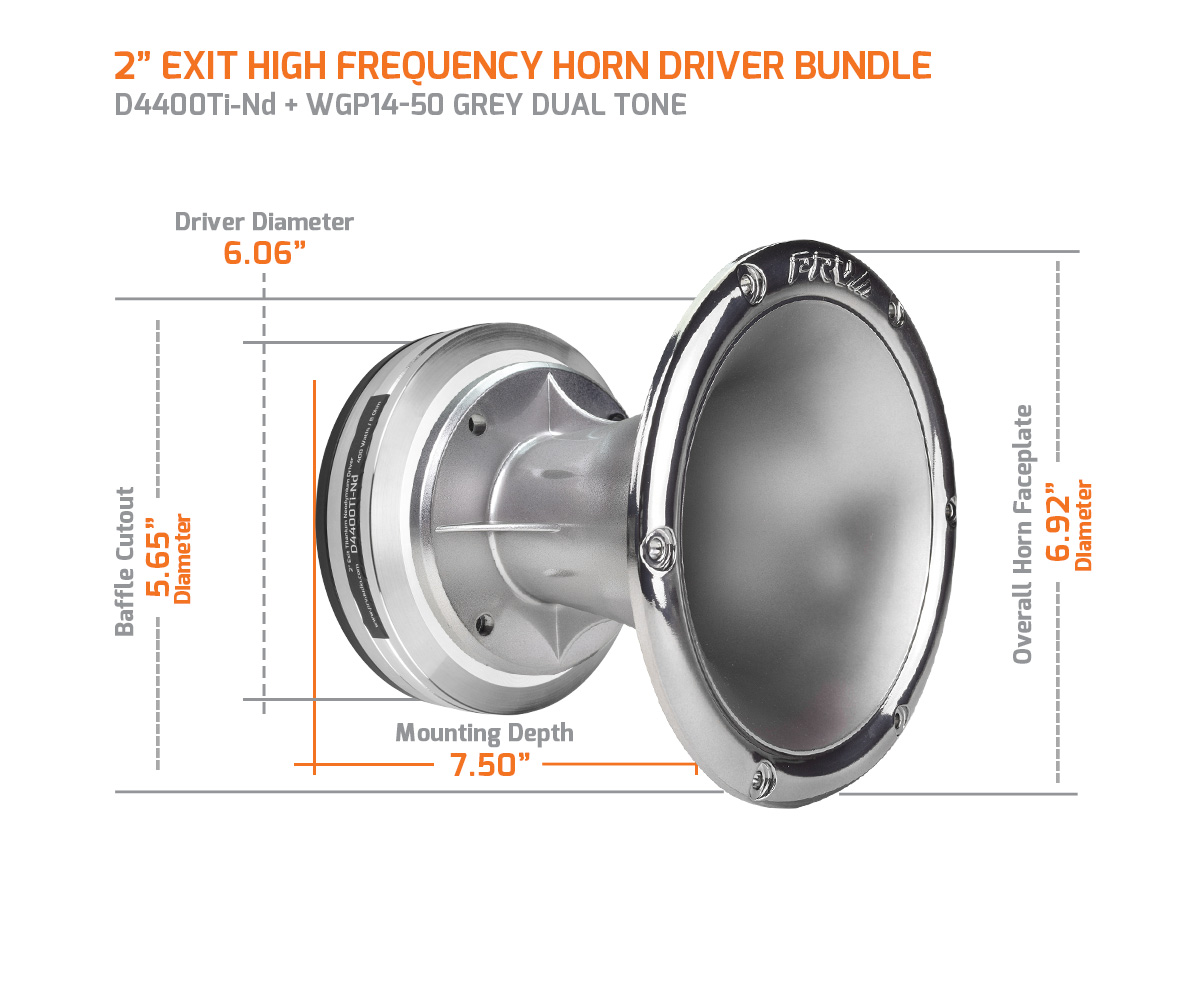

The D4400Ti-Nd combined with the WGP14-50 GREY DUAL TONE Horn, only requires a mounting depth of 7.50″ deep. Overall horn faceplate is only 6.92” Diameter.
1x WGP14-50 GREY DUAL TONE Horn 2” throat Waveguide Grey Color with Chrome lid with matte UV resistant finish Unique Dual Tone Finish
How to Install them: This high frequency horn driver bundle will need 400 Watts RMS per driver with recommended HPF using PRV Digital Signal Processor DSP
1400 Hz at 12 dB per octave filter Crossover / BT12
1200 Hz at 18 dB per octave filter Crossover / BT18

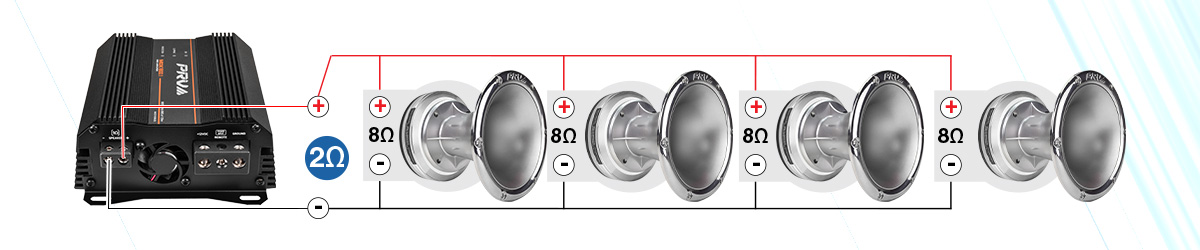

2 Drivers Setup amplifier recommendation: MDX2000.2 at 2 Ohm – Wire 2 to 3 Drivers in parallel to one channel, leaving the other channel for Super Tweeters. 4 Drivers Setup amplifier recommendation: MDX1800.1 at 2 Ohm – Wire 4 Drivers in parallel to the 1 channel amp at 2 Ohm.

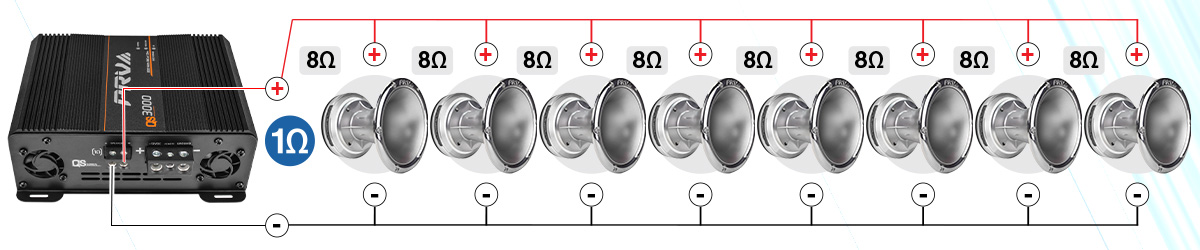

8 Drivers Setup amplifier recommendation: QS3000 at 1 Ohm – Wire 8 Drivers in parallel to the 1 channel amp at 1 Ohm.
