1" EXIT PHENOLIC COMPRESSION DRIVER

DT175Ph-S

(12 customer reviews)
In stock
  • Phenolic HF Driver
  • 1″ Exit Screw-On
  • 108 dB – 150 Watts

From: $19.99

Clear

PRICE FOR SINGLE UNIT

SKU: DT175Ph-S Category: Tags: ,

Features

The DT175Ph-S is a lightweight compression driver that weighs just 1.5lbs, and offers you an economical yet responsive driver through 20kHz. The Phenolic diaphragm offers a more subtle, smooth tone producing a less harsh sound in smaller environments yet packs the punch to fill most any size room.

The DT175Ph-S has a standard 1″ screw-on throat enabling you to quickly replace old worn out or damaged drivers. The most affordable and compact 1″ compression driver from PRV Audio.


Highlights

  • Throat Diameter: 1″
  • Type: Screw-On
  • Nominal Impedance: 8Ω
  • Rated AES Power Handling (RMS): 75 Watts
  • Program Power: 150 Watts

WARNING: Cancer and Reproductive Harm – www.p65warnings.ca.gov

Technical Details

GENERAL SPECIFICATIONS

Exit Throat Diameter 1” (25.4mm)

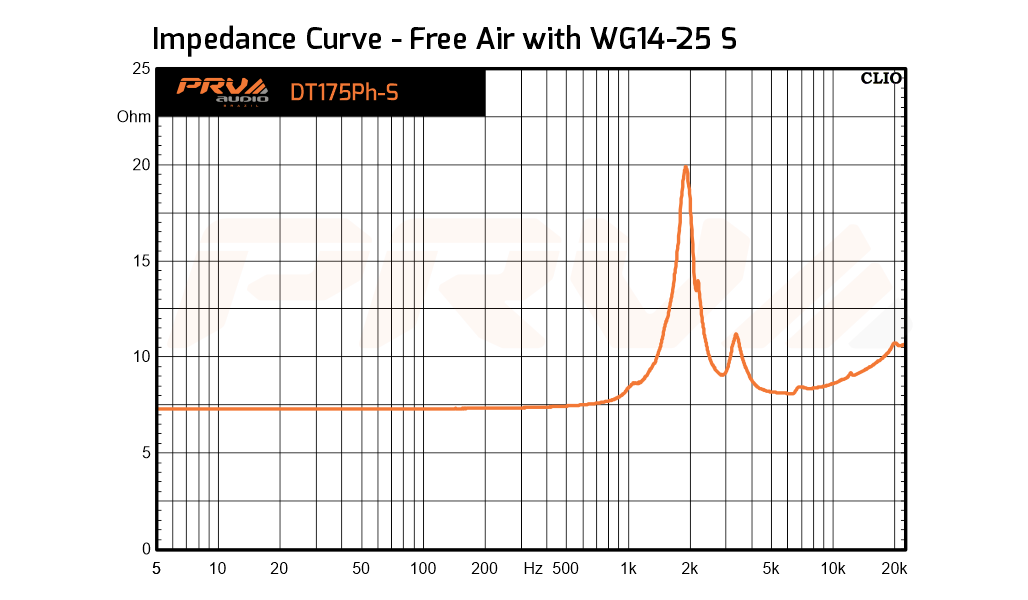

Nominal impedance 8 Ohms
Rated AES Power Handling (RMS) 75 Watts
Program Power 150 Watts
Sensitivity 2.83V at 1m 108 dB
Recommended Hi Pass Crossover**
**For Full Power Handling
3000 Hz**
**12db Per Octave Crossover
Frequency Response at -10dB 1,300 – 19,000 Hz
Voice Coil Diameter 1″ (25.4 mm)
Voice Coil Wire CCAW
Voice Coil Former Material Kapton
Diaphragm Material Phenolic resin
Flux Density 1.02 T
Magnet Material Ferrite




EXTRA INFO

Overall Diameter 3.31” (84 mm)
Overall Depth 2.60” (66 mm)
Mounting Thread 1 3/8” 18 TPI
Net Weight 1.73 lbs (0.79 kg)
Shipping Weight 1.85 lbs (0.84 kg)
Carton Dimensions W x L x H 4.53” x 4.53” x 3.31”
(115 x 115 x 84 mm)



Customer questions & answers

  1. 0 votes
    Q Would this be a direct replacement for an Eminence Apt 50 compression horn?
    Asked by Will on February 24, 2020 1:22 am
    A

    Yes, this would be a good replacement option for you.
