Features

Designed for high performance systems that require high power output but have very little space to spare, the MDX Series features exclusive and patented technologies that ensure a high definition sound quality in the most compact and reliable design.

---

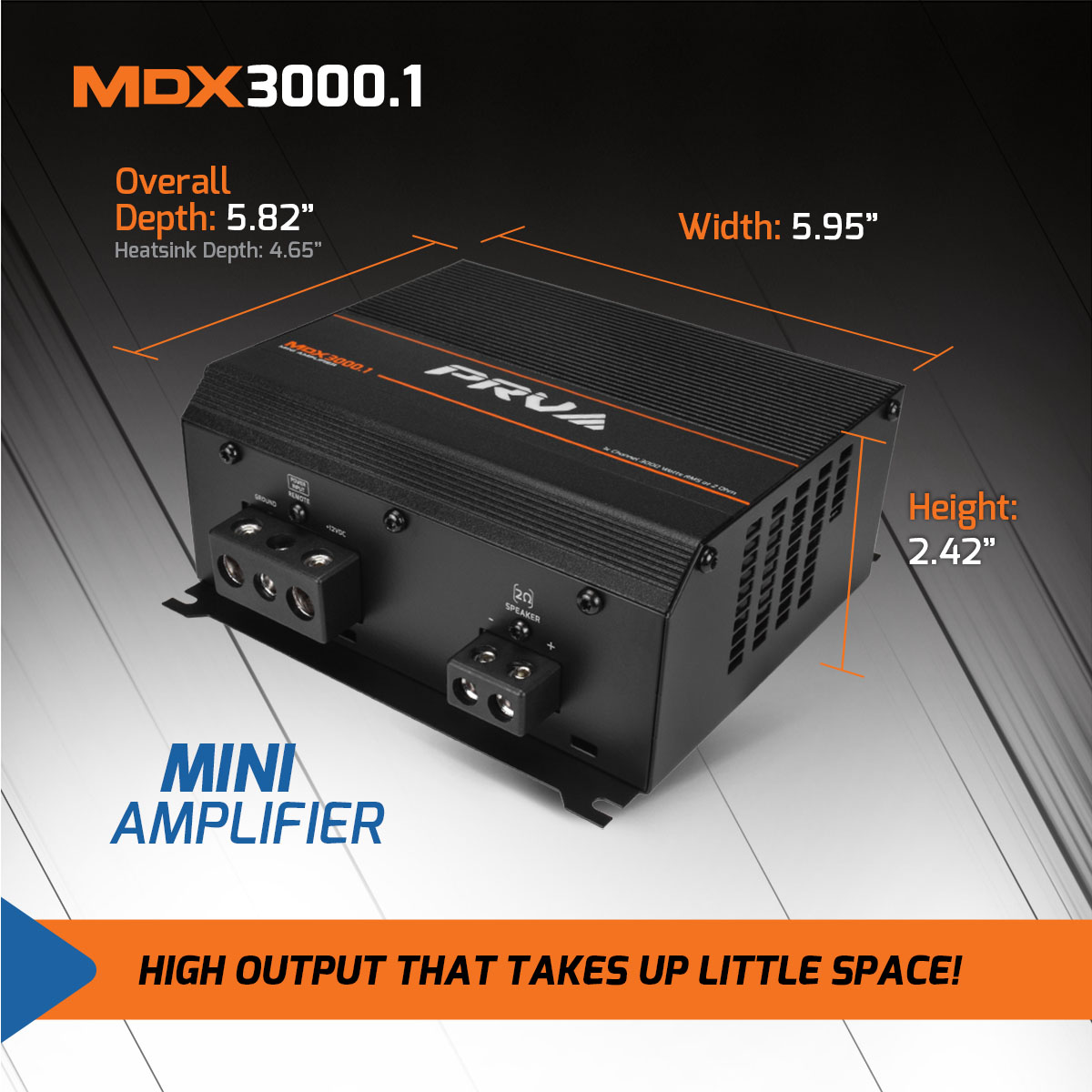

• MINI AMPLIFIER DESIGN – Featuring a small footprint and heavy duty heat sink, this micro amplifier can be easily installed in vehicles, motorcycles, and four-wheelers. Overall size 5.95″ Width by 5.82″ Depth and only 2.42″ Height.
• UNMATCHED PERFORMANCE – Engineered to be the most efficient amplifier able to deliver impressive power output while minimizing the strain on your electrical system. This means you can enjoy the benefits of high power performance without draining your battery quickly.

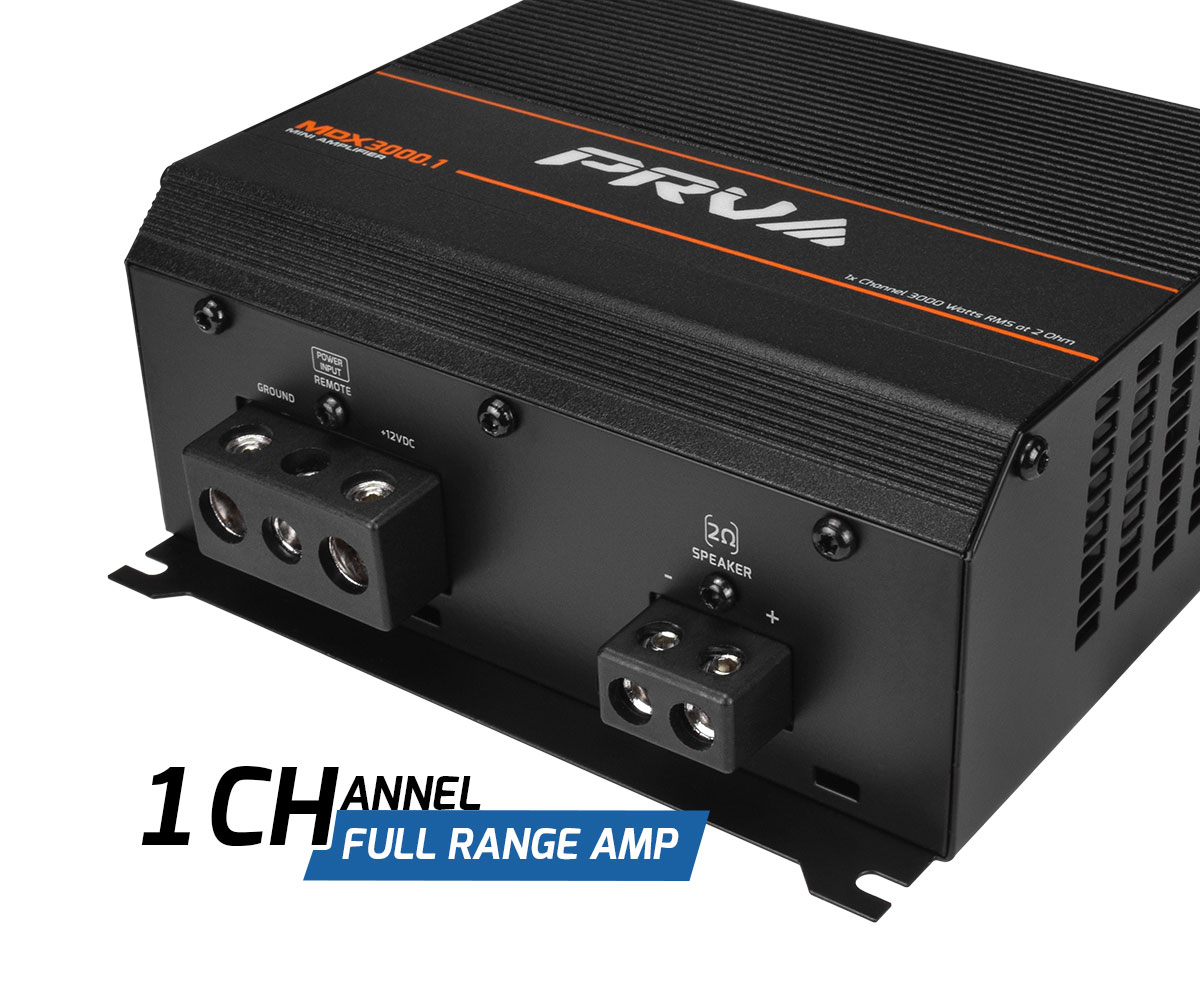

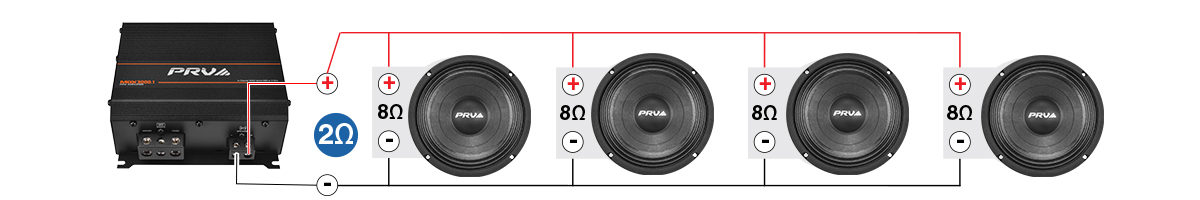

• MORE POWER On COMPACT SIZE – 1 Channel 3000 watts at 2 Ohm TRUE RMS certified. Full Range Digital Class D Technology, gives you the benefit of wiring 4 speakers and dividing the power, 750 Watts RMS per 8 Ohm Speaker.

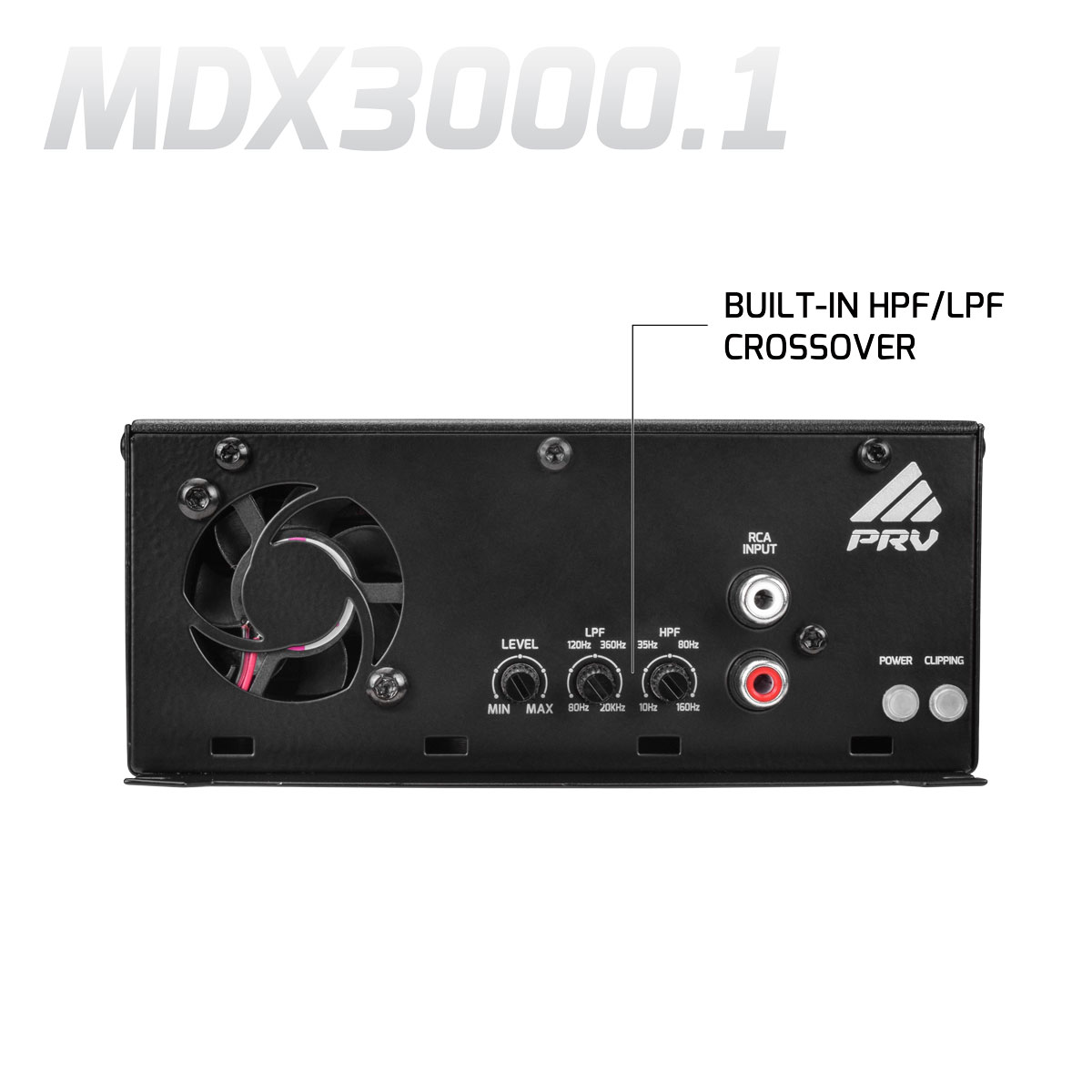

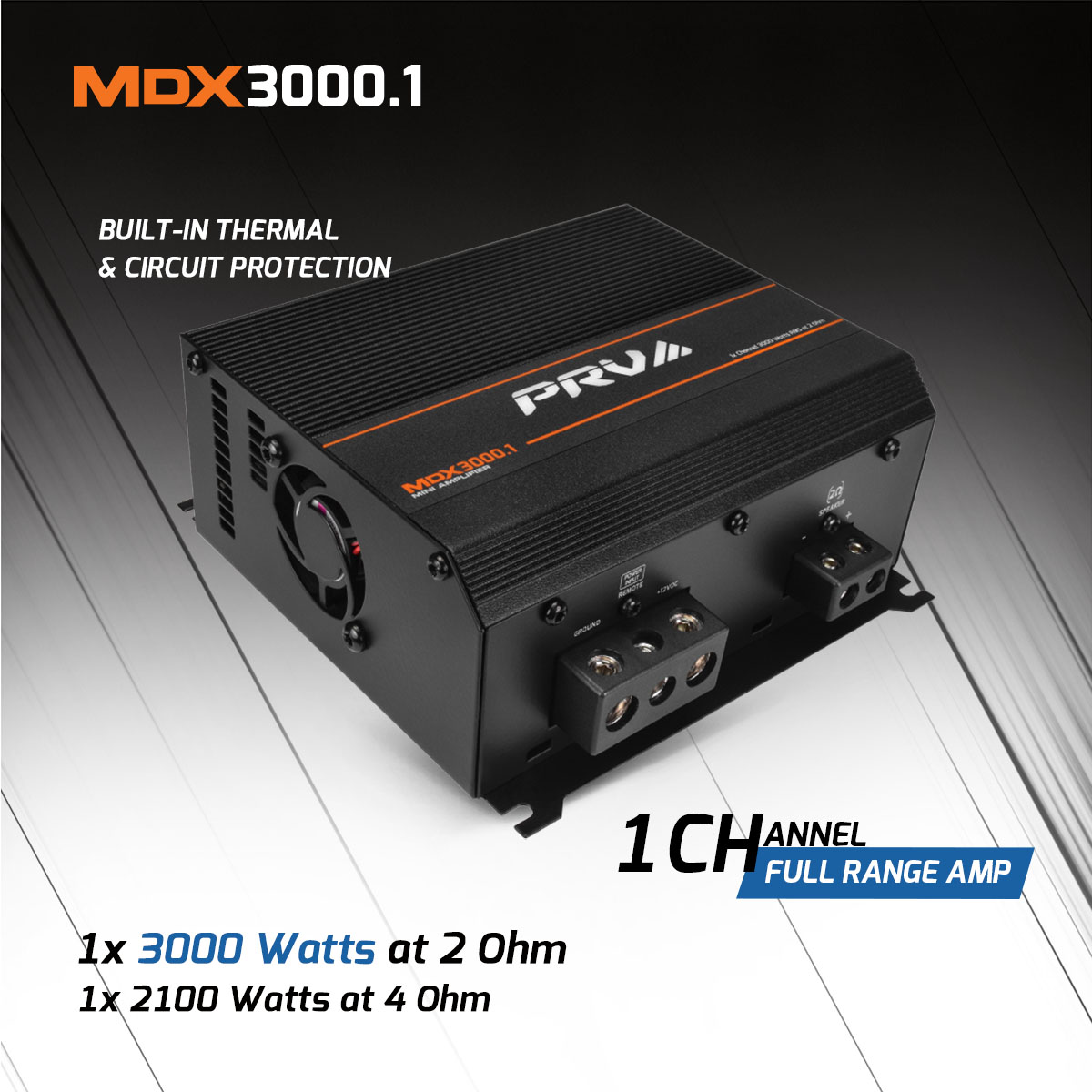

• TECHNOLOGY – 4-way protection circuitry features high voltage, low voltage, shortage, and current protection. Built-in Power/Protection/Clip LED indicators on the top panel

The latest technology on surface mount components ensures best performance against vibration and superior sound quality, allowing enthusiasts and competitors to build the system of their dreams

---

Its wide frequency response allows you to use it in many different applications, such as subwoofers, midbass, midrange, full range speakers, phenolic drivers, titanium drivers, and super tweeters, among others.



Full Range Monoblock	10 to 20,000 Hz
Rated Power at 2 Ohm	1x 3000 Watts RMS
Rated Power at 4 Ohm	1x 2100 Watts RMS

The MDX Series is ideal for motorsport applications such as custom motorcycles, ATVs and Slingshots!

---

High Output that takes up little space!

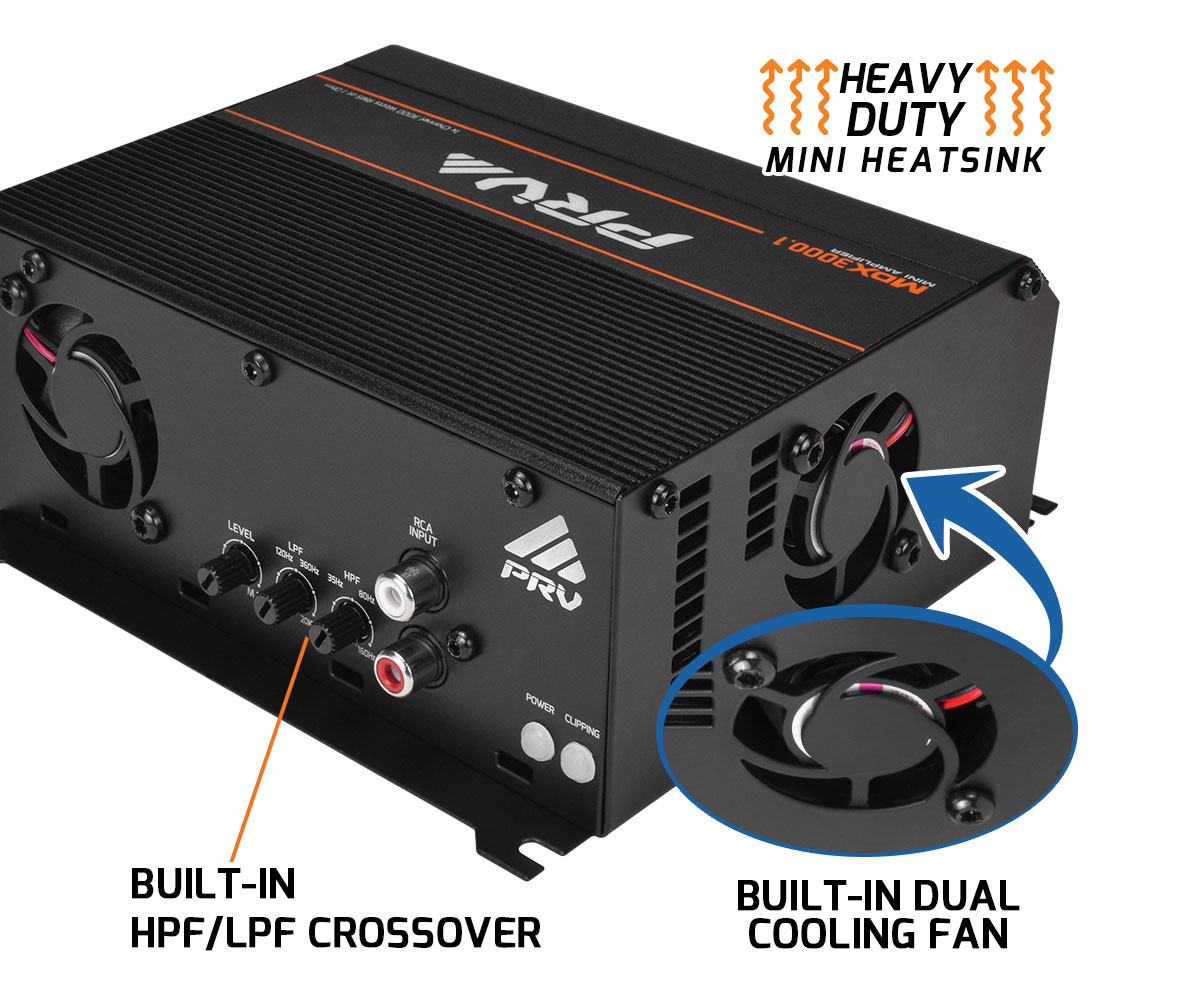

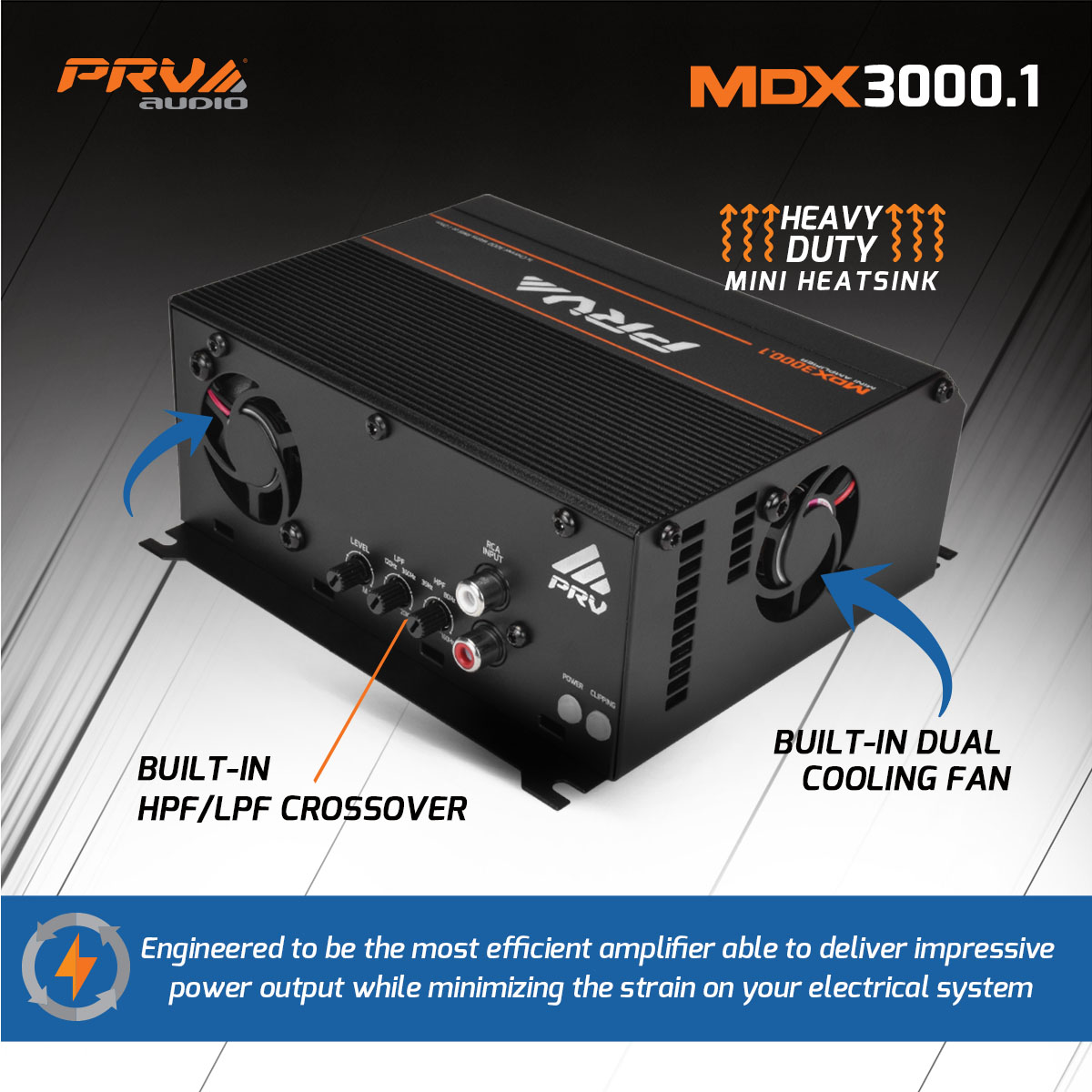

Featuring a mini heavy-duty heatsink, as well as a built-in cooling fans, this amplifier runs cool under even the most demanding playlists.

At only 3 lbs allows any custom system to achieve the highest performance and weight ratio possible.

---

PRV Audio MDX3000.1 2 Ohm MINI 1 Channel Car Audio Amplifier 3000 Watts RMS at 2 Ohm – Full Range Ultra Compact Amp

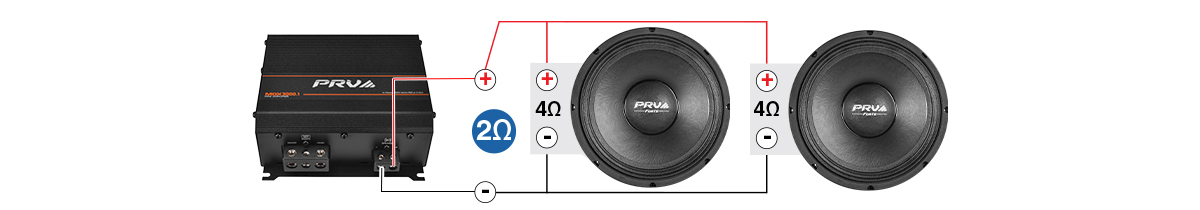

Popular Installation configurations with this amplifier:

Before Installing:

You must follow the instructions for the product’s installation to guarantee optimal performance. If you have any questions, get in touch with us. Before using the amplifier, always follow these guidelines:

• Make sure the amplifier is switched off before adding or removing any connections. This prevents possible damage to equipment.

• Keep all cables as far away as possible from the ignition cables, electronic injection modules and starter switch since they may cause noise interference; Minimum recommended installation distance between amplifier is 2.75”.

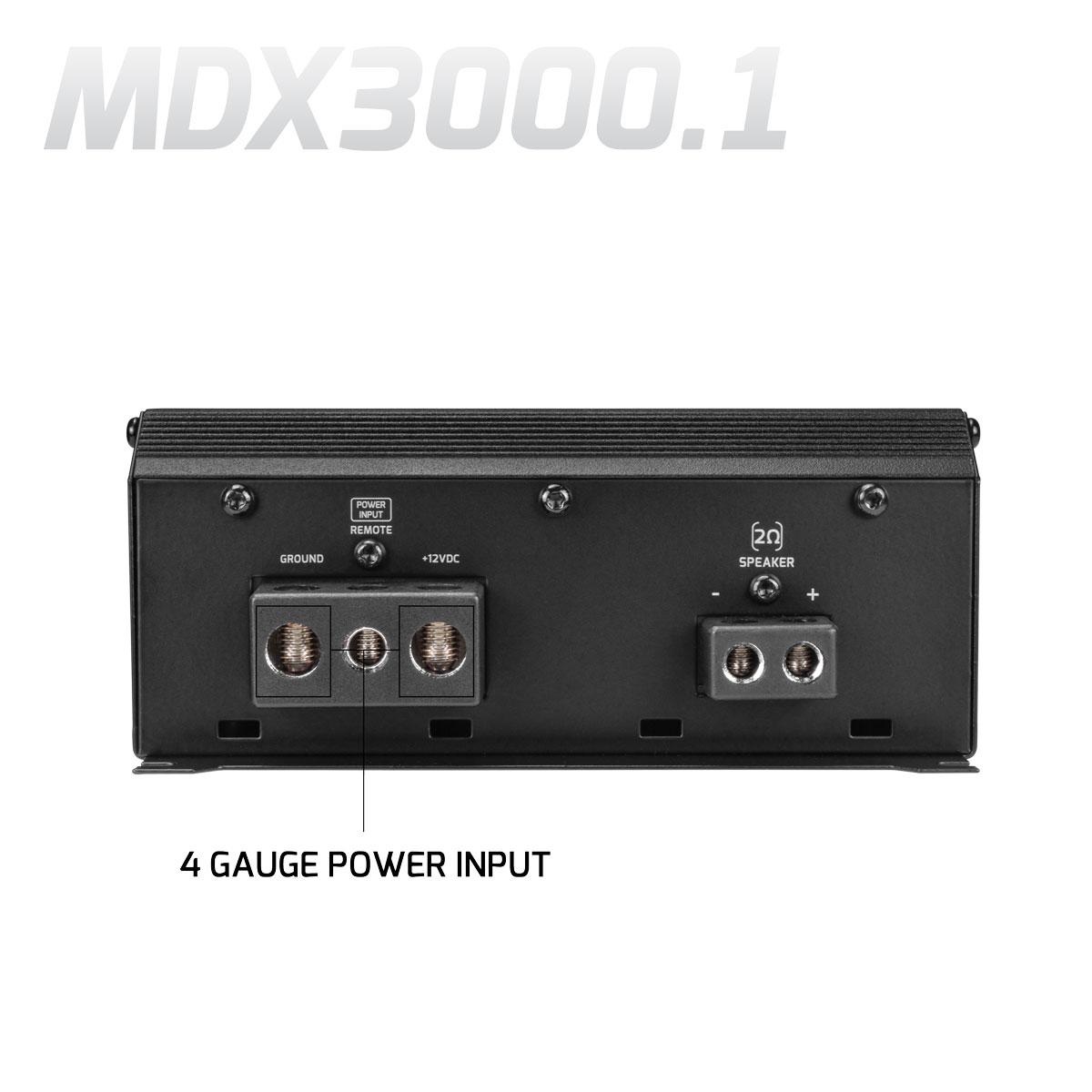

• ONLY use OFC 4 AWG Copper wire for power and ground and minimum of 12 AWG speaker wire and good quality connectors. Copper-clad aluminum wire (CCAW) must not be used. This guarantees reliability and performance.

• To avoid damaging the cables, make sure that they do not touch sharp metal edges. Important: For this amp use a 150A fuse 12 inches away from the battery as a safety precaution. The power rating data is based on equipment from the PRV Audio Group laboratory. Rated power tested with 60Hz to 1KHz sinusoidal signal and THD <= 1%, with resistant load referring to the indicated measurements. The electronic components and the manufacturing process can present manufacturing variations, thus leading to a variation in the measurements made. This amplifier is designed to perform on music applications ( with speakers ), any load test ( resistant load ) is not recommended.

PRV Audio products are guaranteed for a period of ONE (1) YEAR from the date of original purchase against any manufacturer’s defects in material and workmanship under normal use.

GENERAL SPECIFICATIONS

The power rating data is based on equipment from the PRV Audio Group laboratory. Rated power tested with 60Hz to 1KHz sinusoidal signal and THD <= 1%, with resistant load referring to the indicated measurements. The electronic components and the manufacturing process can present manufacturing variations, thus leading to a variation in the measurements made. This amplifier is designed to perform on music applications ( with speakers ), any load test ( resistant  load ) is not recommended.
