8" NEODYMIUM MIDBASS LOUDSPEAKER

MT8MB600CF-NDY-4

In stock
  • 8″ Midbass – 4 Ohm
  • Neodymium Magnet
  • 96 dB – 600 Watts

$203.92

In stock

PRICE FOR SINGLE UNIT

Features

Features

PRV Audio is proud to present our new MOTO Series (MT), high performance PRO audio line dedicated for motorsports installations, focused on bringing to you the latest innovative materials and components to resist weather conditions and to provide the highest sound reproduction possible.

This midrange loudspeaker established the new benchmark for vocal reproduction for outdoor applications, making it ideal for improving the sound system in your boat, UTV, 4 wheeler, Slingshot or Motorcycle.

Due to the premium materials used in its construction, such as a special treated carbon fiber cone, a high-temperature voice coil, and a strong neodymium magnet motor, this speaker produces its natural sound with remarkably low distortion.


MT8MB600CF-NDY-4 Main Highlight
  • Water Resistant Speaker with true PRO Audio Midbass low frequency performance
  • Coated lightweight carbon fiber cone lowers moving mass and minimizes unwanted resonances
  • 8″ PRO Audio Midbass loudspeaker designed for Low Frequencies at High Power – 4 Ohm
  • Able to handle 600 Watts RMS, with a 96 dB Sensitivity with a High Xmax of 4.75 mm
  • Premier Outdoor Speaker Designed for Sound Competition is perfect for applications with limited weight or space, such as slingshot pods, motorcycle fairings, and saddlebags

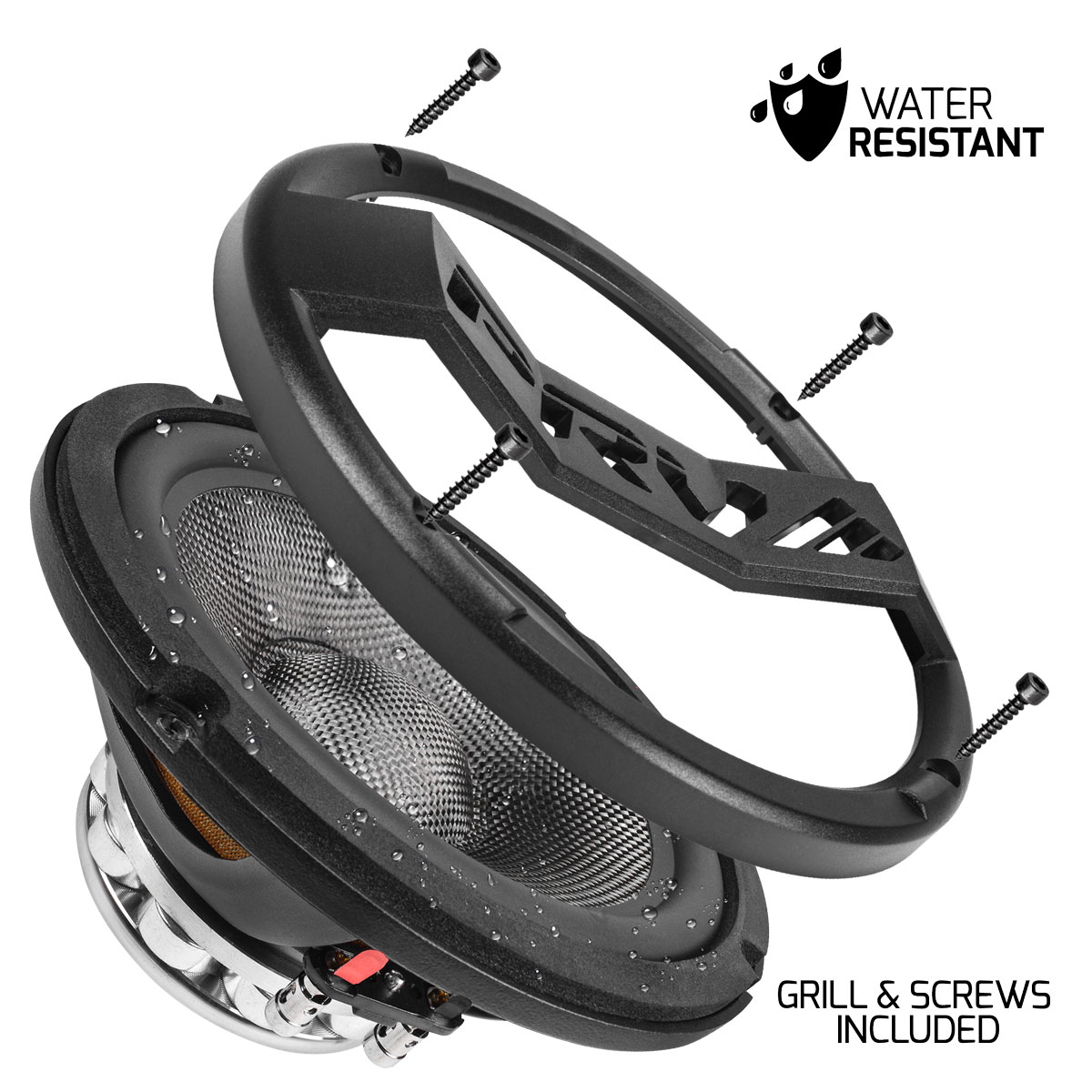

  • Grill and screws are included

MT8MB600CF-NDY-4 Highlight Terminals

Its low-mass yet stiff cone produces clean, detailed, high-impact sound reproduction and consistent high output levels in a low frequency bandwidth between 65 and 5,700 Hz, making sure to reproduce all low frequencies with authority!

This mid is perfect for applications where weight and space is limited, such as custom slingshot pods, motorcycle fairings and saddlebags, that make this driver a popular speaker choice among high output car and motorsport audio enthusiasts.


PRV 8″ Motorcycle Speaker MT8MB600CF-NDY-4 Water Resistant 600 Watts / 4 Ohm Neodymium Low Frequency Midbass High Power

Recommended Amplifier configurations and crossover points:

Recommended HPF using PRV Digital Signal Processor DSP when using up to 600 Watts RMS musical power

  • 80 Hz at 12 dB per octave filter Crossover / BT12
  • 70 Hz at 18 dB per octave filter Crossover / BT18

Recommended LPF is 2,200 at 18 dB per octave filter Crossover / LR18 but you may set it lower to blend in better depending on the other components in your system.

Technical Details

GENERAL SPECIFICATIONS

Nominal Diameter 8″ (203 mm)
Nominal impedance 4 Ohm
Nominal Power Handling* 300 Watts
Continuous Program Power (RMS)** 600 Watts
Max Peak Power*** 1200 Watts
Sensitivity 2.83V at 1m 96 dB
Recommended Hi Pass Crossover For Full Power Handling 80 Hz 12db Per Octave Crossover
Frequency Response 65 – 5,700 Hz
Voice Coil Diameter 2.0″ (51 mm)
Voice Coil Wire CCAW
Voice Coil Winding Depth 13.0 mm
Former Material Kapton
Magnetic Gap Depth 7.0 mm
Frame Material Die Cast Aluminum

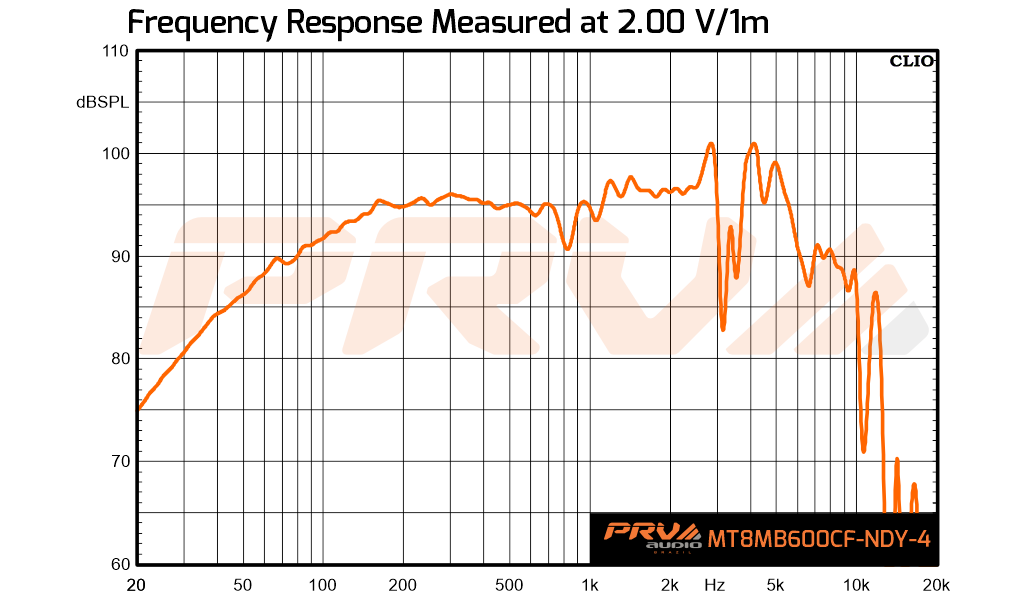

MT8MB600CF-NDY-4-Frequency-Response
*Nominal power handling is defined as the maximum RMS power that the speaker can handle in a 2-hour test with a pink noise with 6dB of crest factor and a bandpass filter with 12db/oct tuned in its usable frequency range. **Continuous Program Power (RMS) is the maximum power that the speaker can handle considering a regular musical program using our recommended filters, this power can be used to define the optimum amplifier power to provide a clean signal without clipping or saturation. ***Max Peak Power is the maximum power operation for the speaker, this power is allowed just for a few fractions of a second, usually found just on the peaks of the music. Keeping this power for a little longer timer will damage the speaker.

THIELE-SMALL PARAMETERS

Equivalent Volume Vas 18.8 l
Excursion (mathematical)*** Xmax 4.75 mm
Free Air Resonance Fs 64.5 Hz
Mechanical Factor Qms 14.06
Electrical Factor Qes 0.38
Total Factor Qts 0.37
Cone Area Sd 227 cm²
Mechanical Mass Mms 23.32 g
Bl Factor Bl 9.32 Tm
Dc Resistance Re 3.5 Ohm
Inductance Le 0.202mH at 1 kHz
Mechanical Mass Without Air Mmd 21.39 g
Mechanical Compliance Cms 0.261 mm/N

***Xmax=(Voice coil winding depth-Magnetic Gap depth)/2+ Magnetic Gap Depth/4

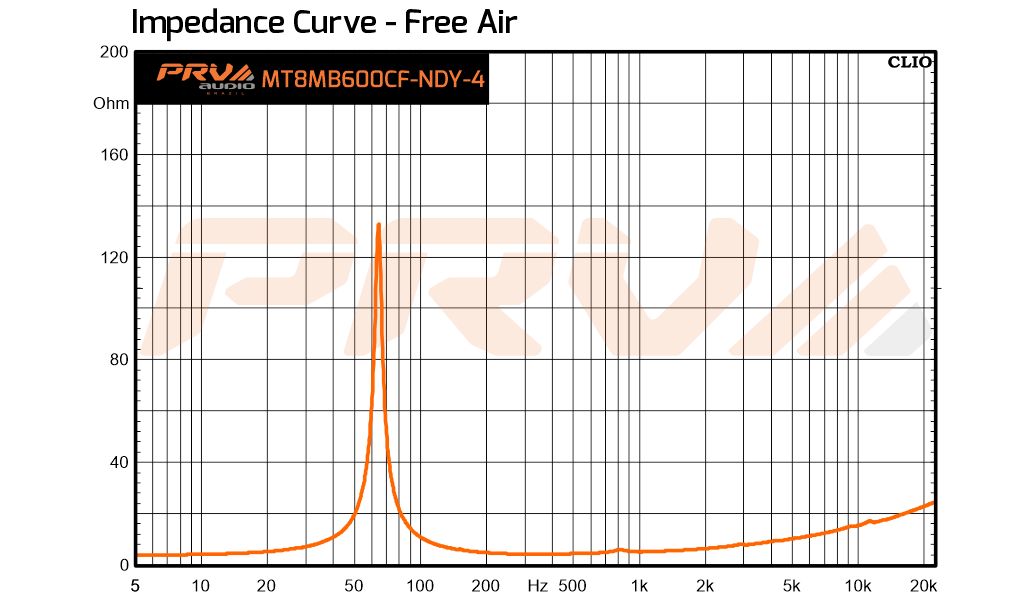

MT8MB600CF-NDY-4-Impedance

EXTRA INFO

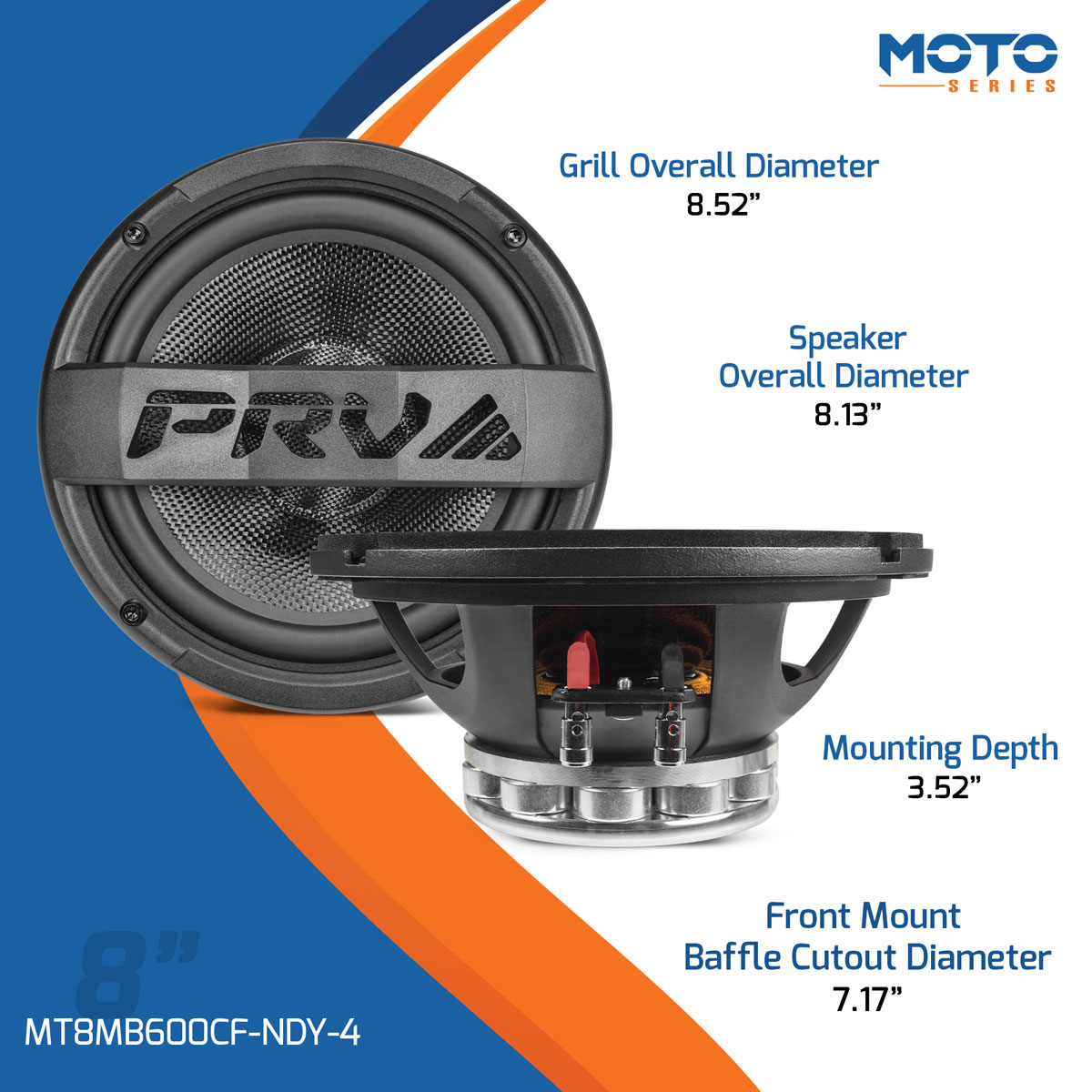

Overall Diameter 8.13″ (206.5 mm)
Front Mount Baffle Cutout 7.17″ (182.2 mm)
Mounting Depth 3.52″ (89.5 mm)
Overall Depth 4.84 (123 mm)
Net Weight 4.55 Lbs (2.1 kg)
Shipping Weight 5.07 Lbs (2.3 kg)
Carton Dimensions W x L x H 10.35″ x 9.92″ x5.71″ (263 x 252 x 145 mm)

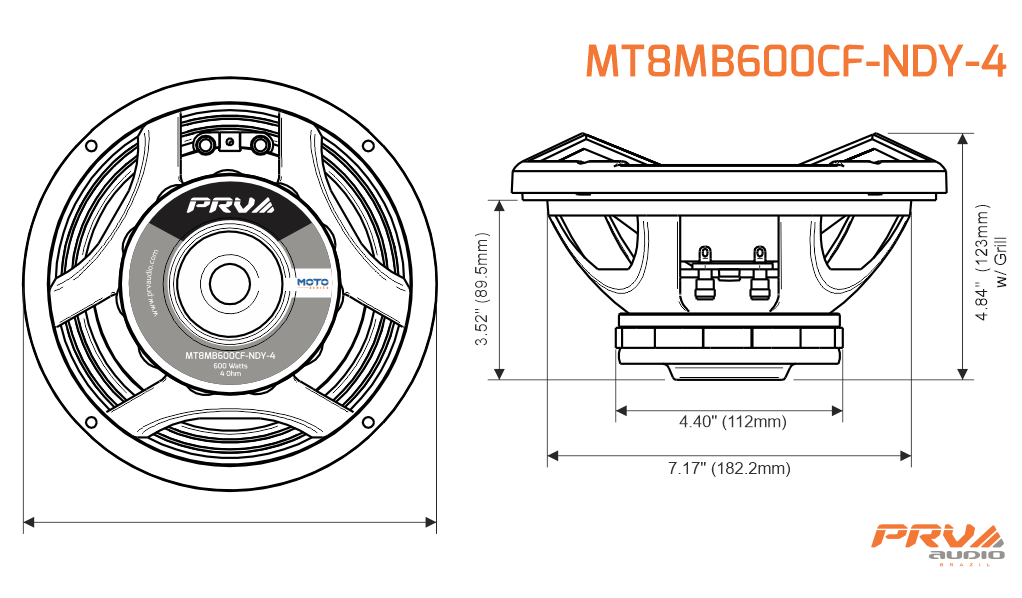

MT8MB600CF-NDY-4-Dimensions

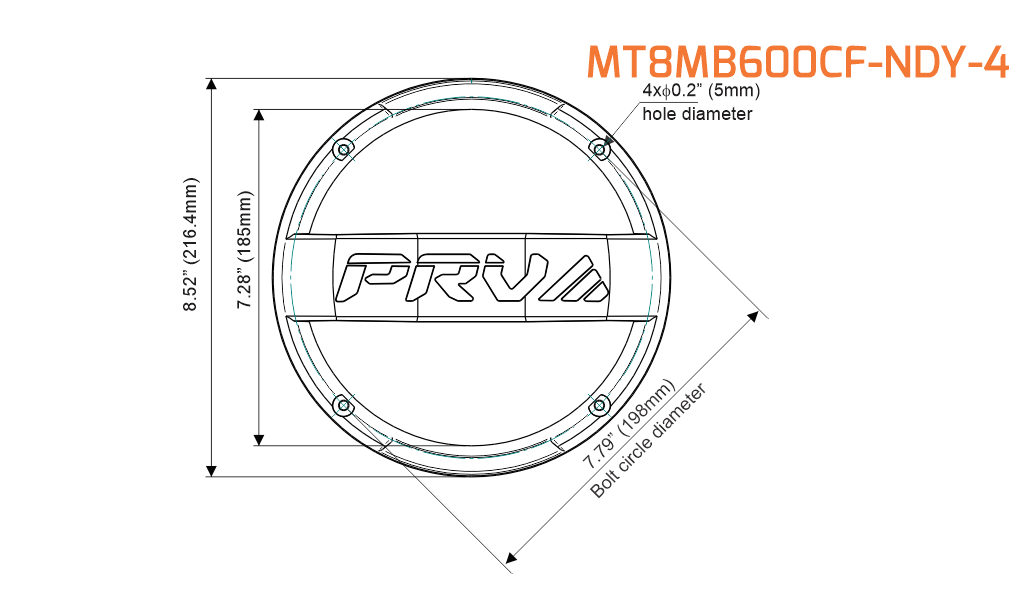

MT8MB600CF-NDY-4-Grill-Dimensions
