6MB200-4 v2
-
- 6.5″ Midbass – 4 Ohm
- Ferrite Magnet
- 93.5 dB – 200 Watts
$29.91
In stock
PRICE FOR SINGLE UNIT
BUY MORE, SAVE MORE
Features
Features
The PRV Pro Audio 6MB200-4 v2 midbass woofer offers exceptional durability and the smooth punch of mid bass response in a small enclosure. This midbass is perfect for car audio applications such as door speakers to significantly increase output using the stock location.
- A deep midbass response along with a strong vocal response
- Outstanding durability and strong impactful midbass for a car stereo
- Natural paper cone and double-roll surround for smooth response
- Handles 200 Watts, guaranteeing endurance at loudest volumes
- Impressive choice for car audio systems – 4 Ohm impedance also available in 8 Ohm
The 6MB200 v2 now has a more extended midrange response, up to 6.5 kHz giving it clean vocals. Loud and clear vocals all within 2.60″ of mounting depth without sacrificing quality and performance.
The magnet and motor assembly are attached to a sturdy reinforced steel frame, ensuring a solid support structure and long lasting play in most any environment.
Its light weight of only 3.3 Lbs helps to keep your enclosure light, making it perfect for custom door panels.
PRV Audio 6.5” Car Speaker 6MB200-4 Midbass 200 Watts 4 Ohm – High Output PRO Audio
Technical Details
GENERAL SPECIFICATIONS
| Nominal Diameter | 6″ (152 mm) |
| Nominal impedance | 4 Ohm |
| Nominal Power Handling | 100 Watts |
| Continuous Program Power (RMS) | 200 Watts |
| Max Peak Power | 400 Watts |
| Sensitivity 2.00V at 1m | 93.5 dB |
| Recommended Hi Pass Crossover* *For Full Power Handling | 125 Hz** **12db Per Octave Crossover |
| Frequency Response at -10dB | 125 – 6,500 Hz |
| Voice Coil Diameter | 1.5″ (38 mm) |
| Voice Coil Wire | Copper |
| Voice Coil Winding Depth | 12.5 mm |
| Former Material | Kapton |
| Magnetic Gap Depth | 5.8 mm |
| Frame Material | Stamped Steel |
THIELE-SMALL PARAMETERS
| Equivalent Volume | Vas | 3.97 l |
| Excursion (mathematical)*** | Xmax | 4.80 mm |
| Free Air Resonance | Fs | 123.79 Hz |
| Mechanical Factor | Qms | 20.84 |
| Electrical Factor | Qes | 1.02 |
| Total Factor | Qts | 0.97 |
| Cone Area | Sd | 154 cm² |
| Mechanical Mass | Mms | 11.89 g |
| Bl Factor | Bl | 5.79 Tm |
| Dc Resistance | Re | 3.7 Ohms |
| Inductance | Le | 0.18 mH at 1 kHz |
| Mechanical Mass Without Air | Mmd | 10.92 g |
| Mechanical Compliance | Cms | 0.139 mm/N |
***Xmax=(Voice coil winding depth-Magnetic Gap depth)/2+ Mgnetic Gap Depth/4
EXTRA INFO
| Overall Diameter | 6.53″ (166 mm) |
| Front Mount Baffle Cutout | 5.63″ (143 mm) |
| Mounting Depth | 2.6″ (66 mm) |
| Overall Depth | 2.91″ (74 mm) |
| Net Weight | 3.30 Lbs (1.50 kg) |
| Shipping Weight | 3.62 Lbs (1.64 kg) |
| Carton Dimensions W x L x H | 7.17″ x 7.17″ x 4.13″ (182 x 182 x 105 mm) |
Customer Reviews

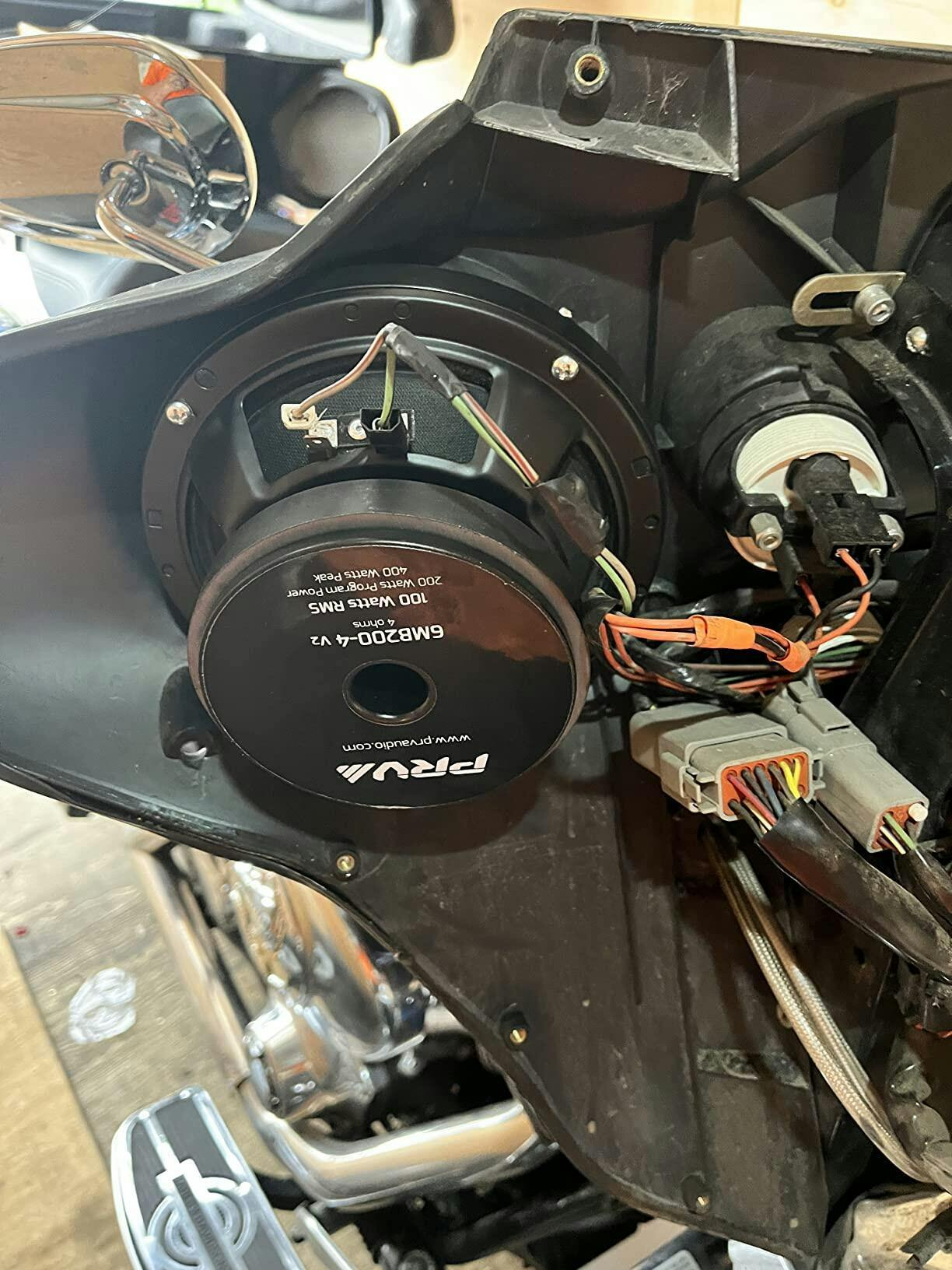

Purchased these to upgrade the speakers in my Electra glide used a set of adapter rings much better sounds then the old stock ones and they fit perfectly in the fairing
Best bang for your buck
Setup
Mid range
Mid bass
Supertweeter
+audio pipe crossover
Have them on a Taramp 800x4 sounds great
Perfect fit sounds great love the product would definetly recommend this speaker

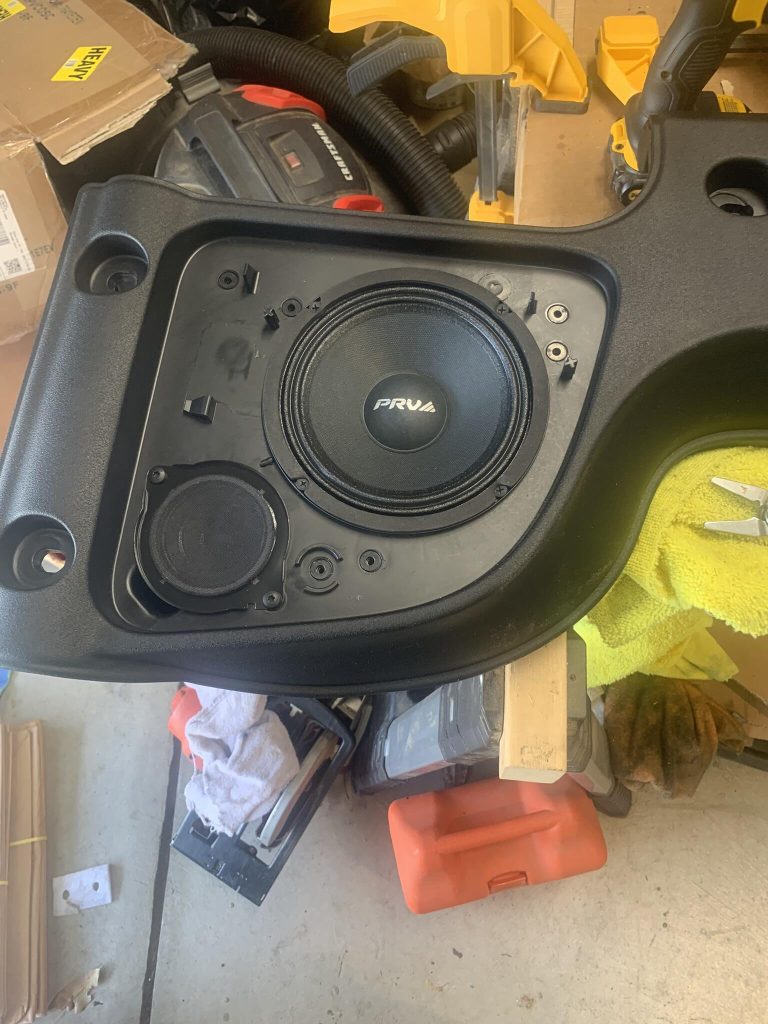

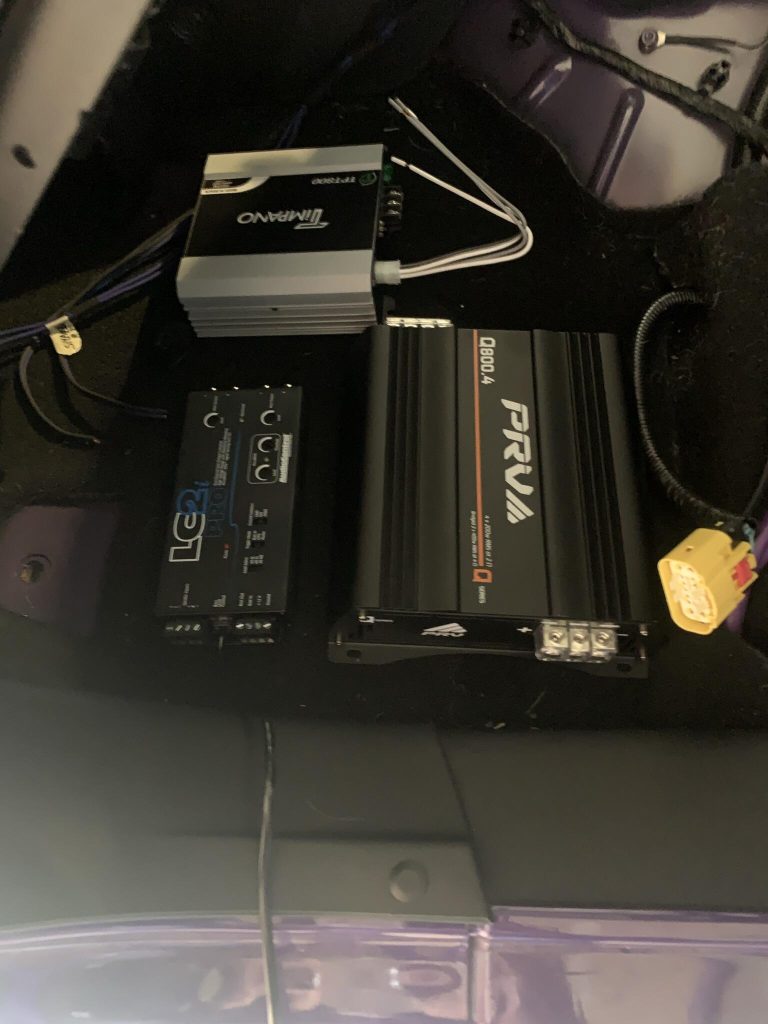

Put these MB200’s in my wife’s Jeep sound bar paired with the TW100 tweeters on a PRV Q800.4. Great mid bass and smooth highs. Louder and as clear as my ampere audio dream series components! PRV for life!
