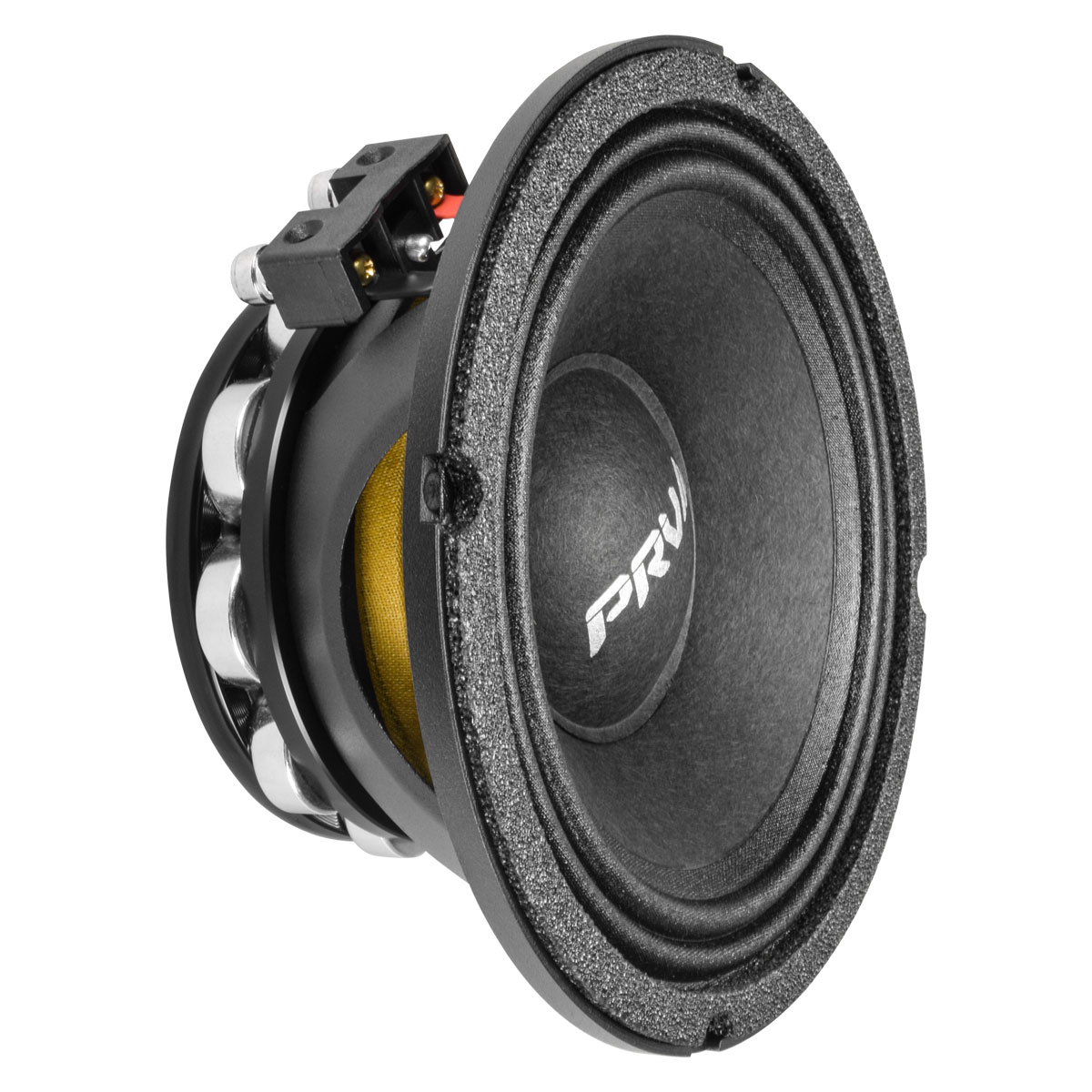

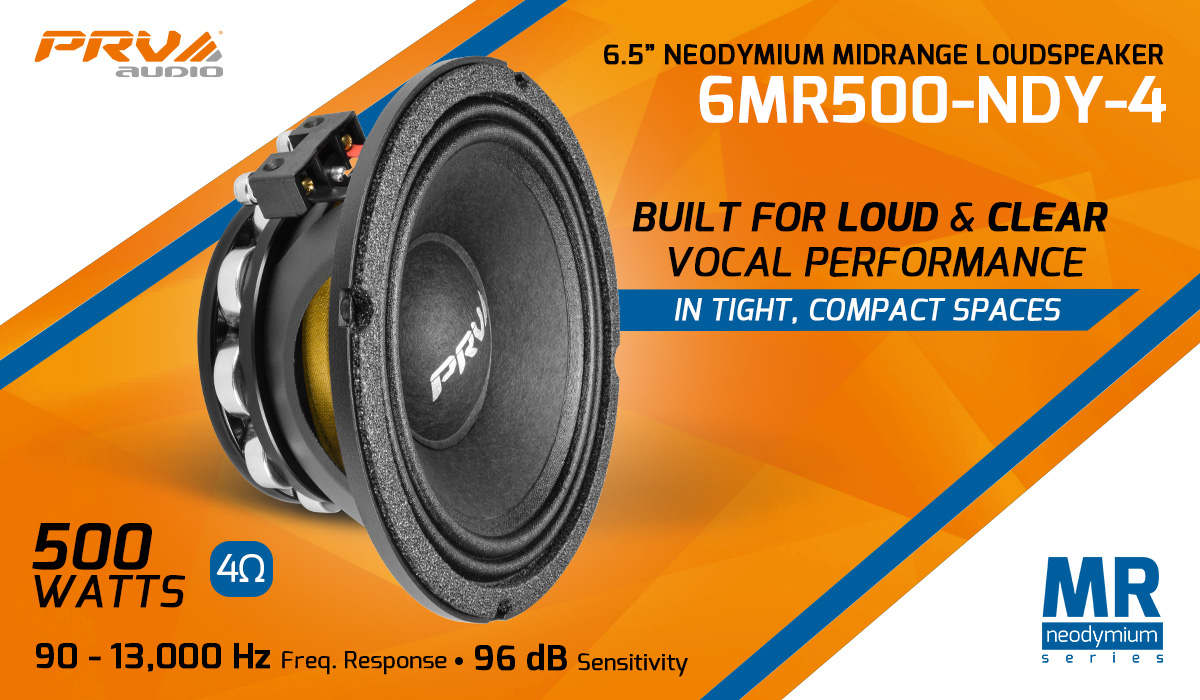

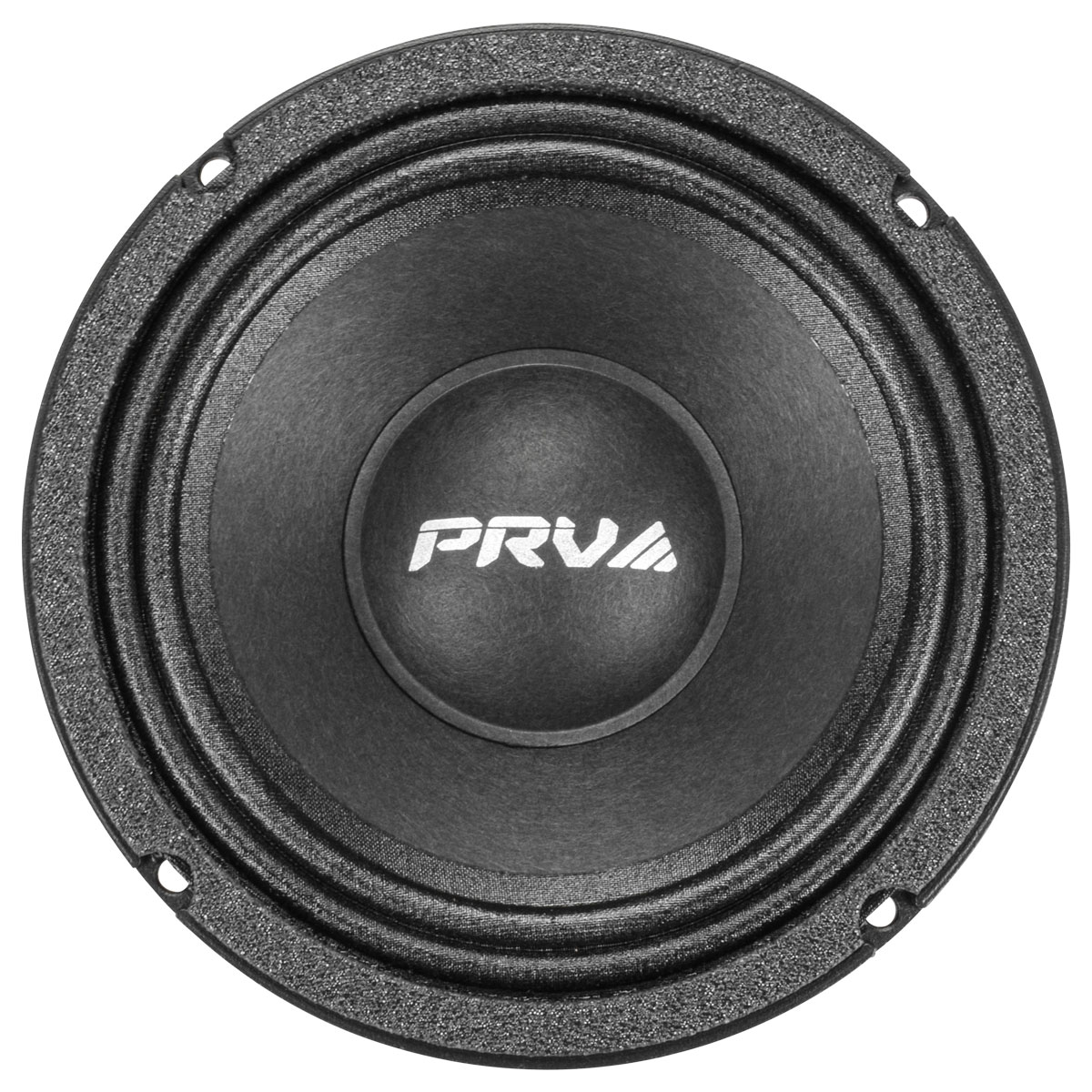

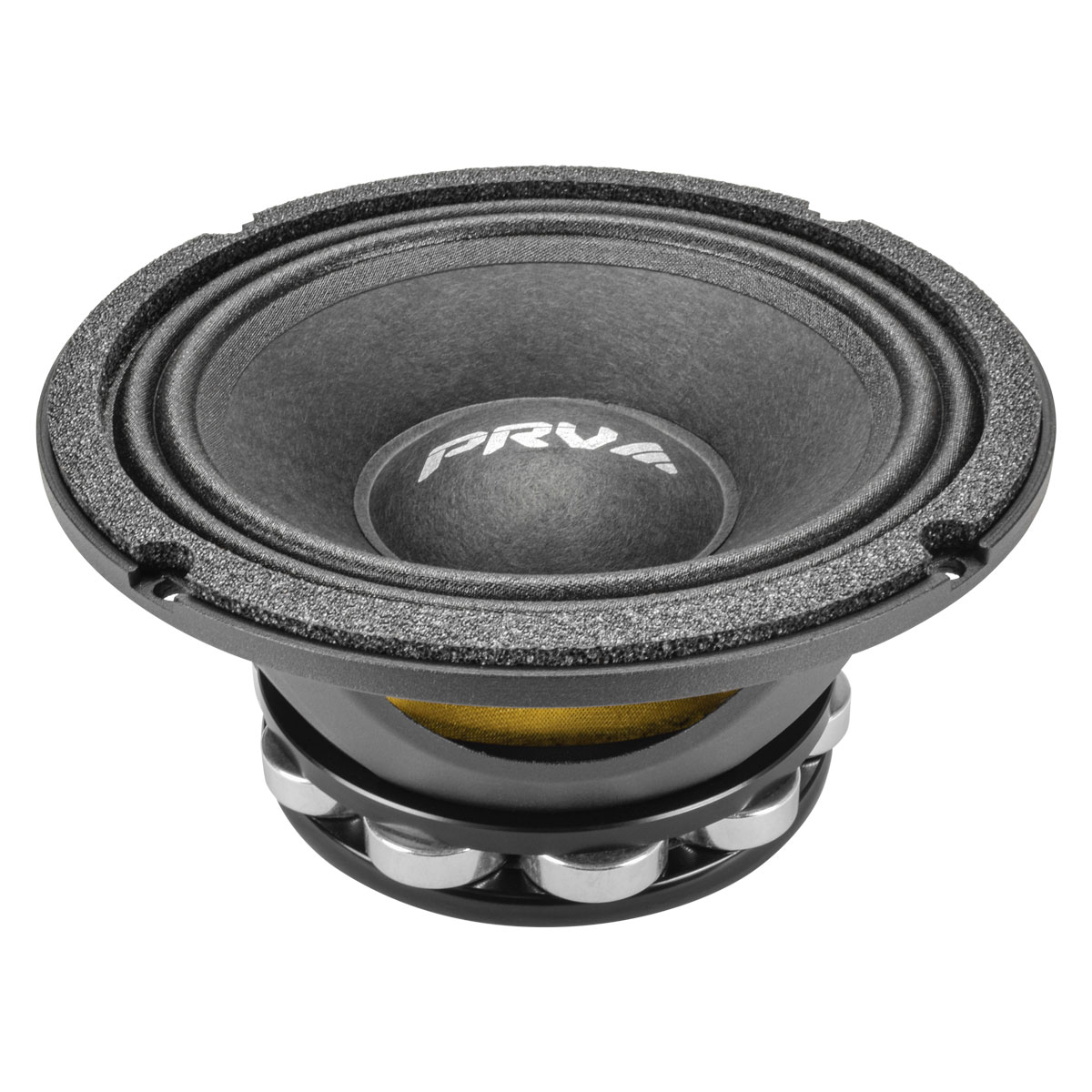

6MR500-NDY-4
-
- 6.5″ Midrange – 4 Ohm
- Neodymium Magnet
- 96 dB – 500 Watts
$129.91
In stock
PRICE FOR SINGLE UNIT
Features
Features
The PRV Audio Pro Audio Loudspeaker, 6MR500-NDY-4 and midrange woofer offers outstanding durability and a smooth full range response through 13,000 Hz. This woofer is perfect for home Hi-Fi installs, including bookshelf, satellite, surround sound speakers and even the home studio monitors. It is a great option for three way cabinets requiring additional midrange support.

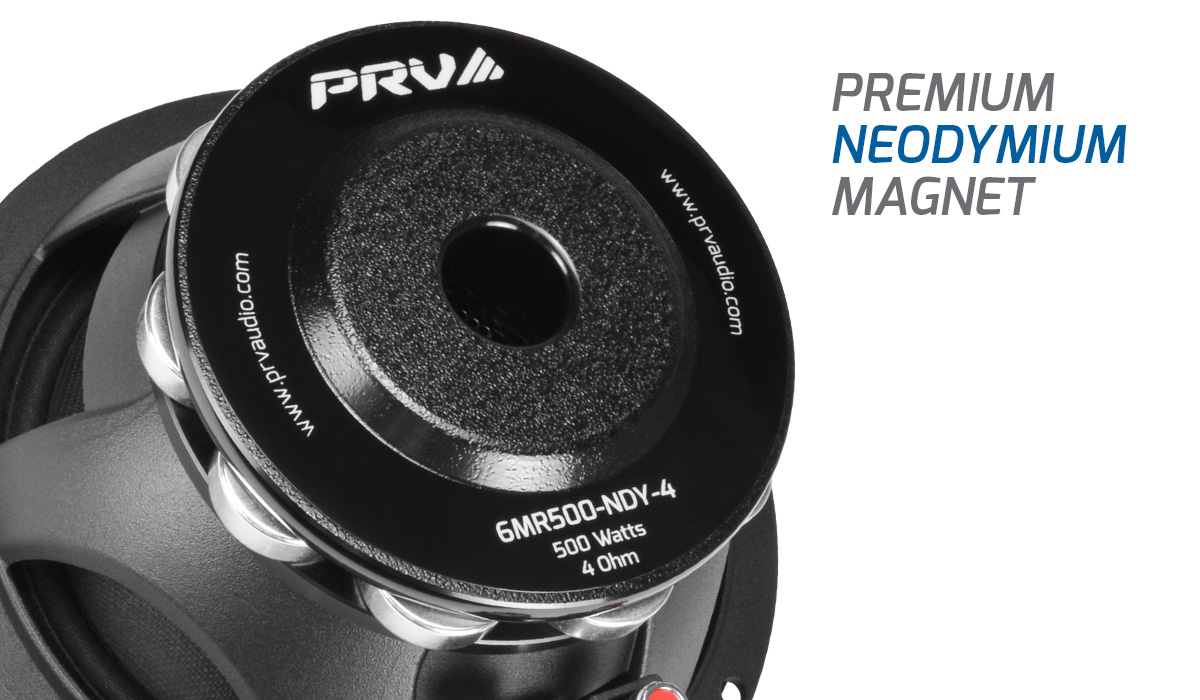

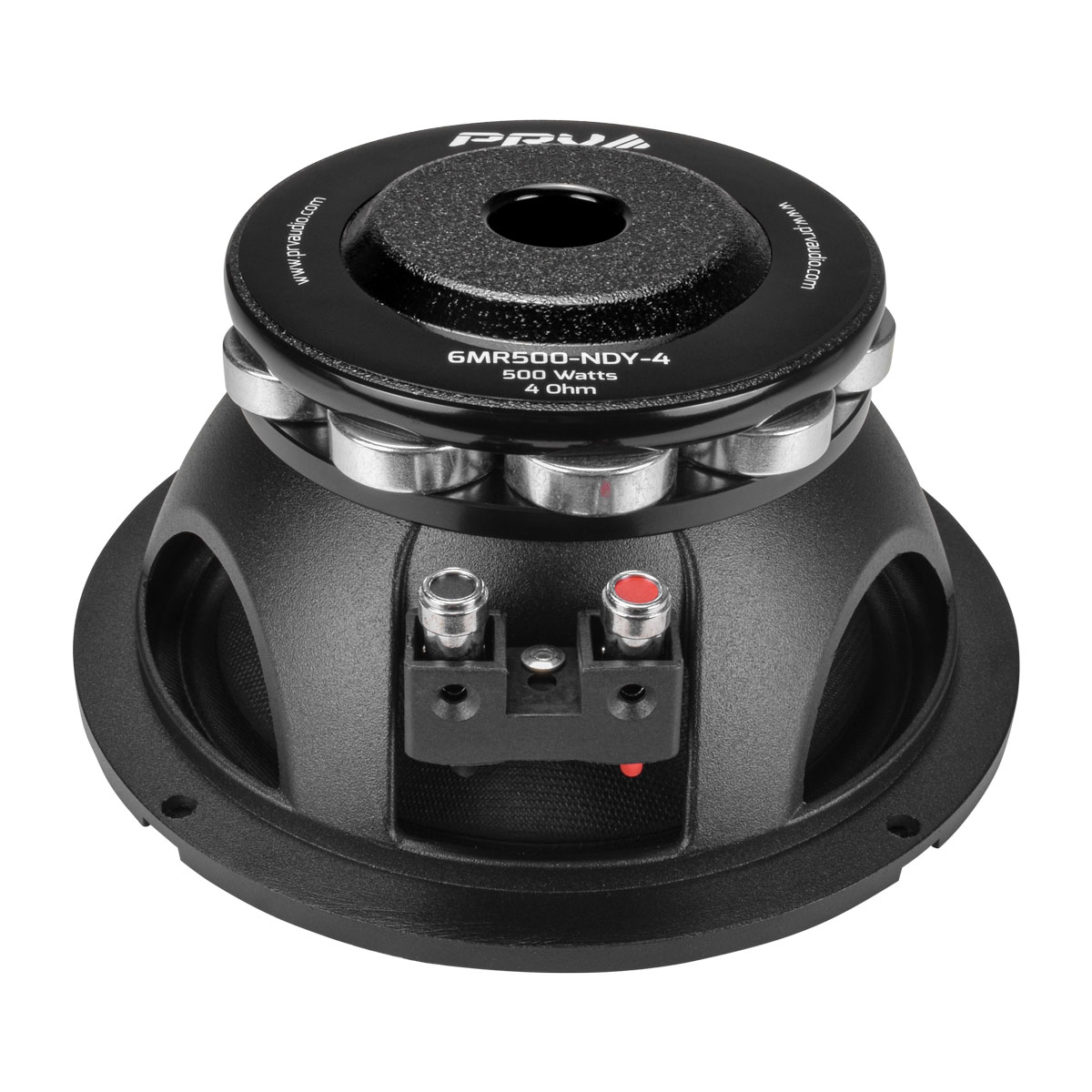

The high end neodymium magnet assembly was chosen to increase sensitivity and power handling. This neodymium is attached to a sturdy reinforced cast aluminum frame to ensure a solid support structure for long lasting play in most any environment. Its light weight of only 3.3 lbs helps keep your enclosures light and is a great use for car audio installers looking for high SPL midrange and upper midrange responses. For car audio enthusiast, this model is also available in 4 ohms.

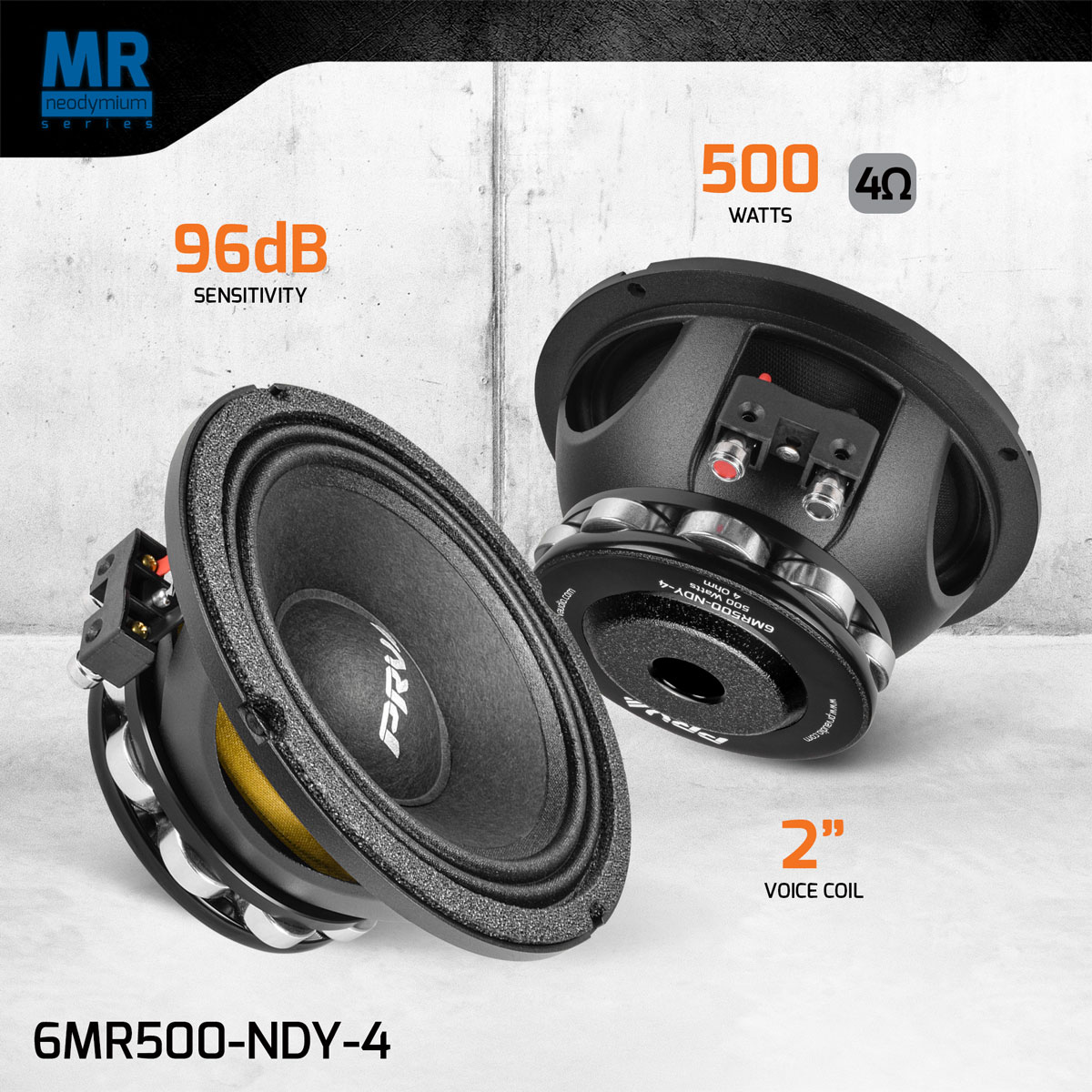

- Nominal Impedance: 4 Ohms
- Rated AES Power Handling (RMS): 250 Watts
- Program Power: 500 Watts
- Sensitivity (1W/1m): 96 dB
- Voice Coil Diameter: 2″
Technical Details
GENERAL SPECIFICATIONS
| Nominal Diameter | 6″ (152 mm) |
| Nominal impedance | 4 Ohms |
| Rated AES Power Handling (RMS) | 250 Watts |
| Program Power | 500 Watts |
| Sensitivity 2.00V at 1m | 96 dB |
| Recommended Hi Pass Crossover** **For Full Power Handling |
220 Hz** **12db Per Octave Crossover |
| Frequency Response at -10dB | 90 – 13,000 Hz |
| Voice Coil Diameter | 2″ (50 mm) |
| Voice Coil Wire | CCAW |
| Voice Coil Winding Depth | 11.2 mm |
| Former Material | Kapton |
| Magnetic Gap Depth | 5.5 mm |
| Frame Material | Die Cast Aluminum |
THIELE-SMALL PARAMETERS
| Equivalent Volume | Vas | 5.14 l |
| Excursion (mathematical)*** | Xmax | 4.42 mm |
| Free Air Resonance | Fs | 99.8 Hz |
| Mechanical Factor | Qms | 23.1 |
| Electrical Factor | Qes | 0.47 |
| Total Factor | Qts | 0.43 |
| Cone Area | Sd | 143 cm² |
| Mechanical Mass | Mms | 14.14 g |
| Bl Factor | Bl | 8.77 Tm |
| Dc Resistance | Re | 3.8 Ohms |
| Inductance | Le | 0.05 mH at 1 kHz |
| Mechanical Mass Without Air | Mmd | 13.17 g |
| Mechanical Compliance | Cms | 0.180 mm/N |
***Xmax=(Voice coil winding depth-Magnetic Gap depth)/2+ Mgnetic Gap Depth/4
EXTRA INFO

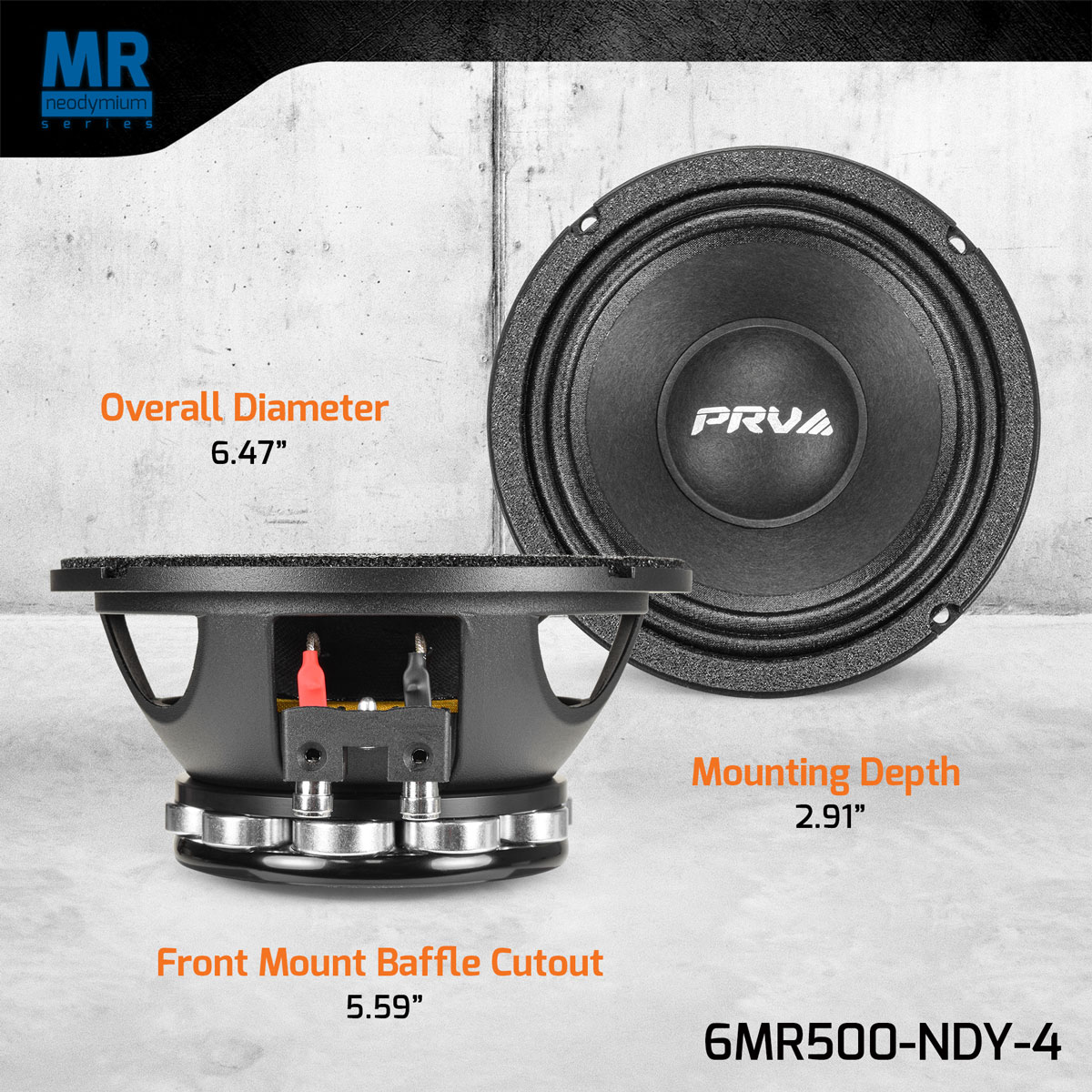

| Overall Diameter | 6.47″ (164.5 mm) |
| Front Mount Baffle Cutout | 5.59″ (142 mm) |
| Mounting Depth | 2.91″ (74 mm) |
| Overall Depth | 3.22″ (82 mm) |
| Net Weight | 3.34 Lbs (1.51 kg) |
| Shipping Weight | 3.64 Lbs (1.65 kg) |
| Carton Dimensions W x L x H | 7.09″ x 7.09″ x 4.37″ (155 x 155 x 95 mm) |
Repair Parts
Recone Kit for 6MR500-NDY-4 Loudspeaker
Customer Reviews

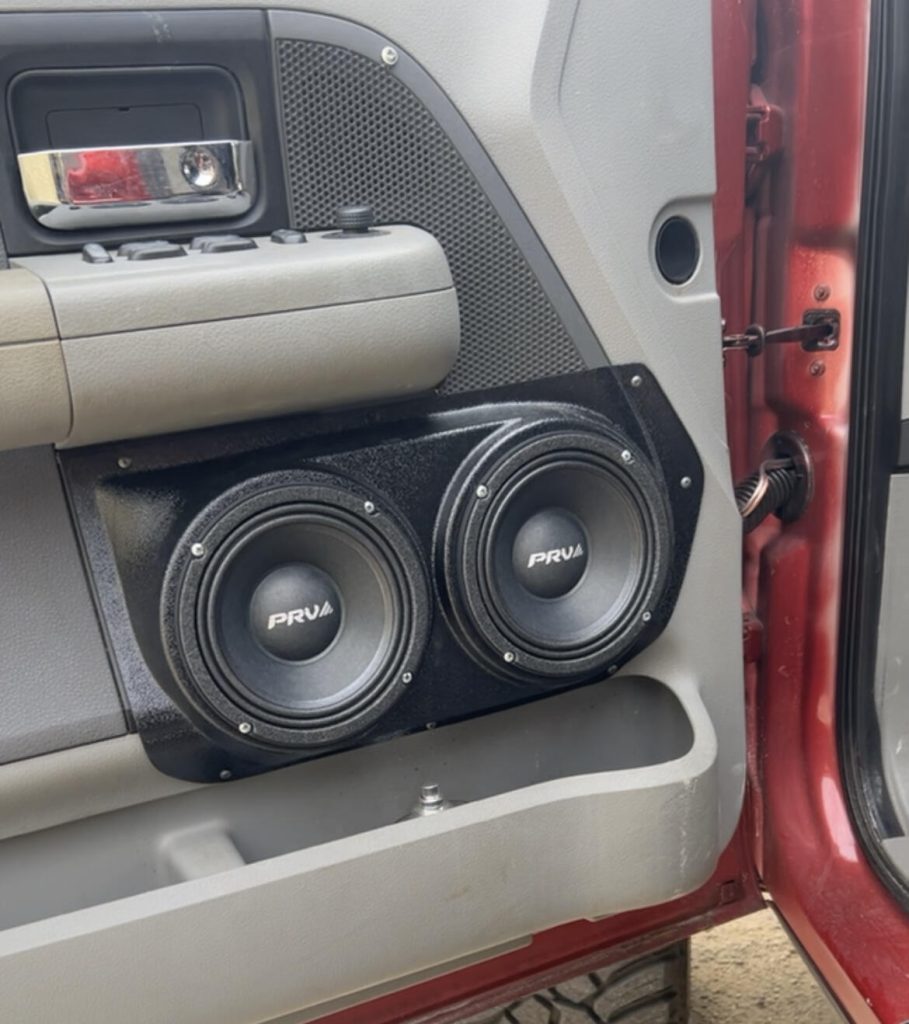

Hands down the loudest and best quality 6.5s I’ve ever put in my doors would give thes a 10/10
