Features

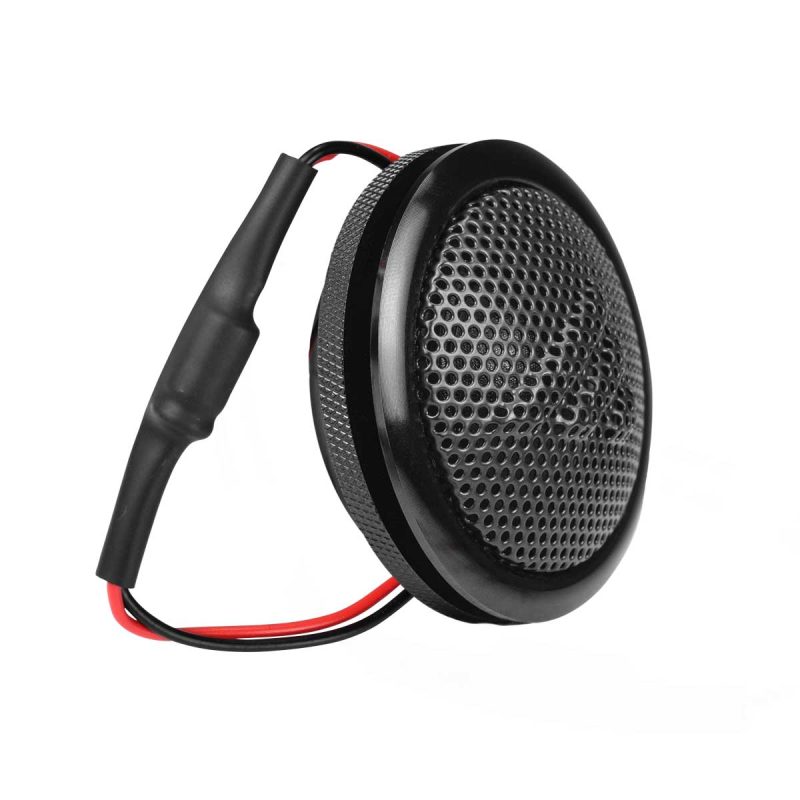

PRV Soft Dome Tweeter TW150SD-4 with Built-In Crossover 240 Watts PAIR / 4 Ohm

The New TW150SD-4 is here to change the silk dome tweeter market (also referred to as a soft dome) with a new design, featuring a large 32mm dome with a 1.1” voice coil able to handle 120 Watts, and offering remarkable clarity and exceptional response above 2Khz.

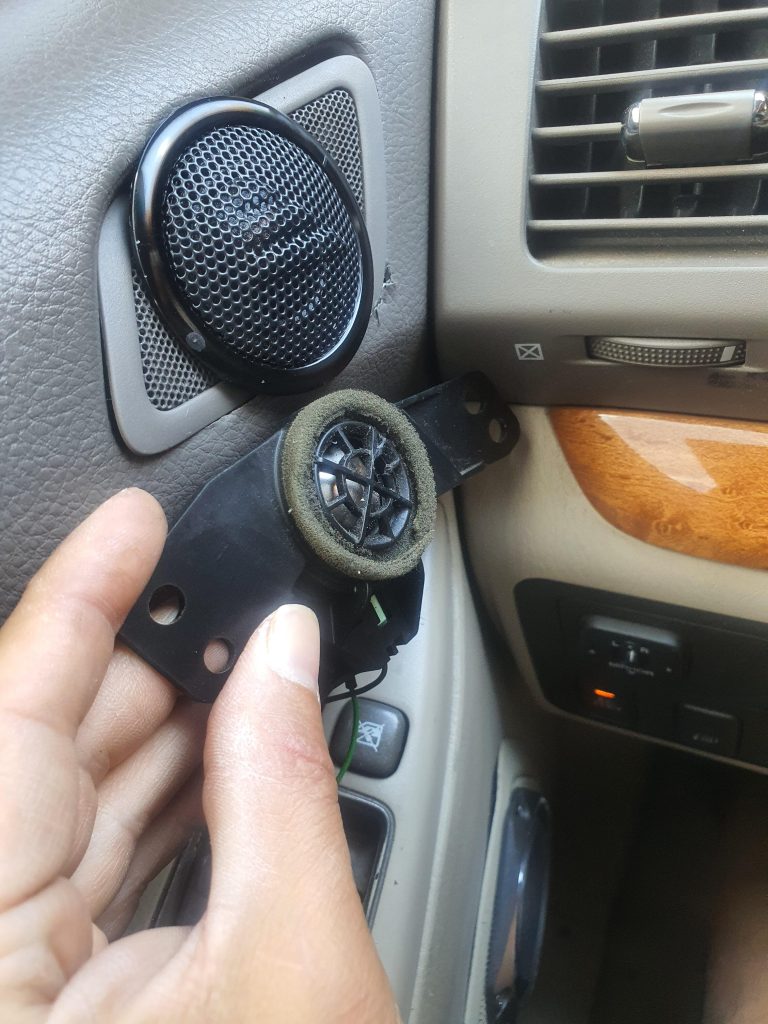

With an overall diameter of 2.37”, and requiring a cutout mounting hole of 1.93”, these 4 Ohm tweeters are a great drop-in upgrade to vehicles with standard 2” factory tweeters, or can even transform your sound system with very little modification, using an easy flush-mount screw-on ring.

Highlights

• 32 mm dome with 1.1″ voice coil – 4 Ohm
• High-Strength neodymium magnet within compact machined housing
• Non-fatigue cloth diaphragm, for extended frequency response
• Ultra-high sensitivity of 94dB to deliver high output.

These tweeters are the preferred choice for high-end car audio and motorcycle systems, made to be easily mountable anywhere, with its shallow profile, allowing installation in tight spaces.

Featuring high-strength neodymium magnets acting as a powerhouse, ensuring high efficiency while still keeping size small.

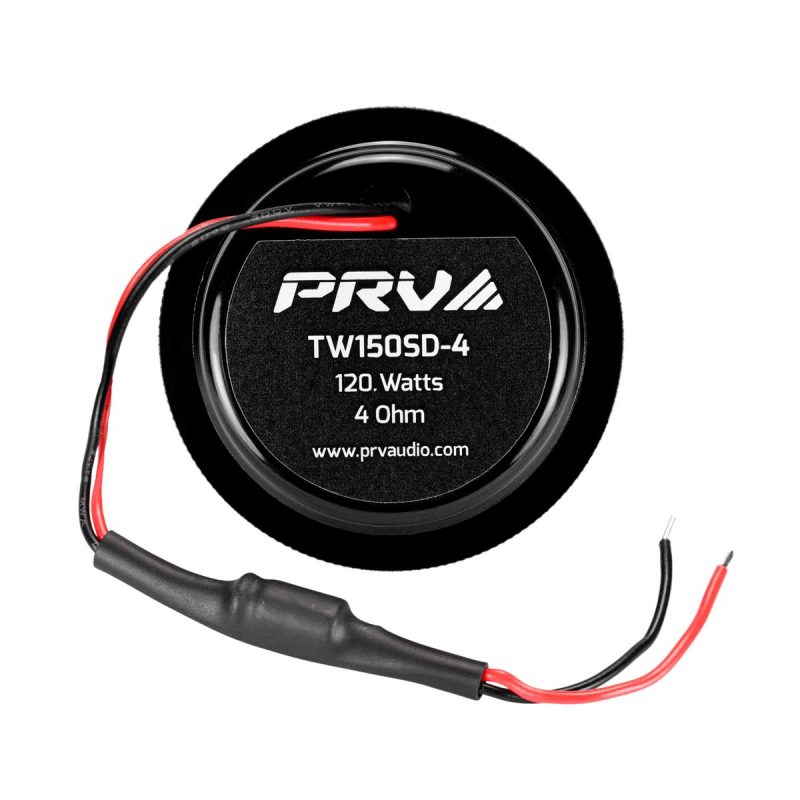

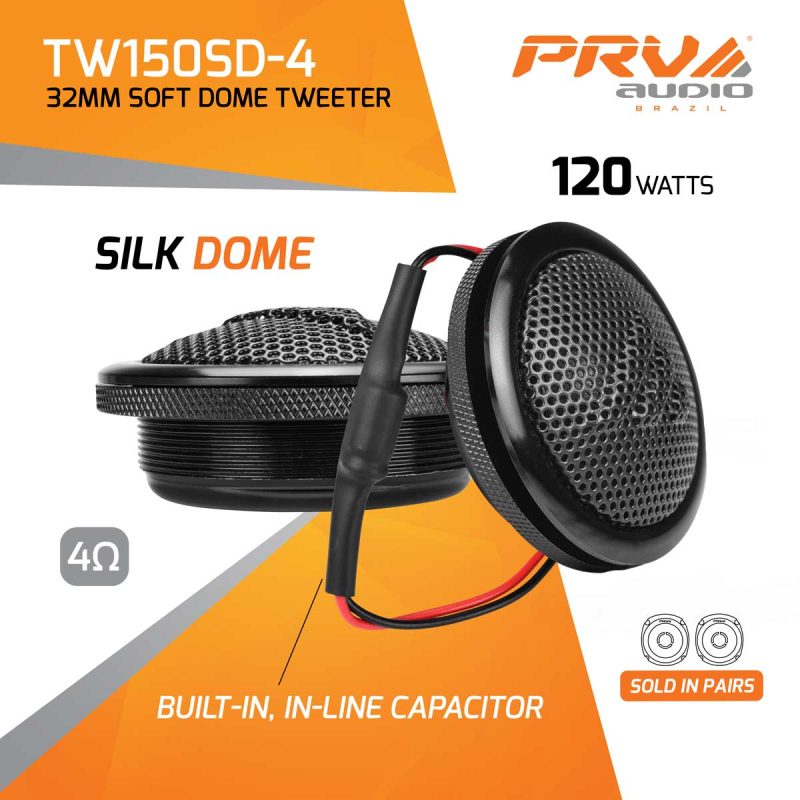

Furthermore, these neodymium tweeters are designed to keep up with high efficiency loudspeakers, having a premium high sound output that easily integrate with your system. The built-in inline capacitor smooths down low frequencies helping deliver clean high frequencies with amazing detail.

GENERAL SPECIFICATIONS

Nominal impedance	4 Ohm
Nominal Power Handling*	60 Watts
Continuous Program Power(RMS)**	120 Watts
Max Peak Power***	240 Watts
Sensitivity 2.00V at 1m	94 dB
Recommended Hi Pass Crossover For Full Power Handling	3500 Hz 12db/oct Crossover
Frequency Response at -10dB	2,000 – 20,000 Hz
Voice Coil Diameter	1.1” (28 mm)
Voice Coil Wire	CCAW
Voice Coil Former Material	Kapton
Diaphragm Material	Silk
Magnet Material	Neodymium

^{*Nominal power handling is defined as the maximum RMS power that the speaker can handle in a 2-hour test with a pink noise with 6dB of crest factor and a bandpass filter with 12db/oct tuned in its usable frequency range.
**Continuous Program Power (RMS) is the maximum power that the speaker can handle considering a regular musical program using our recommended filters, this power can be used to define the optimum amplifier power to avoid a clean signal without clipping or saturation.
***Max Peak Power is the maximum power operation for the speaker, this power is allowed just for a few fractions of a second, usually found just on the peaks of the music. Keeping this power for a little longer timer will damage the speaker.}

EXTRA INFO

Overall Depth	1.03″ (26.2 mm)
Mounting Depth	0.67″ (17 mm)
Overall Diameter	2.37″ (60.2 mm)
Baffle Cutout Diameter	1.93″ (50 mm)
Net Weight (piece)	0.29 lbs (0.13 kg)
Shipping Weight (pair)	0.73 lbs (0.33 kg)
Carton Dimensions W x L x H	2.83″ x 6.18″ x 1.65″ (72 x 157 x 42 mm)
