1" Exit Neodymium Bullet Tweeter

TW400Ti-Nd-4 v2 (PAIR)

In stock

-

  • Titanium Tweeter
  • Neodymium Magnet
  • 106 dB – 120 Watts

$99.91

In stock

PRICE PER PAIR

SKU: TW400Ti-Nd-4 v2 Categories: , Tags: ,

Features

Features

New Evolution of our 1″ exit neodymium bullet tweeters!
Smaller – Motor has been re-designed to be more compact on its total mounting depth.
Improved Designed – Featuring a new concept, easy to replace diaphragm ( solderless )

TW400Ti-Nd-4 v2 (PAIR)

PRV Audio’s TW400Ti-Nd-4 v2 super tweeter (also referred to as a bullet tweeter) is designed to add high output, high frequency response to any speaker system. The titanium diaphragm combines with the durable, yet lightweight, Kapton™ voice coil former for sensitivity levels of up to 106 dB from 4,500 to 20,000 Hz.

Not only does this driver look as good as it sounds, it is also able to take a ton of power! Up to 120 watts of power handling are on tap with a 12 dB/octave crossover at 6,000 Hz to keep up with the most demanding professional audio, high output home audio, and high SPL car audio systems. A capacitor is included for protection from damaging frequencies at high power. Mounting hardware included.


Add detail to any speaker with PRV Audio’s TW400Ti-Nd-4 v2 titanium bullet super tweeter!

TW400Ti-Nd-4-v2---Highlight---Easy-Replacement-Diaphragm-Assembly-22

  • 1″ Bullet Super Tweeter
  • Nominal Impedance: 4Ω
  • Titanium diaphragm for an accurate and detailed response
  • Screw fittings make rear mounting easy and simple
  • Voice Coil Diameter: 1″

Technical Details

GENERAL SPECIFICATIONS

Nominal impedance 4 Ohms
Nominal Power Handling* 60 Watts
Continuous Program Power (RMS)** 120 Watts
Max Peak Power*** 240 Watts
Sensitivity 2.00V at 1m 106 dB
Recommended High Pass Crossover
For Full Power Handling
6000 Hz
12db/oct Crossover
Frequency Response at -10dB 4,500 – 20,000Hz
Voice Coil Diameter 1.0″ (25.4 mm)
Voice Coil Wire Aluminum
Voice Coil Former Material Kapton
Diaphragm Material Titanium
Flux Density 1.45 T
Magnet Material Neodymium

*Nominal power handling is defined as the maximum RMS power that the speaker can handle in a 2-hour test with a pink noise with 6dB of crest factor and a bandpass filter with 12db/oct tuned in its usable frequency range.
**Continuous Program Power (RMS) is the maximum power that the speaker can handle considering a regular musical program using our recommended filters, this power can be used to define the optimum amplifier power to avoid a clean signal without clipping or saturation.
***Max Peak Power is the maximum power operation for the speaker, this power is allowed just for a few fractions of a second, usually found just on the peaks of the music. Keeping this power for a little longer timer will damage the speaker.

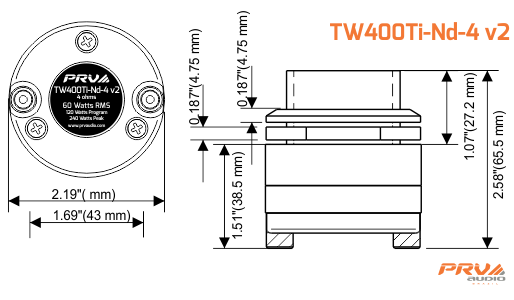

EXTRA INFO

Overall Depth 2.58″ (65.5 mm)
Mounting Depth 1.51″ (38.5 mm)
Overall Diameter 2.19″ (55.7 mm)
Cutout Diameter 1.69″ (43 mm)
Net Weight 0.72 lbs (0.33 kg)
Shipping Weight (pair) 2.14 lbs (0.97 kg)
Carton Dimensions W x L x H 6.02″ x 3.26″ x 3.54″
(153 x 83 x 90 mm)

Repair Parts

WARNING: Cancer and Reproductive Harm – www.p65warnings.ca.govView our Return Policy.

Customer Reviews

Based on 20 reviews
100%
(20)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
J
Jaiden Nunez
Very clear

Tweeters sound very clear and easy to install can handle some serious power great for my doors

R

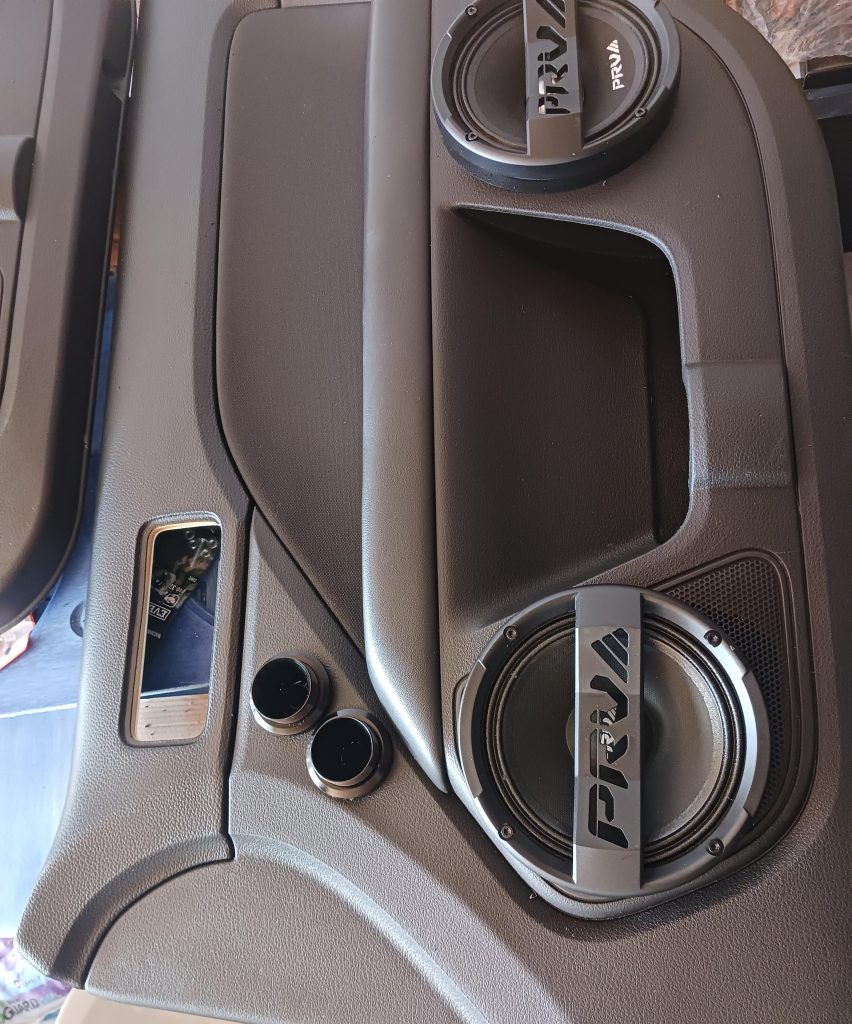

Robert Archer Jr
