Features

Screw-on shallow waveguide WGP10-25 SLIM from PRV Audio is an exponential horn to consider! At 1.75″ of depth, this horn makes installation easy in tight spaces.

A standard 1-3/8″-18 TPI Screw on mount is compatible with any PRV 1″ exit screw-on compression drivers. The WGP10-25 is constructed from non-resonant ABS plastic, making it perfect for outdoor or automotive use. Acoustic loading is maintained down to 1400 Hz.

Slim version of the famous WG11-25 horn, with a smaller faceplate by 3/8 overall, making it not only shallower but also smaller!

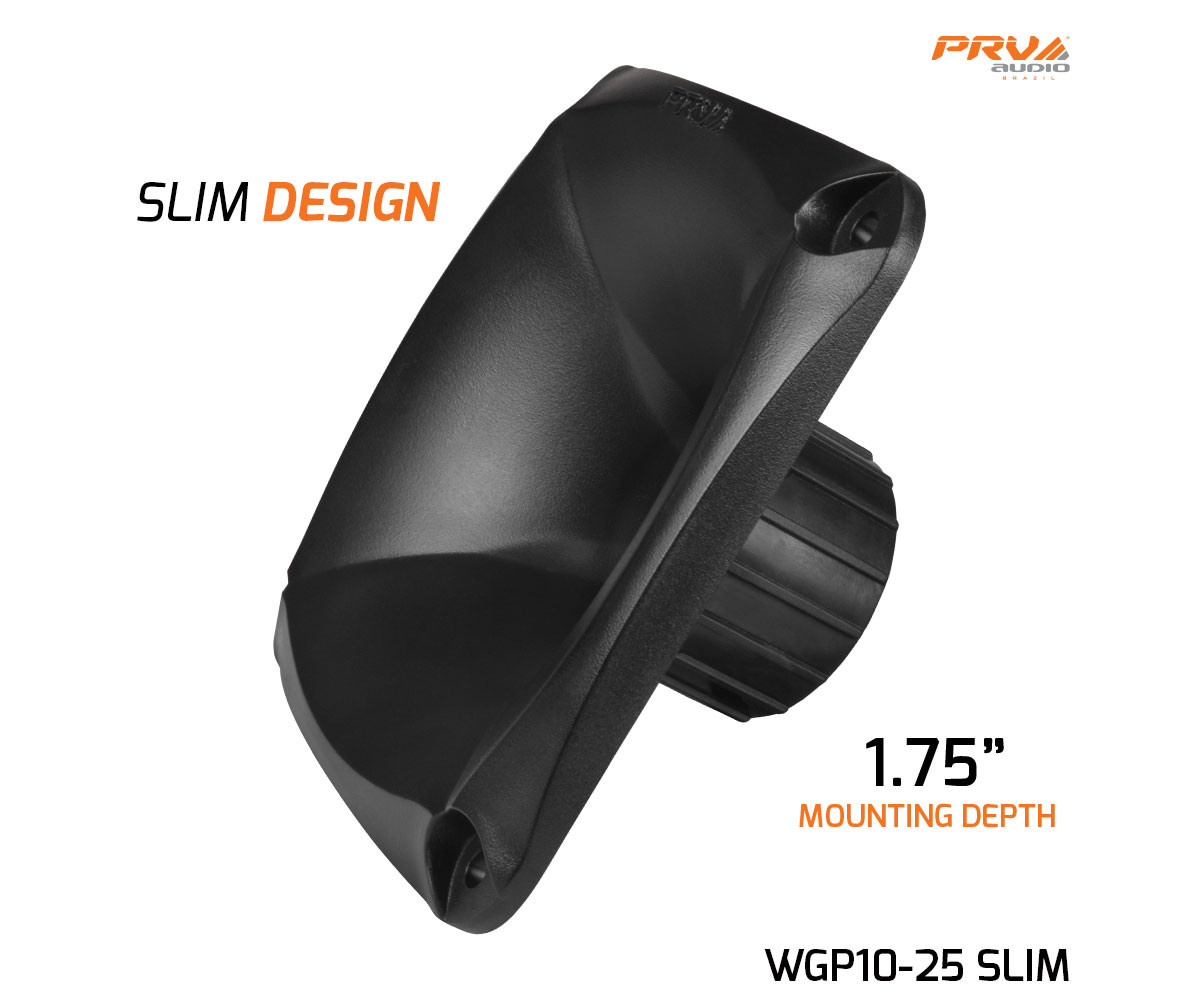

• Its slim mounting depth of 1.75″, with its compact 4.15″ x 4.15″ faceplate, takes up very little mounting space, allowing you to mount a compression driver between speakers.
• Designed to deliver big performance in very limited space, when you add any PRV 1″ Exit Driver to it. Its baffle cutout is between 3.50” to 3.75” Diameter, which it makes easy to front mount drivers like the D250Ti-S or DT175Ph-S.
• Its 75° x 75° dispersion pattern is ideal for short throw applications
• Non-resonant reinforced plastic construction, with unique pattern dispersion to minimize reflection for a more consistent sound
• Recommended minimum crossover frequency of 1,400 Hz

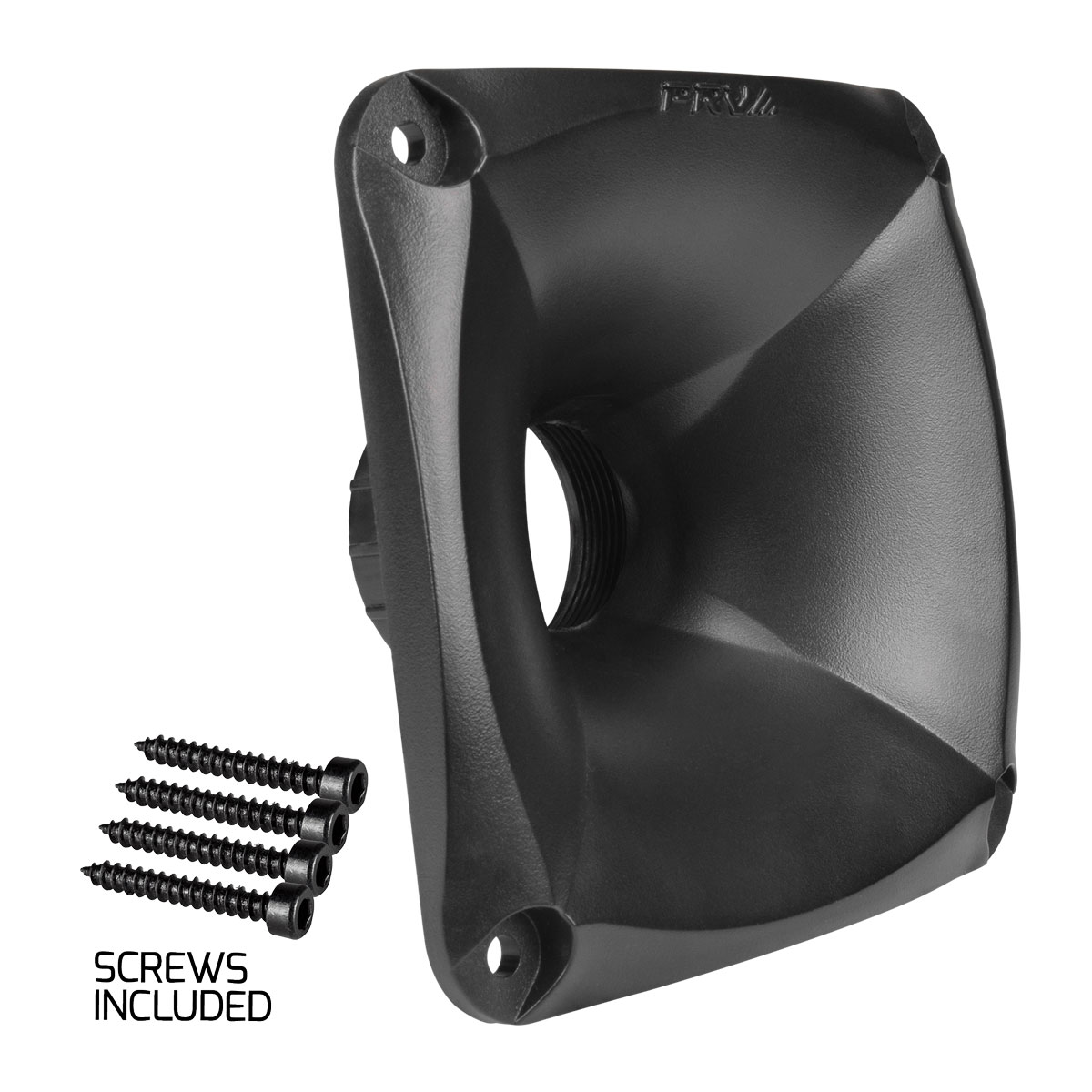

• Includes 4x screws

GENERAL SPECIFICATIONS

Throat Diameter	1” (25.4mm)
Mounting Type	Screw-on
Thread dimensions	1-3/8″
Nominal Coverage
Horizontal	75°
Vertical	75°
Flare type	Exponential
Material	Plastic (ABS)
Finish / Coating	Black

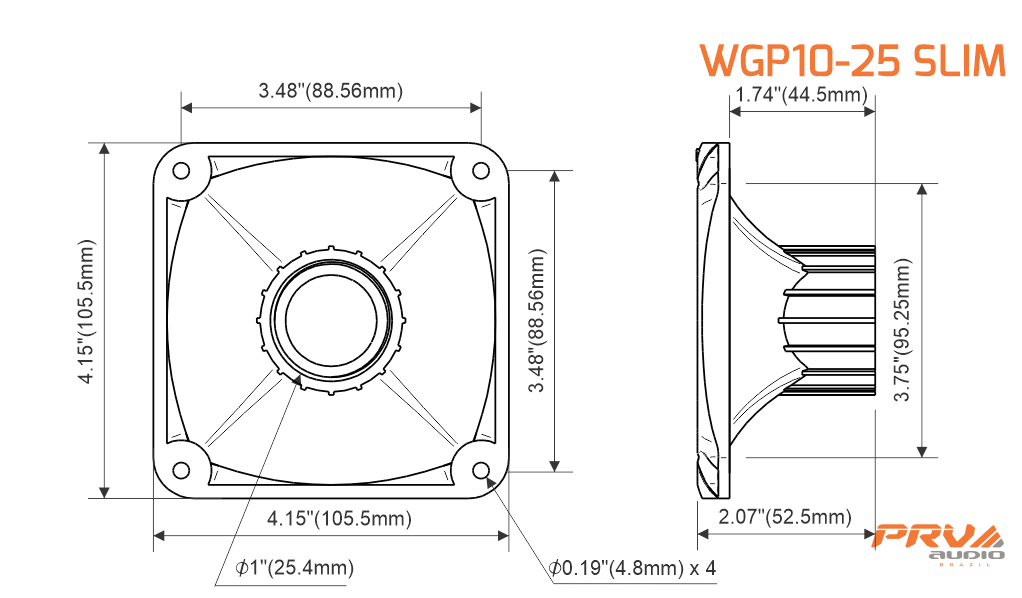

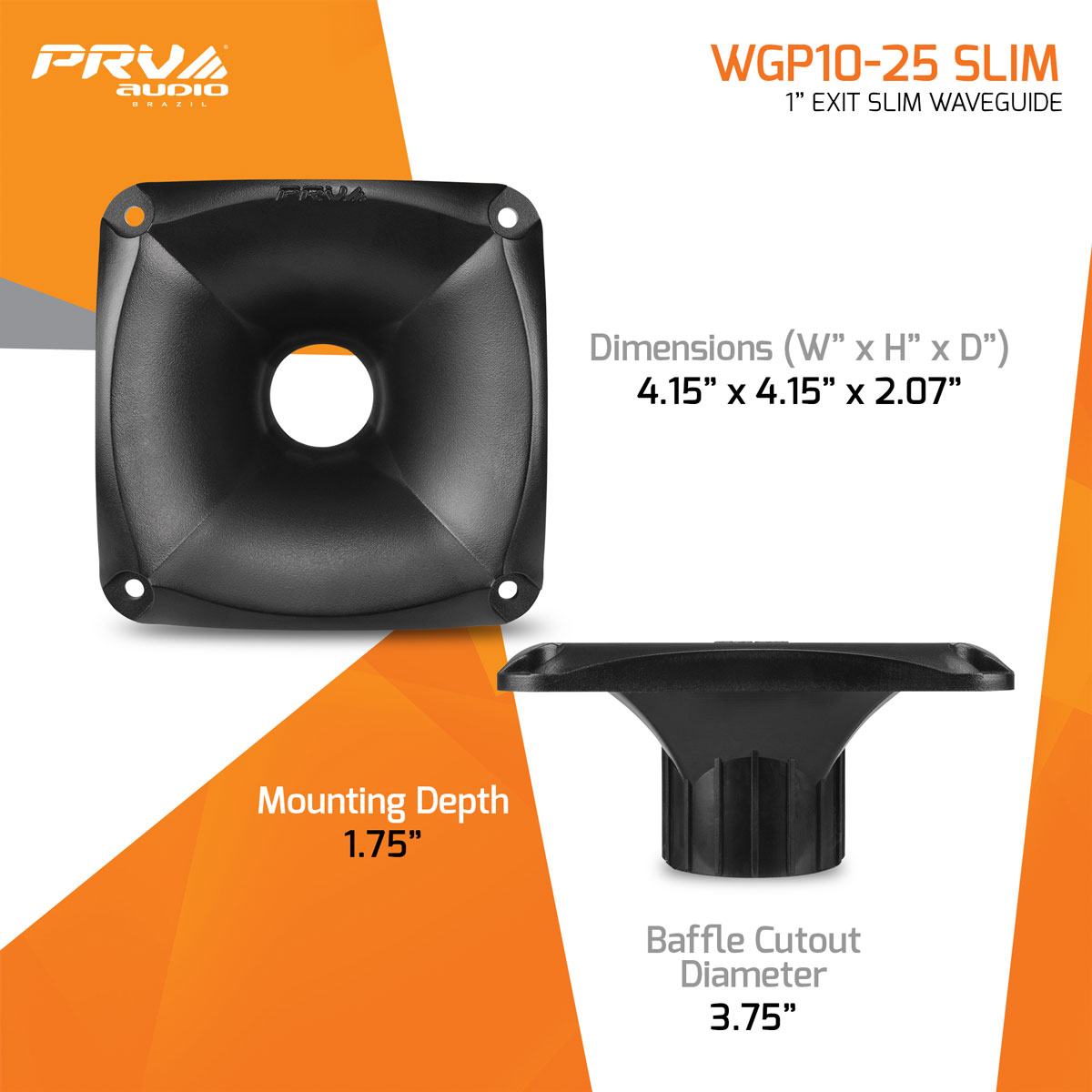

Dimensions
Height	4.15” (105.5mm)
Width	4.15” (105.5mm)
Depth	2.07” (52.5mm)
Mount Depth	1.75” (44.5mm)
Baffle Cutout
Diameter	3.75″ (95.5mm)
Net weight	0.15lb (0.07kg)
