2" EXIT WAVEGUIDE
WGP14-50 COPPER DUAL TONE
-
- 2″ Exit Bolt-On
- 5.02″ Mounting Depth
- Copper Dual Tone
$25.91
In stock
PRICE FOR SINGLE UNIT
Features
Features

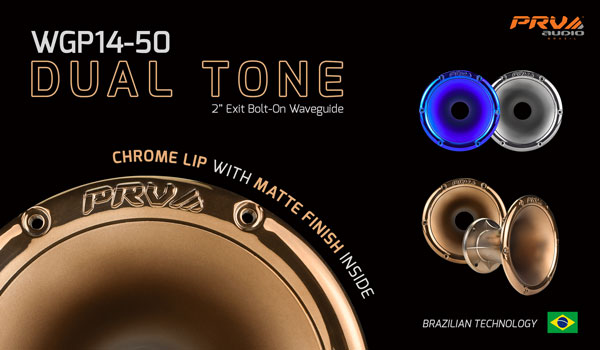

Give your Compression Driver an unique LOOK with WGP14-50 DUAL TONE finish horns. With a 2″ throat and 45° x 45° dispersion, this is perfect for applications where a tight coverage pattern is needed. Its new Dual Tone finish is composed of a chrome lip and matte finish inside giving an unique finishing, making this new series the most unique horn in the car audio market
Highlights
- 2″ throat with standard 4-bolt mounting pattern
- Non-resonant reinforced plastic construction
- Chrome lid with matte UV resistant finish for use in PROAudioOnWheels® application
- 45° x 45° Nominal Coverage with Limit frequency of 600 Hz
Technical Details
GENERAL SPECIFICATIONS
| Throat Diameter | 2” (50.8 mm) |
| Mounting Type | Bolt-on |
| Hole Dimensions | 0.31″ 8 mm |
| Bolt Circle | 4″ 101.6 mm |
| Nominal Coverage | |
| Horizontal | 45° |
| Vertical | 45° |
| Flare type | Exponential |
| Material | Plastic (ABS) |
| Finish / Coating | Several Colors |

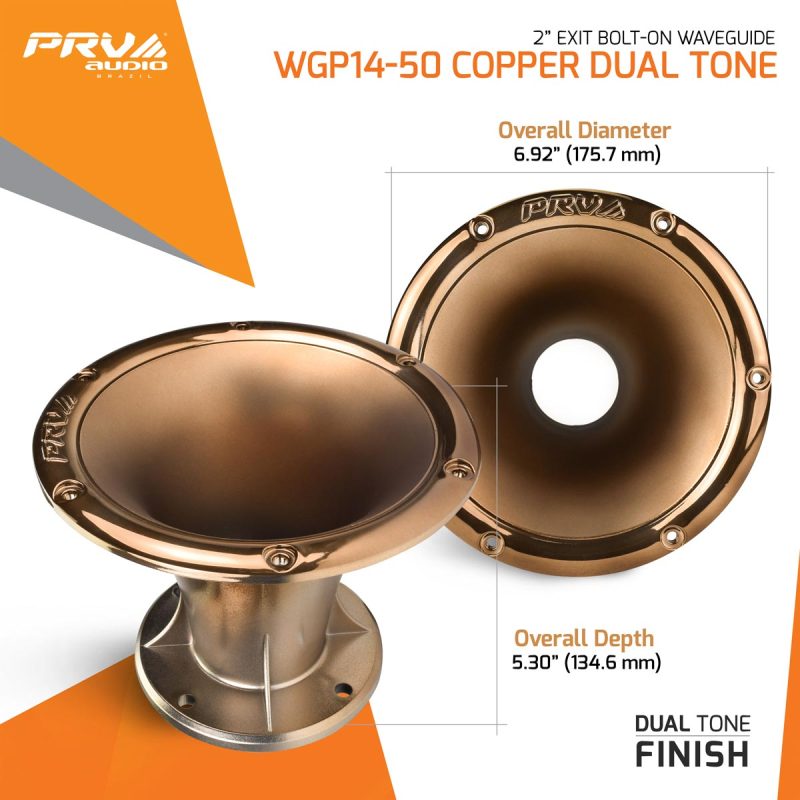

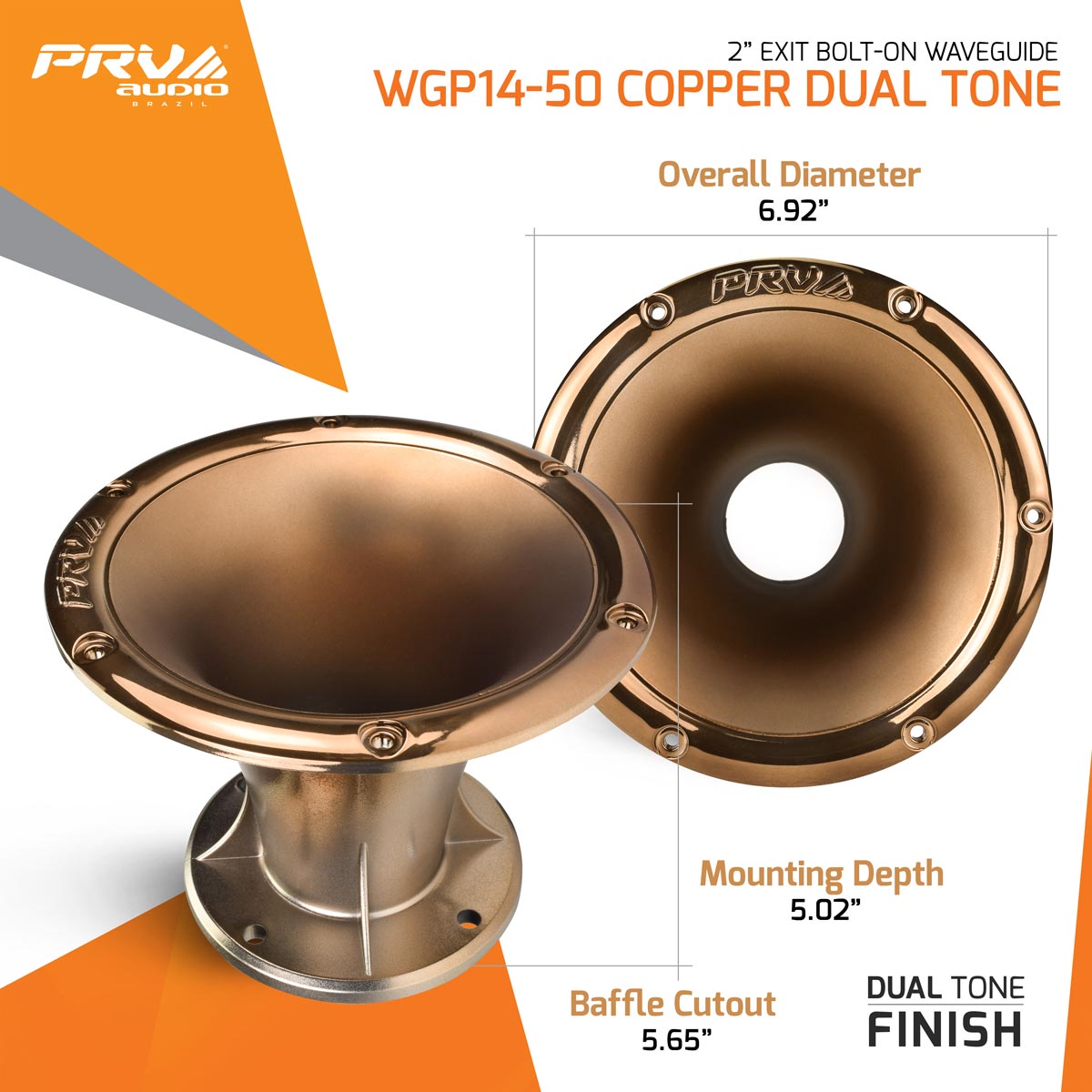

| Dimensions | |
| Height | 6.92″ (175.7 mm) |
| Width | 6.92″ (175.7 mm) |
| Depth | 5.30″ (134.6 mm) |
| Mounting Depth | 5.02″ (127.6 mm) |
| Baffle Cutout | |
| Diameter Circle | 5.75″ (146 mm) |
| Net weight | 0.51 lb (0.23 kg) |
